Taoglas

- Taoglas, the leading M2M antenna provider, delivers an extensive range of automotive, tracking, utility metering, and remote monitoring antenna solutions.

Additionaly Taoglas provides full wireless devices services, including antenna and device RF consultancy, custom antenna design, device noise debugging and testing services, and device certification and approval.

Founded in 2004, Taoglas has offices in Ireland, Taiwan, and the USA. Taoglas in Ireland, the USA, and Taiwan carry out Taoglas’ antenna design with production managed by Taoglas Taiwan.

Taoglas customers include top tier automotive, tracking, metering, and medical companies worldwide. For more information, visit www.taoglas.com.


Part Number

Manufacturer

Description

Unit Price

In Stock

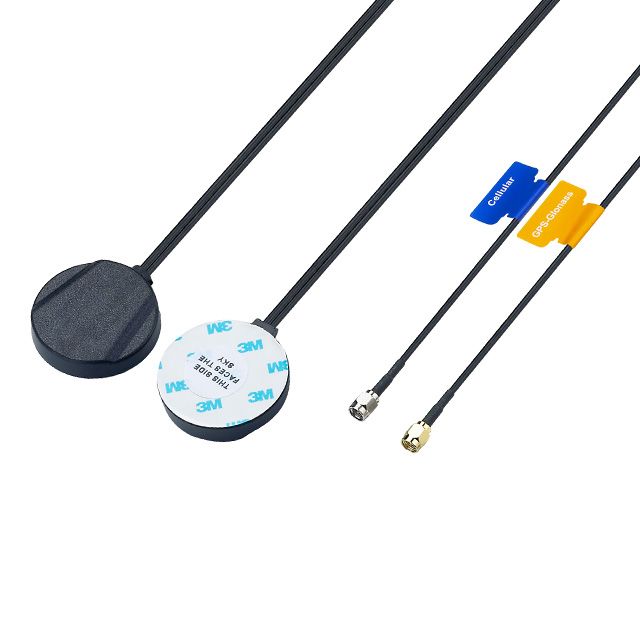

MA204.A.LB.002

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stingray
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 1.5GHz
Frequency Range : 800MHz ~ 2.2GHz
Antenna Type : Module
Number of Bands : 1
VSWR : 3, 2.5
Return Loss : -
Gain : 28dB
Power - Max : -
Features : LNA, Filter
Termination : Connector, SMA Male
Ingress Protection : IP65
Mounting Type : Adhesive
Height (Max) : 0.425" (10.80mm)
Applications : CDMA, GPS, GSM, UMTS

191 in stock

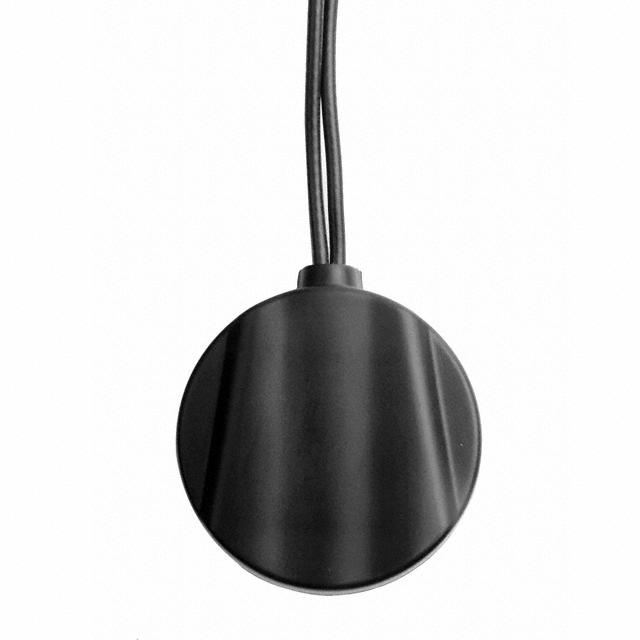

MA206.A.AB.004

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stingray
Part Status : Active
Frequency Group : UHF (1 GHz ~ 2 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 1.575GHz, 2.4GHz
Frequency Range : 1.573GHz ~ 1.577GHz, 2.4GHz ~ 2.5GHz
Antenna Type : Module
Number of Bands : 2
VSWR : 1.92
Return Loss : -26dB
Gain : 28dB
Power - Max : -
Features : LNA
Termination : Cable (3M) - SMA Male (1), RP-SMA Male (2)
Ingress Protection : IP65
Mounting Type : Adhesive
Height (Max) : 0.425" (10.80mm)
Applications : GPS

91 in stock

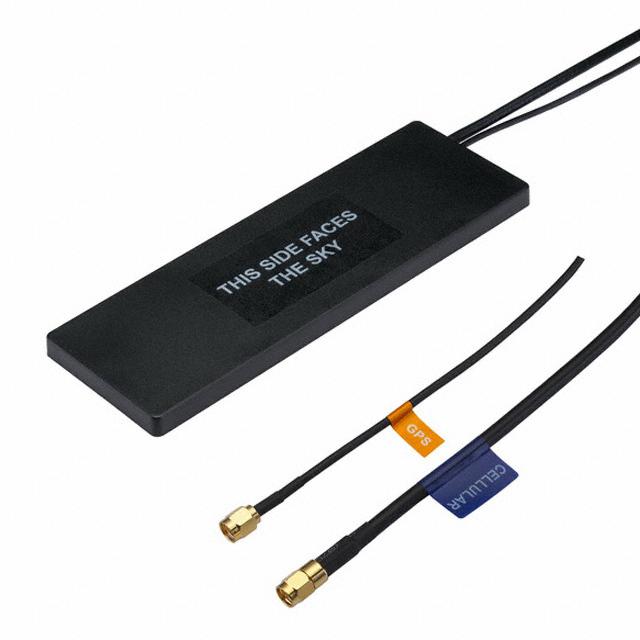

MA208.A.AB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stream
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range : 700MHz, 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz
Antenna Type : Flat Bar
Number of Bands : 7
VSWR : 3.3, 3.6, 2.2
Return Loss : -
Gain : 3.5dBic, 2.16dBi, 0.42dBi
Power - Max : -
Features : LNA, Filter
Termination : Cable (3M) - SMA Male (2)
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.354" (9.00mm)
Applications : CDMA, DCS, GPS, GSM, LTE, PCS, UMTS

174 in stock

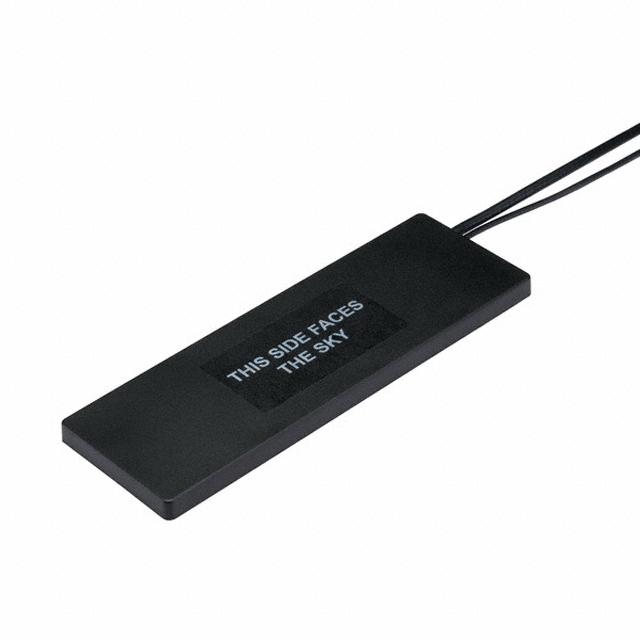

MA208.A.AB.007

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stream
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 1.5GHz
Frequency Range : 700MHz ~ 2.2GHz
Antenna Type : Flat Bar
Number of Bands : 1
VSWR : 3.5
Return Loss : -
Gain : -
Power - Max : -
Features : -
Termination : Connector, Fakra
Ingress Protection : -
Mounting Type : Adhesive
Height (Max) : 0.354" (9.00mm)
Applications : -

173 in stock

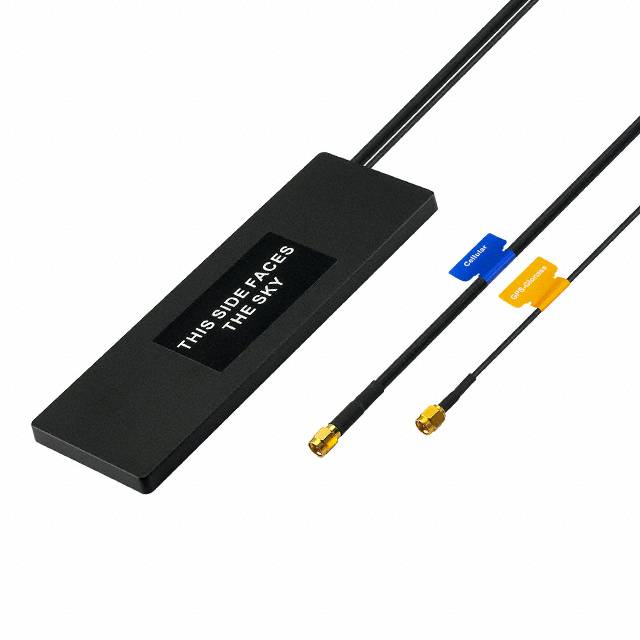

MA209.A.LB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stream Two
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 700MHz, 892MHz, 2GHz
Frequency Range : 700MHz, 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz
Antenna Type : Flat Bar
Number of Bands : 3
VSWR : 1.24, 1.27
Return Loss : -10dB
Gain : 1.98dBi, 3.25dBi
Power - Max : -
Features : LNA, Filter
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.157" (4.00mm)
Applications : CDMA, GPS, GSM, LTE, UMTS

74 in stock

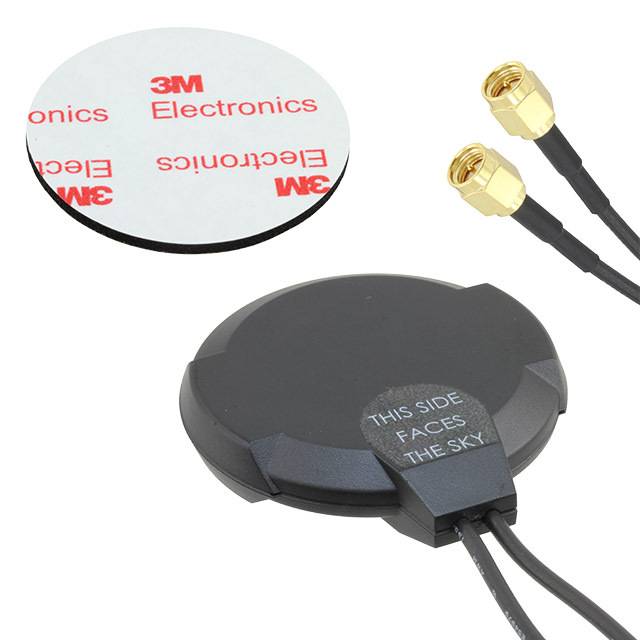

MA220.LB.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Optimus
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz
Frequency Range : 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.69GHz
Antenna Type : Module
Number of Bands : 11
VSWR : 1.92
Return Loss : -5dB
Gain : -1.54dBi, -0.53dBi, -0.53dBi, -1.07dBi, 3dBic, -0.1dBi, 0.72dBi, 0.89dBi, -2.4dBi, -1.59dBi
Power - Max : 5W
Features : LNA
Termination : Cable (3M) - SMA Male (2)
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.472" (12.00mm)
Applications : DCS, GLONASS, GPS, GSM, LTE, PCS, UMTS, WCDMA, Wi-Fi

215 in stock

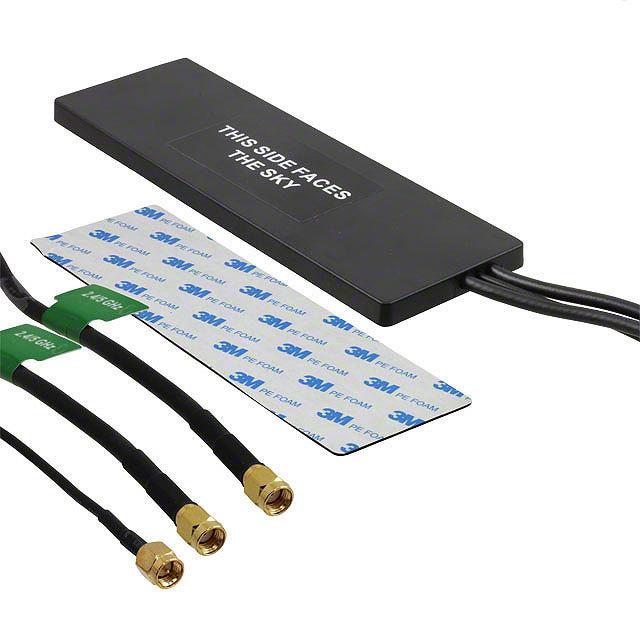

MA230.LBC.002

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stream
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) : 700MHz, 892MHz, 2GHz
Frequency Range : 700MHz, 824MHz ~ 960MHz, 1.85GHz ~ 2.17GHz
Antenna Type : Flat Bar
Number of Bands : 3
VSWR : 3.3, 3.6
Return Loss : -18dB
Gain : 2.16dBi, 0.42dBi
Power - Max : -
Features : LNA, Filter
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.354" (9.00mm)
Applications : CDMA, GPS, GSM, LTE, UMTS, WLAN

79 in stock

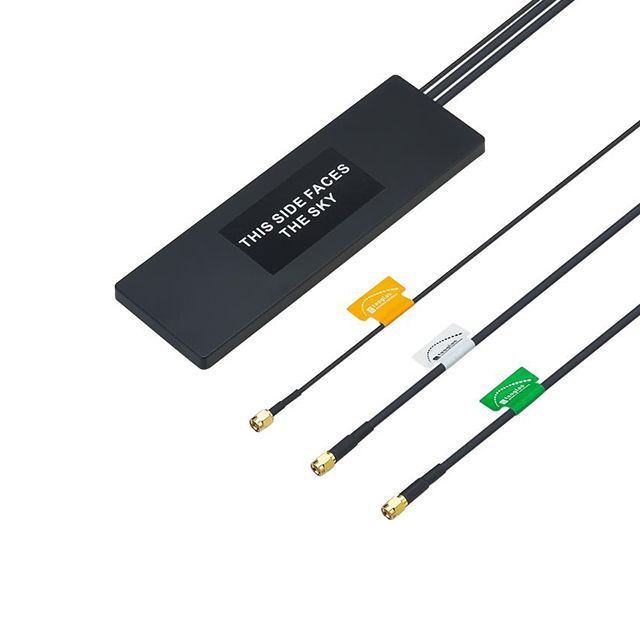

MA231.LBC.003

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Stream
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 830MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.4GHz, 2.6GHz, 5.5GHz
Frequency Range : 700MHz ~ 960MHz, 1.575GHz, 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.48GHz, 2.5GHz ~ 2.69GHz, 5.15GHz ~ 5.85GHz
Antenna Type : Flat Bar
Number of Bands : 6
VSWR : 3
Return Loss : -
Gain : 2.9dBi
Power - Max : -
Features : -
Termination : Connector, RP-SMA Male, SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.354" (9.00mm)
Applications : Galileo, GLONASS, GPS

24 in stock

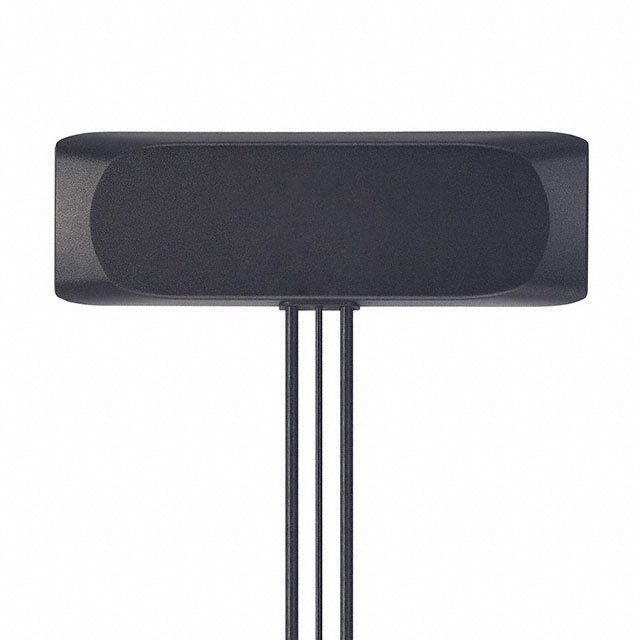

MA240.LBI.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Genesis
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 700MHz, 850MHz, 900MHz, 1.575HGz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.5GHz, 3.5GHz
Frequency Range : 698MHz ~ 896MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.41GHz ~ 3.49GHz
Antenna Type : Flat Bar
Number of Bands : 10
VSWR : 1.5
Return Loss : -10dB
Gain : 3.11dBi, 0.98dBi, 0.99dBi, 1.67dBi, 0.37dBi, 2.46dBi, 2.52dBi, 2.33dBi, 3.78dBi, 3.56dBi
Power - Max : -
Features : LNA
Termination : Cable (3M) - SMA Male (2)
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.500" (12.70mm)
Applications : GLONASS, GPS, LTE

125 in stock

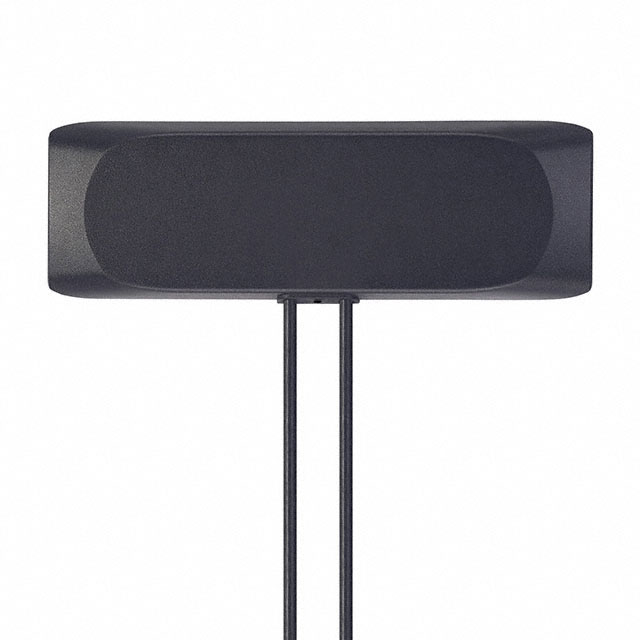

MA241.BI.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : Genesis
Part Status : Active
Frequency Group : UHF (300 MHz ~ 1 GHz), UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) : 797MHz, 2.2GHz
Frequency Range : 698MHz ~ 896MHz, 1.71GHz ~ 2.7GHz
Antenna Type : Flat Bar
Number of Bands : 2
VSWR : 3.5
Return Loss : -10dB
Gain : 5.87dBi
Power - Max : -
Features : -
Termination : Connector, SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.488" (12.40mm)
Applications : LTE

372 in stock

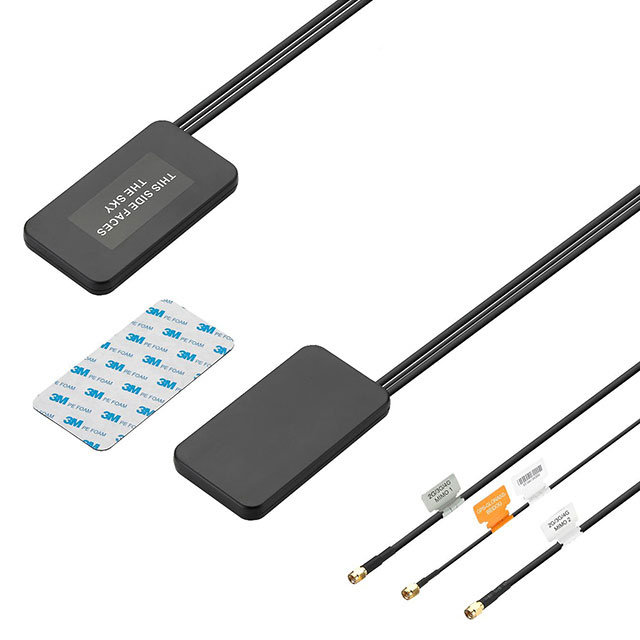

MA250.A.LBI.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz
Frequency Range : 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz
Antenna Type : Module
Number of Bands : 4
VSWR : 3, 2
Return Loss : -10dB, -6dB
Gain : 28dB
Power - Max : 5W
Features : LNA, Filter
Termination : Cable (2M) - SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.551" (14.00mm)
Applications : BEIDOU, GLONASS, GPS, LTE

147 in stock

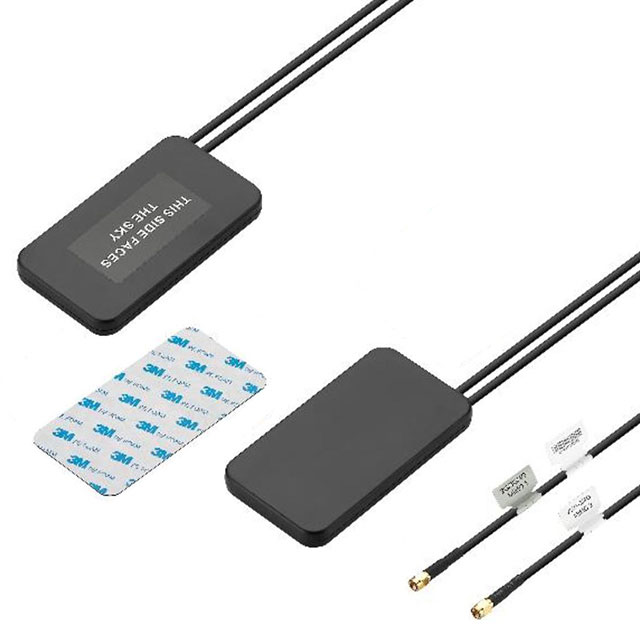

MA251.A.BI.001

Taoglas

Manufacturer : Taoglas Limited
Packaging : Bulk
Series : -
Part Status : Active
Frequency Group : Wide Band
Frequency (Center/Band) : 750MHz, 892MHz, 1.9GHz, 2.6GHz
Frequency Range : 698MHz ~ 803MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz
Antenna Type : Module
Number of Bands : 5
VSWR : -
Return Loss : -6dB
Gain : 5.6dBi
Power - Max : 5W
Features : -
Termination : Cable (2M) - SMA Male
Ingress Protection : IP67
Mounting Type : Adhesive
Height (Max) : 0.551" (14.00mm)
Applications : LTE

20 in stock
