Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock

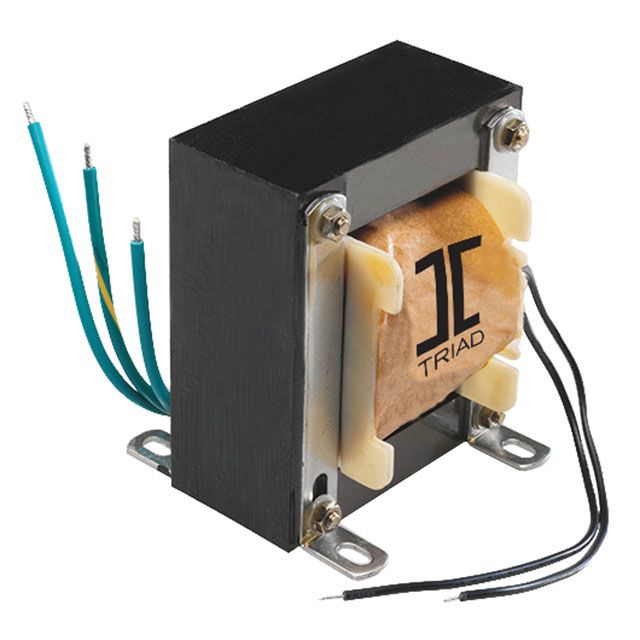

Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 15.5V, Series 32V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 63 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.42mm L x 66.68mm W
Height - Seated (Max) : 85.73mm
Voltage - Isolation : 1500Vrms
Weight : 4 lbs (1.8kg)
0
355 in stock

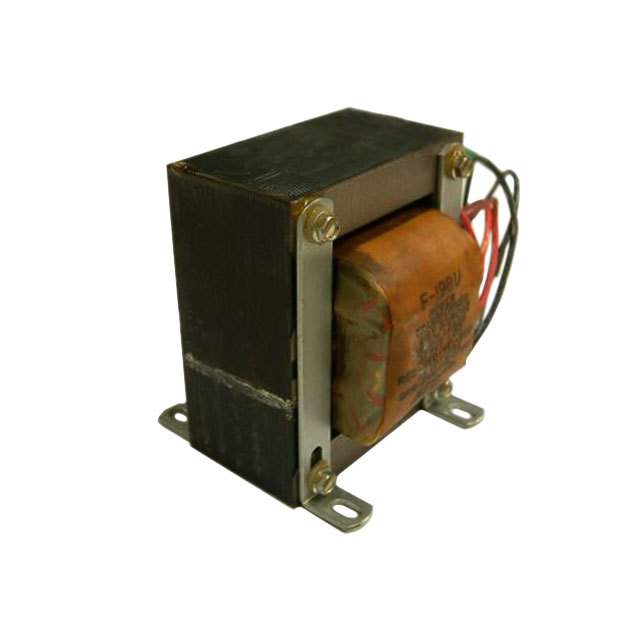

Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 15.5V, Series 32V
Current - Output (Max) : Parallel 4A, Series 1A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 63 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 79.38mm L x 74.60mm W
Height - Seated (Max) : 95.25mm
Voltage - Isolation : 1500Vrms
Weight : 4.7 lbs (2.1kg)
0
5 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Multiple Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 15.5V, 32V
Current - Output (Max) : 6A, 1A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 122 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 80.95mm L x 79.38mm W
Height - Seated (Max) : 95.25mm
Voltage - Isolation : 1500Vrms
Weight : 6.2 lbs (2.8kg)
0
10 in stock

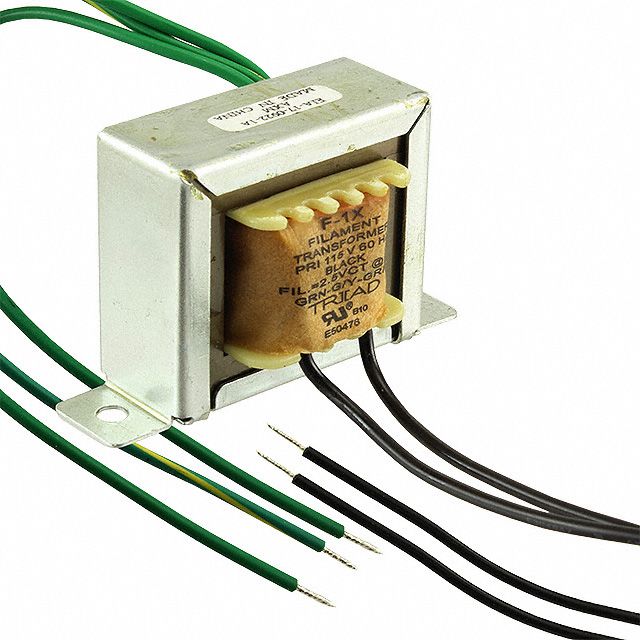

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 2.5V
Current - Output (Max) : 3A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 7.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.42mm L x 41.28mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.68 lb (308.44g)
0
34 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 110mA, Series 55mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
530 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 110mA, Series 55mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
70 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 2500Vrms
Weight : 0.8 lb (362.87g)
0
68 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 240mA, Series 120mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 30.15mm
Voltage - Isolation : 2500Vrms
Weight : 0.25 lb (113.4g)
0
57 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 3.6A, Series 1.8A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
20 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 3.6A, Series 1.8A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 36 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 2500Vrms
Weight : 1.1 lbs (499g)
0
32 in stock

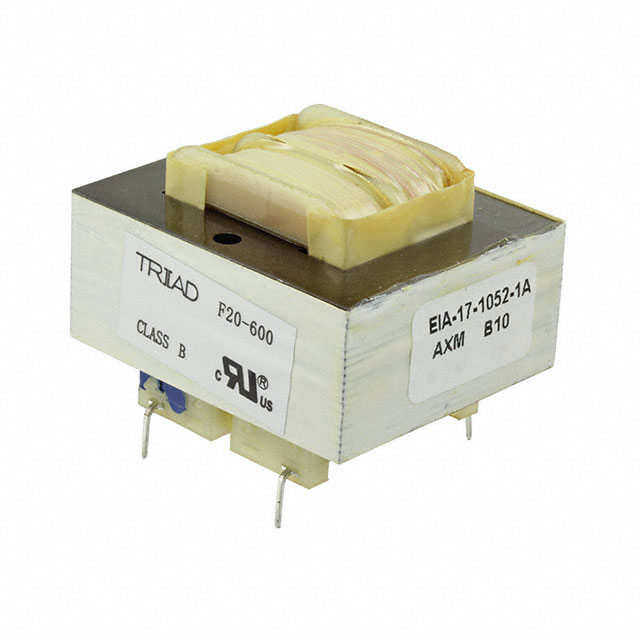

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 33.32mm
Voltage - Isolation : 2500Vrms
Weight : 0.44 lb (199.58g)
0
29 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1.2A, Series 600mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 2500Vrms
Weight : 0.7 lb (317.51g)
0
390 in stock
