Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock

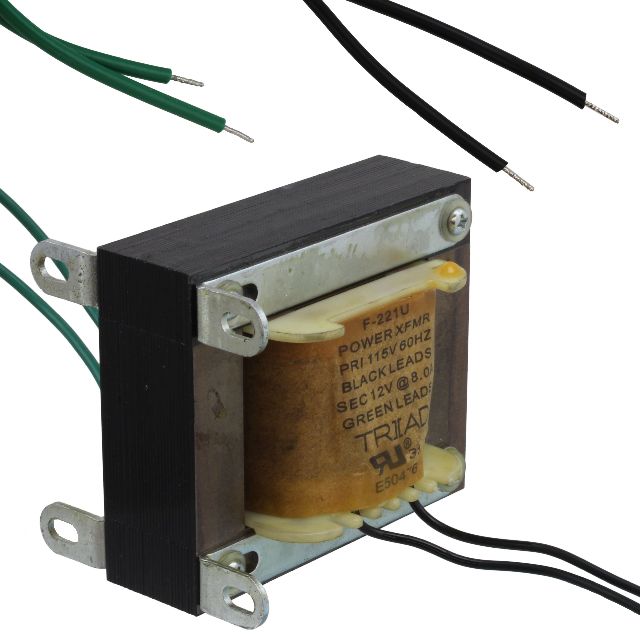

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 8A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 96 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 79.38mm L x 63.50mm W
Height - Seated (Max) : 96.82mm
Voltage - Isolation : 1500Vrms
Weight : 4 lbs (1.8kg)
0
17 in stock

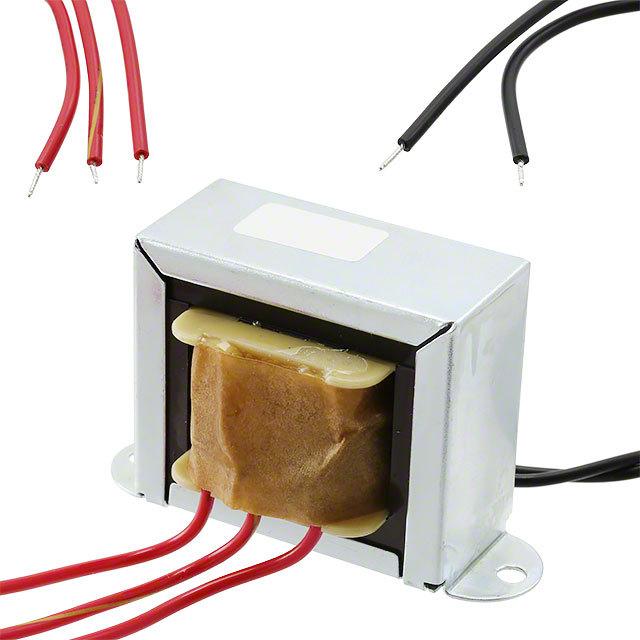

Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 3A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 37.8 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 95.25mm L x 53.98mm W
Height - Seated (Max) : 57.15mm
Voltage - Isolation : 1500Vrms
Weight : 1.6 lbs (725.7g)
0
139 in stock

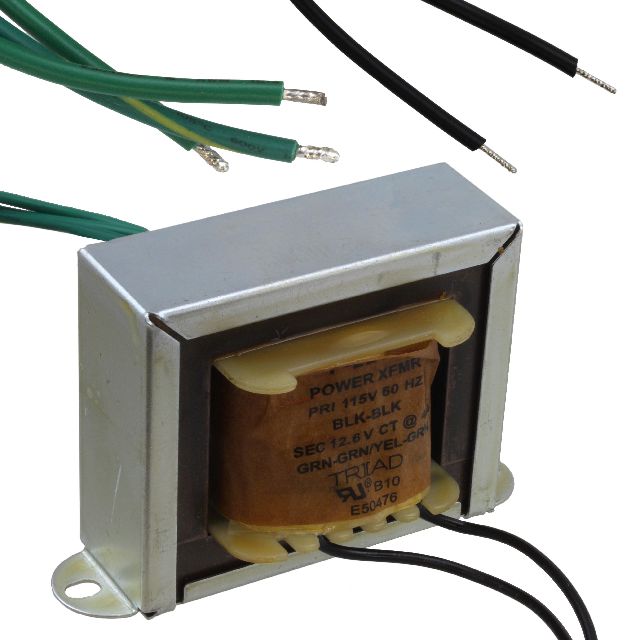

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12.6V
Current - Output (Max) : 4A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 50.4 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm L x 52.37mm W
Height - Seated (Max) : 66.68mm
Voltage - Isolation : 1500Vrms
Weight : 2.3 lbs (1kg)
0
16 in stock

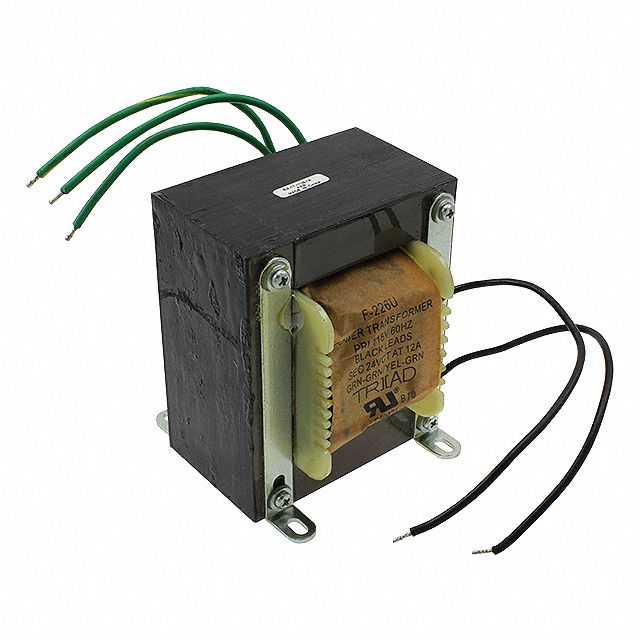

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 12A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 288 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 95.25mm L x 104.77mm W
Height - Seated (Max) : 115.87mm
Voltage - Isolation : 1500Vrms
Weight : 11 lbs (5kg)
0
5 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 35V
Current - Output (Max) : 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 10.5 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.42mm L x 41.28mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 1500Vrms
Weight : 0.6 lb (272.16g)
0
87 in stock

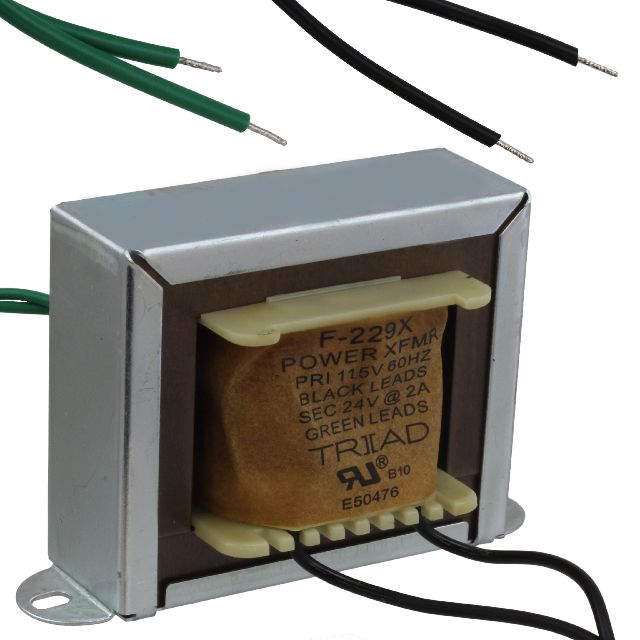

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 24V
Current - Output (Max) : 2A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 48 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm L x 50.80mm W
Height - Seated (Max) : 65.07mm
Voltage - Isolation : 1500Vrms
Weight : 2.3 lbs (1kg)
0
29 in stock

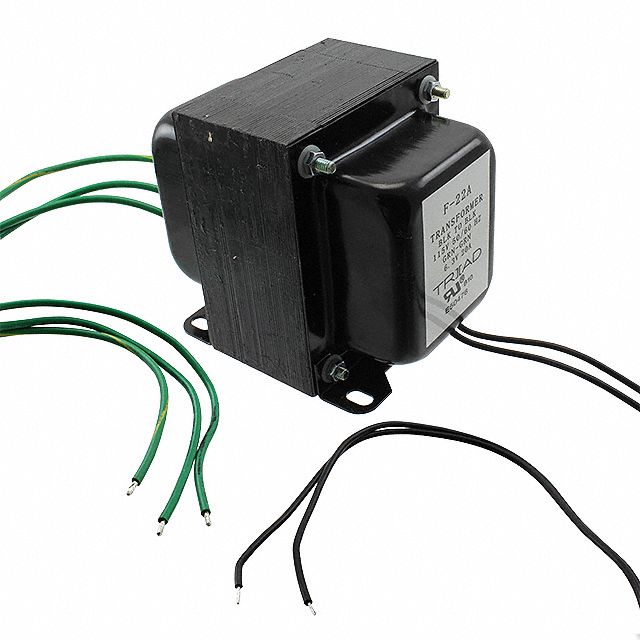

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 6.3V
Current - Output (Max) : 20A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 126 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 83.33mm L x 104.77mm W
Height - Seated (Max) : 98.43mm
Voltage - Isolation : 2000Vrms
Weight : 7 lbs (3.2kg)
0
15 in stock

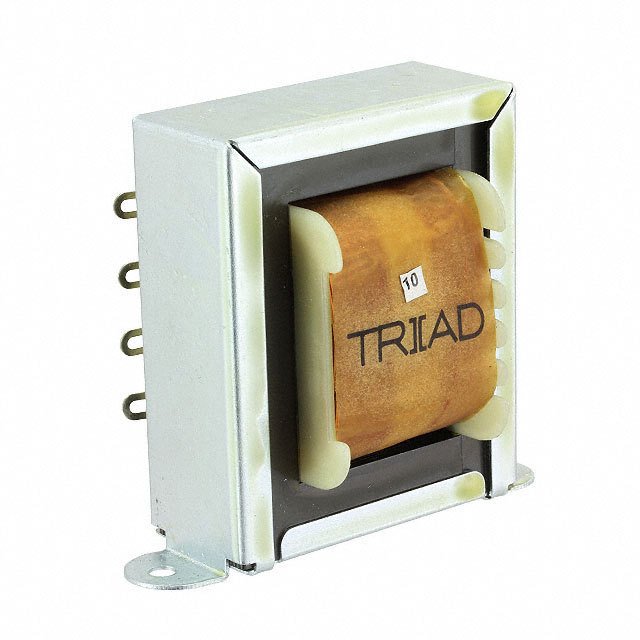

Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 6 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 60.33mm L x 36.50mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 1500Vrms
Weight : 0.6 lb (272.16g)
0
28 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 12 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 73.03mm L x 41.28mm W
Height - Seated (Max) : 58.72mm
Voltage - Isolation : 1500Vrms
Weight : 0.9 lb (408.23g)
0
2 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : Yes
Power - Max : 24 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 71.42mm L x 52.37mm W
Height - Seated (Max) : 60.33mm
Voltage - Isolation : 1500Vrms
Weight : 1.1 lbs (499g)
0
3 in stock

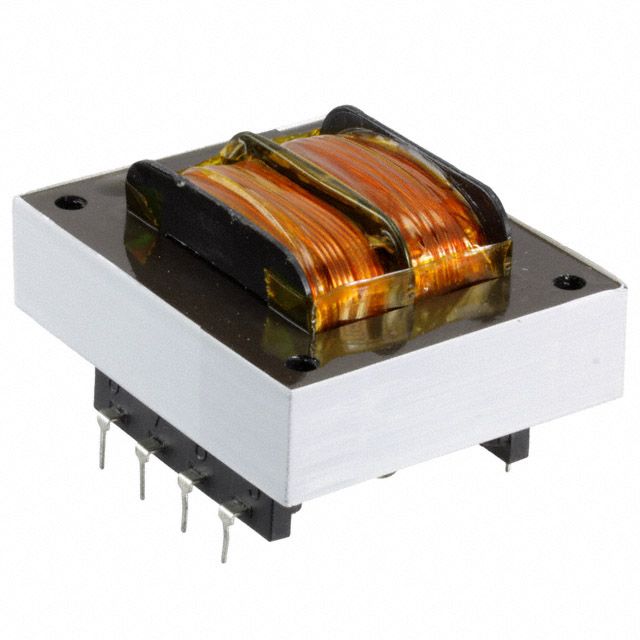

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 90mA, Series 45mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
45 in stock

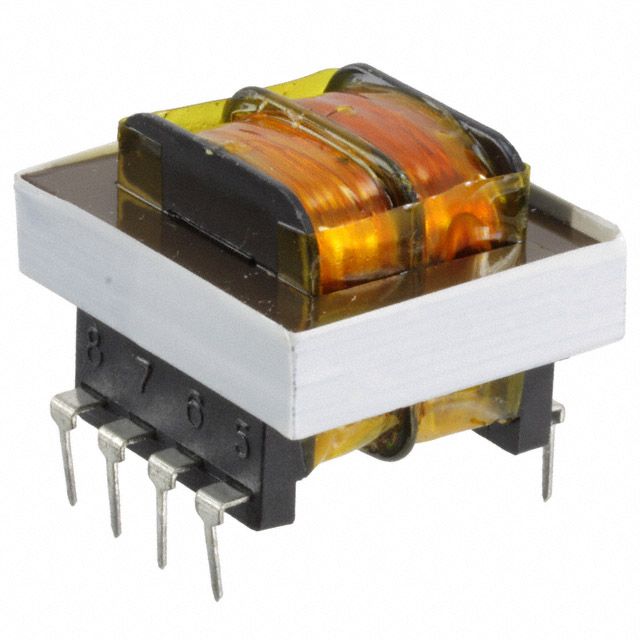

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 90mA, Series 45mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1.1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 34.93mm L x 28.58mm W
Height - Seated (Max) : 23.80mm
Voltage - Isolation : 2500Vrms
Weight : 0.17 lb (77.11g)
0
235 in stock
