Triad Magnetics
- For over 70 years, consumer, commercial and industrial electronic devices have relied on innovative magnetics technology from Triad Magnetics. We offer solutions for power conversion, filtering, isolation and more. Our products include transformers for audio, gate drive, power, medical/dental, wall-mount and plug-in applications; as well as inductors for current sense, common mode, toroidal, filtering and power applications.
Today, you’ll find a wide range of Triad magnetic components in advanced computers, telecommunication systems, automation controls, audio devices and other equipment. Lewis W. Howard founded Triad during the 1940s in Venice, California. He was a UC Berkley graduate, a Wescon Trade Show cofounder and was recognized as an IEEE life member.
Part Number
Manufacturer
Description
Unit Price
In Stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Split Pack™ Class 2/3, F
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1.2A, Series 600mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 36.50mm
Voltage - Isolation : 2500Vrms
Weight : 0.7 lb (317.51g)
0
116 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 12 VA
Mounting Type : Chassis Mount
Termination Style : Solder, Quick Connect
Size / Dimension : 73.03mm L x 44.45mm W
Height - Seated (Max) : 60.33mm
Voltage - Isolation : 1500Vrms
Weight : 0.7 lb (317.51g)
0
160 in stock

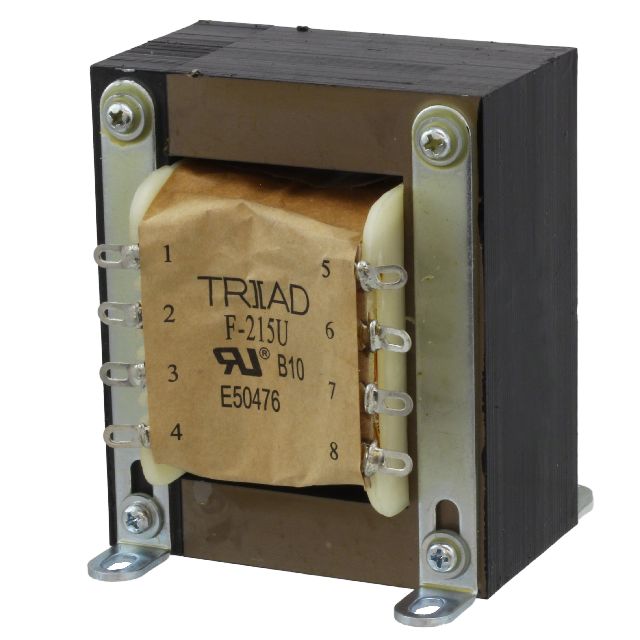

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Control Transformers
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 24 VA
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Size / Dimension : 79.38mm L x 50.80mm W
Height - Seated (Max) : 69.85mm
Voltage - Isolation : 1500Vrms
Weight : 1.1 lbs (499g)
0
34 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Control Transformers
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 48 VA
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Size / Dimension : 92.07mm L x 60.32mm W
Height - Seated (Max) : 79.38mm
Voltage - Isolation : 1500Vrms
Weight : 2.3 lbs (1kg)
0
10 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Control Transformers
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 96 VA
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Size / Dimension : 80.95mm L x 71.42mm W
Height - Seated (Max) : 86.51mm
Voltage - Isolation : 1500Vrms
Weight : 3.3 lbs (1.5kg)
0
11 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Control Transformers
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 8A, Series 4A
Primary Winding(s) : Single
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 192 VA
Mounting Type : Chassis Mount
Termination Style : Solder Lug
Size / Dimension : 87.30mm L x 98.43mm W
Height - Seated (Max) : 106.35mm
Voltage - Isolation : 1500Vrms
Weight : 6.1 lbs (2.8kg)
0
42 in stock

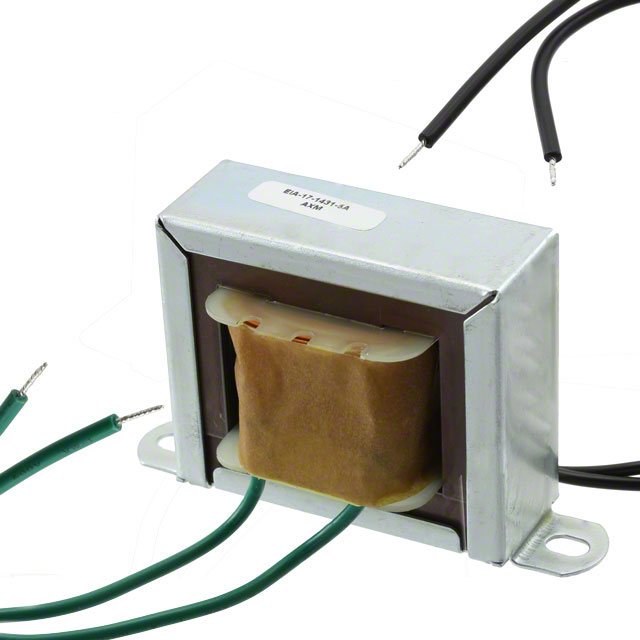

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 4.2 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 60.32mm L x 34.93mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 1500Vrms
Weight : 0.37 lb (167.83g)
0
1319 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 1.2A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 14.4 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 41.28mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 1500Vrms
Weight : 1 lb (453.59g)
0
32 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 2A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 24 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 82.55mm L x 47.63mm W
Height - Seated (Max) : 50.80mm
Voltage - Isolation : 1500Vrms
Weight : 1.2 lbs (544.3g)
0
83 in stock

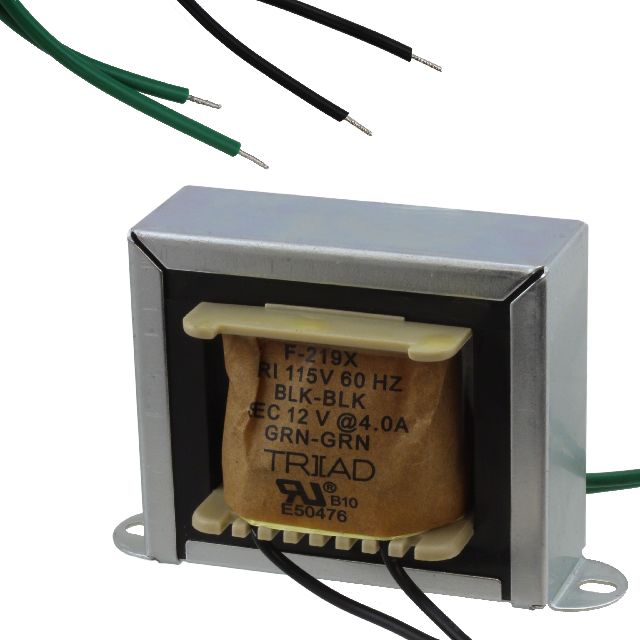

Triad Magnetics
Manufacturer : Triad Magnetics
Series : Single Secondary
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 4A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 48 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 101.60mm L x 57.15mm W
Height - Seated (Max) : 65.07mm
Voltage - Isolation : 1500Vrms
Weight : 2.3 lbs (1kg)
0
15 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 6.3V
Current - Output (Max) : 10A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : Yes
Power - Max : 63 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 79.38mm L x 75.39mm W
Height - Seated (Max) : 91.26mm
Voltage - Isolation : 1500Vrms
Weight : 3.8 lbs (1.7kg)
0
27 in stock
Triad Magnetics
Manufacturer : Triad Magnetics
Series : -
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : 12V
Current - Output (Max) : 6A
Primary Winding(s) : Single
Secondary Winding(s) : Single
Center Tap : No
Power - Max : 72 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 71.42mm L x 63.50mm W
Height - Seated (Max) : 87.30mm
Voltage - Isolation : 1500Vrms
Weight : 3.5 lbs (1.6kg)
0
17 in stock
