Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock
PFRA.400
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 12.7s
Resistance - Initial (Ri) (Min) : 10 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.567" L x 0.118" W (14.40mm x 3.00mm)
Height - Seated (Max) : 0.976" (24.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 4A
Current - Trip (It) : 8A
Time to Trip : 12.7s
Resistance - Initial (Ri) (Min) : 10 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.567" L x 0.118" W (14.40mm x 3.00mm)
Height - Seated (Max) : 0.976" (24.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1875 in stock
PFRA.500
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 14.5s
Resistance - Initial (Ri) (Min) : 10 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.685" L x 0.118" W (17.40mm x 3.00mm)
Height - Seated (Max) : 0.980" (24.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 5A
Current - Trip (It) : 10A
Time to Trip : 14.5s
Resistance - Initial (Ri) (Min) : 10 mOhms
Resistance - Post Trip (R1) (Max) : 50 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.685" L x 0.118" W (17.40mm x 3.00mm)
Height - Seated (Max) : 0.980" (24.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
478 in stock
PFRA.600
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 12A
Time to Trip : 16s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.760" L x 0.118" W (19.30mm x 3.00mm)
Height - Seated (Max) : 1.256" (31.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 12A
Time to Trip : 16s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 40 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.760" L x 0.118" W (19.30mm x 3.00mm)
Height - Seated (Max) : 1.256" (31.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
500 in stock
PFRA.800
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 8A
Current - Trip (It) : 16A
Time to Trip : 18.8s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 30 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max) : 1.295" (32.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 8A
Current - Trip (It) : 16A
Time to Trip : 18.8s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 30 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max) : 1.295" (32.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
493 in stock
PFRA.900
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 18A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 20 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max) : 1.295" (32.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : PFRA
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 40A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 18A
Time to Trip : 20s
Resistance - Initial (Ri) (Min) : 5 mOhms
Resistance - Post Trip (R1) (Max) : 20 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max) : 1.295" (32.90mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
425 in stock

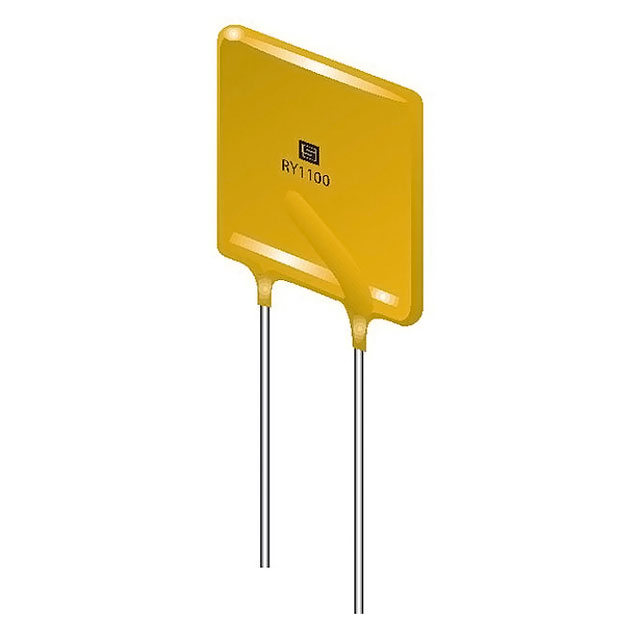

PFRY.110
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.427" L x 0.118" W (10.84mm x 3.00mm)
Height - Seated (Max) : 0.661" (16.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 8.2s
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 380 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.427" L x 0.118" W (10.84mm x 3.00mm)
Height - Seated (Max) : 0.661" (16.80mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
1480 in stock
PFRY.135
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.118" W (12.26mm x 3.00mm)
Height - Seated (Max) : 0.720" (18.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.35A
Current - Trip (It) : 2.7A
Time to Trip : 9.6s
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 300 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.483" L x 0.118" W (12.26mm x 3.00mm)
Height - Seated (Max) : 0.720" (18.30mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
416 in stock
PFRY.160
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.549" L x 0.118" W (13.94mm x 3.00mm)
Height - Seated (Max) : 0.783" (19.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.6A
Current - Trip (It) : 3.2A
Time to Trip : 11.4s
Resistance - Initial (Ri) (Min) : 90 mOhms
Resistance - Post Trip (R1) (Max) : 220 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.549" L x 0.118" W (13.94mm x 3.00mm)
Height - Seated (Max) : 0.783" (19.90mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
500 in stock
PFRY.185
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.598" L x 0.118" W (15.18mm x 3.00mm)
Height - Seated (Max) : 0.835" (21.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.85A
Current - Trip (It) : 3.7A
Time to Trip : 12.6s
Resistance - Initial (Ri) (Min) : 80 mOhms
Resistance - Post Trip (R1) (Max) : 190 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.598" L x 0.118" W (15.18mm x 3.00mm)
Height - Seated (Max) : 0.835" (21.20mm)
Thickness (Max) : -
Lead Spacing : 0.201" (5.10mm)
0
979 in stock
PFRY.250
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 15.6s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 130 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.702" L x 0.118" W (17.84mm x 3.00mm)
Height - Seated (Max) : 0.937" (23.80mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 15.6s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 130 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.702" L x 0.118" W (17.84mm x 3.00mm)
Height - Seated (Max) : 0.937" (23.80mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
2468 in stock
PFRY.300
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 19.8s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.814" L x 0.118" W (20.67mm x 3.00mm)
Height - Seated (Max) : 0.937" (23.80mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3A
Current - Trip (It) : 6A
Time to Trip : 19.8s
Resistance - Initial (Ri) (Min) : 40 mOhms
Resistance - Post Trip (R1) (Max) : 100 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.814" L x 0.118" W (20.67mm x 3.00mm)
Height - Seated (Max) : 0.937" (23.80mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
450 in stock
PFRY.375
Schurter
Manufacturer : Schurter Inc.
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3.75A
Current - Trip (It) : 7.5A
Time to Trip : 24s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.926" L x 0.118" W (23.51mm x 3.00mm)
Height - Seated (Max) : 1.165" (29.60mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
Packaging : Bulk
Series : PFRY
Part Status : Active
Type : Polymeric
Voltage - Max : 72V
Current - Max : 40A
Current - Hold (Ih) (Max) : 3.75A
Current - Trip (It) : 7.5A
Time to Trip : 24s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 80 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.926" L x 0.118" W (23.51mm x 3.00mm)
Height - Seated (Max) : 1.165" (29.60mm)
Thickness (Max) : -
Lead Spacing : 0.402" (10.20mm)
0
476 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
