Part Number
Manufacturer
Description
Unit Price
In Stock
PFUF.035.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 1.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 200 mOhms
Resistance - Post Trip (R1) (Max) : 1.3 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
2982 in stock
PFUF.050.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 13.2V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 180 mOhms
Resistance - Post Trip (R1) (Max) : 900 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
2780 in stock
PFUF.075.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 450 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
5900 in stock
PFUF.110.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 1s
Resistance - Initial (Ri) (Min) : 50 mOhms
Resistance - Post Trip (R1) (Max) : 210 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.028" (0.70mm)
Lead Spacing : -
0
3000 in stock
PFUF.150.2
Schurter
Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.025" (0.63mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 30 mOhms
Resistance - Post Trip (R1) (Max) : 110 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.102" W (3.22mm x 2.58mm)
Height - Seated (Max) : -
Thickness (Max) : 0.025" (0.63mm)
Lead Spacing : -
0
3000 in stock
PICOASMDC010S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoASMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 20A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 11 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.040" (1.02mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoASMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 20A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 11 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.040" (1.02mm)
Lead Spacing : -
0
5553 in stock

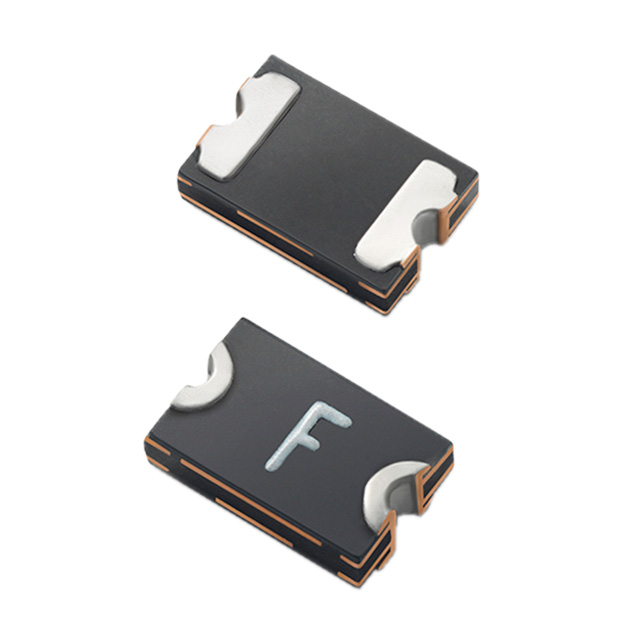

PICOASMDC012S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoASMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 20A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 9 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoASMDC
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 20A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 9 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -
Ratings : PS300, PS400
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
7935 in stock

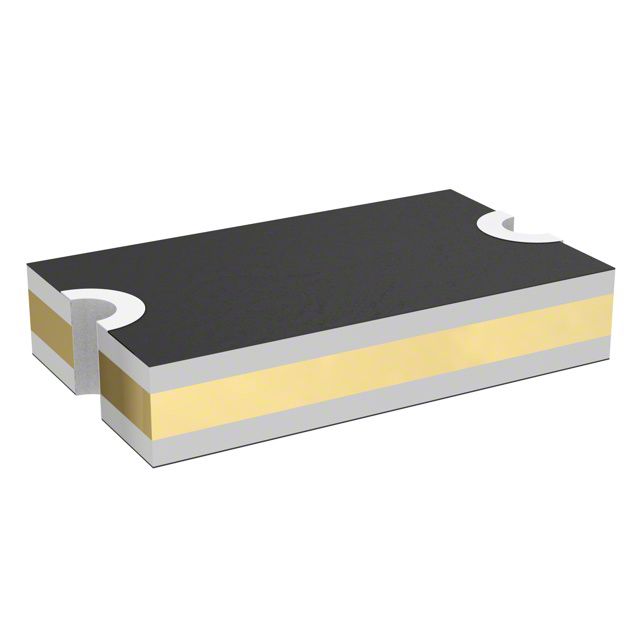

PICOSMDC010S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 11 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 11 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
8660 in stock
PICOSMDC012S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 9 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 1.5 Ohms
Resistance - Post Trip (R1) (Max) : 9 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
3309 in stock
PICOSMDC020S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 100A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 470mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 750 mOhms
Resistance - Post Trip (R1) (Max) : 3.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 9V
Current - Max : 100A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 470mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 750 mOhms
Resistance - Post Trip (R1) (Max) : 3.2 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
1580 in stock
PICOSMDC035S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 350 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 750mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : 350 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.027" (0.68mm)
Lead Spacing : -
0
16946 in stock
PICOSMDC050S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 800 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.037" (0.93mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, picoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 100A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 150 mOhms
Resistance - Post Trip (R1) (Max) : 800 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric), Concave
Size / Dimension : 0.083" L x 0.055" W (2.10mm x 1.40mm)
Height - Seated (Max) : -
Thickness (Max) : 0.037" (0.93mm)
Lead Spacing : -
0
5937 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
