Part Number

Manufacturer

Description

Unit Price

In Stock

PFSM.030.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 300mA
Current - Trip (It) : 600mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : 900 mOhms
Resistance - Post Trip (R1) (Max) : 4.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.289" L x 0.214" W (7.36mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -

14689 in stock

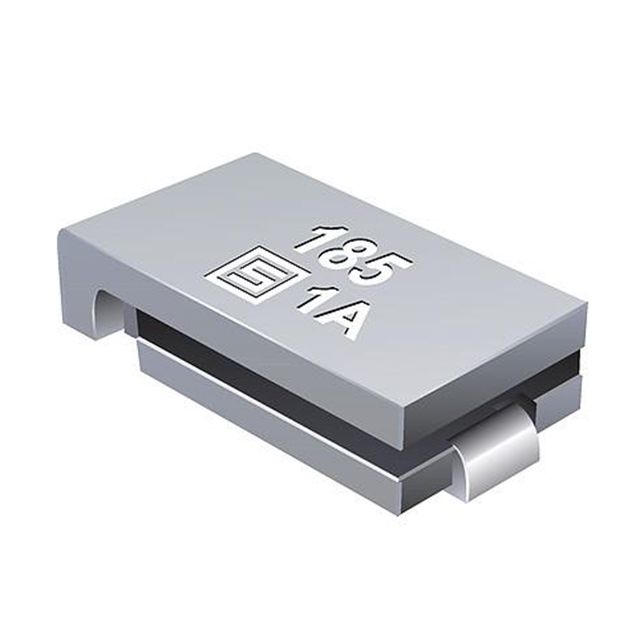

PFSM.050.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Active
Type : Polymeric
Voltage - Max : 60V
Current - Max : 40A
Current - Hold (Ih) (Max) : 500mA
Current - Trip (It) : 1A
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : 350 mOhms
Resistance - Post Trip (R1) (Max) : 1.4 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.289" L x 0.214" W (7.36mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -

6203 in stock

PFSM.075.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 750mA
Current - Trip (It) : 1.5A
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : 230 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.289" L x 0.214" W (7.36mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.125" (3.18mm)
Lead Spacing : -

100 in stock

PFSM.100.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 80A
Current - Hold (Ih) (Max) : 1.1A
Current - Trip (It) : 2.2A
Time to Trip : 500ms
Resistance - Initial (Ri) (Min) : 120 mOhms
Resistance - Post Trip (R1) (Max) : 480 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.289" L x 0.214" W (7.36mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -

6090 in stock

PFSM.125.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : 70 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.289" L x 0.214" W (7.36mm x 5.44mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -

100 in stock

PFSM.150.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 250 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -

100 in stock

PFSM.150.33.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Active
Type : Polymeric
Voltage - Max : 33V
Current - Max : 40A
Current - Hold (Ih) (Max) : 1.5A
Current - Trip (It) : 3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 60 mOhms
Resistance - Post Trip (R1) (Max) : 230 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -

1270 in stock

PFSM.200.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2A
Current - Trip (It) : 4A
Time to Trip : 12s
Resistance - Initial (Ri) (Min) : 45 mOhms
Resistance - Post Trip (R1) (Max) : 125 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -

1486 in stock

PFSM.250.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFSM
Part Status : Discontinued at
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.5A
Current - Trip (It) : 5A
Time to Trip : 25s
Resistance - Initial (Ri) (Min) : 24 mOhms
Resistance - Post Trip (R1) (Max) : 85 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 2-SMD
Size / Dimension : 0.344" L x 0.264" W (8.75mm x 6.71mm)
Height - Seated (Max) : -
Thickness (Max) : 0.118" (3.00mm)
Lead Spacing : -

100 in stock

PFUF.005.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 150mA
Time to Trip : 1.5s
Resistance - Initial (Ri) (Min) : 2.8 Ohms
Resistance - Post Trip (R1) (Max) : 50 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.093" W (3.22mm x 2.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.037" (0.95mm)
Lead Spacing : -

4122 in stock

PFUF.010.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 300mA
Time to Trip : 600ms
Resistance - Initial (Ri) (Min) : 800 mOhms
Resistance - Post Trip (R1) (Max) : 15 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.093" W (3.22mm x 2.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.037" (0.95mm)
Lead Spacing : -

6000 in stock

PFUF.020.2

Schurter

Manufacturer : Schurter Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PFUF
Part Status : Active
Type : Polymeric
Voltage - Max : 30V
Current - Max : 10A
Current - Hold (Ih) (Max) : 200mA
Current - Trip (It) : 400mA
Time to Trip : 20ms
Resistance - Initial (Ri) (Min) : 400 mOhms
Resistance - Post Trip (R1) (Max) : 5 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric), Concave
Size / Dimension : 0.127" L x 0.093" W (3.22mm x 2.35mm)
Height - Seated (Max) : -
Thickness (Max) : 0.037" (0.95mm)
Lead Spacing : -

2570 in stock
