Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store | ynnelec.com


Part Number

Manufacturer

Description

Unit Price

In Stock

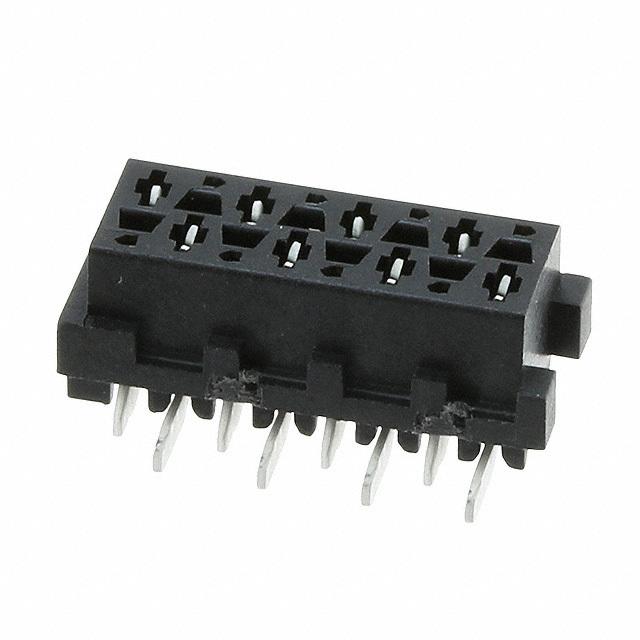

Picture of 2178711-8

2178711-8

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 118.1µin (3.00µm)
Insulation Color : Black
Insulation Height : 0.209" (5.30mm)
Contact Length - Post : -
Operating Temperature : -30°C ~ 85°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

0

3280 in stock

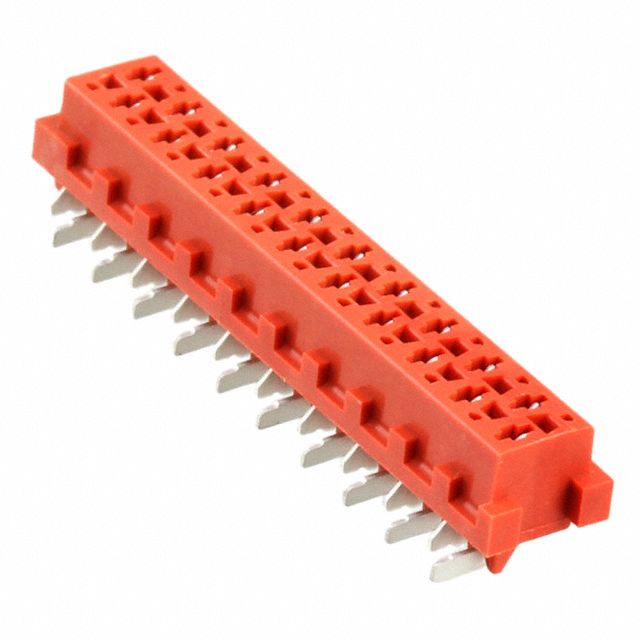

Picture of 2-188275-0

2-188275-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Red
Insulation Height : 0.209" (5.30mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

0

2304 in stock

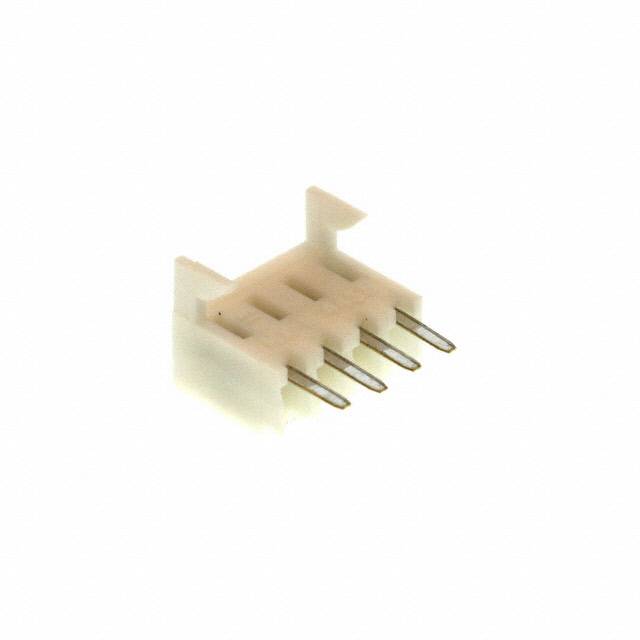

Picture of 22-02-2045

22-02-2045

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

4122 in stock

Picture of 22-02-2055

22-02-2055

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 5
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

1684 in stock

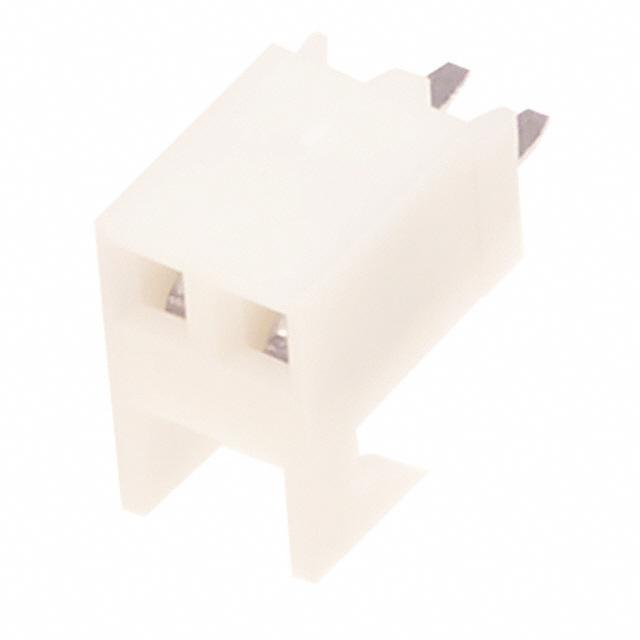

Picture of 22-14-2024

22-14-2024

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

123 in stock

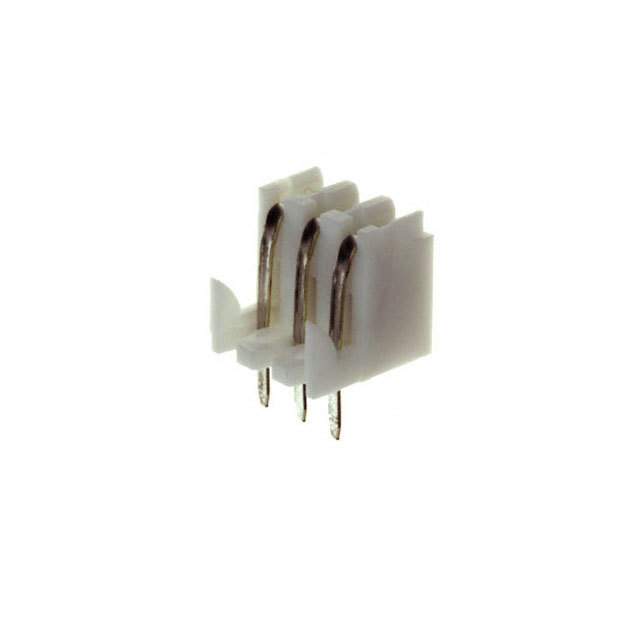

Picture of 22-14-2034

22-14-2034

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

251 in stock

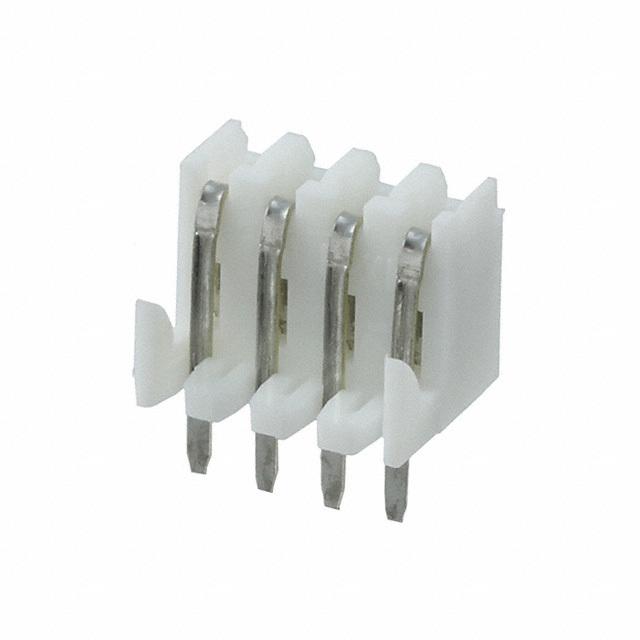

Picture of 22-14-2044

22-14-2044

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

922 in stock

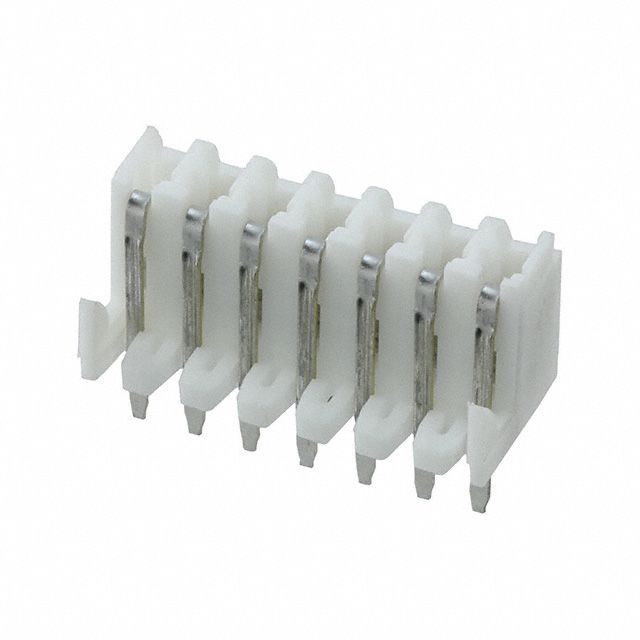

Picture of 22-14-2074

22-14-2074

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

76 in stock

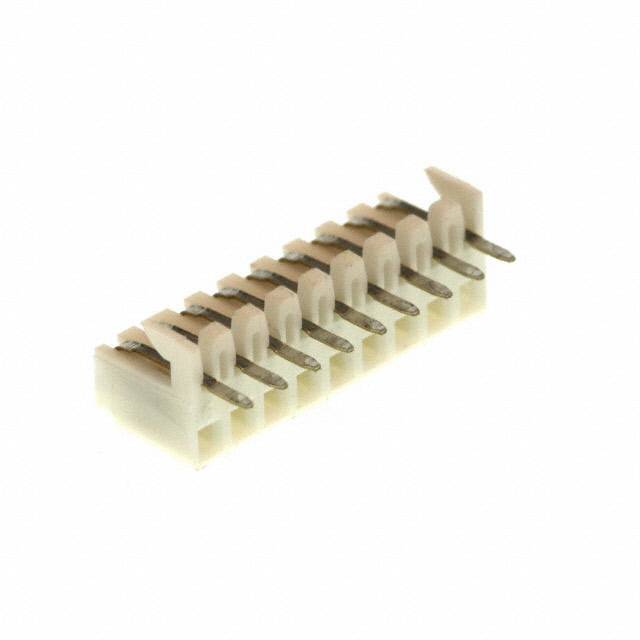

Picture of 22-14-2094

22-14-2094

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 9
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

44 in stock

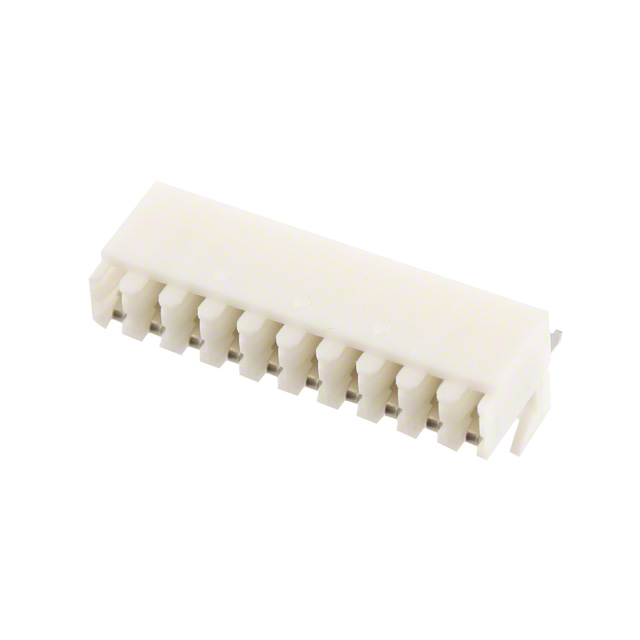

Picture of 22-14-2104

22-14-2104

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

348 in stock

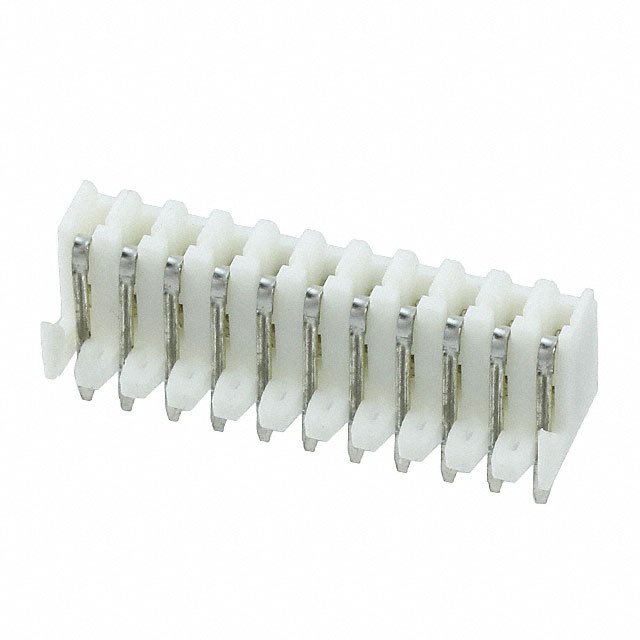

Picture of 22-14-2114

22-14-2114

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 11
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

190 in stock

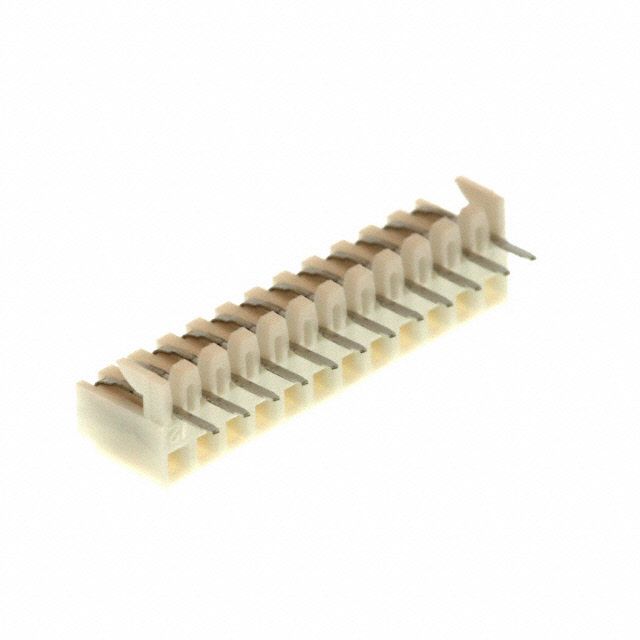

Picture of 22-14-2124

22-14-2124

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

0

1847 in stock
