Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

22-16-2040

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

2045 in stock

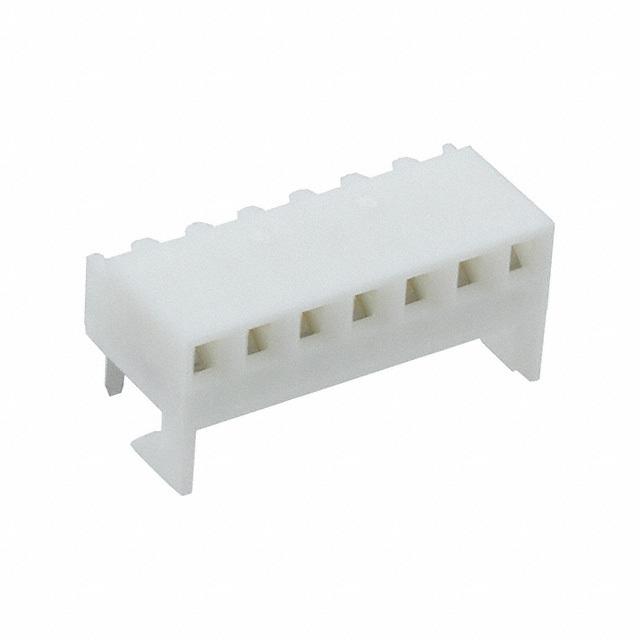

22-16-2070

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 7
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

661 in stock

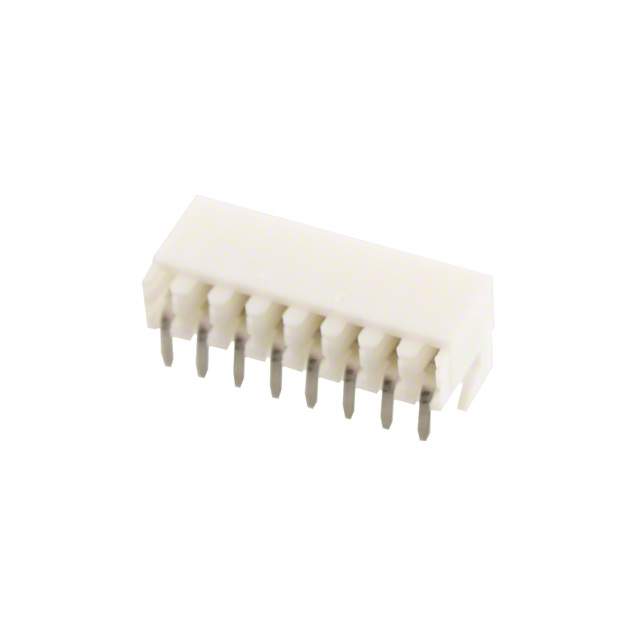

22-16-2080

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

737 in stock

22-16-2090

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 9
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

64 in stock

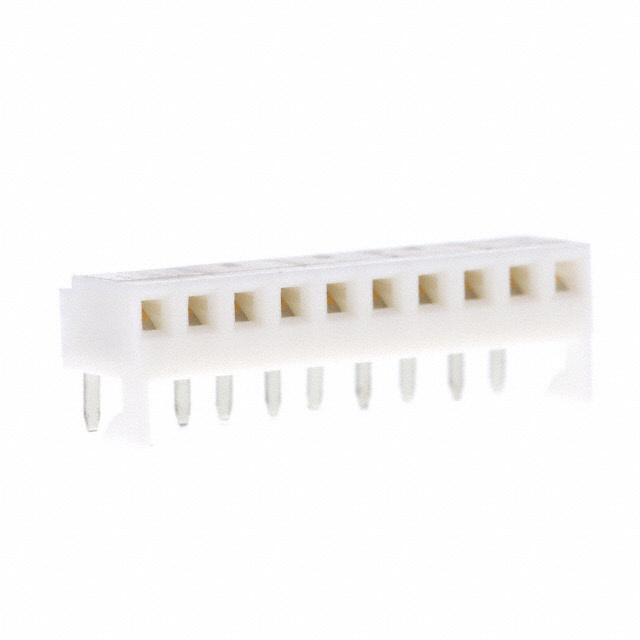

22-16-2100

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

997 in stock

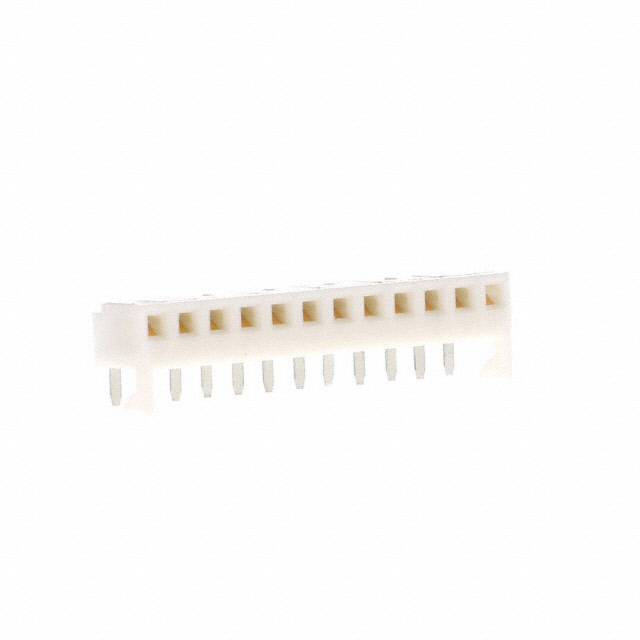

22-16-2120

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

58 in stock

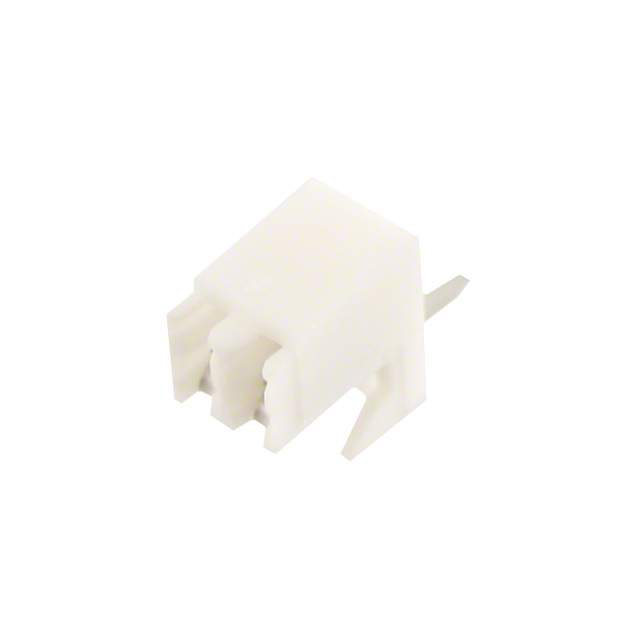

22-17-3022

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

580 in stock

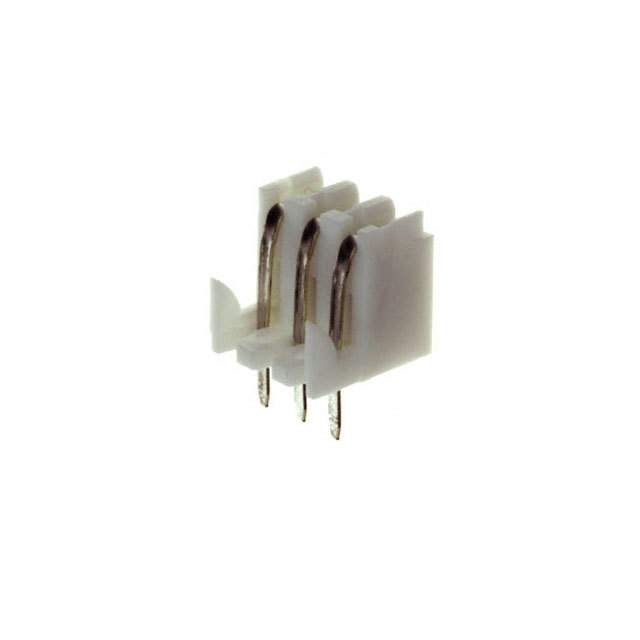

22-17-3032

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

3762 in stock

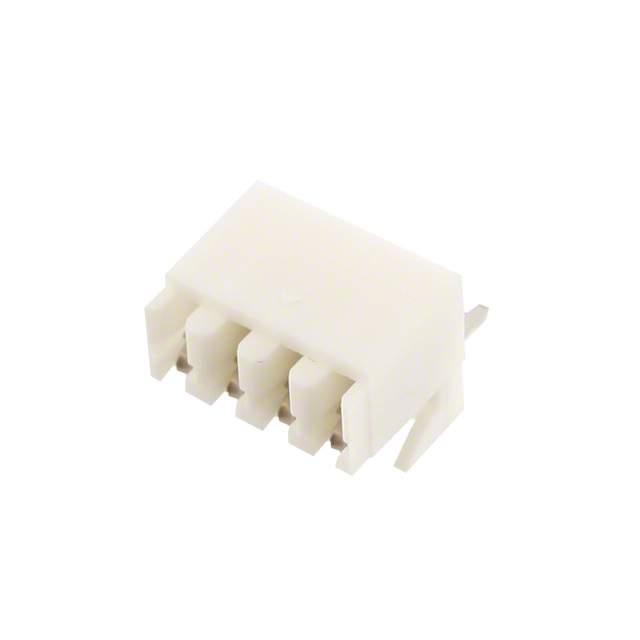

22-17-3042

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

51 in stock

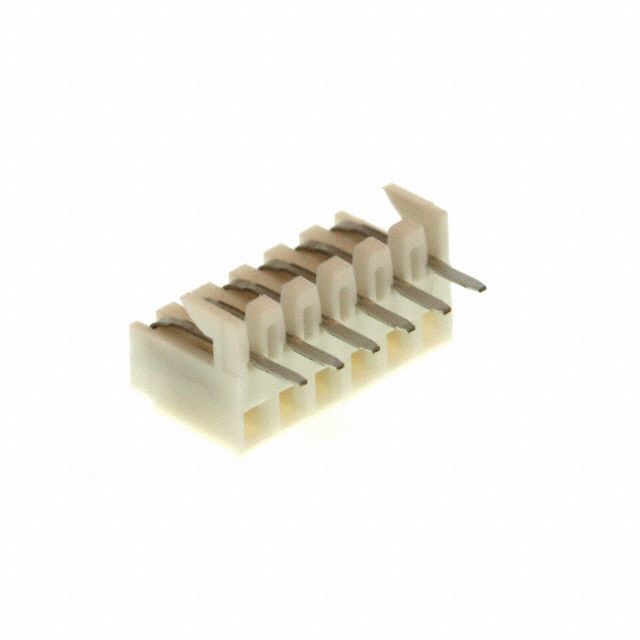

22-17-3062

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

3952 in stock

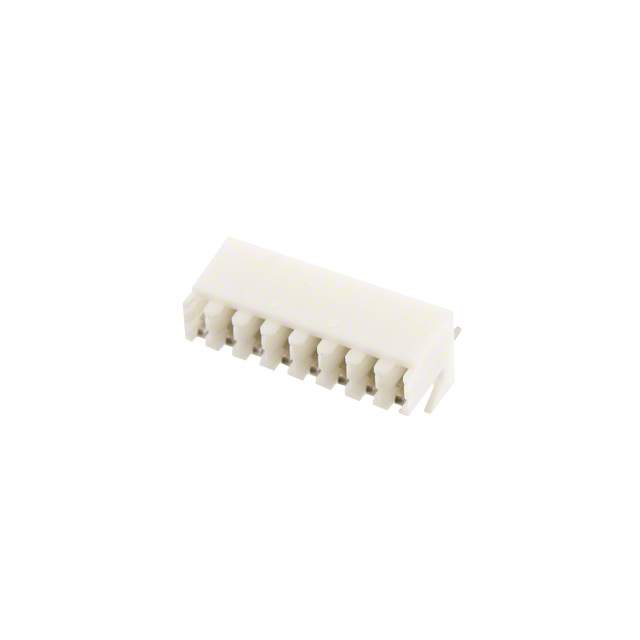

22-17-3082

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 8
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

100 in stock

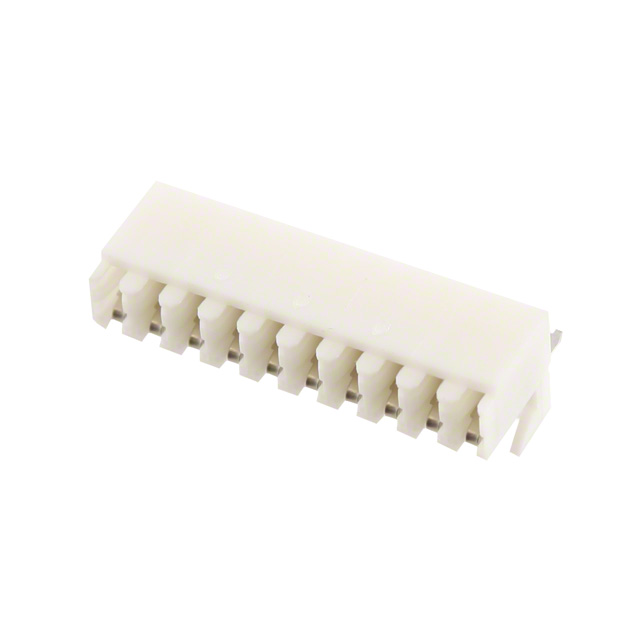

22-17-3102

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 10
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

9 in stock
