Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

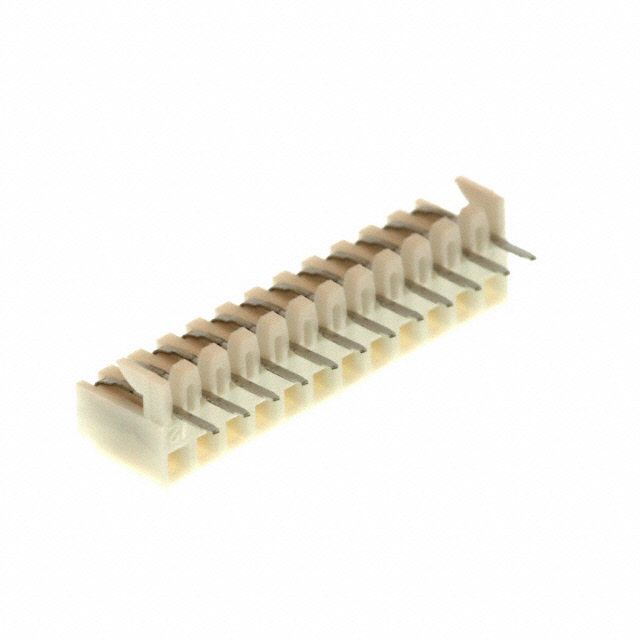

22-17-3122

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle, Bottom Entry
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

2848 in stock

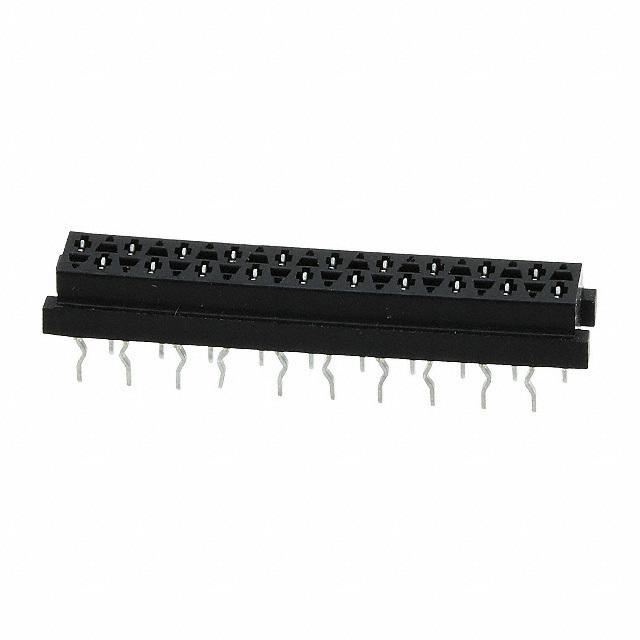

2-2178710-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 118.1µin (3.00µm)
Insulation Color : Black
Insulation Height : 0.157" (4.00mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -30°C ~ 85°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

4631 in stock

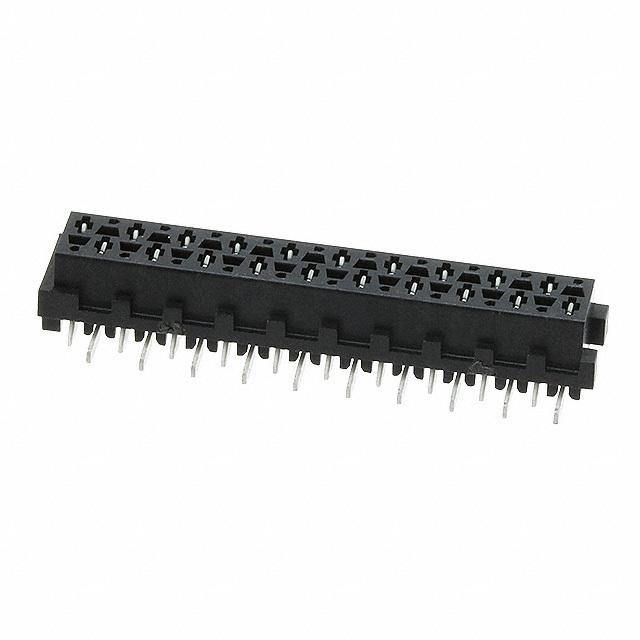

2-2178711-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 118.1µin (3.00µm)
Insulation Color : Black
Insulation Height : 0.209" (5.30mm)
Contact Length - Post : -
Operating Temperature : -30°C ~ 85°C
Material Flammability Rating : -
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

1624 in stock

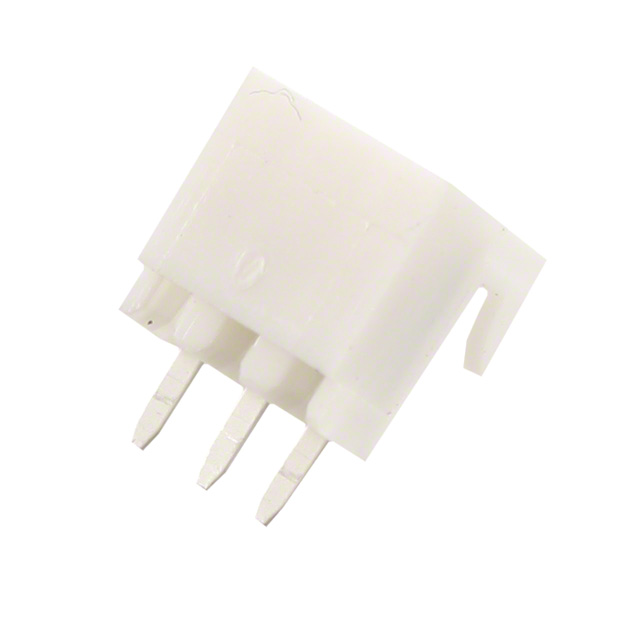

22-18-2031

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 3
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

1416 in stock

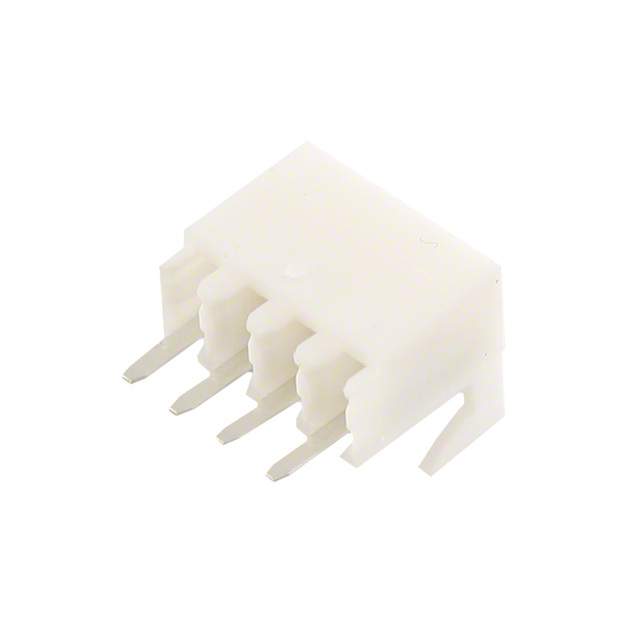

22-18-2041

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 4
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

1377 in stock

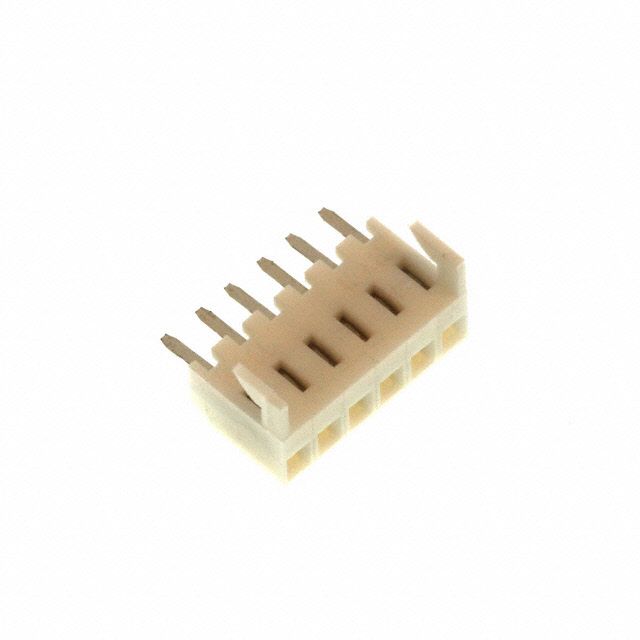

22-18-2061

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

2103 in stock

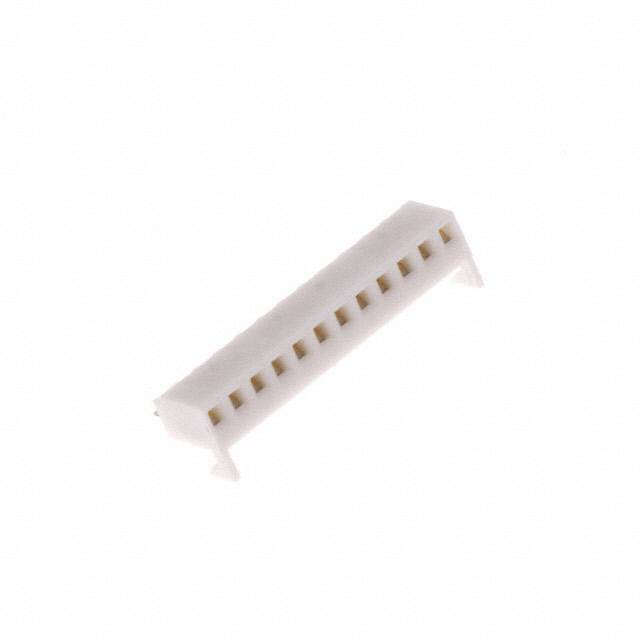

22-18-2121

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.311" (7.90mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

538 in stock

22R-JED(LF)(SN)

JST

Manufacturer : JST Sales America Inc.
Packaging : Bulk
Series : JED
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 22
Number of Positions Loaded : All
Pitch - Mating : 0.049" (1.25mm)
Number of Rows : 2
Row Spacing - Mating : 0.079" (2.00mm)
Mounting Type : Through Hole
Termination : Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Natural
Insulation Height : 0.173" (4.40mm)
Contact Length - Post : 0.079" (2.00mm)
Operating Temperature : -25°C ~ 85°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : -
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : 1A
Voltage Rating : 50V

100 in stock

2-338068-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Red
Insulation Height : 0.157" (4.00mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

11244 in stock

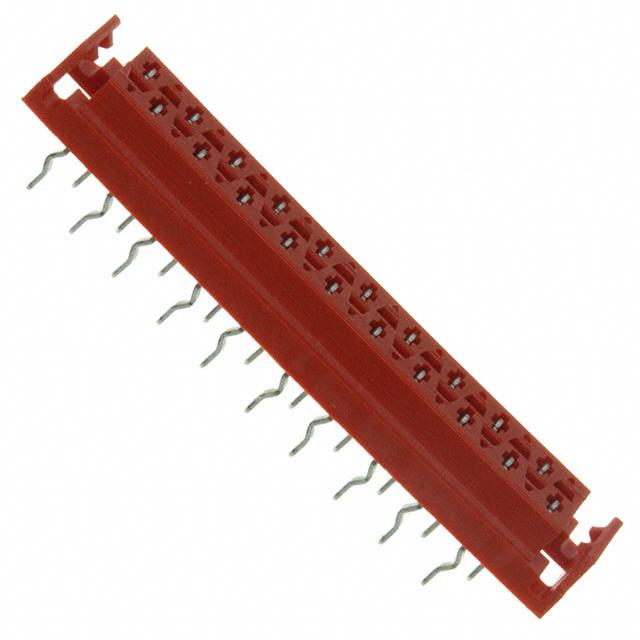

2-338069-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Red
Insulation Height : 0.209" (5.30mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

881 in stock

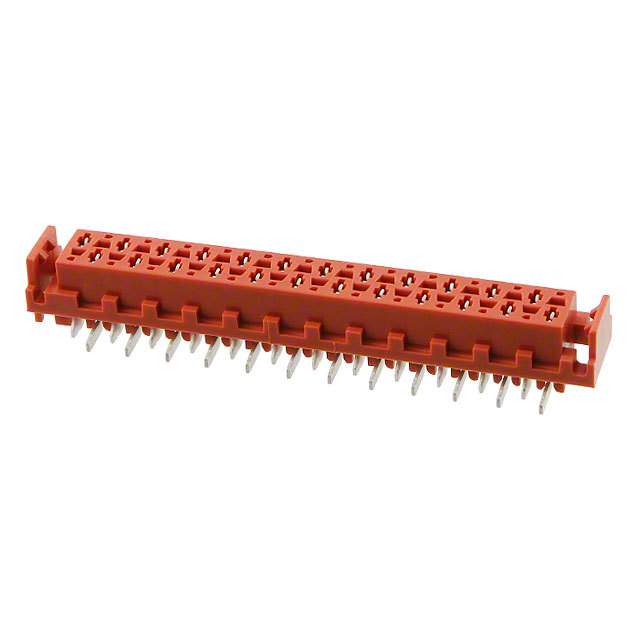

2-338069-4

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 24
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Surface Mount
Termination : Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Red
Insulation Height : 0.209" (5.30mm)
Contact Length - Post : -
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

598 in stock

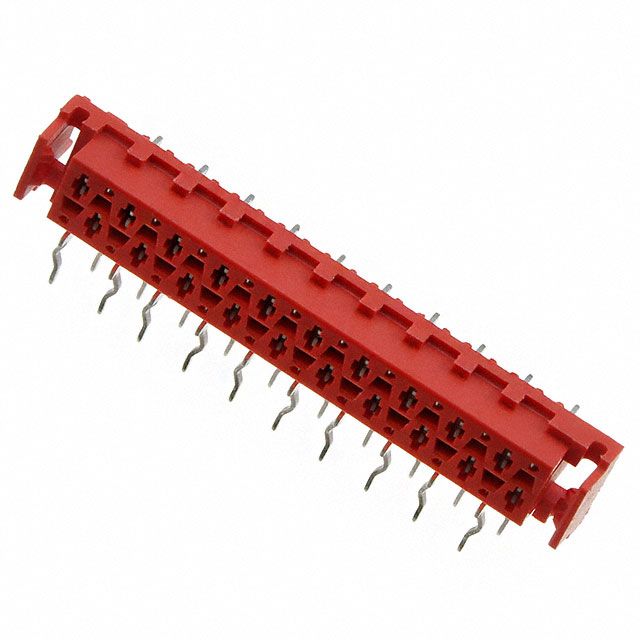

2-338070-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Kinked Pin, Solder
Fastening Type : Friction Lock
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Red
Insulation Height : 0.228" (5.80mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

2467 in stock
