Rectangular Connectors - Headers, Receptacles, Female Sockets Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

2-215079-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Red
Insulation Height : 0.157" (4.00mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

1295 in stock

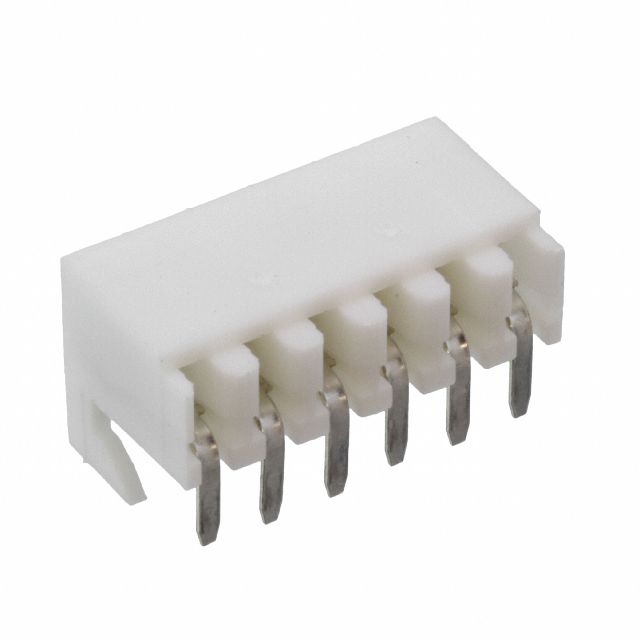

22-15-2066

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 6
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

2242 in stock

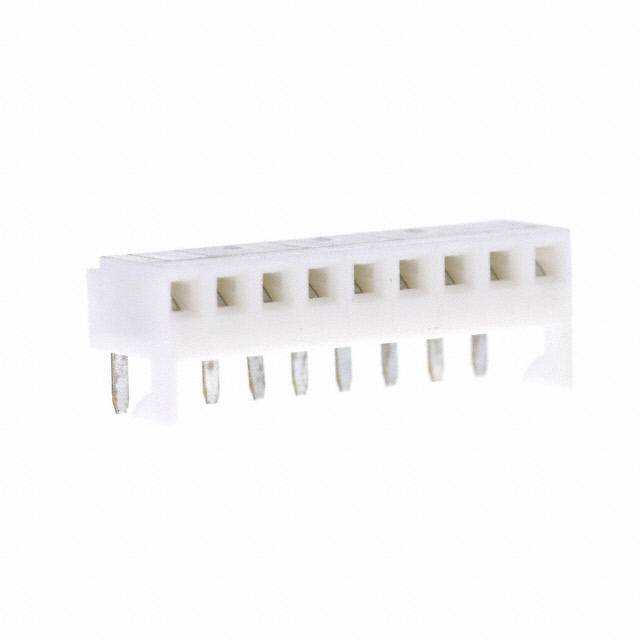

22-15-2096

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 9
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

313 in stock

22-15-2116

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 11
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

113 in stock

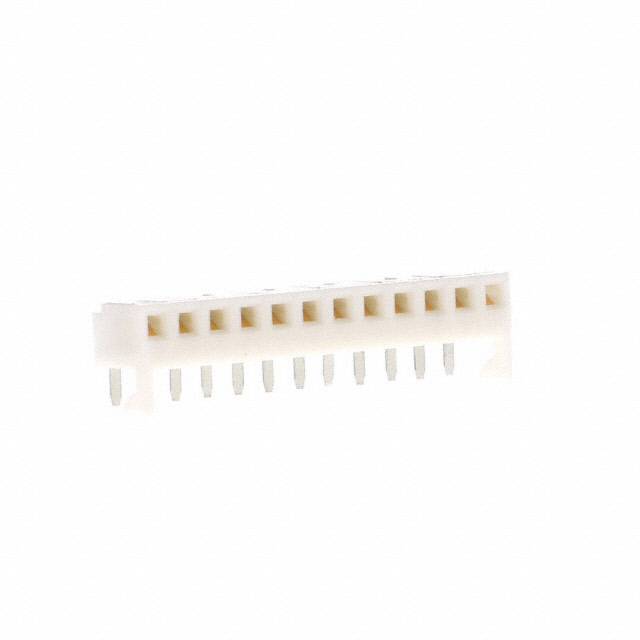

22-15-2126

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 12
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : 100.0µin (2.54µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

1550 in stock

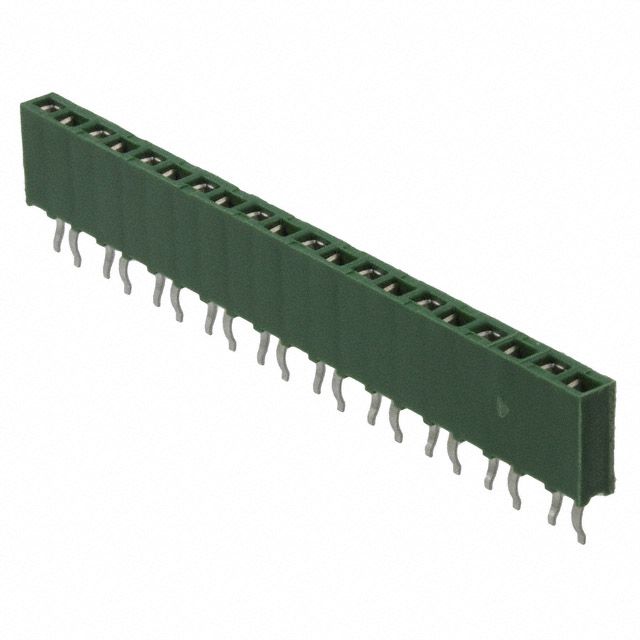

2-215297-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : AMPMODU HV-100
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 31.5µin (0.80µm)
Insulation Color : Green
Insulation Height : 0.276" (7.00mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

459 in stock

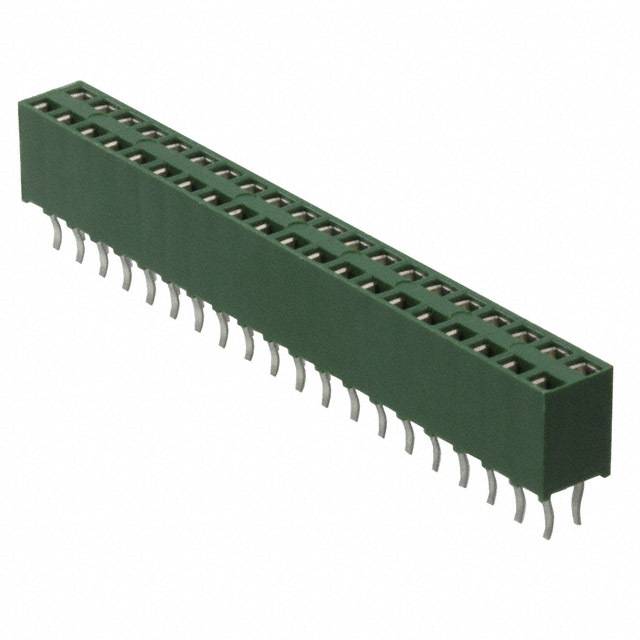

2-215307-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : AMPMODU HV-100
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 31.5µin (0.80µm)
Insulation Color : Green
Insulation Height : 0.276" (7.00mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

481 in stock

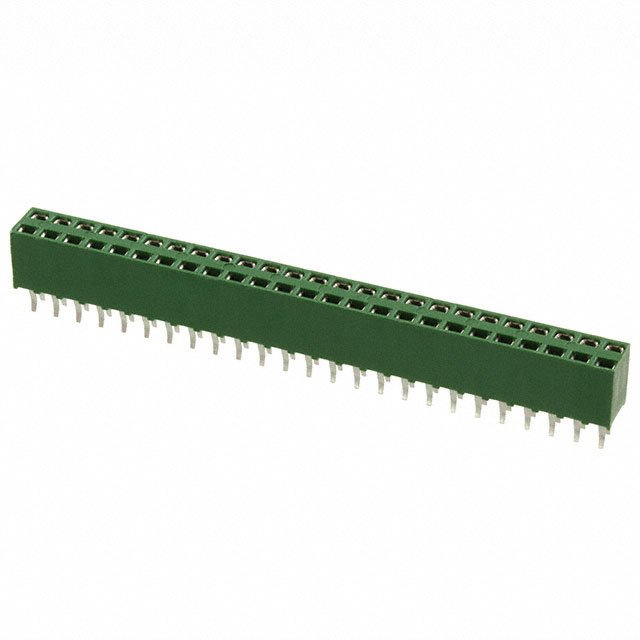

2-215307-5

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : AMPMODU HV-100
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 31.5µin (0.80µm)
Insulation Color : Green
Insulation Height : 0.276" (7.00mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

285 in stock

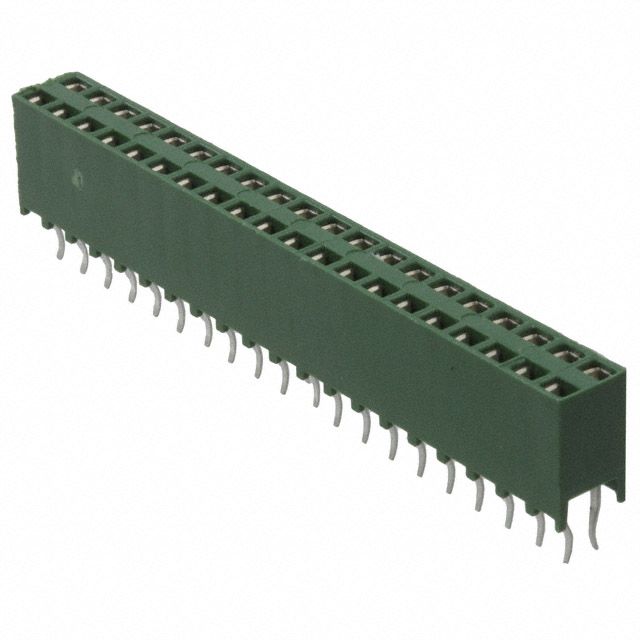

2-215309-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : AMPMODU HV-100
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 40
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 31.5µin (0.80µm)
Insulation Color : Green
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

1605 in stock

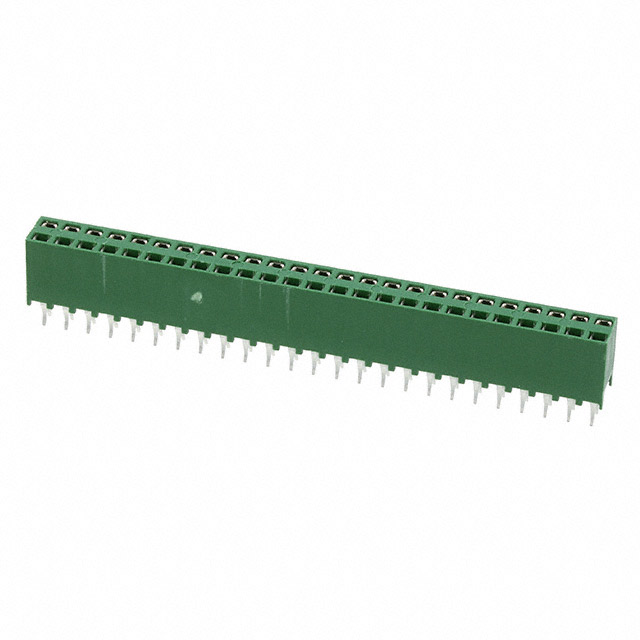

2-215309-5

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Tray
Series : AMPMODU HV-100
Part Status : Active
Connector Type : Receptacle
Contact Type : Female Socket
Style : Board to Board
Number of Positions : 50
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 31.5µin (0.80µm)
Insulation Color : Green
Insulation Height : 0.335" (8.51mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : -

257 in stock

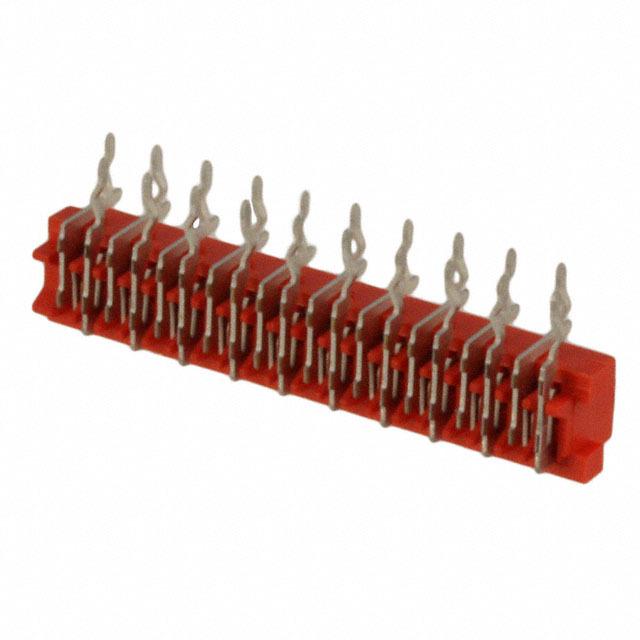

2-215460-0

Agastat Relays / TE Connectivity

Manufacturer : TE Connectivity AMP Connectors
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Micro-MaTch
Part Status : Active
Connector Type : Receptacle
Contact Type : Forked
Style : Board to Board or Cable
Number of Positions : 20
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 2
Row Spacing - Mating : 0.100" (2.54mm)
Mounting Type : Through Hole, Right Angle
Termination : Kinked Pin, Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Tin
Contact Finish Thickness - Mating : -
Insulation Color : Red
Insulation Height : 0.228" (5.80mm)
Contact Length - Post : 0.122" (3.10mm)
Operating Temperature : -40°C ~ 105°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : -
Current Rating : -
Voltage Rating : 100VDC

2812 in stock

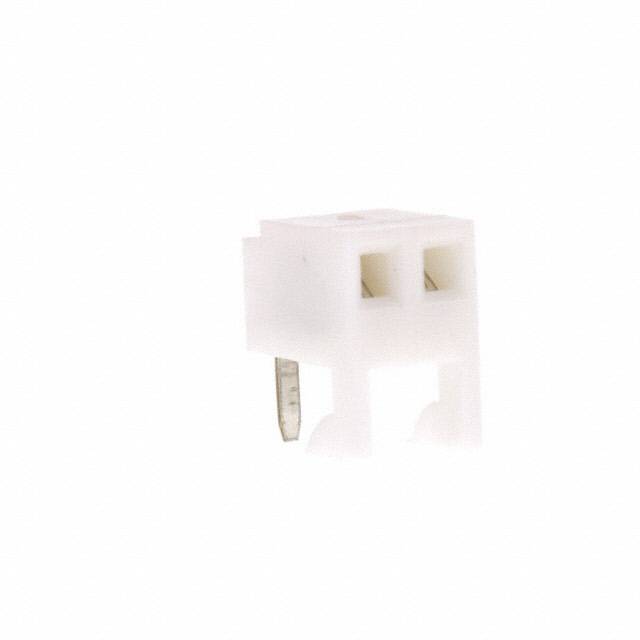

22-16-2020

Affinity Medical Technologies - a Molex company

Manufacturer : Molex Connector Corporation
Packaging : Tray
Series : KK 4455
Part Status : Active
Connector Type : Receptacle
Contact Type : Non-Gendered
Style : Board to Board or Cable
Number of Positions : 2
Number of Positions Loaded : All
Pitch - Mating : 0.100" (2.54mm)
Number of Rows : 1
Row Spacing - Mating : -
Mounting Type : Board Edge, Through Hole, Right Angle
Termination : Solder
Fastening Type : Push-Pull
Contact Finish - Mating : Gold
Contact Finish Thickness - Mating : 15.0µin (0.38µm)
Insulation Color : White
Insulation Height : 0.185" (4.70mm)
Contact Length - Post : 0.132" (3.35mm)
Operating Temperature : -40°C ~ 80°C
Material Flammability Rating : UL94 V-0
Contact Finish - Post : Tin
Mated Stacking Heights : -
Ingress Protection : -
Features : Board Hooks
Current Rating : 2.5A
Voltage Rating : 250VAC

245 in stock
