Part Number
Manufacturer
Description
Unit Price
In Stock
FGP3440G2-F085
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : 26.9A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.2V @ 4V, 6A
Power - Max : 166W
Switching Energy : -
Input Type : Logic
Gate Charge : 24nC
Td (on/off) @ 25°C : 1µs/5.3µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : Automotive, AEC-Q101, EcoSPARK®
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : 26.9A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.2V @ 4V, 6A
Power - Max : 166W
Switching Energy : -
Input Type : Logic
Gate Charge : 24nC
Td (on/off) @ 25°C : 1µs/5.3µs
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
766 in stock
FGP40N6S2
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 75A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 20A
Power - Max : 290W
Switching Energy : 115µJ (on), 195µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 8ns/35ns
Test Condition : 390V, 20A, 3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
FGP5N60LS
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 36A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 12V, 14A
Power - Max : 83W
Switching Energy : 38µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 18.3nC
Td (on/off) @ 25°C : 4.3ns/36ns
Test Condition : 400V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 36A
Vce(on) (Max) @ Vge, Ic : 3.2V @ 12V, 14A
Power - Max : 83W
Switching Energy : 38µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 18.3nC
Td (on/off) @ 25°C : 4.3ns/36ns
Test Condition : 400V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
0
798 in stock
FGP5N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 15A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 5A
Power - Max : 81W
Switching Energy : 75µJ (on), 59µJ (off)
Input Type : Standard
Gate Charge : 19.5nC
Td (on/off) @ 25°C : 6ns/44ns
Test Condition : 400V, 5A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 15A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 5A
Power - Max : 81W
Switching Energy : 75µJ (on), 59µJ (off)
Input Type : Standard
Gate Charge : 19.5nC
Td (on/off) @ 25°C : 6ns/44ns
Test Condition : 400V, 5A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
0
100 in stock

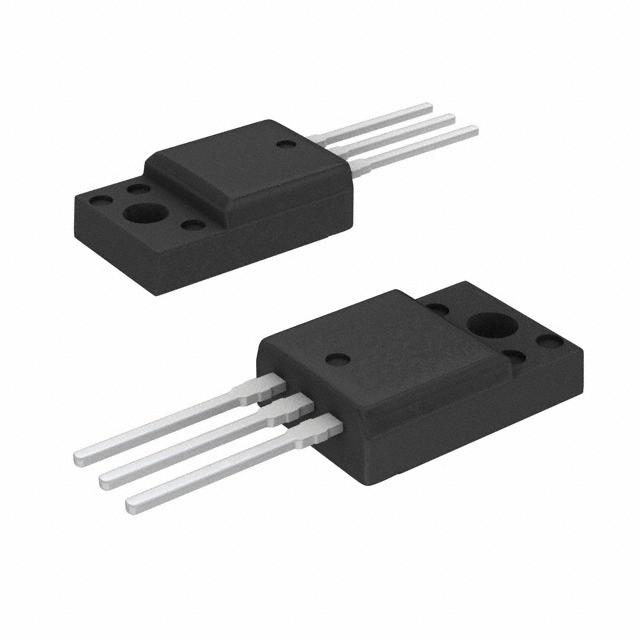

FGPF10N60UNDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 10A
Power - Max : 42W
Switching Energy : 150µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 37nC
Td (on/off) @ 25°C : 8ns/52.2ns
Test Condition : 400V, 10A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37.7ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 10A
Power - Max : 42W
Switching Energy : 150µJ (on), 50µJ (off)
Input Type : Standard
Gate Charge : 37nC
Td (on/off) @ 25°C : 8ns/52.2ns
Test Condition : 400V, 10A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37.7ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3
0
999 in stock
FGPF120N30TU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 25A
Power - Max : 60W
Switching Energy : -
Input Type : Standard
Gate Charge : 112nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 1.4V @ 15V, 25A
Power - Max : 60W
Switching Energy : -
Input Type : Standard
Gate Charge : 112nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF15N60UNDF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 15A
Power - Max : 42W
Switching Energy : 370µJ (on), 67µJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 9.3ns/54.8ns
Test Condition : 400V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 82.4ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 15A
Power - Max : 42W
Switching Energy : 370µJ (on), 67µJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 9.3ns/54.8ns
Test Condition : 400V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 82.4ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-3
0
990 in stock
FGPF30N30
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 10A
Power - Max : 46W
Switching Energy : -
Input Type : Standard
Gate Charge : 39nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 10A
Power - Max : 46W
Switching Energy : -
Input Type : Standard
Gate Charge : 39nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF30N30DTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 10A
Power - Max : 46W
Switching Energy : -
Input Type : Standard
Gate Charge : 39nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 10A
Power - Max : 46W
Switching Energy : -
Input Type : Standard
Gate Charge : 39nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF30N30TDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 10A
Power - Max : 44.6W
Switching Energy : -
Input Type : Standard
Gate Charge : 65nC
Td (on/off) @ 25°C : 22ns/130ns
Test Condition : 200V, 20A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 22ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 10A
Power - Max : 44.6W
Switching Energy : -
Input Type : Standard
Gate Charge : 65nC
Td (on/off) @ 25°C : 22ns/130ns
Test Condition : 200V, 20A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 22ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF30N30TTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 10A
Power - Max : 44.6W
Switching Energy : -
Input Type : Standard
Gate Charge : 65nC
Td (on/off) @ 25°C : 22ns/130ns
Test Condition : 200V, 20A, 20 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 10A
Power - Max : 44.6W
Switching Energy : -
Input Type : Standard
Gate Charge : 65nC
Td (on/off) @ 25°C : 22ns/130ns
Test Condition : 200V, 20A, 20 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF30N45TTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 20A
Power - Max : 50.4W
Switching Energy : -
Input Type : Standard
Gate Charge : 73nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 15V, 20A
Power - Max : 50.4W
Switching Energy : -
Input Type : Standard
Gate Charge : 73nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
