- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

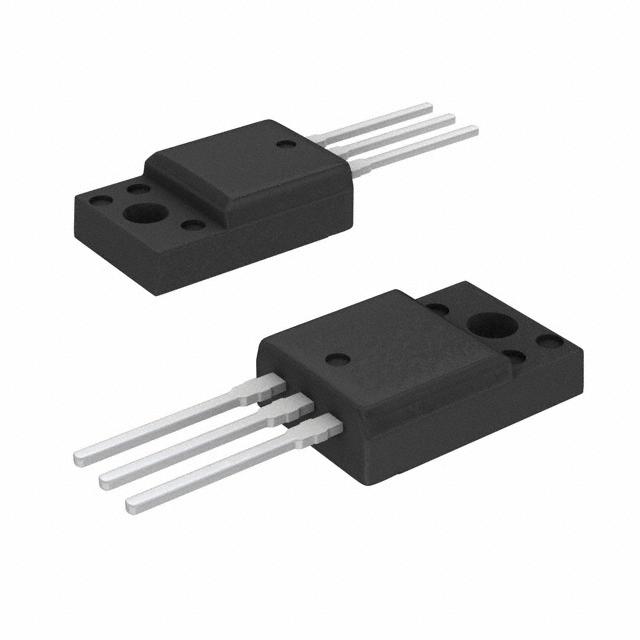

FGPF4533
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 28.4W
Switching Energy : -
Input Type : Standard
Gate Charge : 44nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 200A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 50A
Power - Max : 28.4W
Switching Energy : -
Input Type : Standard
Gate Charge : 44nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF4565
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 170A
Vce(on) (Max) @ Vge, Ic : 1.88V @ 15V, 30A
Power - Max : 30W
Switching Energy : -
Input Type : Standard
Gate Charge : 40.3nC
Td (on/off) @ 25°C : 11.2ns/40.8ns
Test Condition : 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 170A
Vce(on) (Max) @ Vge, Ic : 1.88V @ 15V, 30A
Power - Max : 30W
Switching Energy : -
Input Type : Standard
Gate Charge : 40.3nC
Td (on/off) @ 25°C : 11.2ns/40.8ns
Test Condition : 400V, 30A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
268 in stock
FGPF45N45TTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 51.6W
Switching Energy : -
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 450V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 180A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 51.6W
Switching Energy : -
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF50N30TTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 15A
Power - Max : 46.8W
Switching Energy : -
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 15A
Power - Max : 46.8W
Switching Energy : -
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF70N30
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 52W
Switching Energy : -
Input Type : Standard
Gate Charge : 71nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 52W
Switching Energy : -
Input Type : Standard
Gate Charge : 71nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF70N30TDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 49.2W
Switching Energy : -
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 49.2W
Switching Energy : -
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF70N30TTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 49.2W
Switching Energy : -
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 1.5V @ 15V, 20A
Power - Max : 49.2W
Switching Energy : -
Input Type : Standard
Gate Charge : 125nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF70N33BTTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 70A
Power - Max : 48W
Switching Energy : -
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.7V @ 15V, 70A
Power - Max : 48W
Switching Energy : -
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF7N60LSDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 45W
Switching Energy : 270µJ (on), 3.8mJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 120ns/410ns
Test Condition : 300V, 7A, 470 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 7A
Power - Max : 45W
Switching Energy : 270µJ (on), 3.8mJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 120ns/410ns
Test Condition : 300V, 7A, 470 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF7N60RUFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 41W
Switching Energy : 230µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 60ns/60ns
Test Condition : 300V, 7A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 41W
Switching Energy : 230µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 60ns/60ns
Test Condition : 300V, 7A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 65ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGPF90N30
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.55V @ 15V, 30A
Power - Max : 56.8W
Switching Energy : -
Input Type : Standard
Gate Charge : 93nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 300V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 1.55V @ 15V, 30A
Power - Max : 56.8W
Switching Energy : -
Input Type : Standard
Gate Charge : 93nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
100 in stock
FGS15N40LTF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 130A
Vce(on) (Max) @ Vge, Ic : 8V @ 4V, 130A
Power - Max : 2W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 400V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 130A
Vce(on) (Max) @ Vge, Ic : 8V @ 4V, 130A
Power - Max : 2W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
