Part Number
Manufacturer
Description
Unit Price
In Stock

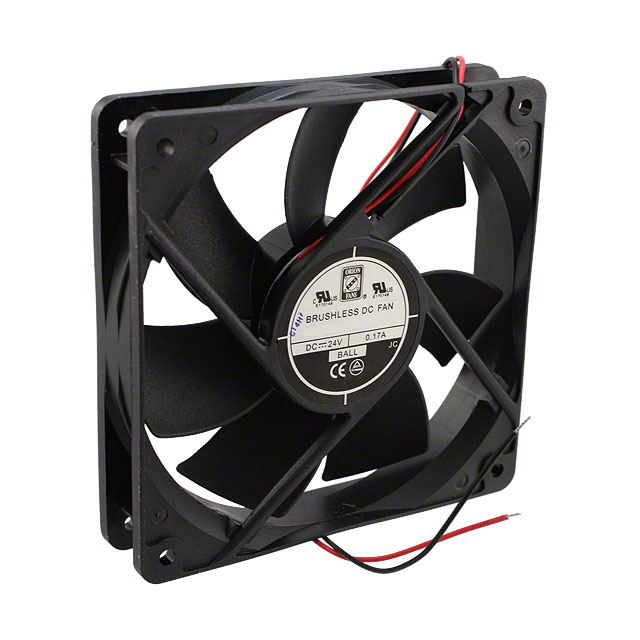

OD1225-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 83.0 CFM (2.32m?min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB
Power (Watts) : 4.00W
RPM : 2050 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1225
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 83.0 CFM (2.32m?min)
Static Pressure : 0.120 in H2O (29.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 38.0 dB
Power (Watts) : 4.00W
RPM : 2050 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
202 in stock

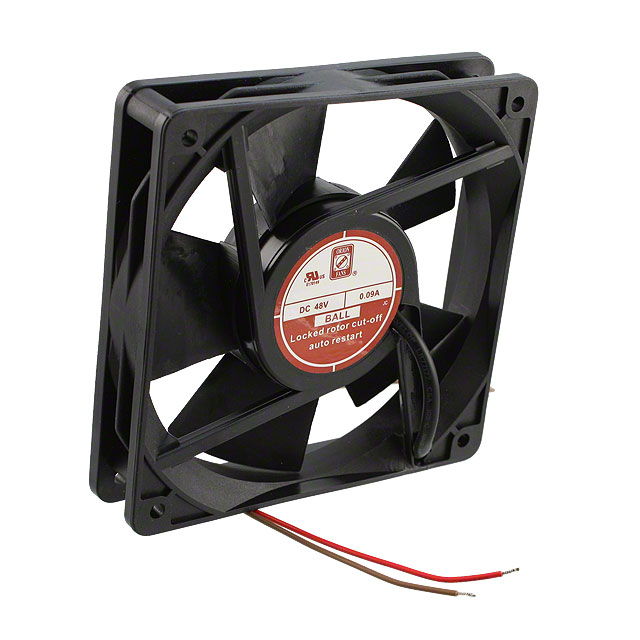

OD1225-48HB
Orion Fans
Manufacturer : Orion Fans
Series : OD1225
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 86.0 CFM (2.41m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 5.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1225
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 86.0 CFM (2.41m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 5.00W
RPM : 3000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
220 in stock

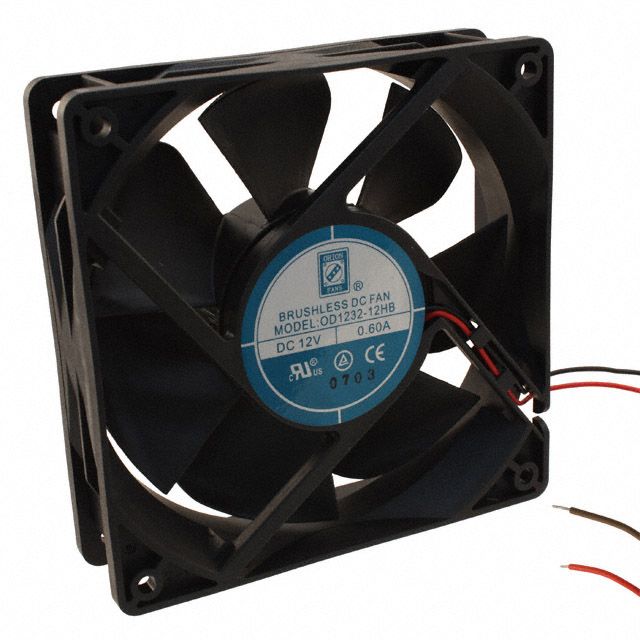

OD1232-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD1232
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 120.0 CFM (3.36m?min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : -
RPM : 3750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD1232
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 120.0 CFM (3.36m?min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : -
RPM : 3750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
252 in stock

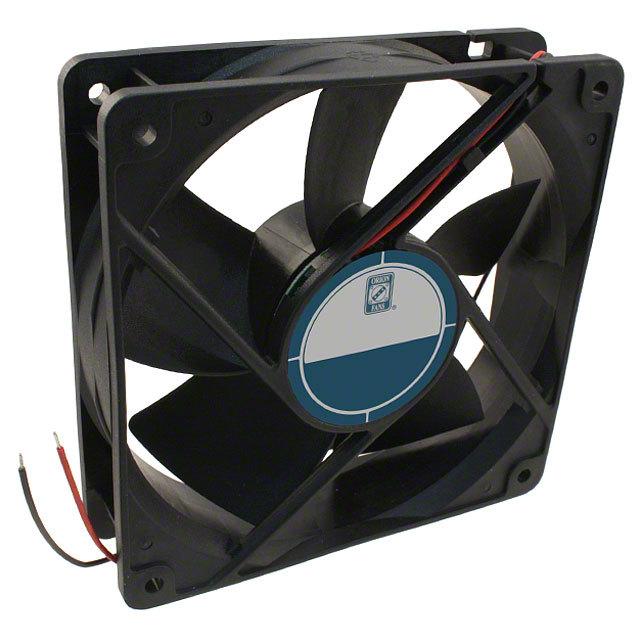

OD1232-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD1232
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 107.0 CFM (3.00m?min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB
Power (Watts) : -
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD1232
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 107.0 CFM (3.00m?min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB
Power (Watts) : -
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
29 in stock

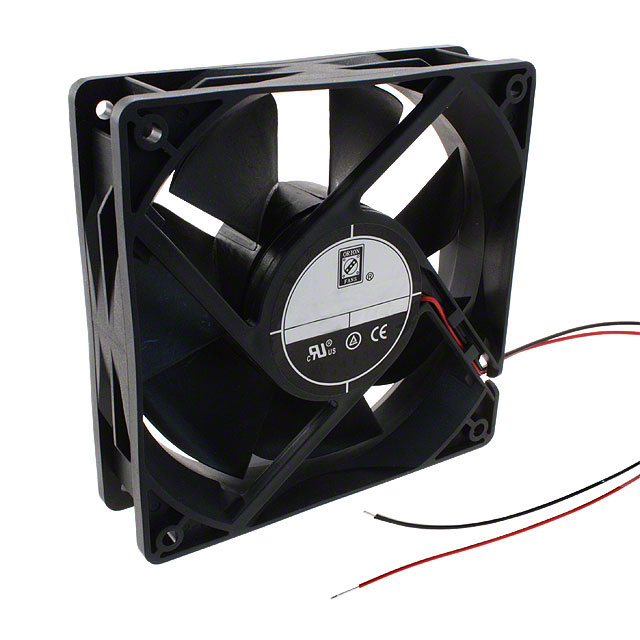

OD1232-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD1232
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 120.0 CFM (3.36m?min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : -
RPM : 3750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD1232
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 120.0 CFM (3.36m?min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : -
RPM : 3750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
2759 in stock

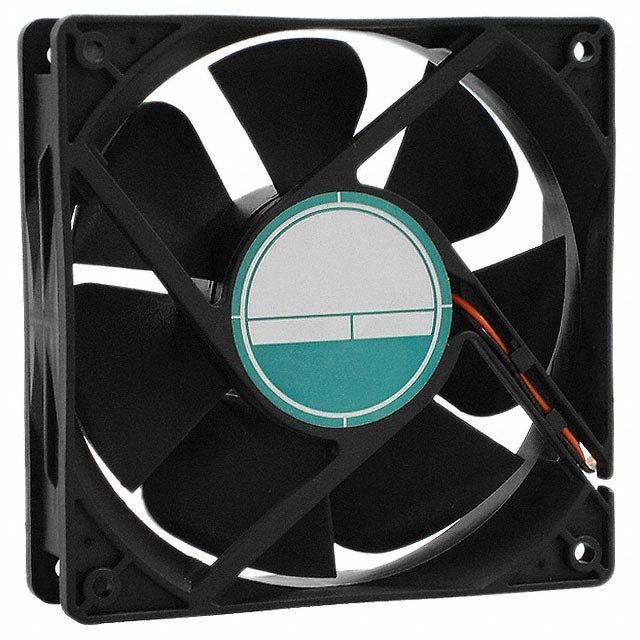

OD1232-24LB
Orion Fans
Manufacturer : Orion Fans
Series : OD1232
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 93.0 CFM (2.60m?min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : -
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD1232
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 93.0 CFM (2.60m?min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : -
RPM : 2900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
4 in stock

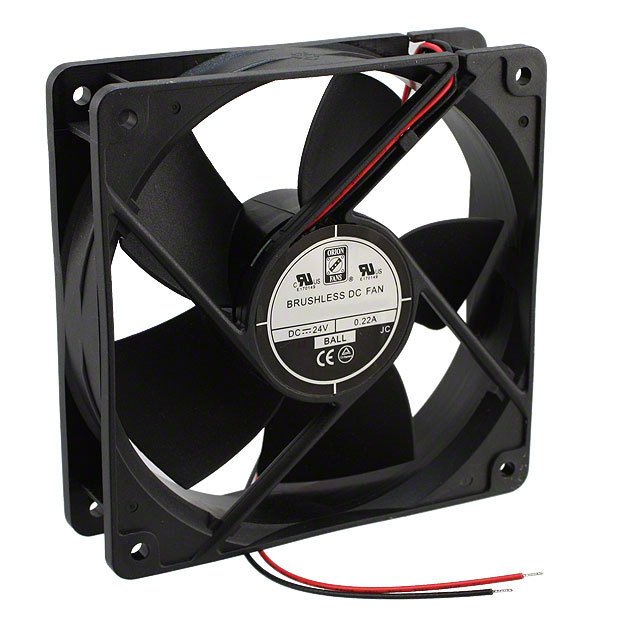

OD1232-24MB
Orion Fans
Manufacturer : Orion Fans
Series : OD1232
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 107.0 CFM (3.00m?min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB
Power (Watts) : -
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD1232
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 107.0 CFM (3.00m?min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 48.0 dB
Power (Watts) : -
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
624 in stock

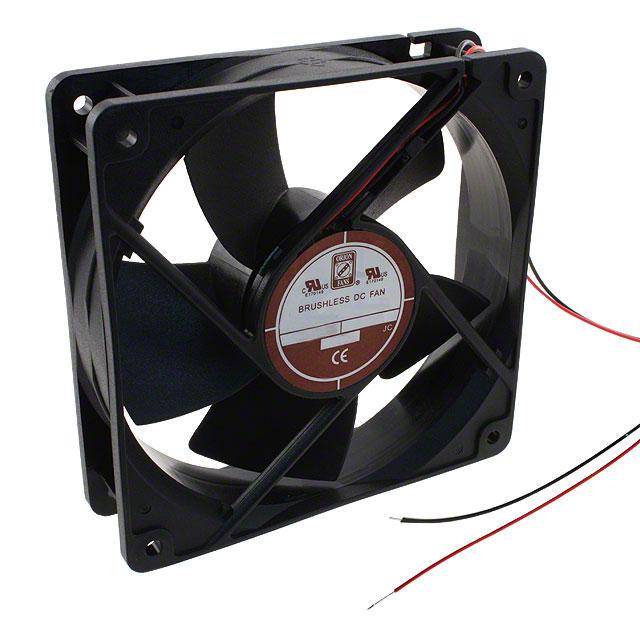

OD1232-48HB
Orion Fans
Manufacturer : Orion Fans
Series : OD1232
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 120.0 CFM (3.36m?min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : -
RPM : 3750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
Series : OD1232
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 120.0 CFM (3.36m?min)
Static Pressure : 0.420 in H2O (104.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.0 dB
Power (Watts) : -
RPM : 3750 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
455 in stock
OD1232-48MB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD1232
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 107.0 CFM (3.00m?min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 48.0 dB
Power (Watts) : -
RPM : 3300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : CE, cURus
Weight : -
Series : OD1232
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 107.0 CFM (3.00m?min)
Static Pressure : 0.330 in H2O (82.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 48.0 dB
Power (Watts) : -
RPM : 3300 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : CE, cURus
Weight : -
0
82 in stock

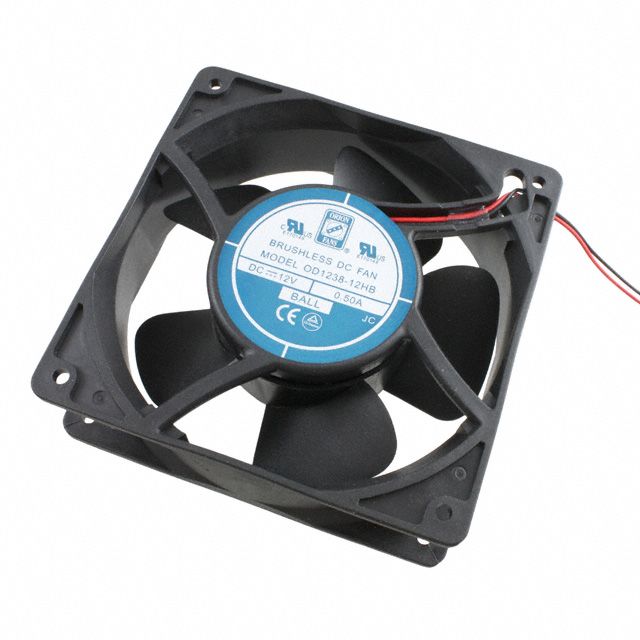

OD1238-12HB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 6.00W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 6.00W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
365 in stock

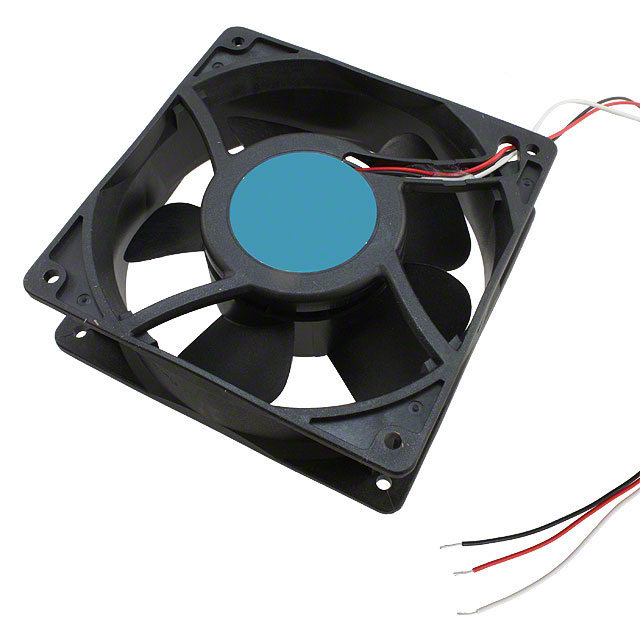

OD1238-12HB01A
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 43.0 dB
Power (Watts) : 6.00W
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 43.0 dB
Power (Watts) : 6.00W
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
158 in stock

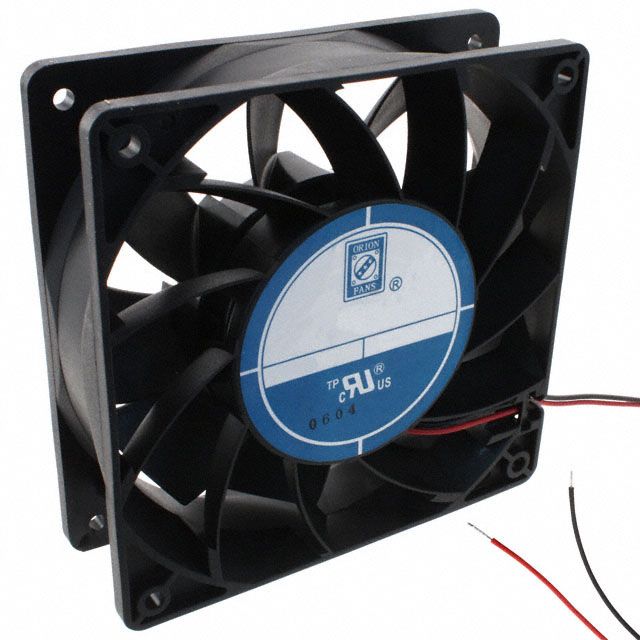

OD1238-12HBVXC
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 226.0 CFM (6.33m?min)
Static Pressure : 1.350 in H2O (336.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 65.0 dB
Power (Watts) : 43.20W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 226.0 CFM (6.33m?min)
Static Pressure : 1.350 in H2O (336.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 65.0 dB
Power (Watts) : 43.20W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
235 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
