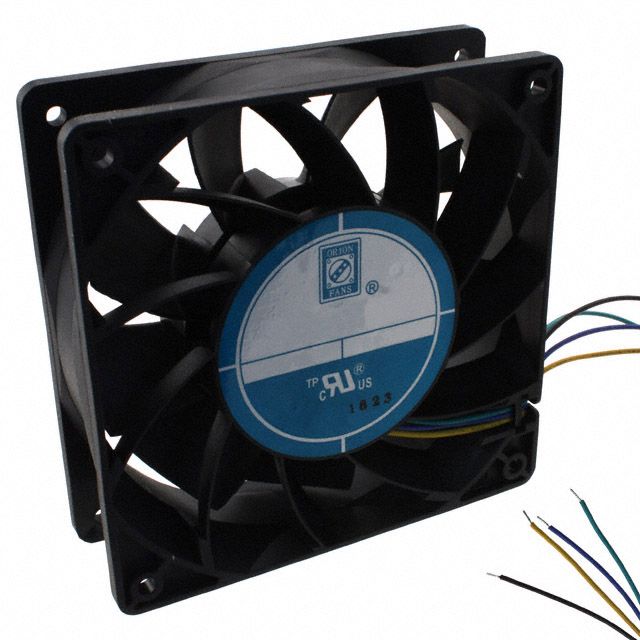

OD1238-12HBVXC10A
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 226.0 CFM (6.33m?min)
Static Pressure : 1.350 in H2O (336.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 65.0 dB
Power (Watts) : 43.20W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 226.0 CFM (6.33m?min)
Static Pressure : 1.350 in H2O (336.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 65.0 dB
Power (Watts) : 43.20W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
20 in stock

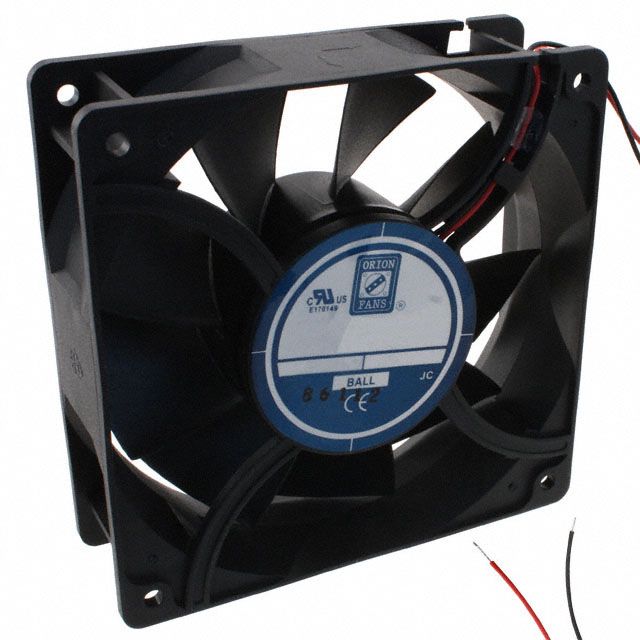

OD1238-12HBXC
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 200.0 CFM (5.60m?min)
Static Pressure : 0.640 in H2O (159.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 23.00W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 200.0 CFM (5.60m?min)
Static Pressure : 0.640 in H2O (159.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 23.00W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
83 in stock
OD1238-12HBXJ01A
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 250.0 CFM (7.00m?min)
Static Pressure : 1.480 in H2O (368.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 69.0 dB
Power (Watts) : 44.40W
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.827 lb (375.12g)
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 250.0 CFM (7.00m?min)
Static Pressure : 1.480 in H2O (368.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 69.0 dB
Power (Watts) : 44.40W
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.827 lb (375.12g)
0
760 in stock

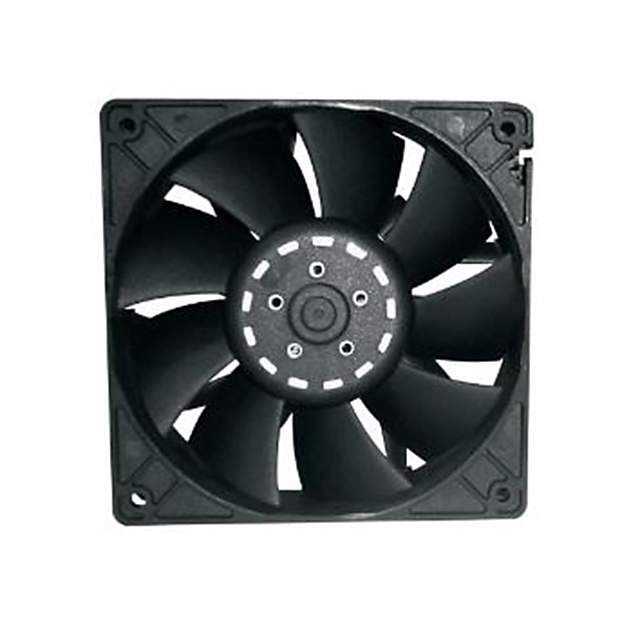

OD1238-12HBXJ10A
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 250.0 CFM (7.00m?min)
Static Pressure : 1.480 in H2O (368.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 69.0 dB
Power (Watts) : 44.40W
RPM : 6000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.827 lb (375.12g)
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 250.0 CFM (7.00m?min)
Static Pressure : 1.480 in H2O (368.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 69.0 dB
Power (Watts) : 44.40W
RPM : 6000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.827 lb (375.12g)
0
197 in stock

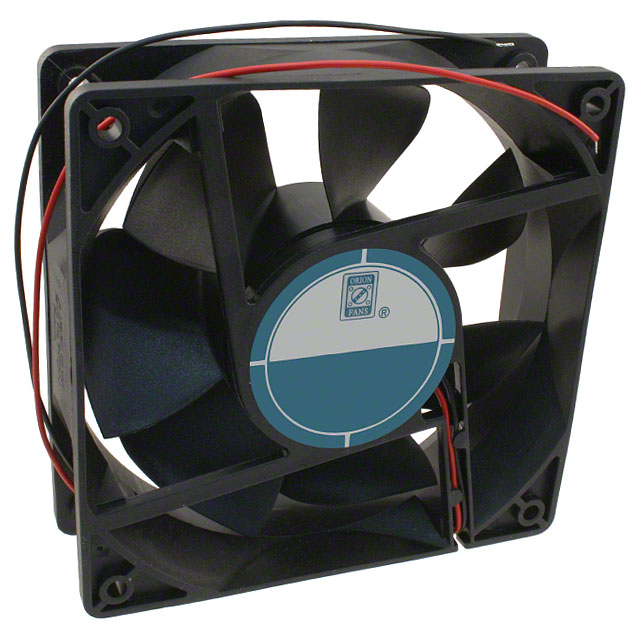

OD1238-12HHB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 154.0 CFM (4.31m?min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 15.60W
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 154.0 CFM (4.31m?min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 15.60W
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
58 in stock

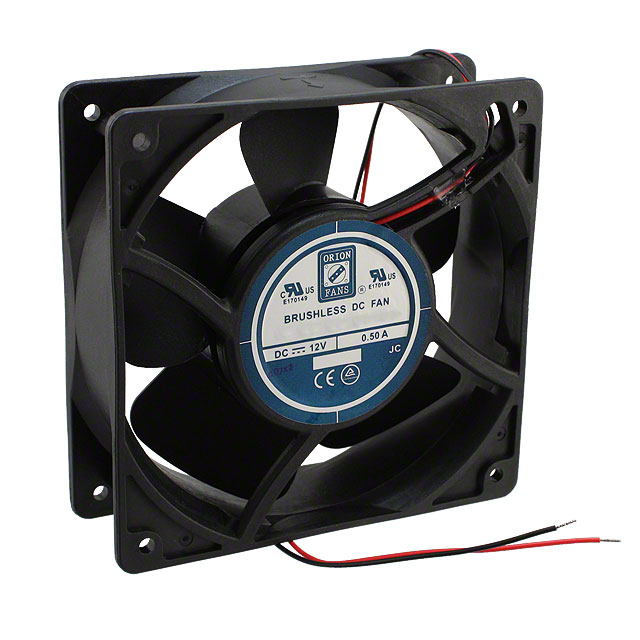

OD1238-12HSS
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 4.70W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Sealed Sleeve
Fan Type : Tubeaxial
Features : -
Noise : 47.0 dB
Power (Watts) : 4.70W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
73 in stock

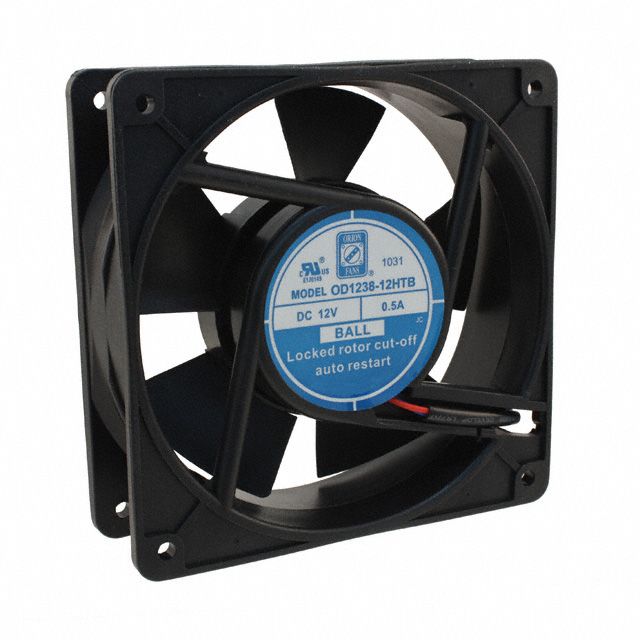

OD1238-12HTB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 6.00W
RPM : 2800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 6.00W
RPM : 2800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
76 in stock

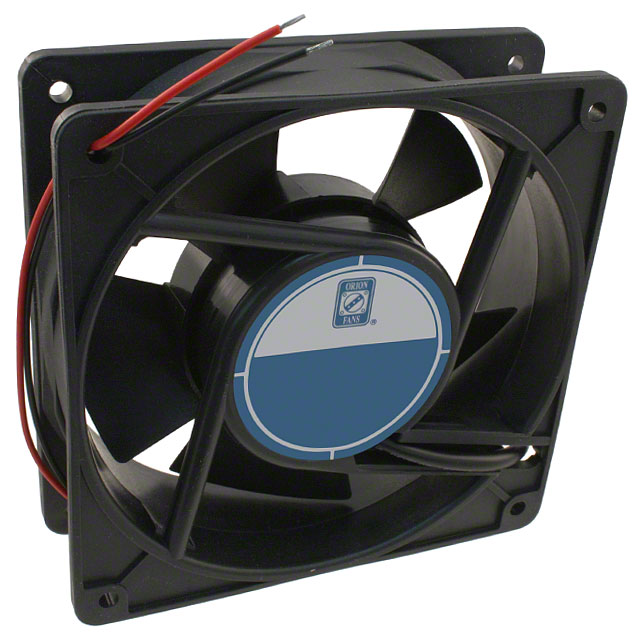

OD1238-12LB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 73.0 CFM (2.04m?min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 3.00W
RPM : 1950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 73.0 CFM (2.04m?min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 3.00W
RPM : 1950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
142 in stock

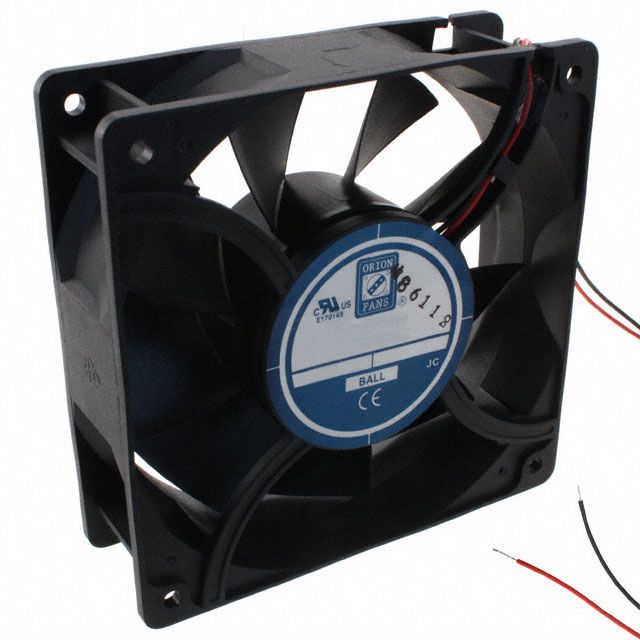

OD1238-12LBXC
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 150.0 CFM (4.20m?min)
Static Pressure : 0.380 in H2O (94.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 10.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 150.0 CFM (4.20m?min)
Static Pressure : 0.380 in H2O (94.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 10.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
186 in stock

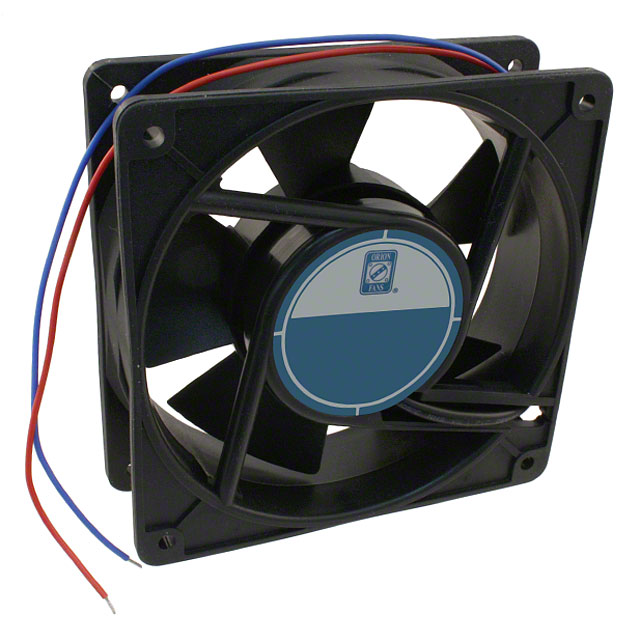

OD1238-12MB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 95.0 CFM (2.66m?min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 4.00W
RPM : 2540 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 95.0 CFM (2.66m?min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 41.0 dB
Power (Watts) : 4.00W
RPM : 2540 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
21 in stock

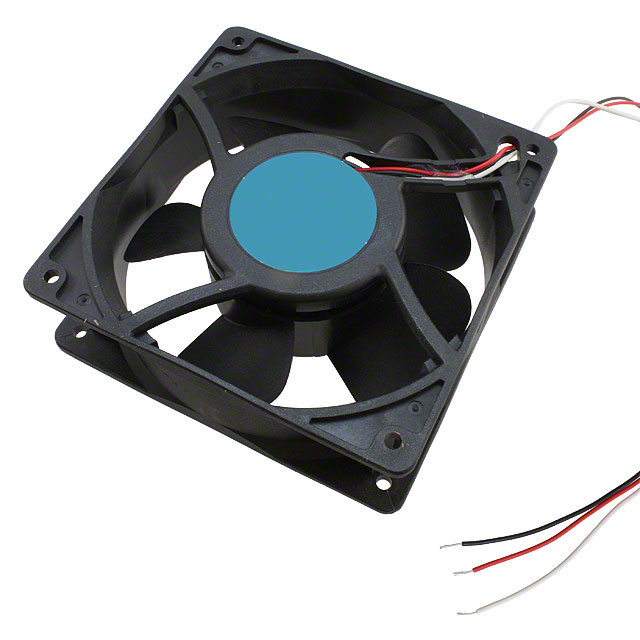

OD1238-12MB01
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 95.0 CFM (2.66m?min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 41.0 dB
Power (Watts) : 4.00W
RPM : 2540 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 95.0 CFM (2.66m?min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 41.0 dB
Power (Watts) : 4.00W
RPM : 2540 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
50 in stock
OD1238-12MBXJ10A
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 207.0 CFM (5.80m?min)
Static Pressure : 1.044 in H2O (260.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 63.0 dB
Power (Watts) : 27.60W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.827 lb (375.12g)
Series : OD1238
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 207.0 CFM (5.80m?min)
Static Pressure : 1.044 in H2O (260.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 63.0 dB
Power (Watts) : 27.60W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.827 lb (375.12g)
0
196 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
