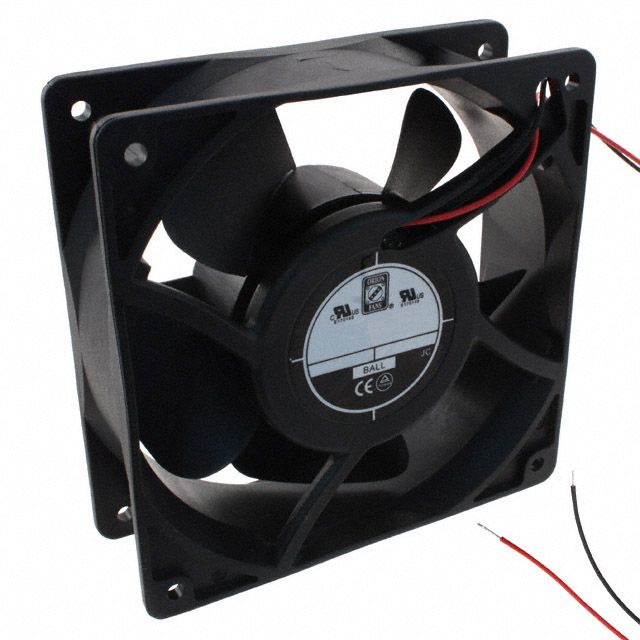

OD1238-24HB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
104 in stock

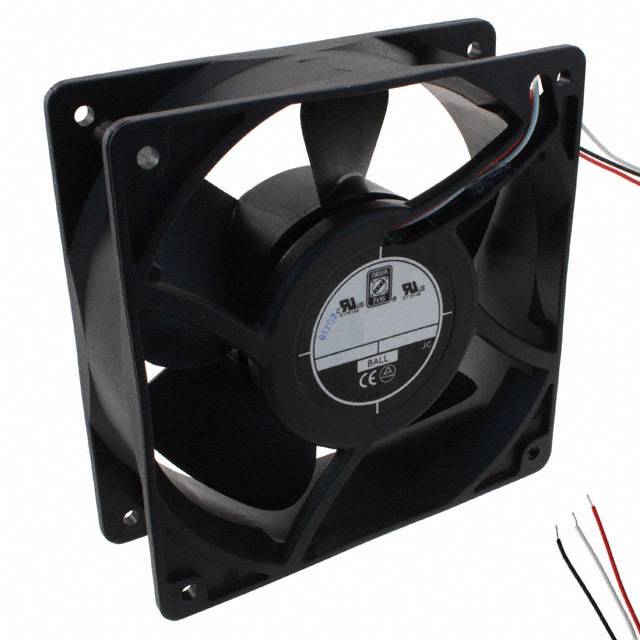

OD1238-24HB01A
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
475 in stock

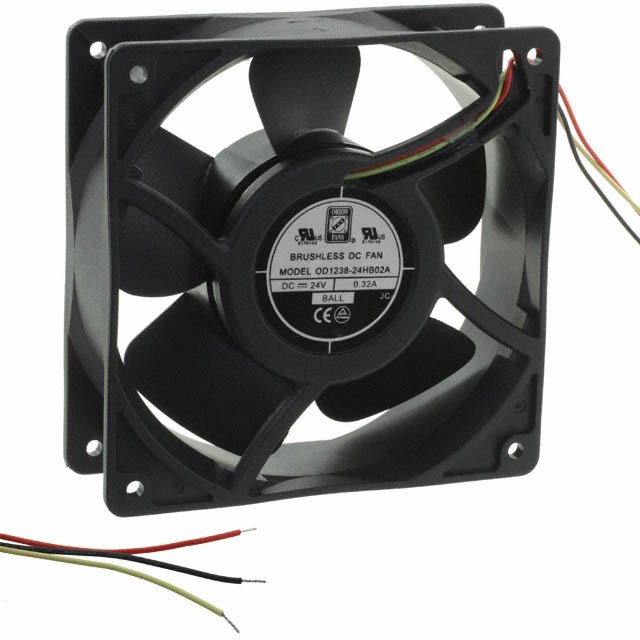

OD1238-24HB02A
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Sensor
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
41 in stock

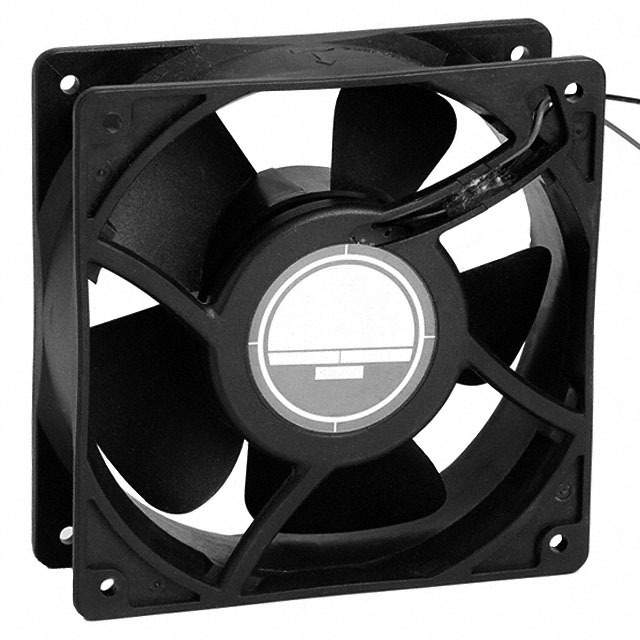

OD1238-24HBIP55
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
390 in stock

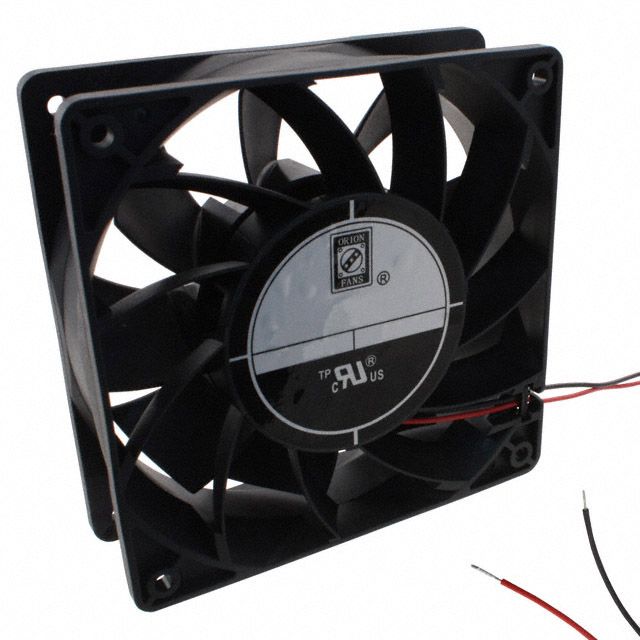

OD1238-24HBVXC
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 226.0 CFM (6.33m?min)
Static Pressure : 1.350 in H2O (336.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 65.0 dB
Power (Watts) : 40.80W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 226.0 CFM (6.33m?min)
Static Pressure : 1.350 in H2O (336.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 65.0 dB
Power (Watts) : 40.80W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock

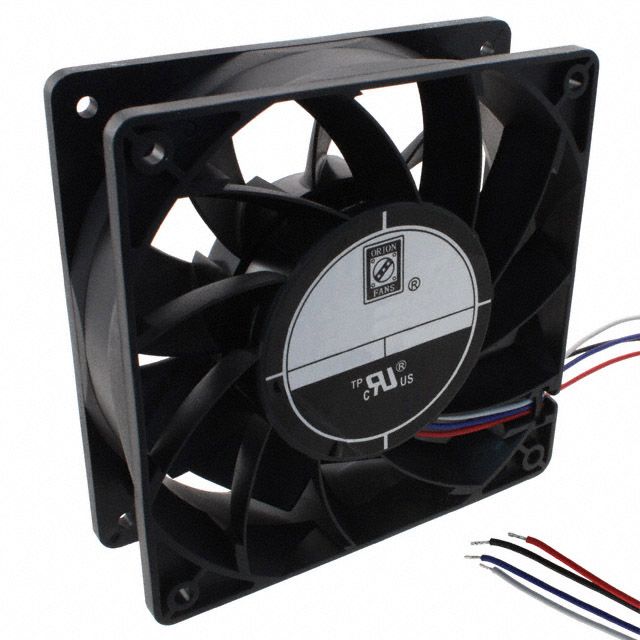

OD1238-24HBVXC10A
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 226.0 CFM (6.33m?min)
Static Pressure : 1.350 in H2O (336.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 65.0 dB
Power (Watts) : 40.80W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 226.0 CFM (6.33m?min)
Static Pressure : 1.350 in H2O (336.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 65.0 dB
Power (Watts) : 40.80W
RPM : 5000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
1152 in stock

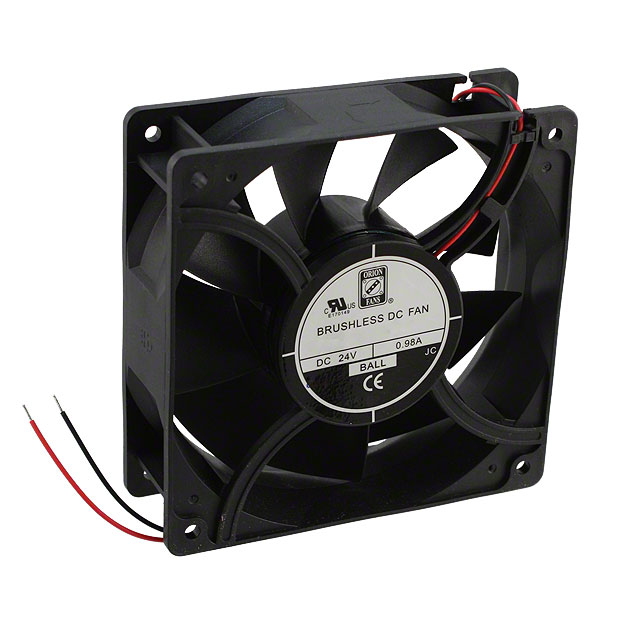

OD1238-24HBXC
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 200.0 CFM (5.60m?min)
Static Pressure : 0.640 in H2O (159.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 19.00W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 200.0 CFM (5.60m?min)
Static Pressure : 0.640 in H2O (159.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 19.00W
RPM : 4300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
609 in stock

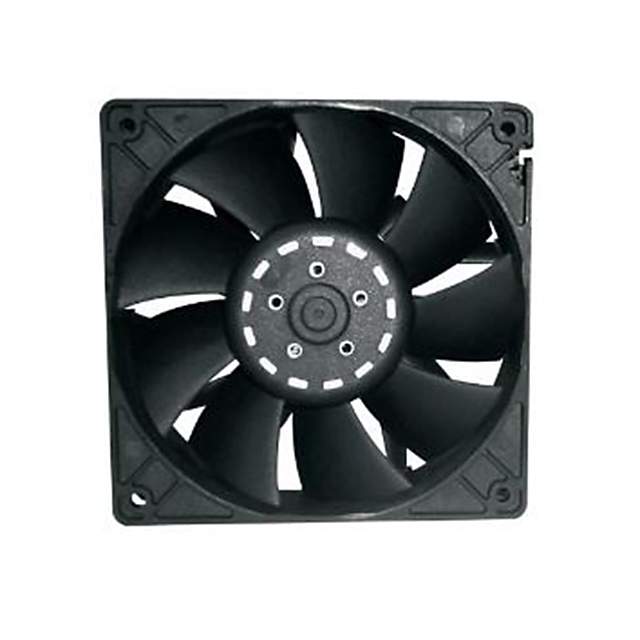

OD1238-24HBXJ01A
Orion Fans
Manufacturer : Orion Fans
Series : -
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 250.0 CFM (7.00m?min)
Static Pressure : 1.480 in H2O (368.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 69.0 dB
Power (Watts) : 42.00W
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.827 lb (375.12g)
Series : -
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 250.0 CFM (7.00m?min)
Static Pressure : 1.480 in H2O (368.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 69.0 dB
Power (Watts) : 42.00W
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : 0.827 lb (375.12g)
0
1130 in stock
OD1238-24HHB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 154.0 CFM (4.31m?min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 14.40W
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 154.0 CFM (4.31m?min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 14.40W
RPM : 3800 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 167°F (-20 ~ 75°C)
Approvals : cURus, TUV
Weight : -
0
569 in stock

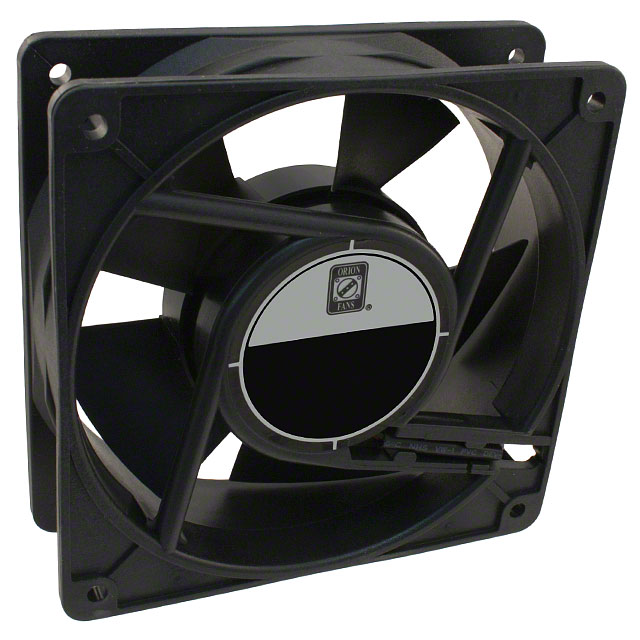

OD1238-24HTB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 105.0 CFM (2.94m?min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 43.0 dB
Power (Watts) : 7.00W
RPM : 2800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
599 in stock

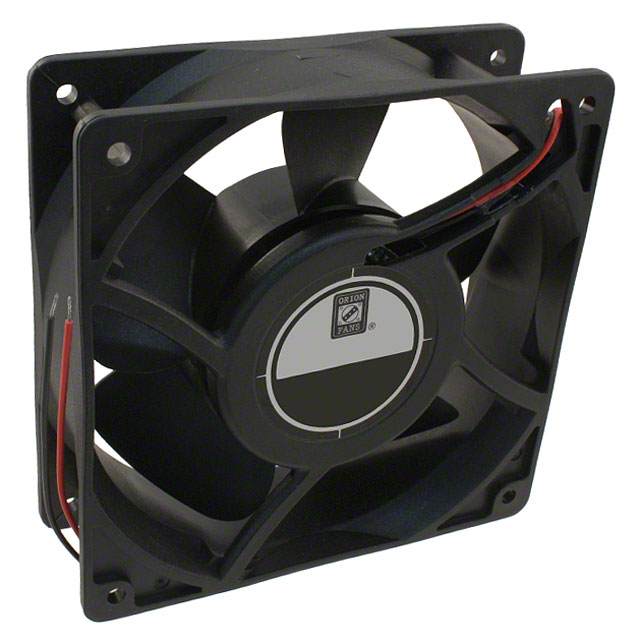

OD1238-24LB
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 73.0 CFM (2.04m?min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 4.00W
RPM : 1950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 73.0 CFM (2.04m?min)
Static Pressure : 0.130 in H2O (32.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 4.00W
RPM : 1950 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
194 in stock

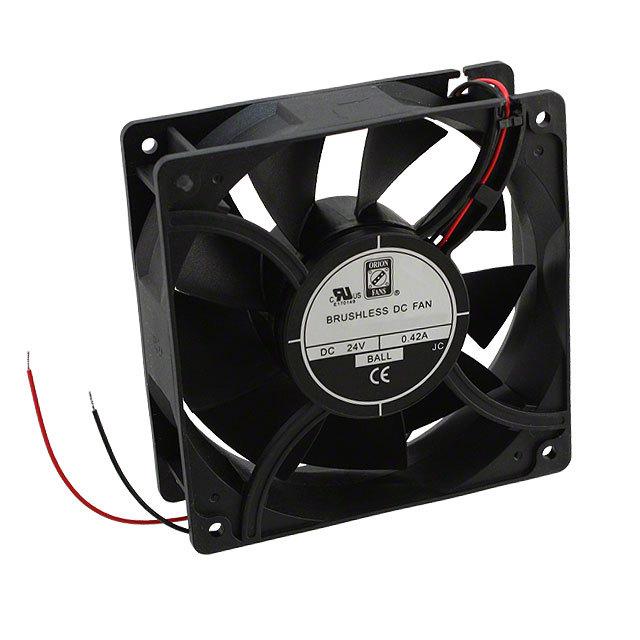

OD1238-24LBXC
Orion Fans
Manufacturer : Orion Fans
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 150.0 CFM (4.20m?min)
Static Pressure : 0.380 in H2O (94.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 9.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
Series : OD1238
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.50mm
Air Flow : 150.0 CFM (4.20m?min)
Static Pressure : 0.380 in H2O (94.6 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 9.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
