Category
  • DC Fans
Part Number
Manufacturer
Description
Unit Price
In Stock

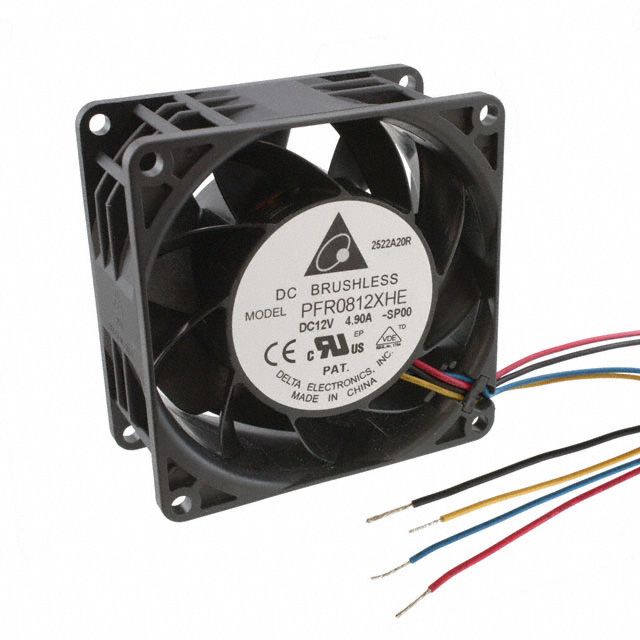

Picture of PFR0812XHE-SP00

PFR0812XHE-SP00 PFR0812XHE-SP00

Delta Electronics
Manufacturer : Delta Electronics
Series : PFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 134.3 CFM (3.76m鲁/min)
Static Pressure : 3.000 in H2O (747.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 71.5 dB(A)
Power (Watts) : 42.00W
RPM : 13300 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 0.573 lb (259.91g)
0
129 in stock

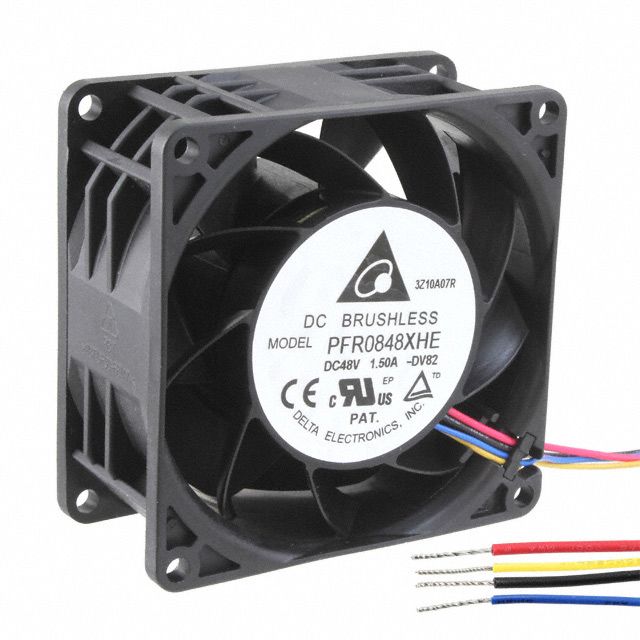

Picture of PFR0848XHE-DV82

PFR0848XHE-DV82 PFR0848XHE-DV82

Delta Electronics
Manufacturer : Delta Electronics
Series : PFR
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 144.2 CFM (4.04m鲁/min)
Static Pressure : 3.457 in H2O (861.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 73.0 dB(A)
Power (Watts) : 48.00W
RPM : 13800 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 0.529 lb (239.95g)
0
100 in stock

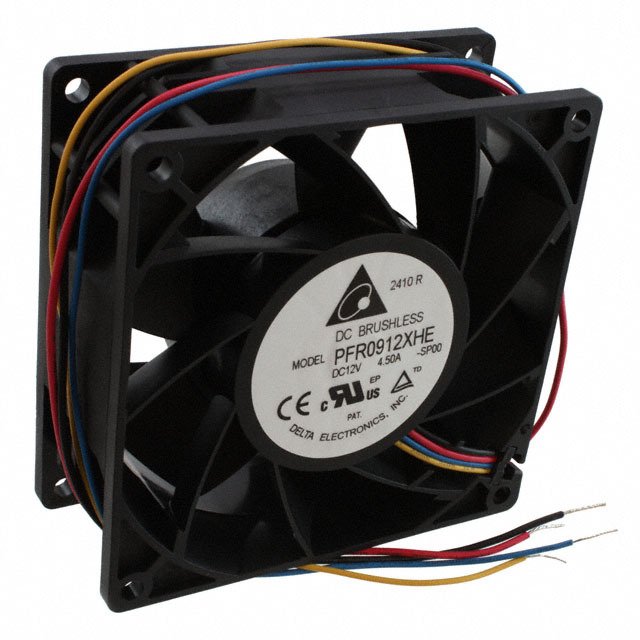

Picture of PFR0912XHE-SP00

PFR0912XHE-SP00 PFR0912XHE-SP00

Delta Electronics
Manufacturer : Delta Electronics
Series : PFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 185.5 CFM (5.19m鲁/min)
Static Pressure : 2.523 in H2O (628.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 71.0 dB(A)
Power (Watts) : 44.40W
RPM : 11500 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 0.573 lb (259.91g)
0
100 in stock

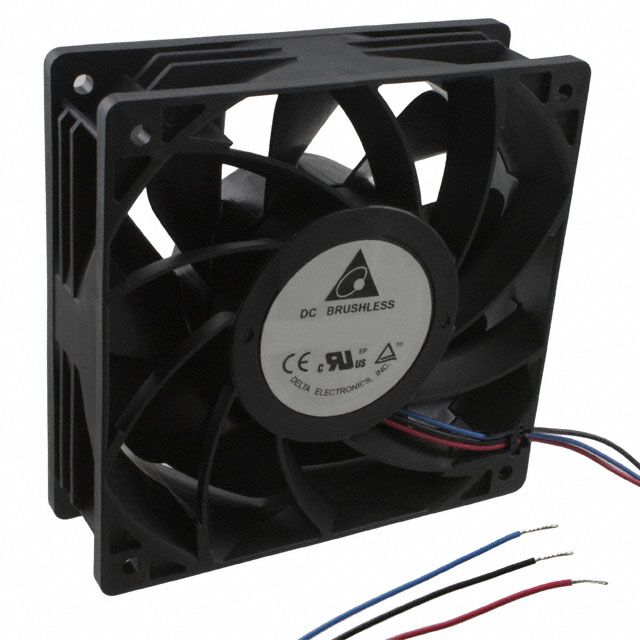

Picture of PFR1212DHE-F00

PFR1212DHE-F00 PFR1212DHE-F00

Delta Electronics
Manufacturer : Delta Electronics
Series : PFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 254.3 CFM (7.12m鲁/min)
Static Pressure : 1.438 in H2O (358.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 68.5 dB(A)
Power (Watts) : 44.40W
RPM : 7400 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 0.904 lb (410.05g)
0
110 in stock

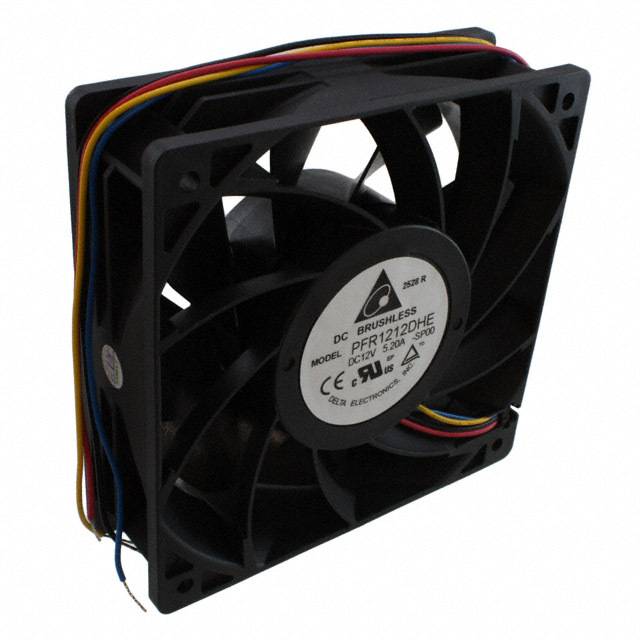

Picture of PFR1212DHE-SP00

PFR1212DHE-SP00 PFR1212DHE-SP00

Delta Electronics
Manufacturer : Delta Electronics
Series : PFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 254.3 CFM (7.12m鲁/min)
Static Pressure : 1.438 in H2O (358.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 68.5 dB(A)
Power (Watts) : 44.40W
RPM : 7400 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, TUV, UL
Weight : 0.904 lb (410.05g)
0
109 in stock
Picture of PFR1212UHE-SP00

PFR1212UHE-SP00 PFR1212UHE-SP00

Delta Electronics
Manufacturer : Delta Electronics
Series : PFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 228.6 CFM (6.40m鲁/min)
Static Pressure : 1.206 in H2O (300.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : PWM Control, Speed Sensor (Tach)
Noise : 65.5 dB(A)
Power (Watts) : 32.40W
RPM : 6600 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, TUV, UL
Weight : 0.904 lb (410.05g)
0
304 in stock

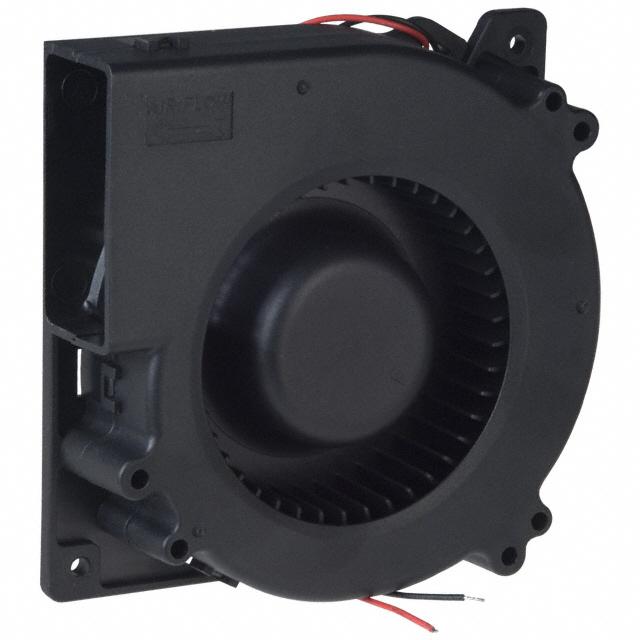

Picture of PMB1212PLB2-A.(2).GN

PMB1212PLB2-A.(2).GN PMB1212PLB2-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 35.9 CFM (1.01m鲁/min)
Static Pressure : 0.890 in H2O (221.7 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 53.8 dB(A)
Power (Watts) : 9.80W
RPM : 2500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.551 lb (249.93g)
0
361 in stock
Picture of PMB1212PLB3-A.(2).GN

PMB1212PLB3-A.(2).GN PMB1212PLB3-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 120mm L x 120mm H
Width : 32.00mm
Air Flow : 31.4 CFM (0.879m鲁/min)
Static Pressure : 0.640 in H2O (159.4 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 49.6 dB(A)
Power (Watts) : 5.40W
RPM : 2100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.551 lb (249.93g)
0
29 in stock
Picture of PMB1275PNB1-AY.(2).GN

PMB1275PNB1-AY.(2).GN PMB1275PNB1-AY.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Obsolete
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 75.7mm L x 75.7mm H
Width : 30.00mm
Air Flow : 13.6 CFM (0.381m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 43.5 dB(A)
Power (Watts) : 3.60W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.191 lb (86.64g)
0
69 in stock

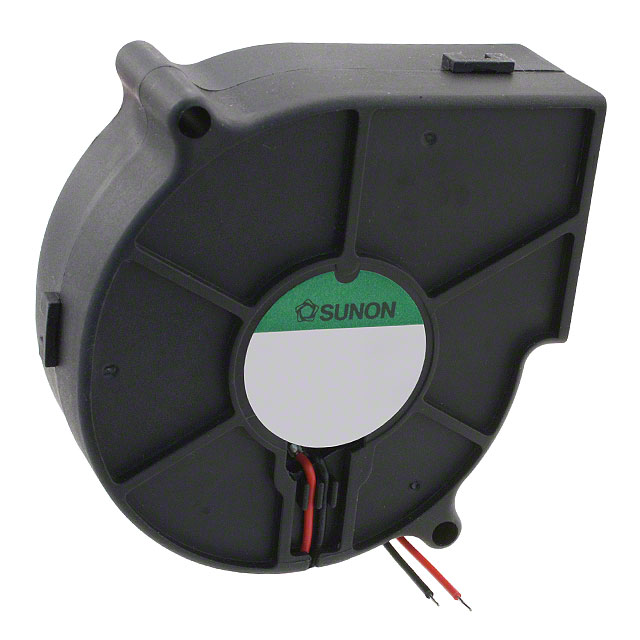

Picture of PMB1275PNB3-AY.(2).GN

PMB1275PNB3-AY.(2).GN PMB1275PNB3-AY.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square/Rounded - 75.7mm L x 75.7mm H
Width : 30.00mm
Air Flow : 9.6 CFM (0.269m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 33.9 dB(A)
Power (Watts) : 1.60W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.191 lb (86.64g)
0
379 in stock

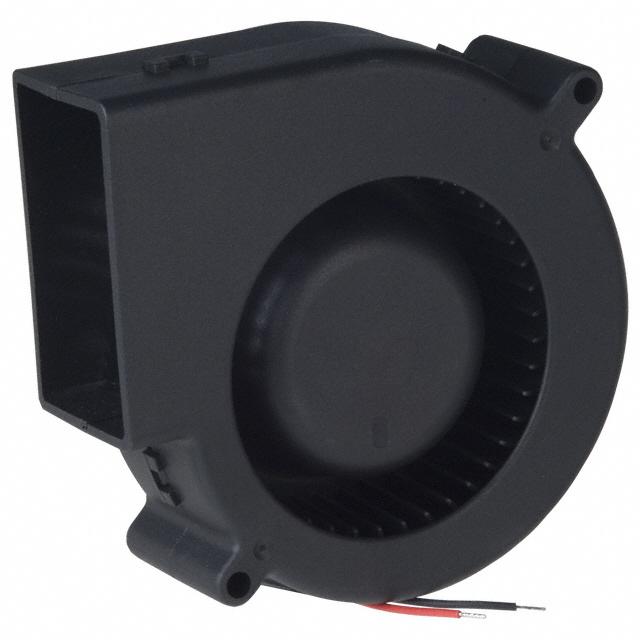

Picture of PMB1297PYB1-AY.(2).GN

PMB1297PYB1-AY.(2).GN PMB1297PYB1-AY.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Rectangular/Rounded - 97.2mm L x 94.4mm H
Width : 33.00mm
Air Flow : 30.5 CFM (0.854m鲁/min)
Static Pressure : 0.920 in H2O (229.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : -
Noise : 55.8 dB(A)
Power (Watts) : 8.60W
RPM : 3600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.408 lb (185.07g)
0
273 in stock
Picture of PMB2475PNB1-AY.(2).GN

PMB2475PNB1-AY.(2).GN PMB2475PNB1-AY.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 75.7mm L x 75.7mm H
Width : 30.00mm
Air Flow : 13.6 CFM (0.381m鲁/min)
Static Pressure : 0.600 in H2O (149.5 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Auto Restart
Noise : 43.5 dB(A)
Power (Watts) : 4.10W
RPM : 3400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.191 lb (86.64g)
0
30 in stock
