Part Number

Manufacturer

Description

Unit Price

In Stock

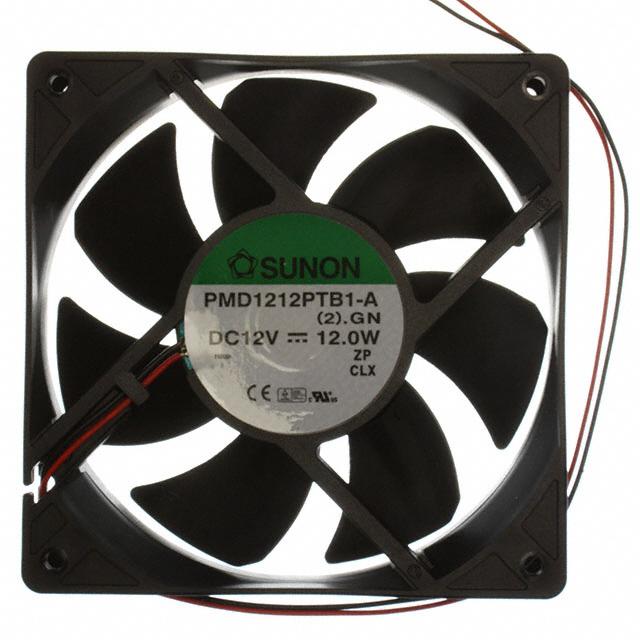

PMD1212PTB1-A.(2).GN

Sunon

Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 150.0 CFM (4.20m鲁/min)
Static Pressure : 0.620 in H2O (154.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 12.00W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.485 lb (219.99g)

0

683 in stock

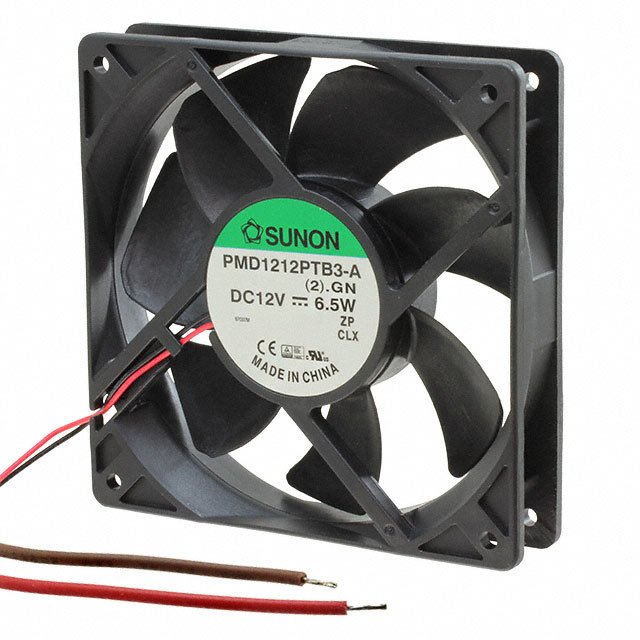

PMD1212PTB3-A.(2).GN

Sunon

Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

0

30 in stock

PMD1238PKB1-A.(2).GN

Sunon

Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 20.00mm
Air Flow : 12.0 CFM (0.336m鲁/min)
Static Pressure : 0.610 in H2O (151.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB(A)
Power (Watts) : 3.10W
RPM : 13000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.061 lb (27.67g)

0

525 in stock

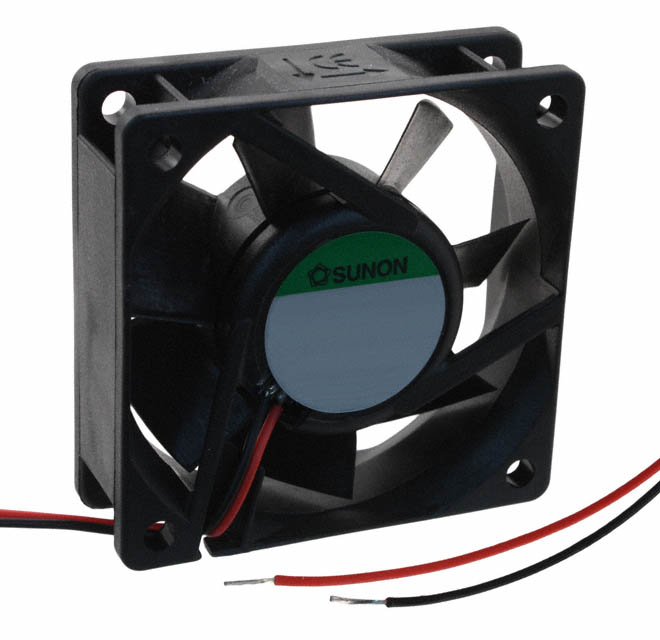

PMD2406PKB1-A.(2).GN

Sunon

Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 20.00mm
Air Flow : 27.5 CFM (0.770m鲁/min)
Static Pressure : 0.280 in H2O (69.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 39.0 dB(A)
Power (Watts) : 2.90W
RPM : 5000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.121 lb (54.88g)

0

261 in stock

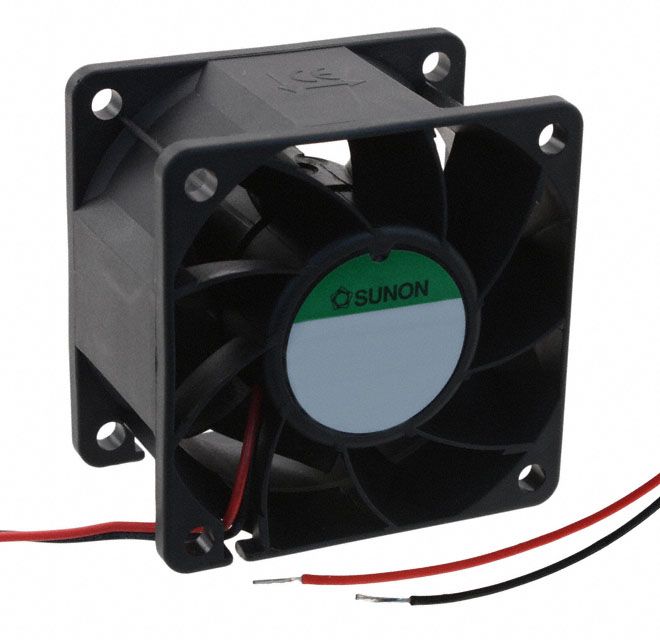

PMD2406PMB1-A.(2).GN

Sunon

Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 56.5 CFM (1.58m鲁/min)
Static Pressure : 0.920 in H2O (229.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 10.30W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.198 lb (89.81g)

0

875 in stock

PMD2406PTV2-A.U.GN

Sunon

Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

0

30 in stock

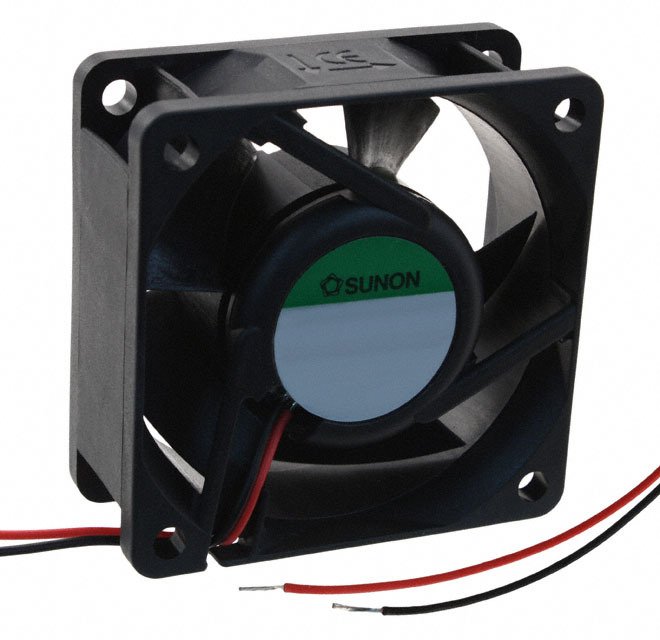

PMD2406PTVX-A U.GN

Sunon

Manufacturer : Sunon Fans
Series : MagLev® PMD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 36.0 CFM (1.01m鲁/min)
Static Pressure : 0.540 in H2O (134.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB(A)
Power (Watts) : 3.80W
RPM : 6900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)

0

100 in stock

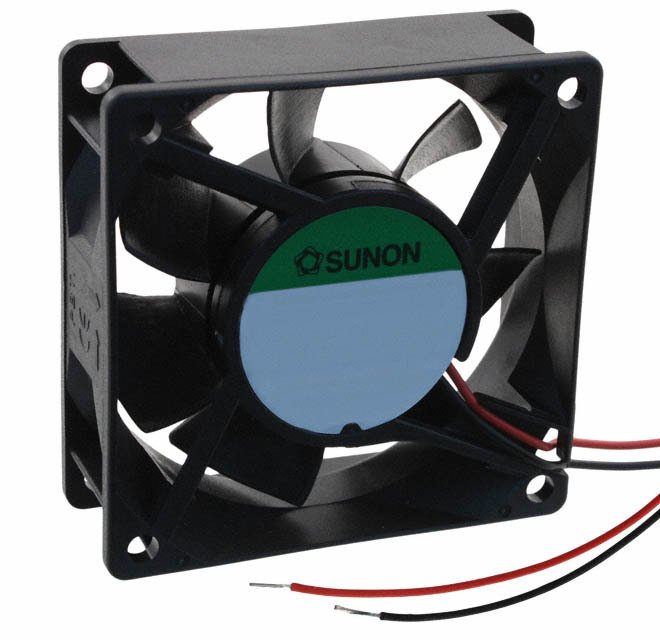

PMD2407PTB1-A.(2).GN

Sunon

Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 70mm L x 70mm H
Width : 25.00mm
Air Flow : 49.0 CFM (1.37m鲁/min)
Static Pressure : 0.360 in H2O (89.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 45.0 dB(A)
Power (Watts) : 4.60W
RPM : 5100 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.198 lb (89.81g)

0

494 in stock

PMD2407PTV1-A.GN

Sunon

Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

0

30 in stock

PMD2408PKB2-A.(2).GN

Sunon

Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -

0

30 in stock

PMD2408PMB1-A.(2).GN

Sunon

Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 84.1 CFM (2.35m鲁/min)
Static Pressure : 0.740 in H2O (184.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.2 dB(A)
Power (Watts) : 9.60W
RPM : 5700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.386 lb (175.09g)

0

460 in stock

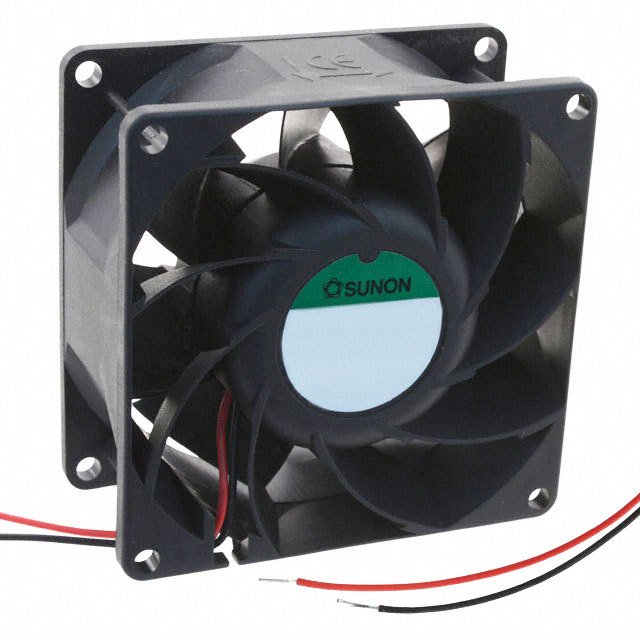

PMD2408PMB2-A(2).GN

Sunon

Manufacturer : Sunon Fans
Series : -
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 74.5 CFM (2.09m鲁/min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.6 dB(A)
Power (Watts) : 7.20W
RPM : 4900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.386 lb (175.09g)

0

45 in stock
