Category
  • DC Fans
Part Number
Manufacturer
Description
Unit Price
In Stock

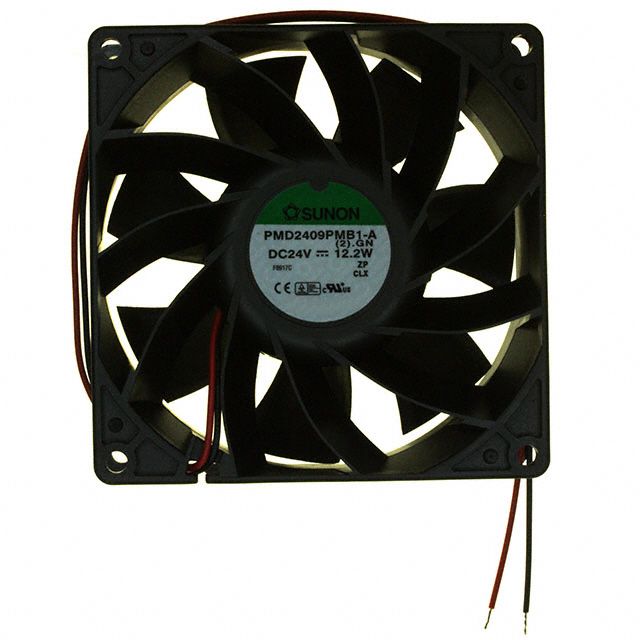

Picture of PMD2409PMB1-A.(2).GN

PMD2409PMB1-A.(2).GN PMD2409PMB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 120.2 CFM (3.37m鲁/min)
Static Pressure : 0.710 in H2O (176.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.6 dB(A)
Power (Watts) : 12.20W
RPM : 4900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.419 lb (190.06g)
0
382 in stock
Picture of PMD2412PMB1-A(2).GN

PMD2412PMB1-A(2).GN PMD2412PMB1-A(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 190.0 CFM (5.32m鲁/min)
Static Pressure : 0.650 in H2O (161.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 18.20W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.728 lb (330.22g)
0
701 in stock
Picture of PMD2412PMB2-A.(2).GN

PMD2412PMB2-A.(2).GN PMD2412PMB2-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : *
Part Status : Active
Voltage - Rated : -
Size / Dimension : -
Width : -
Air Flow : -
Static Pressure : -
Bearing Type : -
Fan Type : -
Features : -
Noise : -
Power (Watts) : -
RPM : -
Termination : -
Ingress Protection : -
Operating Temperature : -
Approvals : -
Weight : -
0
30 in stock

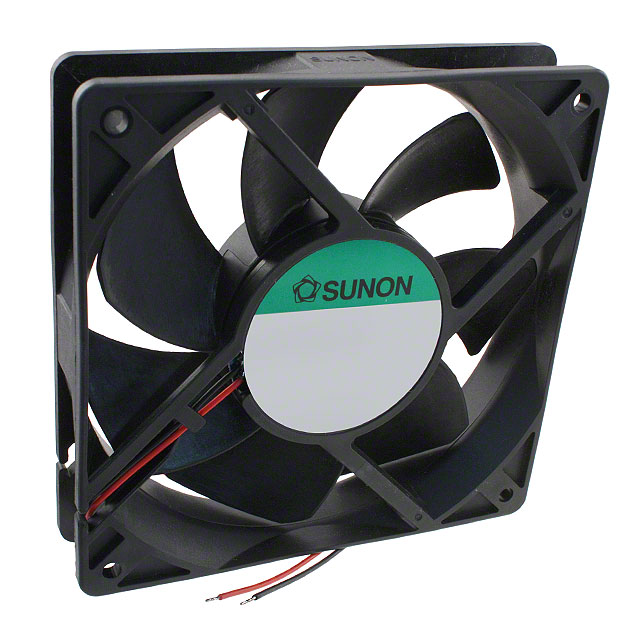

Picture of PMD2412PTB1-A.(2).GN

PMD2412PTB1-A.(2).GN PMD2412PTB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 150.0 CFM (4.20m鲁/min)
Static Pressure : 0.620 in H2O (154.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 11.80W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.485 lb (219.99g)
0
1255 in stock

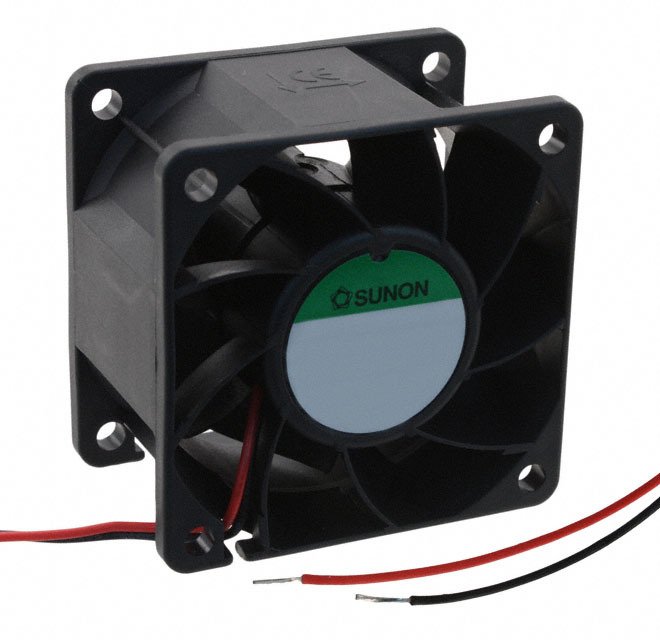

Picture of PMD4806PMB1-A.(2).GN

PMD4806PMB1-A.(2).GN PMD4806PMB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 56.5 CFM (1.58m鲁/min)
Static Pressure : 0.920 in H2O (229.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 11.50W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.198 lb (89.81g)
0
429 in stock

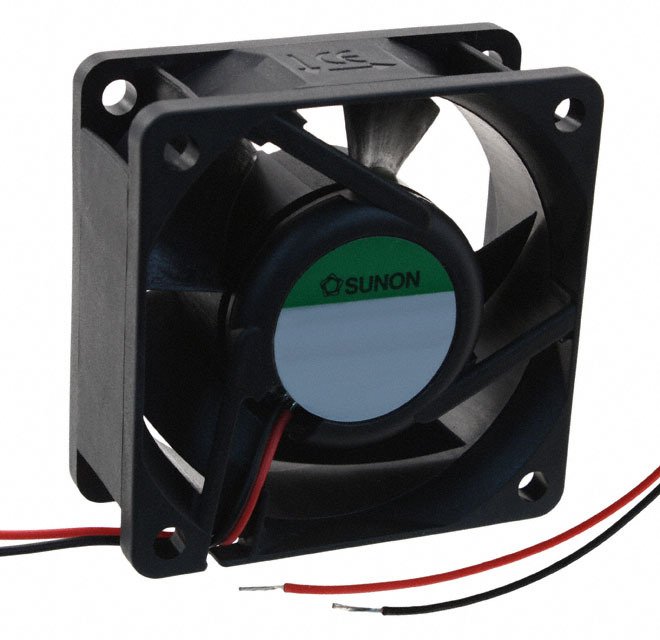

Picture of PMD4806PTB1-A.(2).U.GN

PMD4806PTB1-A.(2).U.GN PMD4806PTB1-A.(2).U.GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.00mm
Air Flow : 36.0 CFM (1.01m鲁/min)
Static Pressure : 0.540 in H2O (134.5 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB(A)
Power (Watts) : 4.30W
RPM : 6900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.165 lb (74.84g)
0
992 in stock

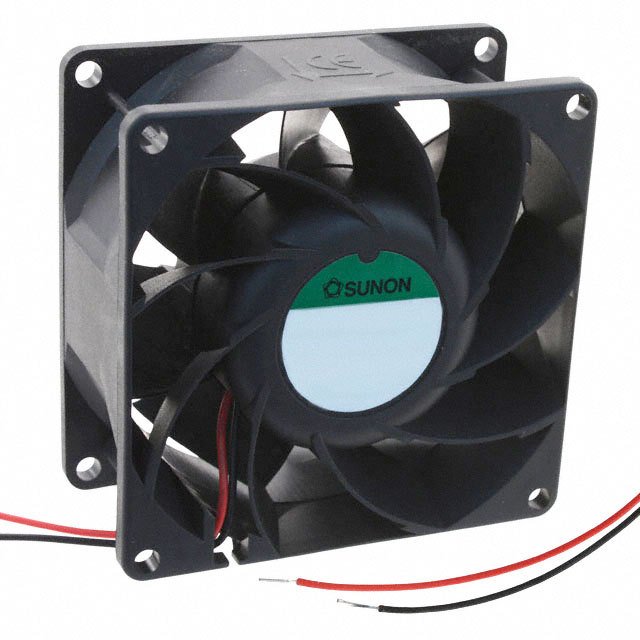

Picture of PMD4808PMB1-A.(2).GN

PMD4808PMB1-A.(2).GN PMD4808PMB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 84.1 CFM (2.35m鲁/min)
Static Pressure : 0.740 in H2O (184.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.2 dB(A)
Power (Watts) : 9.10W
RPM : 5700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.386 lb (175.09g)
0
30 in stock

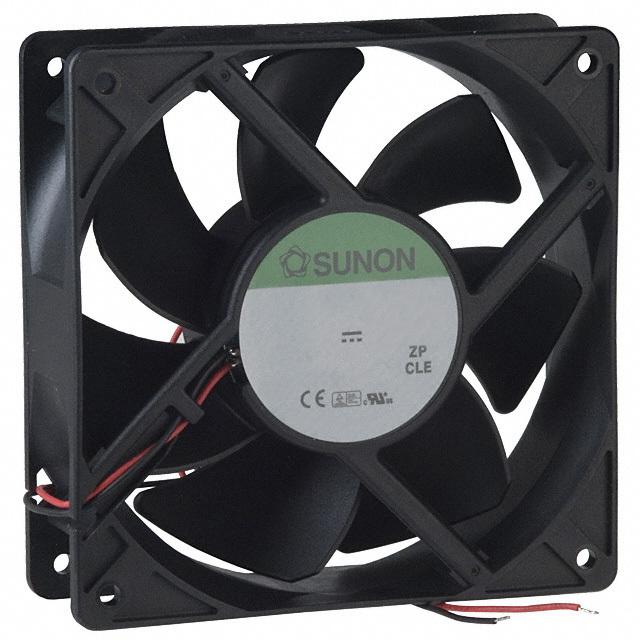

Picture of PMD4812PMB1-A.(2).GN

PMD4812PMB1-A.(2).GN PMD4812PMB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 190.0 CFM (5.32m鲁/min)
Static Pressure : 0.650 in H2O (161.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 19.20W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.727 lb (329.76g)
0
2178 in stock

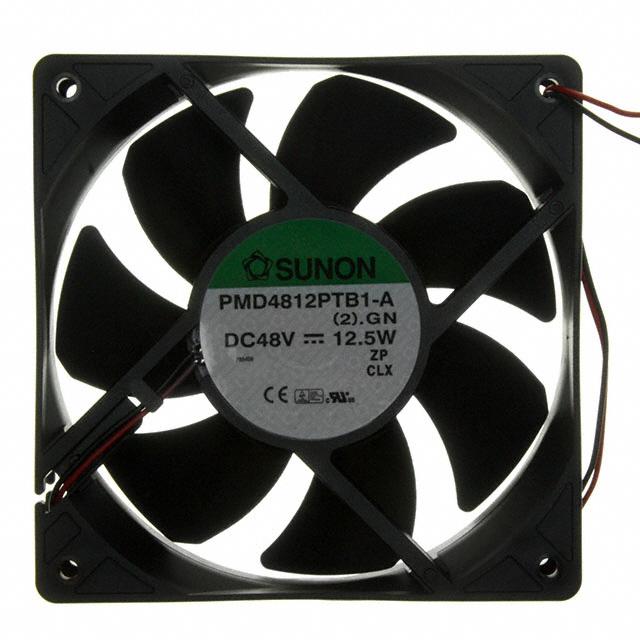

Picture of PMD4812PTB1-A.(2).GN

PMD4812PTB1-A.(2).GN PMD4812PTB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 48VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 25.00mm
Air Flow : 150.0 CFM (4.20m鲁/min)
Static Pressure : 0.620 in H2O (154.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 12.50W
RPM : 4500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.485 lb (219.99g)
0
51 in stock

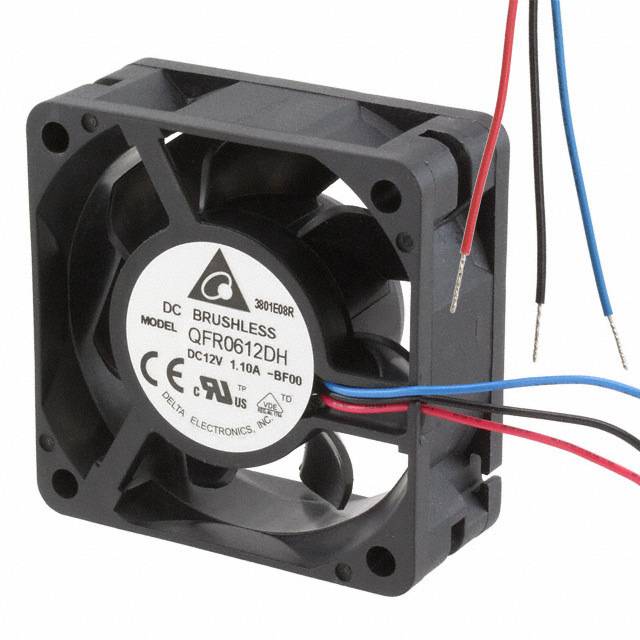

Picture of QFR0612DH-BF00

QFR0612DH-BF00 QFR0612DH-BF00

Delta Electronics
Manufacturer : Delta Electronics
Series : QFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.40mm
Air Flow : 51.2 CFM (1.43m鲁/min)
Static Pressure : 1.016 in H2O (253.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 54.5 dB(A)
Power (Watts) : 9.00W
RPM : 10600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, UR, VDE
Weight : 0.198 lb (89.81g)
0
348 in stock
Picture of QFR0612EH-BF00

QFR0612EH-BF00 QFR0612EH-BF00

Delta Electronics
Manufacturer : Delta Electronics
Series : QFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.40mm
Air Flow : 28.9 CFM (0.809m鲁/min)
Static Pressure : 0.353 in H2O (88.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 39.0 dB(A)
Power (Watts) : 2.40W
RPM : 6000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, VDE
Weight : 0.199 lb (90.26g)
0
100 in stock
Picture of QFR0612GH-BF00

QFR0612GH-BF00 QFR0612GH-BF00

Delta Electronics
Manufacturer : Delta Electronics
Series : QFR
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 25.40mm
Air Flow : 36.6 CFM (1.03m鲁/min)
Static Pressure : 0.558 in H2O (139.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Locked Rotor Protection, Speed Sensor (Tach)
Noise : 44.7 dB(A)
Power (Watts) : 3.60W
RPM : 7600 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, cURus, VDE
Weight : 0.199 lb (90.26g)
0
100 in stock
