Category
  • DC Fans
Part Number
Manufacturer
Description
Unit Price
In Stock

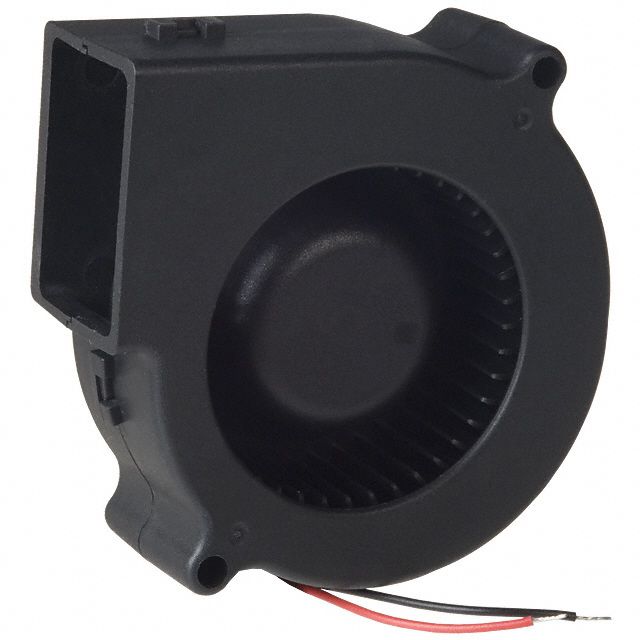

Picture of PMB2475PNB3-AY.(2).GN

PMB2475PNB3-AY.(2).GN PMB2475PNB3-AY.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMB
Part Status : Active
Voltage - Rated : 24VDC
Size / Dimension : Square/Rounded - 75.7mm L x 75.7mm H
Width : 30.00mm
Air Flow : 9.6 CFM (0.269m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Ball
Fan Type : Blower
Features : Auto Restart
Noise : 33.9 dB(A)
Power (Watts) : 1.90W
RPM : 2400 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.191 lb (86.64g)
0
17 in stock

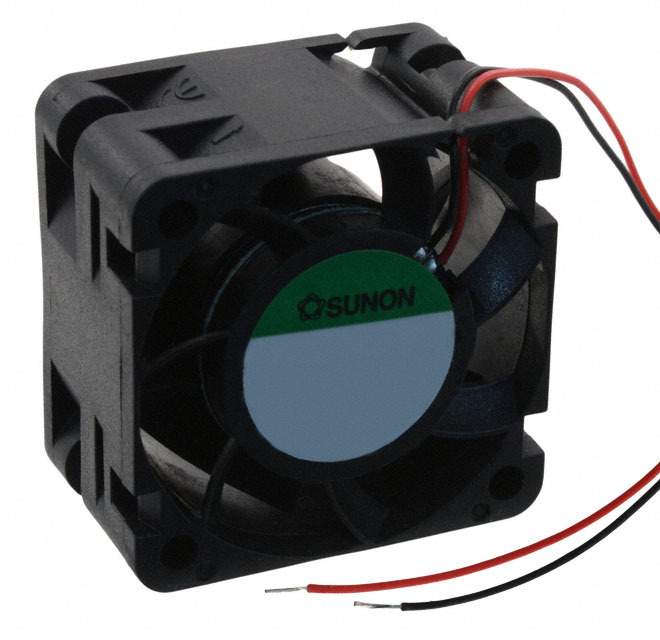

Picture of PMD1204PBB1-A.(2).GN

PMD1204PBB1-A.(2).GN PMD1204PBB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 24.00mm
Air Flow : 23.5 CFM (0.658m鲁/min)
Static Pressure : 1.260 in H2O (313.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.0 dB(A)
Power (Watts) : 9.40W
RPM : 14500 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.092 lb (41.73g)
0
1960 in stock

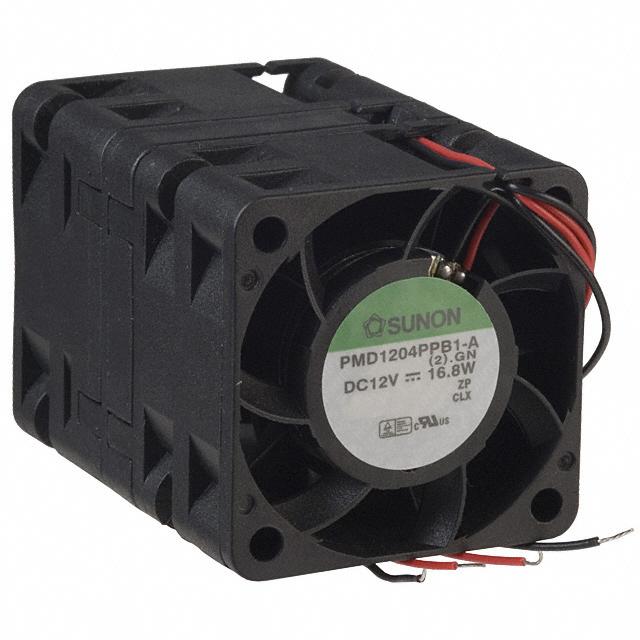

Picture of PMD1204PPB1-A.(2).GN

PMD1204PPB1-A.(2).GN PMD1204PPB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 56.00mm
Air Flow : 26.5 CFM (0.742m鲁/min)
Static Pressure : 1.730 in H2O (430.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial (Dual)
Features : -
Noise : 59.0 dB(A)
Power (Watts) : 16.80W
RPM : 14500 Front, 9500 Rear
Termination : 2 Wire Leads per Fan
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.195 lb (88.45g)
0
216 in stock
Picture of PMD1204PQB1-A.(2).U.F.GN

PMD1204PQB1-A.(2).U.F.GN PMD1204PQB1-A.(2).U.F.GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 1.340 in H2O (333.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 55.5 dB(A)
Power (Watts) : 8.60W
RPM : 15000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.101 lb (45.81g)
0
304 in stock

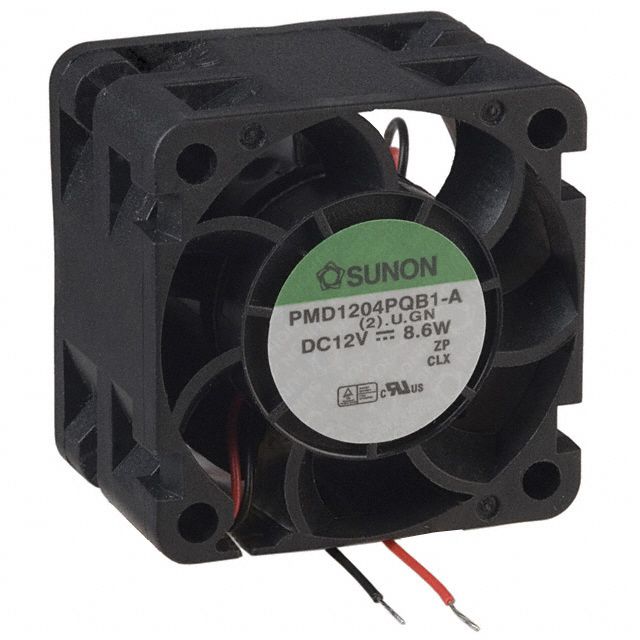

Picture of PMD1204PQB1-A.(2).U.GN

PMD1204PQB1-A.(2).U.GN PMD1204PQB1-A.(2).U.GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 28.00mm
Air Flow : 24.0 CFM (0.672m鲁/min)
Static Pressure : 1.340 in H2O (333.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.5 dB(A)
Power (Watts) : 8.60W
RPM : 15000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.101 lb (45.81g)
0
2779 in stock

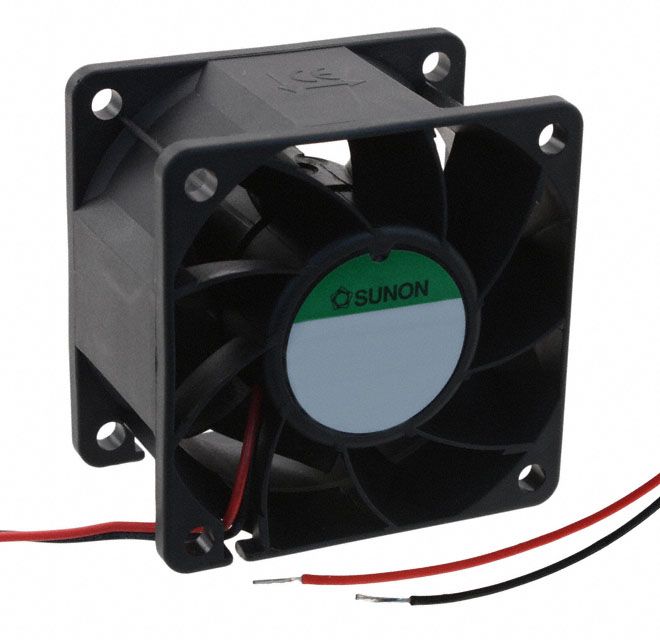

Picture of PMD1206PMB1-A.(2).GN

PMD1206PMB1-A.(2).GN PMD1206PMB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 60mm L x 60mm H
Width : 38.00mm
Air Flow : 56.5 CFM (1.58m鲁/min)
Static Pressure : 0.920 in H2O (229.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 56.0 dB(A)
Power (Watts) : 10.60W
RPM : 8000 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.198 lb (89.81g)
0
1170 in stock

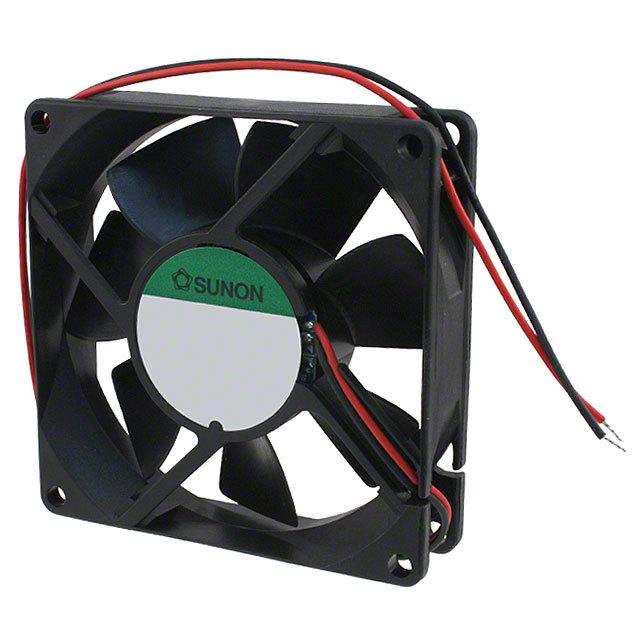

Picture of PMD1208PKB1-A.(2).GN

PMD1208PKB1-A.(2).GN PMD1208PKB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 20.00mm
Air Flow : 53.0 CFM (1.48m鲁/min)
Static Pressure : 0.360 in H2O (89.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart
Noise : 49.0 dB(A)
Power (Watts) : 4.70W
RPM : 4600 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.187 lb (84.82g)
0
1154 in stock
Picture of PMD1208PMB1-A.(2).GN

PMD1208PMB1-A.(2).GN PMD1208PMB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 84.1 CFM (2.35m鲁/min)
Static Pressure : 0.740 in H2O (184.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 55.2 dB(A)
Power (Watts) : 9.10W
RPM : 5700 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.386 lb (175.09g)
0
1762 in stock

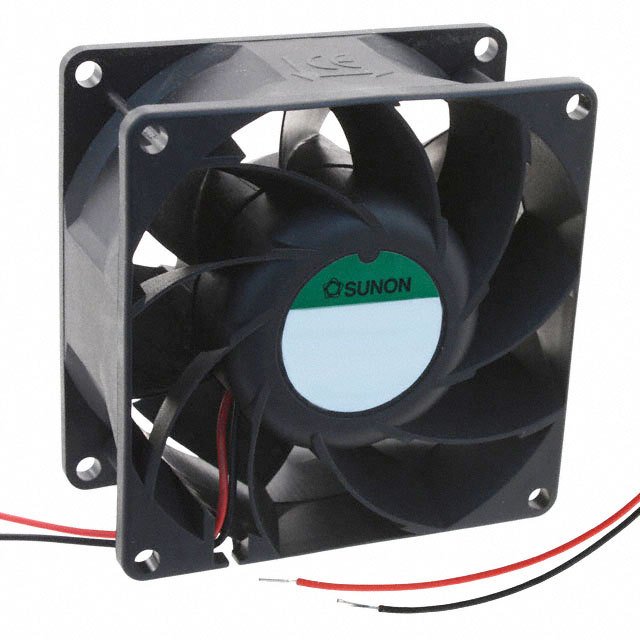

Picture of PMD1208PMB2-A(2).GN

PMD1208PMB2-A(2).GN PMD1208PMB2-A(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 80mm L x 80mm H
Width : 38.00mm
Air Flow : 74.5 CFM (2.09m鲁/min)
Static Pressure : 0.570 in H2O (142.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 51.6 dB(A)
Power (Watts) : 6.40W
RPM : 4900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -
Approvals : CE, CUR, TUV, UL
Weight : 0.386 lb (175.09g)
0
829 in stock

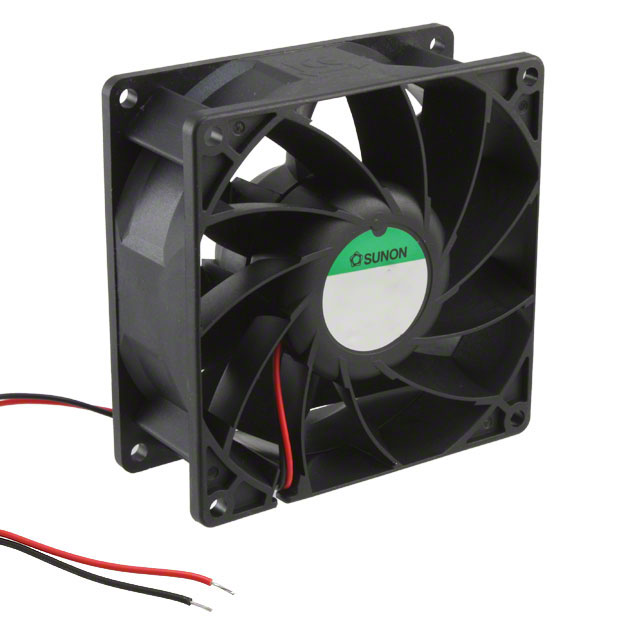

Picture of PMD1209PMB1-A.(2).GN

PMD1209PMB1-A.(2).GN PMD1209PMB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 92mm L x 92mm H
Width : 38.00mm
Air Flow : 120.2 CFM (3.37m鲁/min)
Static Pressure : 0.710 in H2O (176.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 57.6 dB(A)
Power (Watts) : 12.50W
RPM : 4900 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.419 lb (190.06g)
0
601 in stock

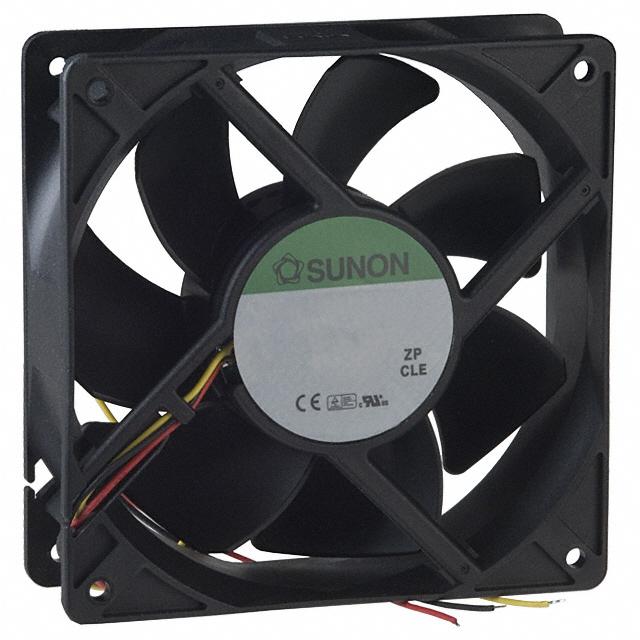

Picture of PMD1212PMB1-A.(2).F.GN

PMD1212PMB1-A.(2).F.GN PMD1212PMB1-A.(2).F.GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 190.0 CFM (5.32m鲁/min)
Static Pressure : 0.650 in H2O (161.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 54.0 dB(A)
Power (Watts) : 19.20W
RPM : 4200 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.727 lb (329.76g)
0
248 in stock

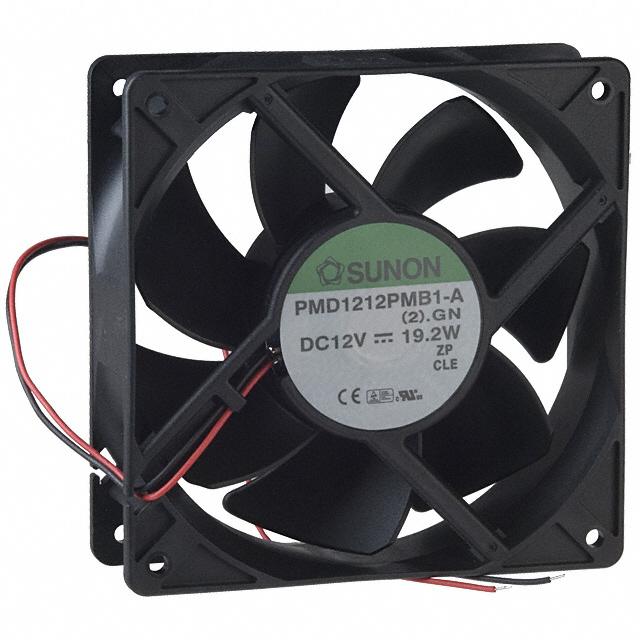

Picture of PMD1212PMB1-A.(2).GN

PMD1212PMB1-A.(2).GN PMD1212PMB1-A.(2).GN

Sunon
Manufacturer : Sunon Fans
Series : PMD
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 120mm L x 120mm H
Width : 38.00mm
Air Flow : 190.0 CFM (5.32m鲁/min)
Static Pressure : 0.650 in H2O (161.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 54.0 dB(A)
Power (Watts) : 19.20W
RPM : 4200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : CE, CUR, TUV, UL
Weight : 0.727 lb (329.76g)
0
100 in stock
