Part Number

Manufacturer

Description

Unit Price

In Stock

RN116-1-02-15M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 260 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

772 in stock

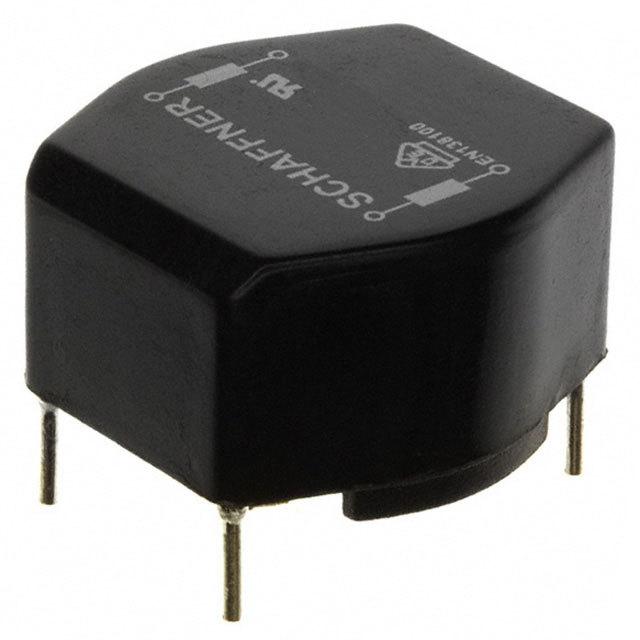

RN116-2-02-2M2

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.2mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 66 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

312 in stock

RN116-2-02-3M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 70 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

1000 in stock

RN122-0.5-02-56M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 56mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.8 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

183 in stock

RN122-0.5-2-56

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 56mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.8 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN122-0.6-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 600mA (Typ)
DC Resistance (DCR) (Max) : 1.18 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

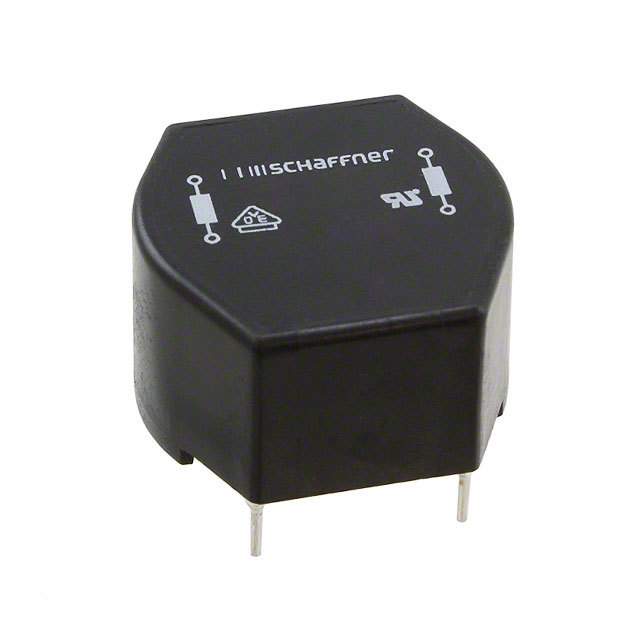

RN122-0.6-02-47M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 47mH @ 10kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 1.3 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

2295 in stock

RN122-0.8-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 1kHz
Current Rating (Max) : 800mA (Typ)
DC Resistance (DCR) (Max) : 1 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN122-0.8-02-39M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 39mH @ 10kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 1 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

290 in stock

RN122-1.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1.5A (Typ)
DC Resistance (DCR) (Max) : 220 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN122-1.5-02-10M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 250 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

4694 in stock

RN122-1-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 1kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 640 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock
