Common Mode Chokes Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

RN122-1-02-1

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RN
Part Status : Obsolete
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -

100 in stock

RN122-1-02-10M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 560 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

578 in stock

RN122-1-02-18M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 630 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

145 in stock

RN122-1-02-27

Schaffner EMC, Inc.

100 in stock

RN122-2.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5.6mH @ 1kHz
Current Rating (Max) : 2.5A (Typ)
DC Resistance (DCR) (Max) : 105 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN122-2.5-02-5M6

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5.6mH @ 10kHz
Current Rating (Max) : 2.5A
DC Resistance (DCR) (Max) : 110 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

1600 in stock

RN122-2-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 160 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

5 in stock

RN122-2-02-1

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 140 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN122-2-02-5M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 140 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

157 in stock

RN122-2-02-6M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 156 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

1545 in stock

RN122-3-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.5mH @ 1kHz
Current Rating (Max) : 3A (Typ)
DC Resistance (DCR) (Max) : 82.6 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

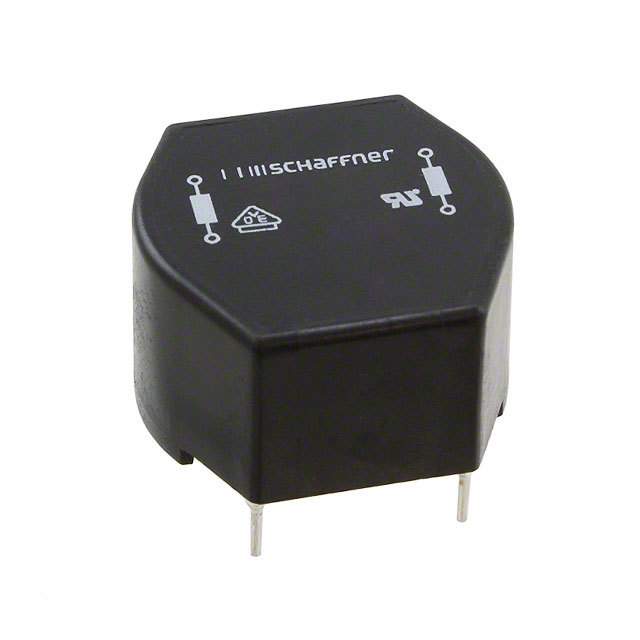

RN122-3-02-4M5

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.5mH @ 10kHz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 80 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

1065 in stock
