Part Number

Manufacturer

Description

Unit Price

In Stock

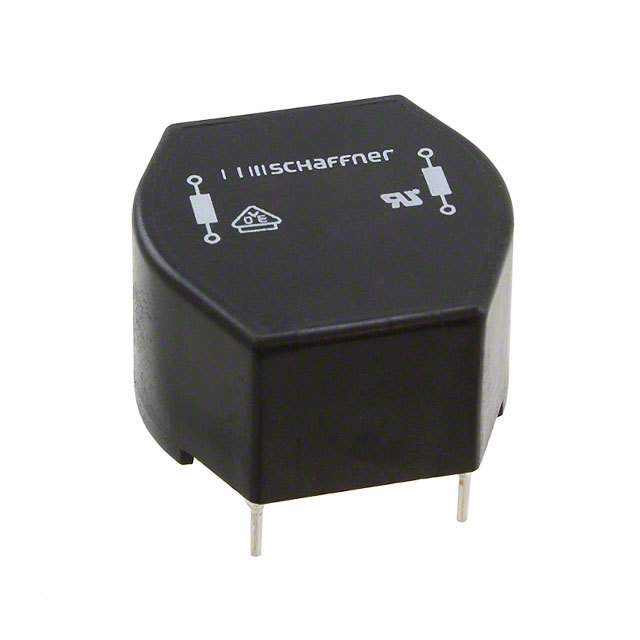

RN122-4-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 4A (Typ)
DC Resistance (DCR) (Max) : 48 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.063" W (28.00mm x 27.00mm)
Height (Max) : 0.661" (16.80mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN122-4-02-1

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RN
Part Status : Obsolete
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -

100 in stock

RN122-4-02-1M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.8mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 42 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

422 in stock

RN122-4-02-3M3

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 46 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) : 0.531" (13.50mm)
Package / Case : Horizontal, 4 PC Pin

2593 in stock

RN142-0.5-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 82mH @ 1kHz
Current Rating (Max) : 500mA (Typ)
DC Resistance (DCR) (Max) : 2.7 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN142-0.5-02-82M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 82mH @ 10kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 2.7 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Horizontal, 4 PC Pin

186 in stock

RN142-1.4-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 1.4A (Typ)
DC Resistance (DCR) (Max) : 500 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN142-1.4-02-27M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 1.4A
DC Resistance (DCR) (Max) : 500 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Horizontal, 4 PC Pin

498 in stock

RN142-1-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 33mH @ 1kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 810 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

RN142-1-02-33M

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 33mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 810 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Horizontal, 4 PC Pin

270 in stock

RN142-2-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Obsolete
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 190 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Horizontal, 4 PC Pin

100 in stock

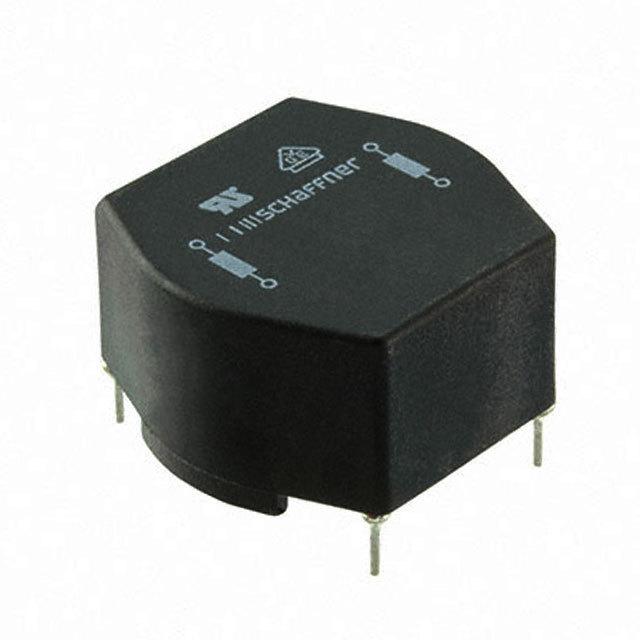

RN142-2-02-6M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RN
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6.8mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 192 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : ENEC, UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max) : 0.787" (20.00mm)
Package / Case : Horizontal, 4 PC Pin

200 in stock
