Part Number

Manufacturer

Description

Unit Price

In Stock

RT8532-20-2M5

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 100kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.205" L x 1.457" W (56.00mm x 37.00mm)
Height (Max) : 2.362" (60.00mm)
Package / Case : Vertical, 6 PC Pin

137 in stock

RT8532-6-6M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 100kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 27 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.732" L x 1.260" W (44.00mm x 32.00mm)
Height (Max) : 1.850" (47.00mm)
Package / Case : Vertical, 6 PC Pin

139 in stock

RT8532-8-4M8

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4.8mH @ 100kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 17 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.732" L x 1.260" W (44.00mm x 32.00mm)
Height (Max) : 1.850" (47.00mm)
Package / Case : Vertical, 6 PC Pin

196 in stock

S14100037

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Bulk
Series : WE-CMBH
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 10kHz
Current Rating (Max) : 15A
DC Resistance (DCR) (Max) : 7.5 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 1.102" W (31.00mm x 28.00mm)
Height (Max) : 0.827" (21.00mm)
Package / Case : Horizontal, 4 PC Pin

774 in stock

S14100038

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Bulk
Series : WE-CMB
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 560µH @ 10kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 2.8 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.181" Dia x 0.768" L (30.00mm x 19.50mm)
Height (Max) : 1.142" (29.00mm)
Package / Case : Vertical, 4 PC Pin

1005 in stock

S14100039

Wurth Electronics

Manufacturer : Wurth Electronics Inc.
Packaging : Tray
Series : WE-CMB
Part Status : Active
Filter Type : -
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 285µH @ 10kHz
Current Rating (Max) : 25A
DC Resistance (DCR) (Max) : 1.6 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.142" Dia x 0.787" W (29.00mm x 20.00mm)
Height (Max) : 1.142" (29.00mm)
Package / Case : Vertical, 4 PC Pin

159 in stock

S555-5999-02-F

Bel

Manufacturer : Bel Fuse Inc.
Packaging : -
Series : -
Part Status : Obsolete
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.475" L x 0.400" W (12.07mm x 10.16mm)
Height (Max) : -
Package / Case : -

100 in stock

S555-5999-39-F

Bel

Manufacturer : Bel Fuse Inc.
Packaging : -
Series : -
Part Status : Obsolete
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.500" L x 0.285" W (12.70mm x 7.24mm)
Height (Max) : -
Package / Case : -

100 in stock

S555-5999-41-F

Bel

100 in stock

S555-5999-49-F

Bel

100 in stock

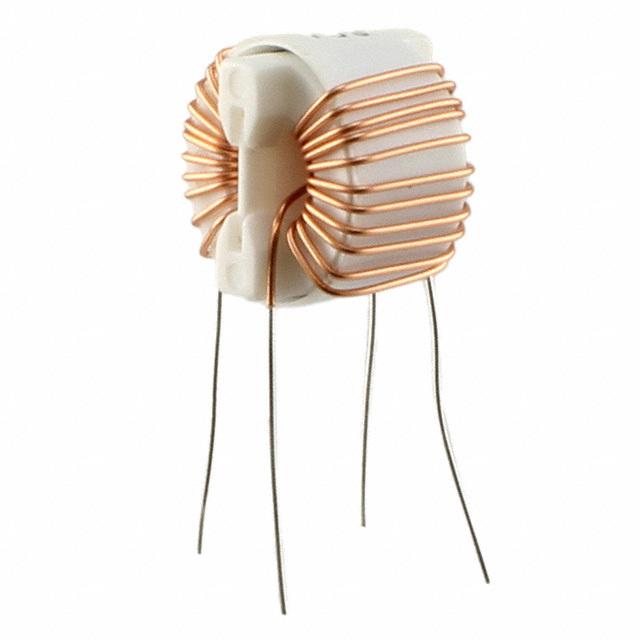

SC-01-06G

KEMET

Manufacturer : KEMET
Packaging : Bulk
Series : SC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 600µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 60 mOhm
Voltage Rating - DC : 250V
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) : 0.689" (17.50mm)
Package / Case : Vertical, No Base, 4 PC Pin

137 in stock

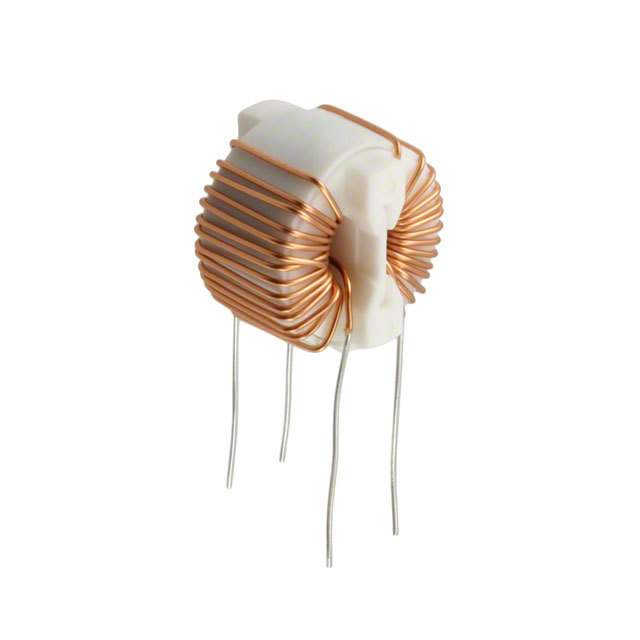

SC-01-10G

KEMET

Manufacturer : KEMET
Packaging : Bulk
Series : SC
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 70 mOhm
Voltage Rating - DC : 250V
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.689" Dia x 0.551" W (17.50mm x 14.00mm)
Height (Max) : 0.689" (17.50mm)
Package / Case : Vertical, No Base, 4 PC Pin

1275 in stock
