- Filters
- Common Mode Chokes
Part Number
Manufacturer
Description
Unit Price
In Stock
RT8132-20-2M5
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 100kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.244" Dia (57.00mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 100kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.244" Dia (57.00mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Horizontal, 6 PC Pin
0
69 in stock

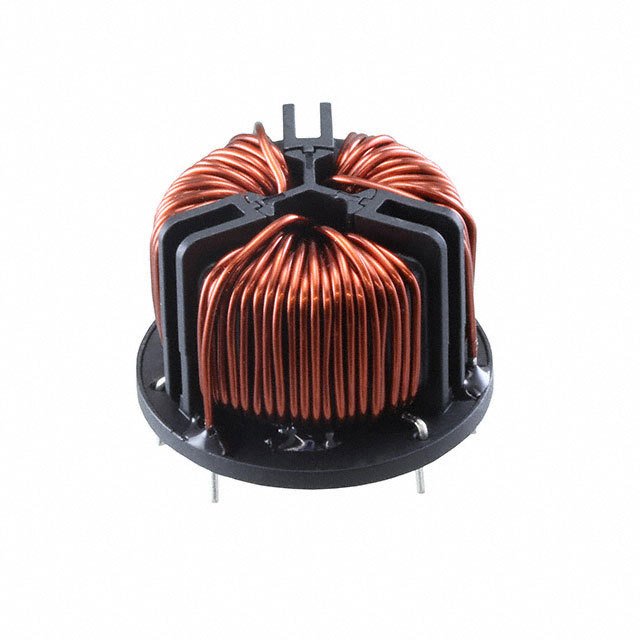

RT8132-6-6M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 100kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 27 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : -
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 100kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 27 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : -
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 6 PC Pin
0
130 in stock
RT8132-8-4M8
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4.8mH @ 100kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 17 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : -
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 6 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4.8mH @ 100kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 17 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : -
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 6 PC Pin
0
134 in stock
RT8522-10-6M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 100kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 16 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max) : 1.732" (44.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 100kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 16 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max) : 1.732" (44.00mm)
Package / Case : Vertical, 4 PC Pin
0
171 in stock
RT8522-12-5M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 100kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 14 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.260" W (50.00mm x 32.00mm)
Height (Max) : 2.047" (52.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 100kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 14 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.260" W (50.00mm x 32.00mm)
Height (Max) : 2.047" (52.00mm)
Package / Case : Vertical, 4 PC Pin
0
196 in stock

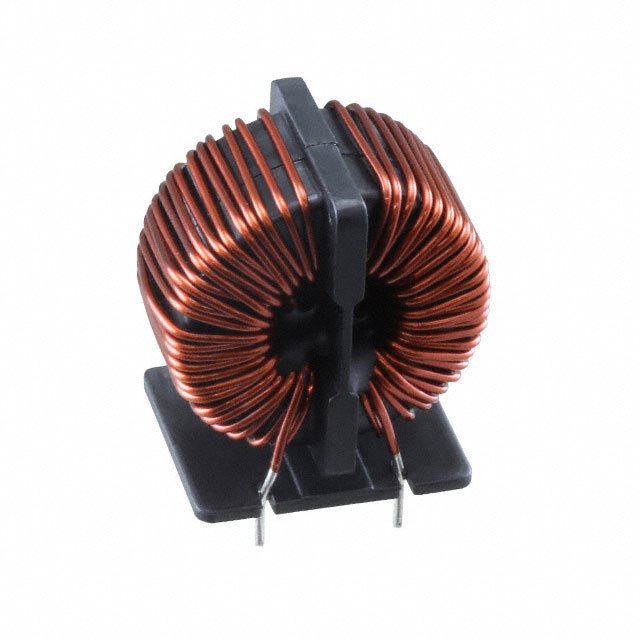

RT8522-16-4M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 100kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 10 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.260" W (50.00mm x 32.00mm)
Height (Max) : 2.047" (52.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 100kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 10 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.969" L x 1.260" W (50.00mm x 32.00mm)
Height (Max) : 2.047" (52.00mm)
Package / Case : Vertical, 4 PC Pin
0
80 in stock
RT8522-20-3M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 100kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.205" L x 1.260" W (56.00mm x 32.00mm)
Height (Max) : 2.244" (57.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 100kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.205" L x 1.260" W (56.00mm x 32.00mm)
Height (Max) : 2.244" (57.00mm)
Package / Case : Vertical, 4 PC Pin
0
144 in stock
RT8522-6-10M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 100kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 33 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max) : 1.732" (44.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 100kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 33 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max) : 1.732" (44.00mm)
Package / Case : Vertical, 4 PC Pin
0
175 in stock
RT8522-8-8M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8mH @ 100kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 21 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max) : 1.732" (44.00mm)
Package / Case : Vertical, 4 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8mH @ 100kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 21 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.693" L x 1.260" W (43.00mm x 32.00mm)
Height (Max) : 1.732" (44.00mm)
Package / Case : Vertical, 4 PC Pin
0
167 in stock
RT8532-10-4M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 100kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 15 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.929" L x 1.339" W (49.00mm x 34.00mm)
Height (Max) : 2.087" (53.00mm)
Package / Case : Vertical, 6 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 100kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 15 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.929" L x 1.339" W (49.00mm x 34.00mm)
Height (Max) : 2.087" (53.00mm)
Package / Case : Vertical, 6 PC Pin
0
167 in stock
RT8532-12-3M6
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3.6mH @ 100kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 12 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.929" L x 1.339" W (49.00mm x 34.00mm)
Height (Max) : 2.087" (53.00mm)
Package / Case : Vertical, 6 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3.6mH @ 100kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 12 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.929" L x 1.339" W (49.00mm x 34.00mm)
Height (Max) : 2.087" (53.00mm)
Package / Case : Vertical, 6 PC Pin
0
167 in stock
RT8532-16-3M0
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 100kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 8 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.205" L x 1.457" W (56.00mm x 37.00mm)
Height (Max) : 2.362" (60.00mm)
Package / Case : Vertical, 6 PC Pin
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 100kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 8 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.205" L x 1.457" W (56.00mm x 37.00mm)
Height (Max) : 2.362" (60.00mm)
Package / Case : Vertical, 6 PC Pin
0
134 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
