Part Number

Manufacturer

Description

Unit Price

In Stock

RS622-1-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 225µH @ 1kHz
Current Rating (Max) : 1A (Typ)
DC Resistance (DCR) (Max) : 300 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.154" (29.30mm)
Package / Case : Vertical, 4 PC Pin

15 in stock

RS622-2-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 55µH @ 1kHz
Current Rating (Max) : 2A (Typ)
DC Resistance (DCR) (Max) : 70 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.154" (29.30mm)
Package / Case : Vertical, 4 PC Pin

90 in stock

RS622-4-02

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : RS
Part Status : Not For New Designs
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 15µH @ 1kHz
Current Rating (Max) : 4A (Typ)
DC Resistance (DCR) (Max) : 30 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : UR, VDE
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.220" L x 0.709" W (31.00mm x 18.00mm)
Height (Max) : 1.154" (29.30mm)
Package / Case : Vertical, 4 PC Pin

100 in stock

RT8122-10-6M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 6mH @ 100kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 16 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.772" Dia (45.00mm)
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 4 PC Pin

188 in stock

RT8122-12-5M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 100kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 14 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.008" Dia (51.00mm)
Height (Max) : 1.299" (33.00mm)
Package / Case : Horizontal, 4 PC Pin

171 in stock

RT8122-16-4M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 100kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 10 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.008" Dia (51.00mm)
Height (Max) : 1.299" (33.00mm)
Package / Case : Horizontal, 4 PC Pin

72 in stock

RT8122-20-3M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 100kHz
Current Rating (Max) : 20A
DC Resistance (DCR) (Max) : 7 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.244" Dia (57.00mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Horizontal, 4 PC Pin

94 in stock

RT8122-6-10M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 100kHz
Current Rating (Max) : 6A
DC Resistance (DCR) (Max) : 33 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.772" Dia (45.00mm)
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 4 PC Pin

194 in stock

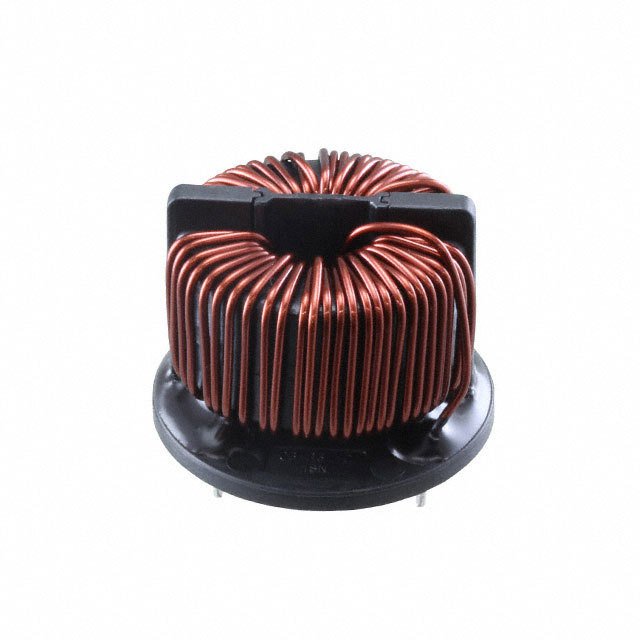

RT8122-8-8M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 8mH @ 100kHz
Current Rating (Max) : 8A
DC Resistance (DCR) (Max) : 21 mOhm (Typ)
Voltage Rating - DC : 425V
Voltage Rating - AC : 300V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.772" Dia (45.00mm)
Height (Max) : 1.339" (34.00mm)
Package / Case : Horizontal, 4 PC Pin

193 in stock

RT8132-10-4M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 4mH @ 100kHz
Current Rating (Max) : 10A
DC Resistance (DCR) (Max) : 15 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.008" Dia (51.00mm)
Height (Max) : 1.299" (33.00mm)
Package / Case : Horizontal, 6 PC Pin

106 in stock

RT8132-12-3M6

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3.6mH @ 100kHz
Current Rating (Max) : 12A
DC Resistance (DCR) (Max) : 12 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.008" Dia (51.00mm)
Height (Max) : 1.299" (33.00mm)
Package / Case : Horizontal, 6 PC Pin

114 in stock

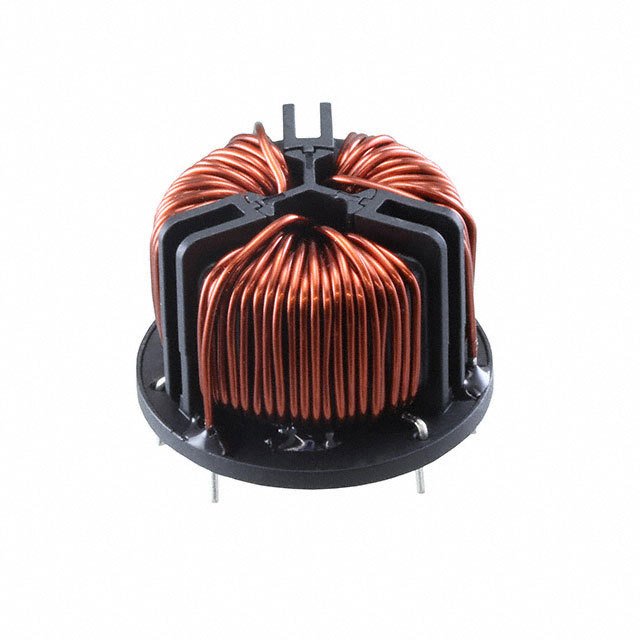

RT8132-16-3M0

Schaffner EMC, Inc.

Manufacturer : Schaffner EMC Inc.
Packaging : -
Series : RT
Part Status : Active
Filter Type : Power Line
Number of Lines : 3
Impedance @ Frequency : -
Inductance @ Frequency : 3mH @ 100kHz
Current Rating (Max) : 16A
DC Resistance (DCR) (Max) : 8 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 600V
Operating Temperature : -40°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 2.244" Dia (57.00mm)
Height (Max) : 1.457" (37.00mm)
Package / Case : Horizontal, 6 PC Pin

91 in stock
