23KM-K349B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 113.30 / 800
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 113.30 / 800
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3 Ohms
Features : Round Shaft
0
100 in stock
23KM-K349U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 92.06 / 650
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.5 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 92.06 / 650
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.5 Ohms
Features : Round Shaft
0
100 in stock
23KM-K355U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 92.06 / 650
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.9 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 92.06 / 650
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.9 Ohms
Features : Round Shaft
0
100 in stock

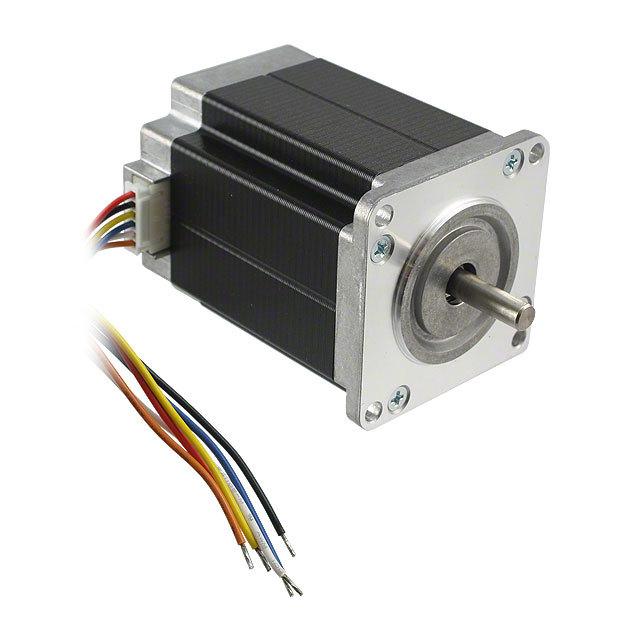

23KM-K743-00V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.1 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.1 Ohms
Features : Flatted Shaft
0
6 in stock

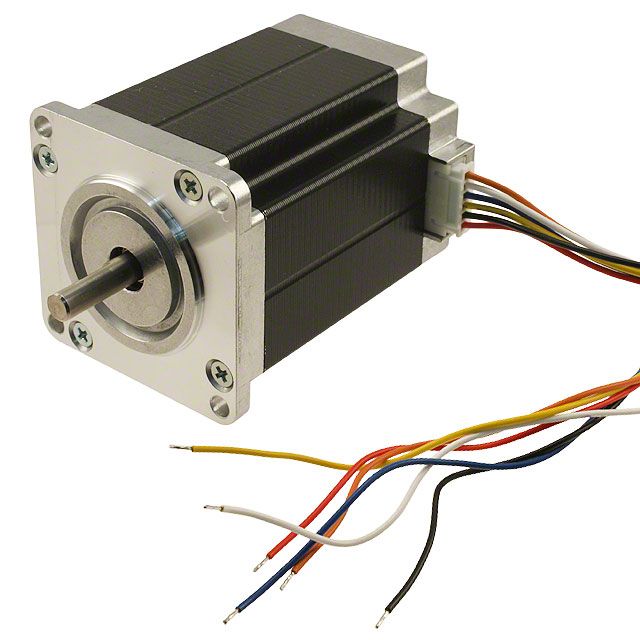

23KM-K743-99V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.1 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.1 Ohms
Features : Flatted Shaft
0
100 in stock
23KM-K744B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 169.96 / 1200
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.3 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 169.96 / 1200
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.3 Ohms
Features : Round Shaft
0
100 in stock
23KM-K744U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 212.44 / 1500
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.15 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 212.44 / 1500
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.15 Ohms
Features : Round Shaft
0
100 in stock

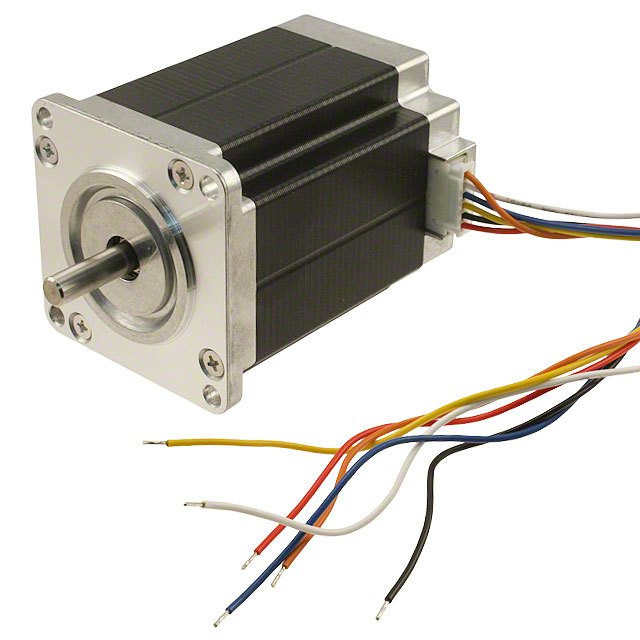

23KM-K748-00V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.3 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.3 Ohms
Features : Flatted Shaft
0
31 in stock

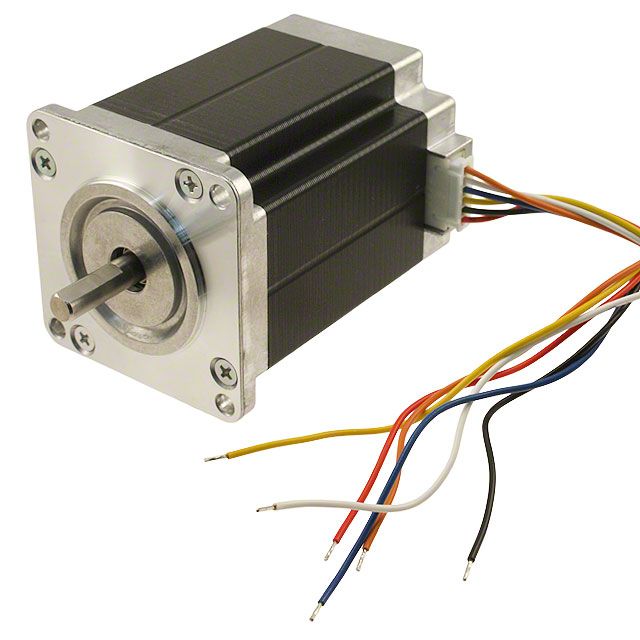

23KM-K748-99V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.3 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.3 Ohms
Features : Flatted Shaft
0
100 in stock
23KM-K755U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 169.96 / 1200
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.6 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 169.96 / 1200
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.6 Ohms
Features : Round Shaft
0
100 in stock
23KM-K762-00V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 8.6 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 8.6 Ohms
Features : Flatted Shaft
0
18 in stock
23KM-K762-99V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 8.6 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 198.28 / 1400
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 8.6 Ohms
Features : Flatted Shaft
0
13 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
