Part Number
Manufacturer
Description
Unit Price
In Stock

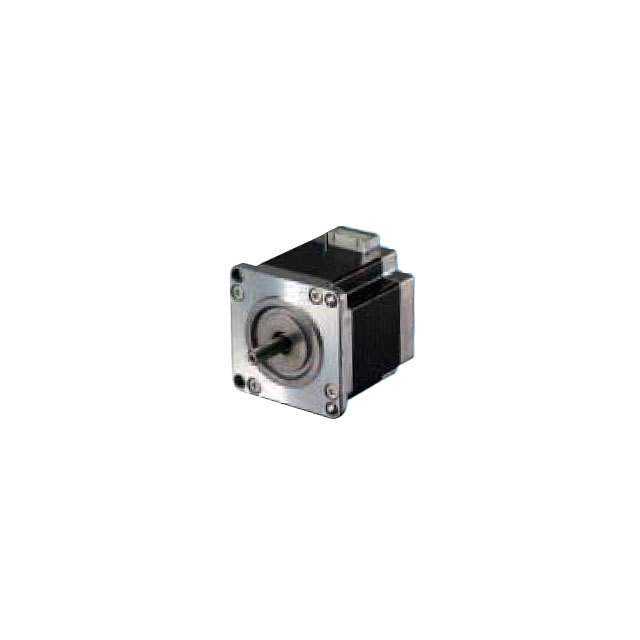

23KY-K040B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2.8A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 148.71 / 1050
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 900 mOhms
Features : Round Shaft
Series : 23KY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2.8A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 148.71 / 1050
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 900 mOhms
Features : Round Shaft
0
100 in stock
23KY-K050U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 126.05 / 890
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.8 Ohms
Features : Round Shaft
Series : 23KY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 126.05 / 890
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.8 Ohms
Features : Round Shaft
0
100 in stock
23KY-K251U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.8A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 66.57 / 470
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.6 Ohms
Features : Round Shaft
Series : 23KY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.8A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 66.57 / 470
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.6 Ohms
Features : Round Shaft
0
100 in stock
23KY-K748U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 177.04 / 1250
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.3 Ohms
Features : Round Shaft
Series : 23KY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 177.04 / 1250
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.3 Ohms
Features : Round Shaft
0
100 in stock

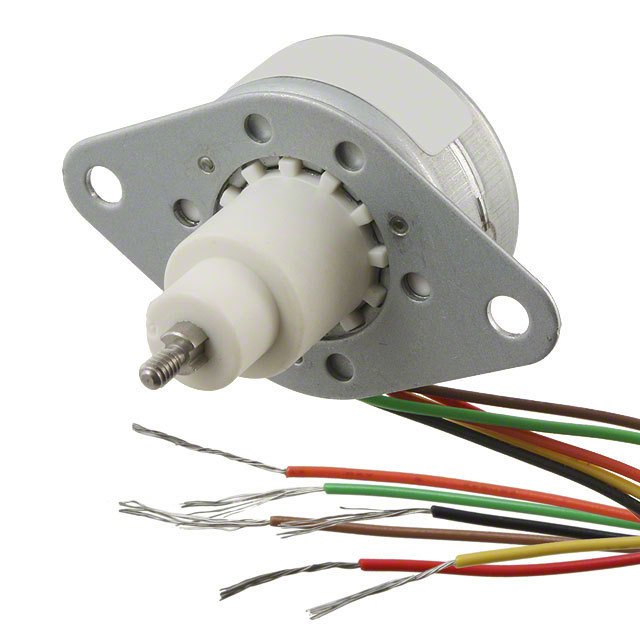

26DBM10D2U-K
Portescap
Manufacturer : Portescap
Series : 26DBM-K
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 140mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.138" (3.51mm)
Length - Shaft and Bearing : 1.340" (34.00mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 84 Ohms
Features : Round Shaft
Series : 26DBM-K
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 140mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.138" (3.51mm)
Length - Shaft and Bearing : 1.340" (34.00mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 84 Ohms
Features : Round Shaft
0
62 in stock

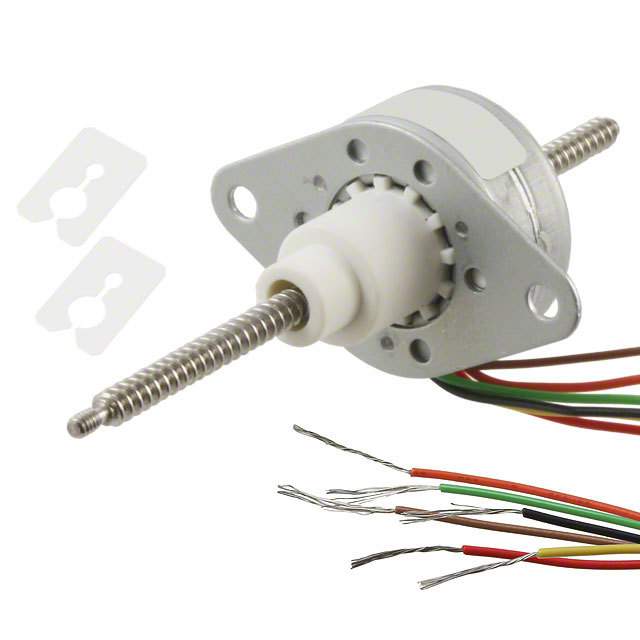

26DBM10D2U-L
Portescap
Manufacturer : Portescap
Series : 26DBM-L
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 140mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.135" (3.43mm)
Length - Shaft and Bearing : 3.150" (80.00mm)
Mounting Hole Spacing : 1.030" (26.16mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 84 Ohms
Features : Threaded Shaft
Series : 26DBM-L
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 140mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.135" (3.43mm)
Length - Shaft and Bearing : 3.150" (80.00mm)
Mounting Hole Spacing : 1.030" (26.16mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 84 Ohms
Features : Threaded Shaft
0
97 in stock

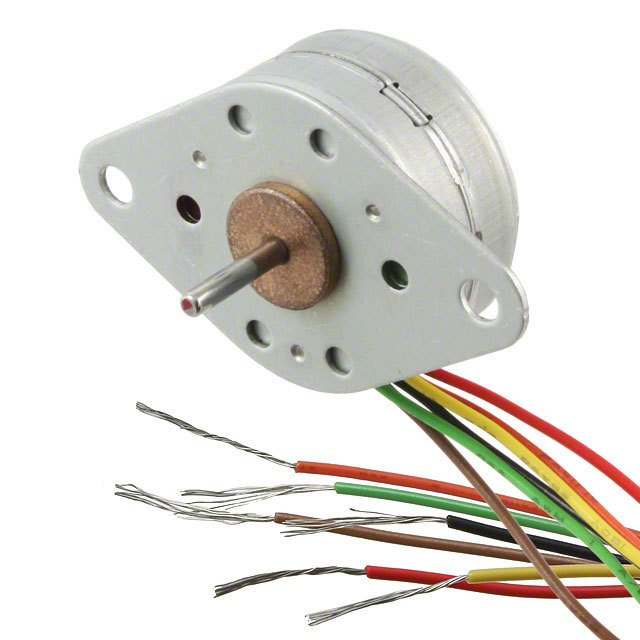

26M024B2U
Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 110mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 0.9 / 6.3
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 110 Ohms
Features : Round Shaft
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 110mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 0.9 / 6.3
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 110 Ohms
Features : Round Shaft
0
61 in stock

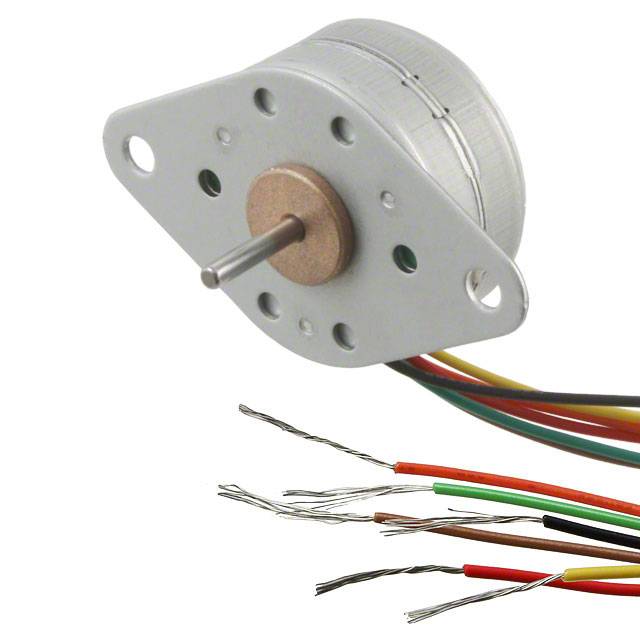

26M024D1U
Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 260mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.35 / 9.5
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.6 Ohms
Features : Round Shaft
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 260mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.35 / 9.5
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.6 Ohms
Features : Round Shaft
0
247 in stock

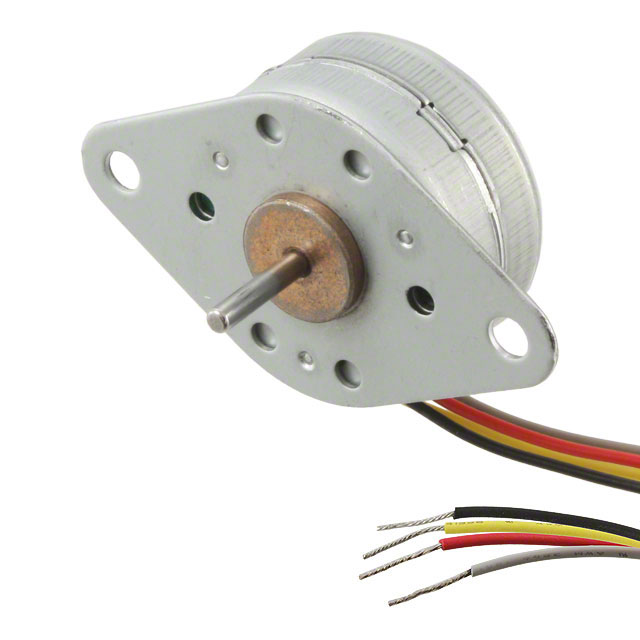

26M048B1B
Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 250mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.5 / 10.6
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.8 Ohms
Features : Round Shaft
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 250mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.5 / 10.6
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.8 Ohms
Features : Round Shaft
0
231 in stock

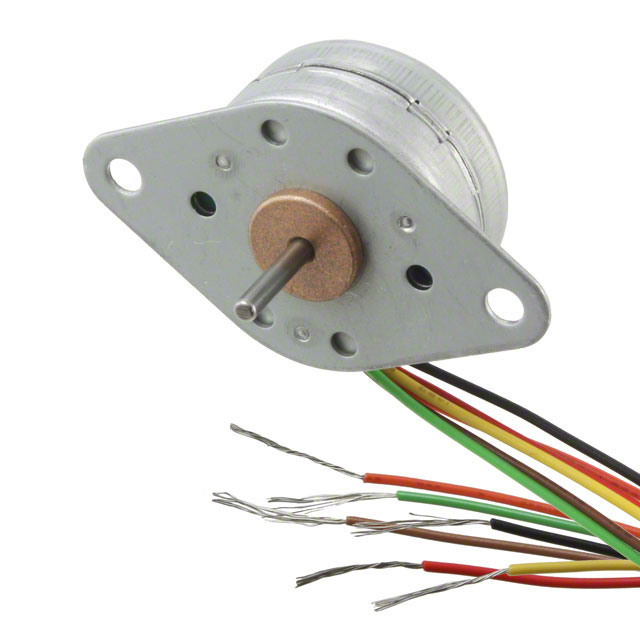

26M048B2U
Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 110mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.3 / 9.2
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 110 Ohms
Features : Round Shaft
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 110mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.3 / 9.2
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 110 Ohms
Features : Round Shaft
0
210 in stock
26M048B2U-V31
Portescap
Manufacturer : Portescap
Series : 26M-V
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 110mA
Steps per Revolution : 1440
Step Angle : 0.25°
Accuracy : -
Torque - Holding (oz-in / mNm) : 1.3 / 9.2
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.125" (3.18mm)
Length - Shaft and Bearing : 0.432" (10.97mm)
Mounting Hole Spacing : 1.180" (29.87mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 110 Ohms
Features : Round Shaft
Series : 26M-V
Part Status : Active
Type : Permanent Magnet Gear Motor
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 110mA
Steps per Revolution : 1440
Step Angle : 0.25°
Accuracy : -
Torque - Holding (oz-in / mNm) : 1.3 / 9.2
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.125" (3.18mm)
Length - Shaft and Bearing : 0.432" (10.97mm)
Mounting Hole Spacing : 1.180" (29.87mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 110 Ohms
Features : Round Shaft
0
391 in stock
26M048D1U
Portescap
Manufacturer : Portescap
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 260mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.6 / 11.3
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.6 Ohms
Features : Round Shaft
Series : 26M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 260mA
Steps per Revolution : 48
Step Angle : 7.5°
Accuracy : ±15%
Torque - Holding (oz-in / mNm) : 1.6 / 11.3
Size / Dimension : Round - 1.030" Dia (26.16mm)
NEMA Frame Size : -
Diameter - Shaft : 0.079" (2.00mm)
Length - Shaft and Bearing : 0.445" (11.30mm)
Mounting Hole Spacing : 1.370" (34.90mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 19.6 Ohms
Features : Round Shaft
0
52 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
