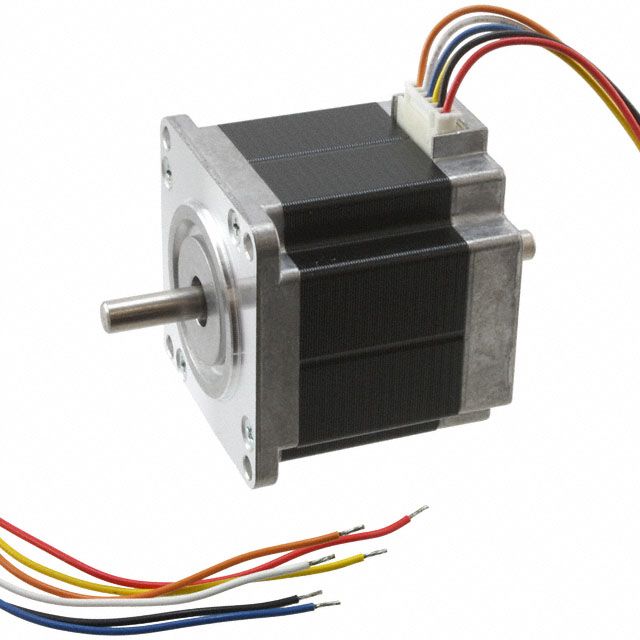

23KM-K066-99V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 127.47 / 900
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 127.47 / 900
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7 Ohms
Features : Flatted Shaft
0
7 in stock
23KM-K144B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2.1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 177.04 / 1250
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 2.1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 177.04 / 1250
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2 Ohms
Features : Round Shaft
0
100 in stock
23KM-K144U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 148.71 / 1050
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 3A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 148.71 / 1050
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1 Ohms
Features : Round Shaft
0
100 in stock

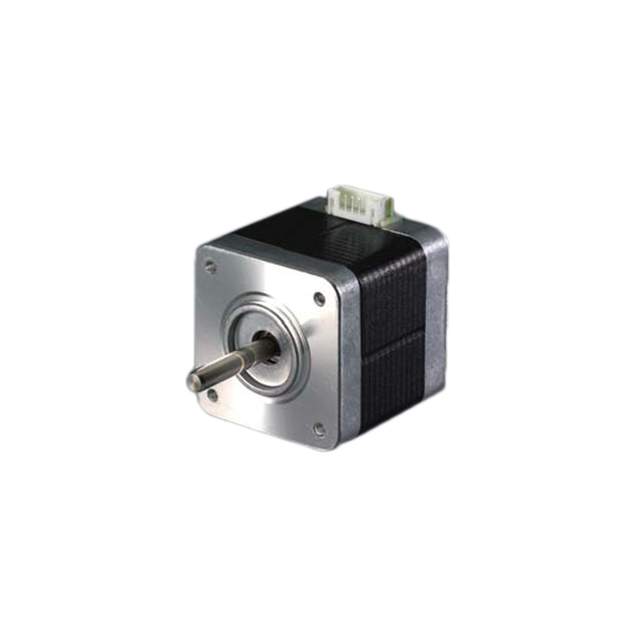

23KM-K155U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 148.71 / 1050
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.9 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 148.71 / 1050
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.9 Ohms
Features : Round Shaft
0
100 in stock

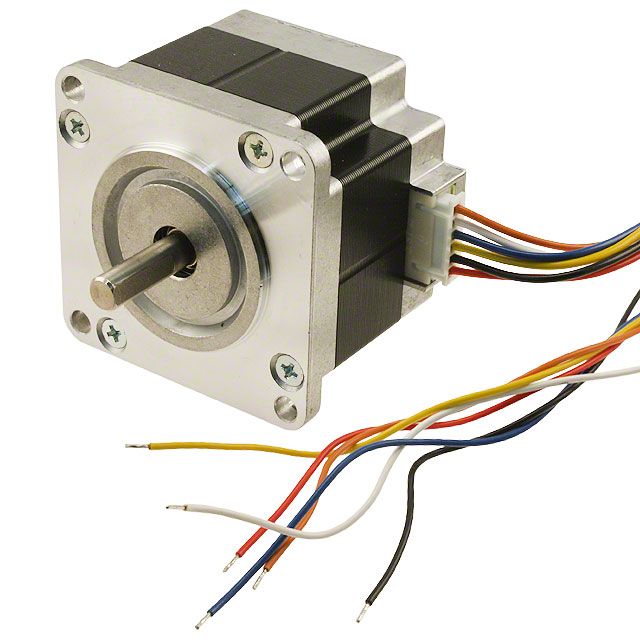

23KM-K244-00V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2.9A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 600 mOhms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2.9A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 600 mOhms
Features : Flatted Shaft
0
51 in stock

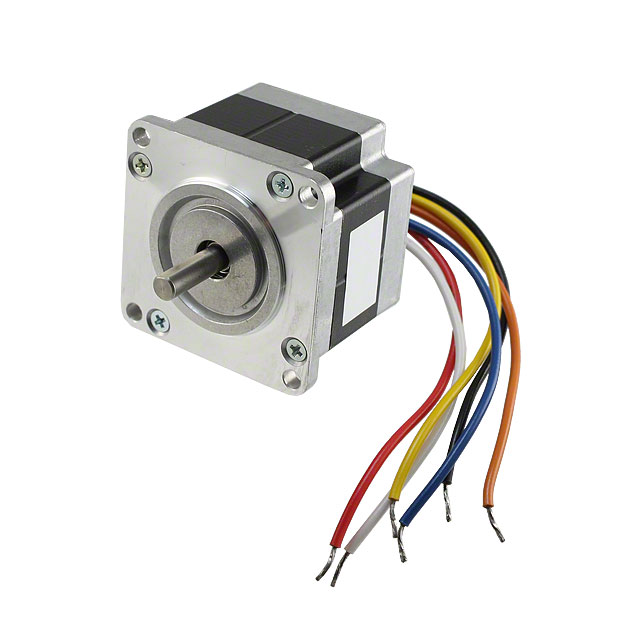

23KM-K244-99V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2.9A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 600 mOhms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2.9A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 600 mOhms
Features : Flatted Shaft
0
3 in stock
23KM-K249U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 59.48 / 420
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.2 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 2A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 59.48 / 420
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 1.2 Ohms
Features : Round Shaft
0
100 in stock

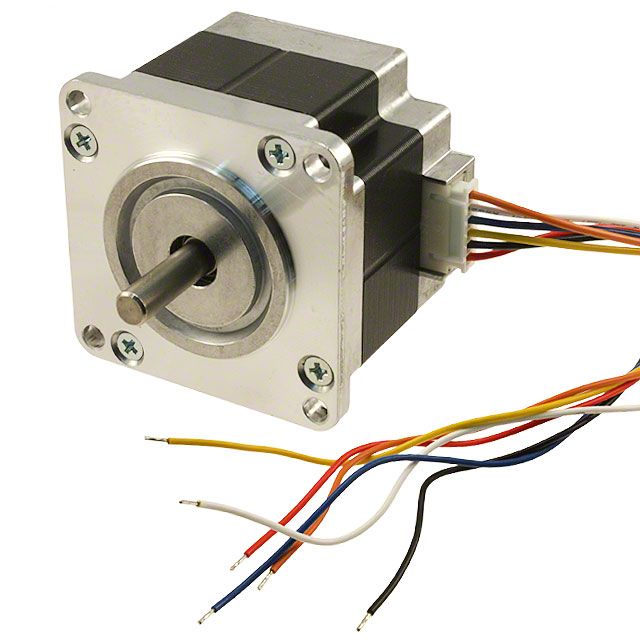

23KM-K251-00V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
0
24 in stock

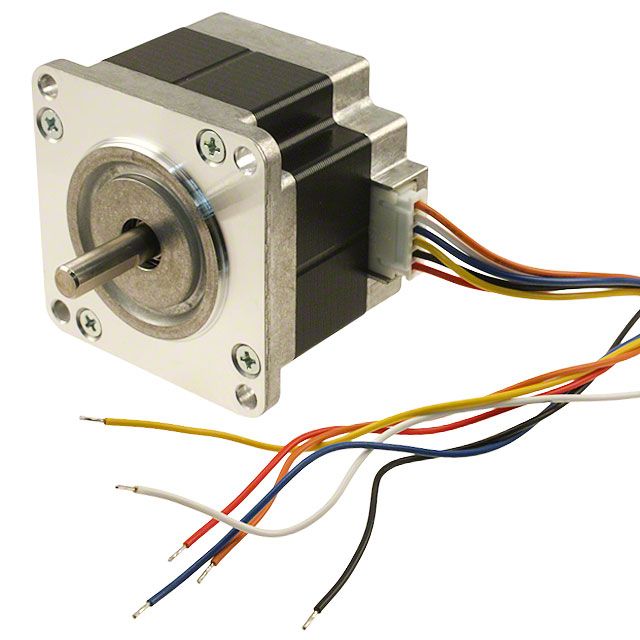

23KM-K251-99V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.8A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 1.5 Ohms
Features : Flatted Shaft
0
2 in stock
23KM-K255-UPV
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 59.48 / 420
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.3 Ohms
Features : Round Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.5A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 59.48 / 420
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.813" (20.64mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.3 Ohms
Features : Round Shaft
0
100 in stock
23KM-K267-00V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 5.8 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 5.8 Ohms
Features : Flatted Shaft
0
10 in stock
23KM-K267-99V
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 5.8 Ohms
Features : Flatted Shaft
Series : 23KM
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 67.98 / 480
Size / Dimension : Square - 2.220" x 2.220" (56.40mm x 56.40mm)
NEMA Frame Size : 23
Diameter - Shaft : 0.250" (6.35mm)
Length - Shaft and Bearing : 0.984" (25.00mm)
Mounting Hole Spacing : 1.856" (47.14mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 5.8 Ohms
Features : Flatted Shaft
0
2 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
