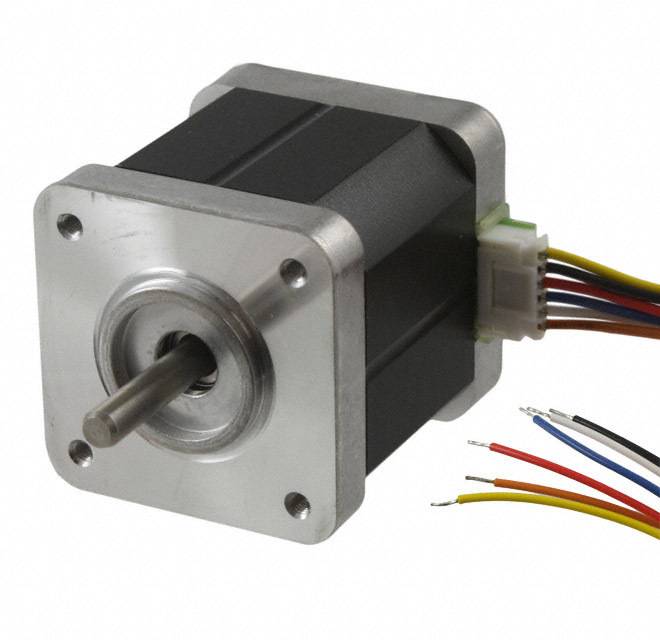

17PY-Z455-99VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 46.74 / 330
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.3 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 46.74 / 330
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.3 Ohms
Features : Flatted Shaft
0
14 in stock

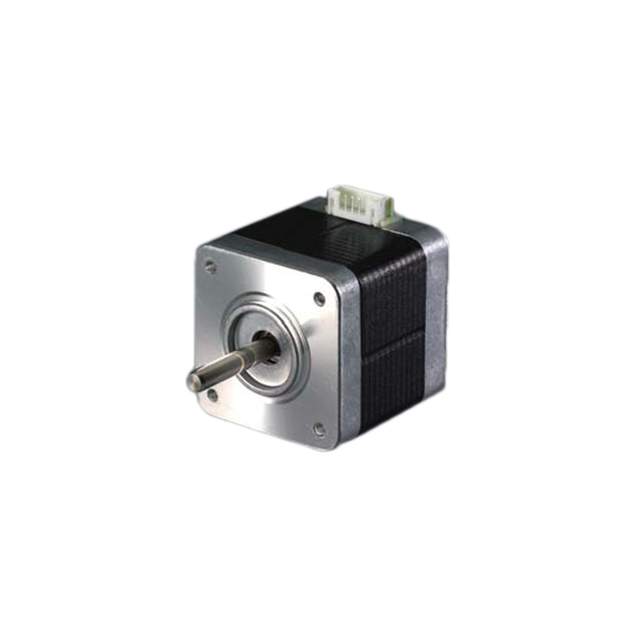

17PY-Z749B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 8.92 / 63
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.4 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 8.92 / 63
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.4 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z749U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.80 / 48
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.2 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.80 / 48
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.2 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z764U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.80 / 48
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.6 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.80 / 48
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.6 Ohms
Features : Round Shaft
0
100 in stock

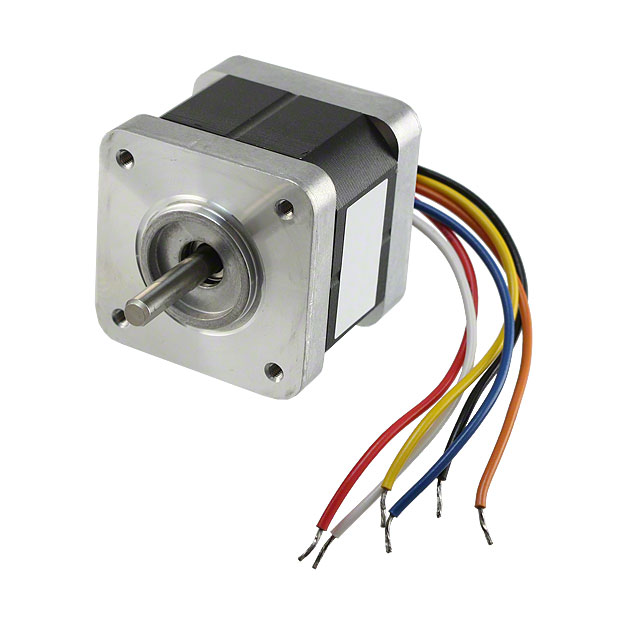

17PY-Z845-00VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 36.82 / 260
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.9 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 36.82 / 260
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.9 Ohms
Features : Flatted Shaft
0
100 in stock

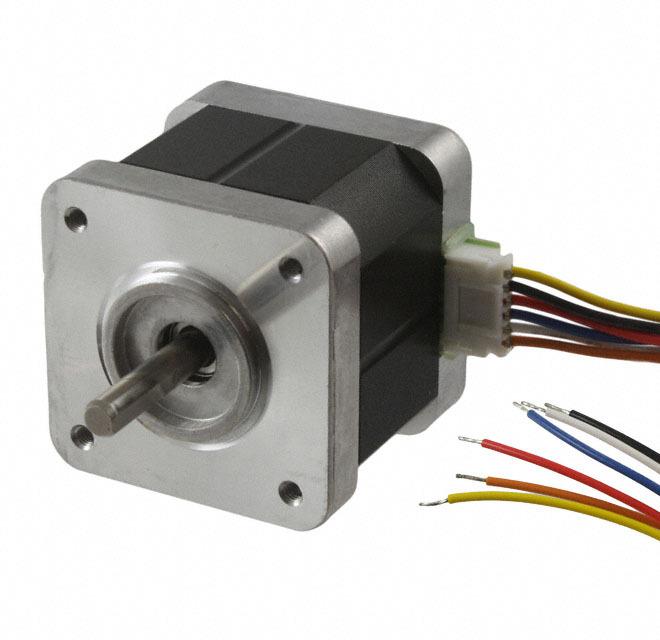

17PY-Z845-99VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 36.82 / 260
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.9 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 36.82 / 260
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 2.9 Ohms
Features : Flatted Shaft
0
100 in stock

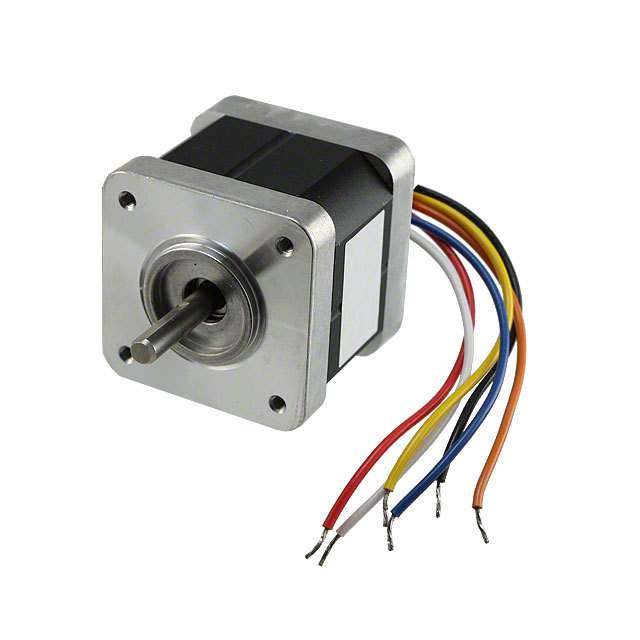

17PY-Z858-00VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 750mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 36.82 / 260
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.4 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 750mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 36.82 / 260
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.4 Ohms
Features : Flatted Shaft
0
1 in stock

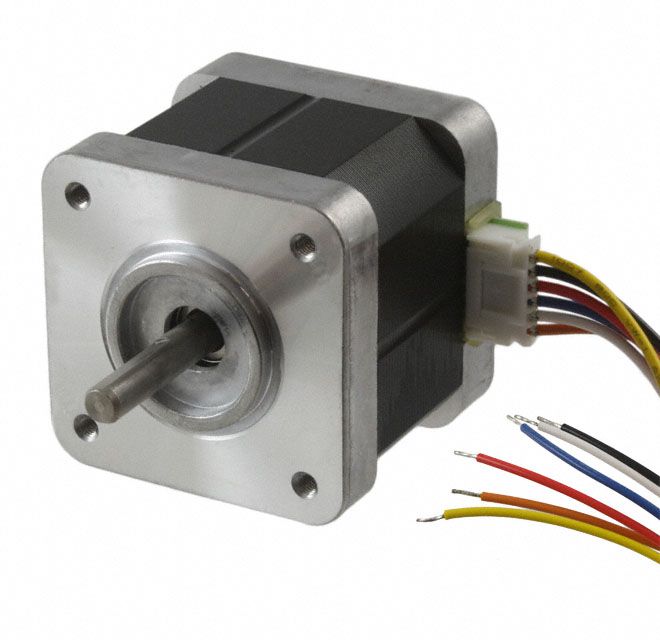

17PY-Z858-99VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 750mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 36.82 / 260
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.4 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 750mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 36.82 / 260
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.4 Ohms
Features : Flatted Shaft
0
100 in stock

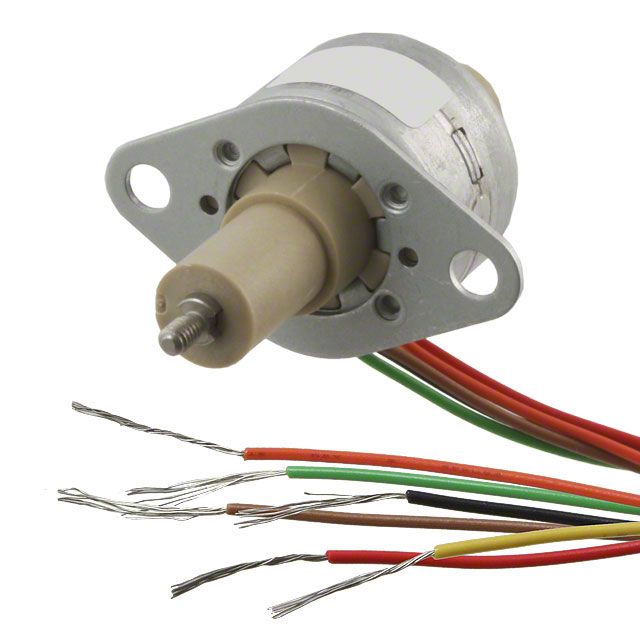

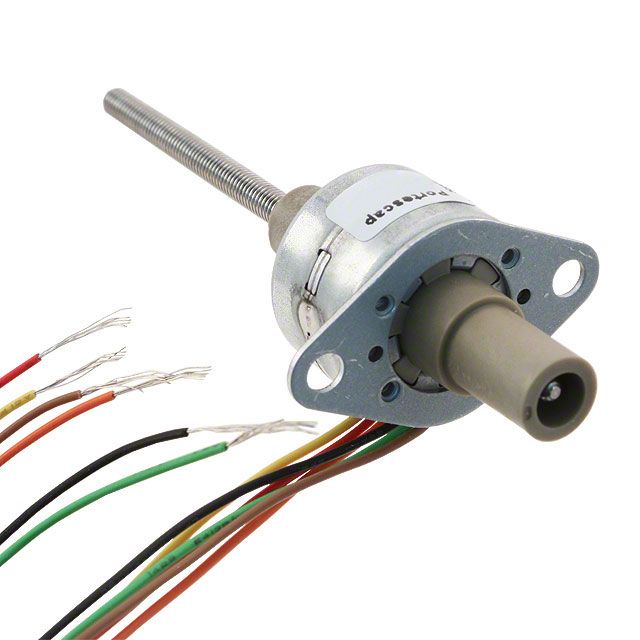

20DAM10D2U-K
Portescap
Manufacturer : Portescap
Series : 20DAM-K
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 100mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.138" (3.51mm)
Length - Shaft and Bearing : 1.400" (35.60mm)
Mounting Hole Spacing : 1.030" (26.16mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 115.2 Ohms
Features : Round Shaft
Series : 20DAM-K
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 100mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.138" (3.51mm)
Length - Shaft and Bearing : 1.400" (35.60mm)
Mounting Hole Spacing : 1.030" (26.16mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 115.2 Ohms
Features : Round Shaft
0
98 in stock
20DAM10D2U-L
Portescap
Manufacturer : Portescap
Series : 20DAM-L
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 100mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.135" (3.43mm)
Length - Shaft and Bearing : 3.150" (80.00mm)
Mounting Hole Spacing : 1.030" (26.16mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 115.2 Ohms
Features : Threaded Shaft
Series : 20DAM-L
Part Status : Active
Type : Permanent Magnet Linear Actuator
Coil Type : Unipolar
Voltage - Rated : 12VDC
Current Rating : 100mA
Steps per Revolution : 24
Step Angle : 15°
Accuracy : -
Torque - Holding (oz-in / mNm) : -
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.135" (3.43mm)
Length - Shaft and Bearing : 3.150" (80.00mm)
Mounting Hole Spacing : 1.030" (26.16mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 115.2 Ohms
Features : Threaded Shaft
0
245 in stock
20M020D1B
Portescap
Manufacturer : Portescap
Series : 20M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 250mA
Steps per Revolution : 20
Step Angle : 18°
Accuracy : ±12%
Torque - Holding (oz-in / mNm) : 1.55 / 10.95
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.335" (8.50mm)
Mounting Hole Spacing : 0.984" (25.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 20 Ohms
Features : Round Shaft
Series : 20M
Part Status : Active
Type : Permanent Magnet
Coil Type : Bipolar
Voltage - Rated : 5VDC
Current Rating : 250mA
Steps per Revolution : 20
Step Angle : 18°
Accuracy : ±12%
Torque - Holding (oz-in / mNm) : 1.55 / 10.95
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.335" (8.50mm)
Mounting Hole Spacing : 0.984" (25.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 20 Ohms
Features : Round Shaft
0
229 in stock
20M020D1U
Portescap
Manufacturer : Portescap
Series : 20M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 100mA
Steps per Revolution : 20
Step Angle : 18°
Accuracy : ±12%
Torque - Holding (oz-in / mNm) : 1.1 / 7.77
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.335" (8.50mm)
Mounting Hole Spacing : 0.984" (25.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 115.2 Ohms
Features : Round Shaft
Series : 20M
Part Status : Active
Type : Permanent Magnet
Coil Type : Unipolar
Voltage - Rated : 5VDC
Current Rating : 100mA
Steps per Revolution : 20
Step Angle : 18°
Accuracy : ±12%
Torque - Holding (oz-in / mNm) : 1.1 / 7.77
Size / Dimension : Round - 0.807" Dia (20.50mm)
NEMA Frame Size : -
Diameter - Shaft : 0.059" (1.50mm)
Length - Shaft and Bearing : 0.335" (8.50mm)
Mounting Hole Spacing : 0.984" (25.00mm)
Termination Style : Wire Leads
Operating Temperature : -20°C ~ 70°C
Coil Resistance : 115.2 Ohms
Features : Round Shaft
0
110 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
