Part Number
Manufacturer
Description
Unit Price
In Stock
17PY-Z249B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 22.66 / 160
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.4 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 22.66 / 160
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.4 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z249U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17 / 120
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.7 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17 / 120
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.7 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z264U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17 / 120
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 6.9 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 17 / 120
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 6.9 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z342B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 48.15 / 340
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 48.15 / 340
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z342U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 39.66 / 280
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 39.66 / 280
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z349U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 39.66 / 280
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.6 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 39.66 / 280
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.6 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z442B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 76.48 / 540
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.6 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 76.48 / 540
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.6 Ohms
Features : Round Shaft
0
100 in stock

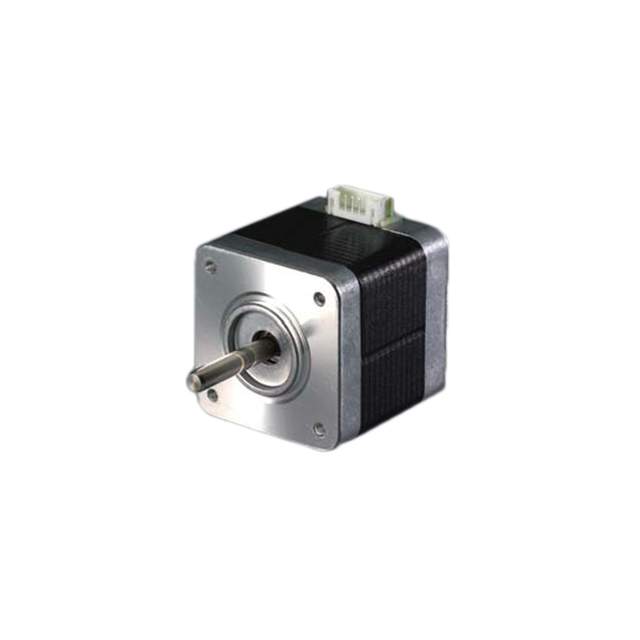

17PY-Z442U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 63.73 / 450
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.6 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 63.73 / 450
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.6 Ohms
Features : Round Shaft
0
100 in stock

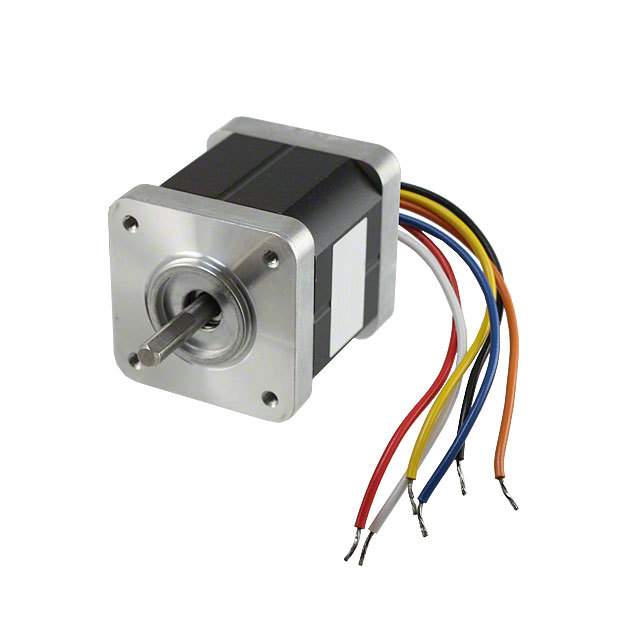

17PY-Z444-00VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 46.74 / 330
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.3 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 46.74 / 330
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.3 Ohms
Features : Flatted Shaft
0
29 in stock

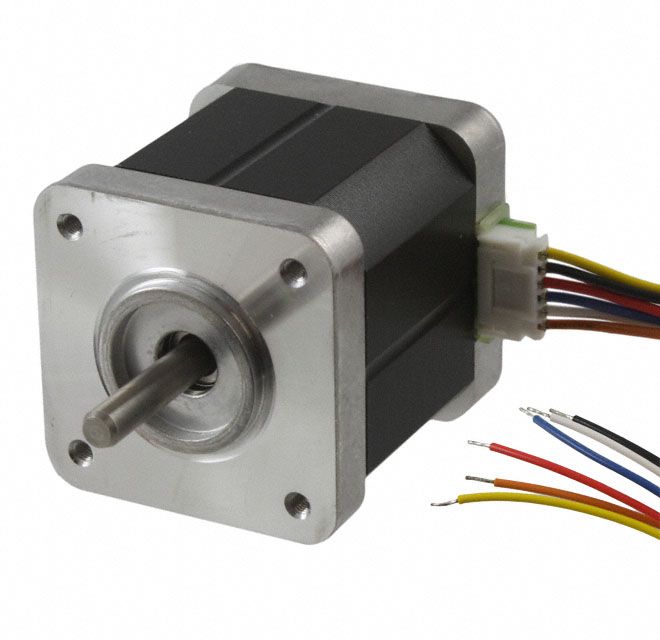

17PY-Z444-99VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 46.74 / 330
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.3 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.2A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 46.74 / 330
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 3.3 Ohms
Features : Flatted Shaft
0
4 in stock
17PY-Z449U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 63.73 / 450
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.9 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 63.73 / 450
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.9 Ohms
Features : Round Shaft
0
100 in stock

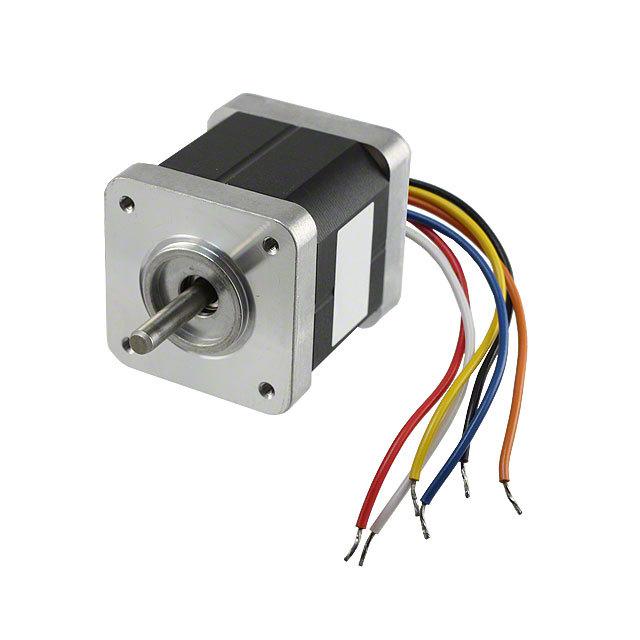

17PY-Z455-00VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 46.74 / 330
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.3 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 800mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 46.74 / 330
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 7.3 Ohms
Features : Flatted Shaft
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
