17PM-Z449U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Obsolete
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 63.73 / 450
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.9 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Obsolete
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 63.73 / 450
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.9 Ohms
Features : Round Shaft
0
100 in stock
17PM-Z749B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Obsolete
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 8.92 / 63
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.4 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Obsolete
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 8.92 / 63
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.4 Ohms
Features : Round Shaft
0
100 in stock

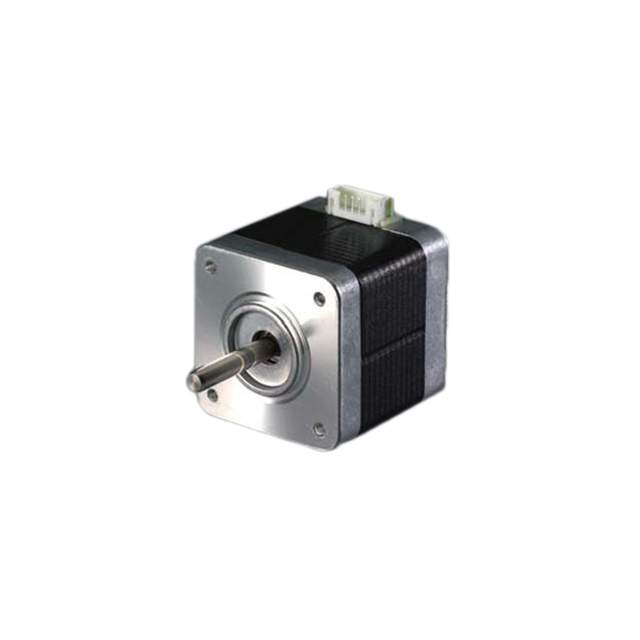

17PM-Z749U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Obsolete
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.80 / 48
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.2 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Obsolete
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 900mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.80 / 48
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.2 Ohms
Features : Round Shaft
0
100 in stock
17PM-Z764U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PM
Part Status : Obsolete
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.80 / 48
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.6 Ohms
Features : Round Shaft
Series : 17PM
Part Status : Obsolete
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 200
Step Angle : 1.8°
Accuracy : -
Torque - Holding (oz-in / mNm) : 6.80 / 48
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 5.6 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z049B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 38.24 / 270
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 6.2 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 700mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 38.24 / 270
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 6.2 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z049U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.16 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.1 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.16 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 3.1 Ohms
Features : Round Shaft
0
100 in stock

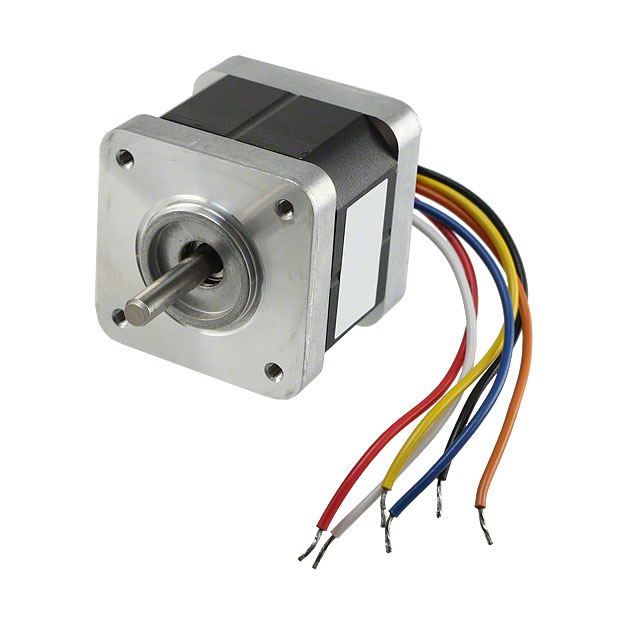

17PY-Z053-00VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 850mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 22.7 / 160
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 4.2 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 850mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 22.7 / 160
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 4.2 Ohms
Features : Flatted Shaft
0
28 in stock

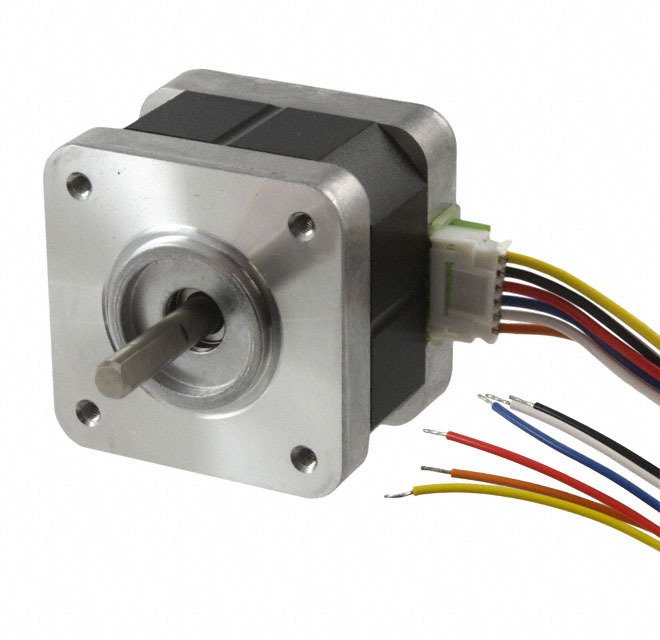

17PY-Z053-99VS
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 850mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 22.7 / 160
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 4.2 Ohms
Features : Flatted Shaft
Series : 17PY
Part Status : Active
Type : Hybrid, Dual Shaft
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 850mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : ±5%
Torque - Holding (oz-in / mNm) : 22.7 / 160
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.787" (20.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Wire Leads with Connector
Operating Temperature : -10°C ~ 50°C
Coil Resistance : 4.2 Ohms
Features : Flatted Shaft
0
11 in stock
17PY-Z064U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.16 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 8.3 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 600mA
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 31.16 / 220
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 8.3 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z142B
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 55.24 / 390
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.6 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Bipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 55.24 / 390
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.6 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z142U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 42.49 / 300
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.3 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1.4A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 42.49 / 300
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 2.3 Ohms
Features : Round Shaft
0
100 in stock
17PY-Z149U
NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 42.49 / 300
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.3 Ohms
Features : Round Shaft
Series : 17PY
Part Status : Active
Type : Hybrid
Coil Type : Unipolar
Voltage - Rated : 24VDC
Current Rating : 1A
Steps per Revolution : 400
Step Angle : 0.9°
Accuracy : -
Torque - Holding (oz-in / mNm) : 42.49 / 300
Size / Dimension : Square - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size : 17
Diameter - Shaft : 0.197" (5.00mm)
Length - Shaft and Bearing : 0.945" (24.00mm)
Mounting Hole Spacing : 1.220" (31.00mm)
Termination Style : Connector
Operating Temperature : -
Coil Resistance : 4.3 Ohms
Features : Round Shaft
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
