Part Number

Manufacturer

Description

Unit Price

In Stock

LZ1-00DB00-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Discontinued at
Color : Blue
Wavelength : 460nm (457nm ~ 463nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.6V
Lumens/Watt @ Current - Test : -
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 1025mW (800mW ~ 1250mW)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.118" (3.00mm)

100 in stock

LZ1-00G100-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Green
Wavelength : 528nm (520nm ~ 535nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.75V
Lumens/Watt @ Current - Test : 57 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 215 lm (145 lm ~ 285 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.114" (2.90mm)

100 in stock

LZ1-00G100-0G23

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Green
Wavelength : 525nm (520nm ~ 530nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.75V
Lumens/Watt @ Current - Test : 57 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 215 lm (145 lm ~ 285 lm)
Temperature - Test : 25°C
Viewing Angle : 80°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.114" (2.90mm)

100 in stock

LZ1-00G102-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Green
Wavelength : 528nm (520nm ~ 535nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 3.75V
Lumens/Watt @ Current - Test : 57 lm/W
Current - Max : 1.5A
Flux @ Current/Temperature - Test : 215 lm (145 lm ~ 285 lm)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.102" (2.60mm)

906 in stock

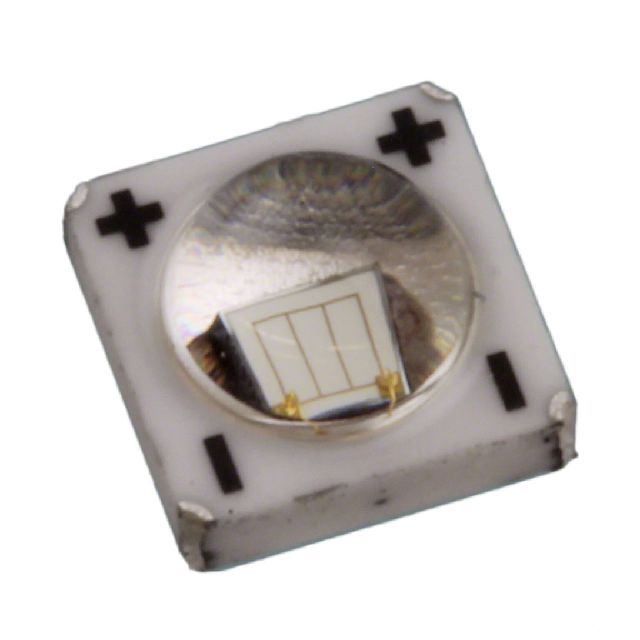

LZ1-00R100-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Color : Red
Wavelength : 624nm (618nm ~ 630nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.6V
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 173 lm (117 lm ~ 228 lm)
Temperature - Test : 25°C
Viewing Angle : 76°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.114" (2.90mm)

100 in stock

LZ1-00R102-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red
Wavelength : 624nm (618nm ~ 630nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.7V
Lumens/Watt @ Current - Test : 64 lm/W
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 173 lm (117 lm ~ 228 lm)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.102" (2.60mm)

1014 in stock

LZ1-00R200-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Red
Wavelength : 663nm (655nm ~ 670nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : -
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 820mW (640mW ~ 1000mW)
Temperature - Test : 25°C
Viewing Angle : 90°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.114" (2.90mm)

100 in stock

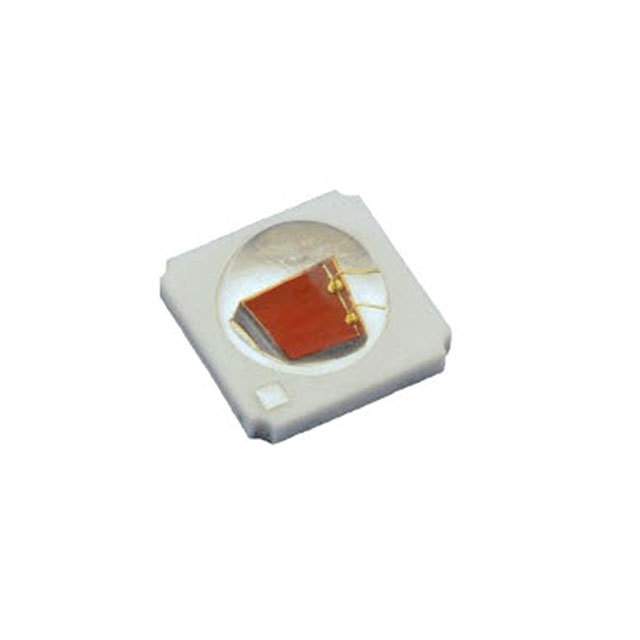

LZ1-00R202-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red
Wavelength : 663nm (655nm ~ 670nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.5V
Lumens/Watt @ Current - Test : -
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 1025mW (800mW ~ 1250mW)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.102" (2.60mm)

2896 in stock

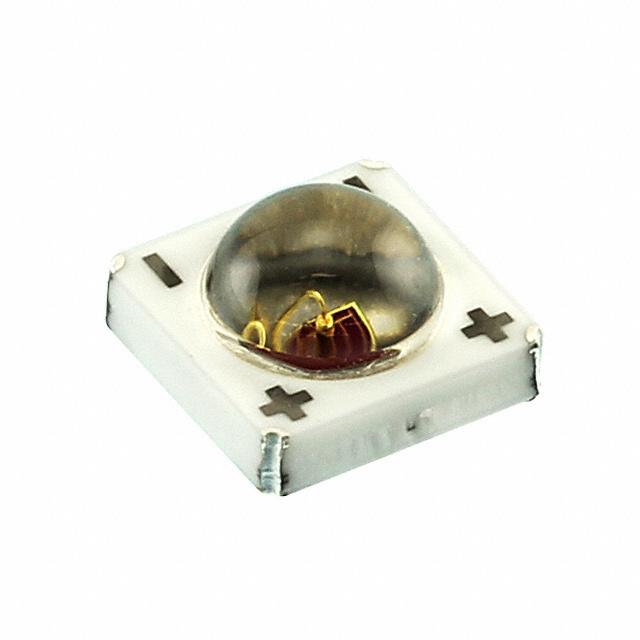

LZ1-00R300-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Red
Wavelength : 734nm (723nm ~ 745nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.4V
Lumens/Watt @ Current - Test : -
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 531mW (262mW ~ 800mW)
Temperature - Test : 25°C
Viewing Angle : 76°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.114" (2.90mm)

100 in stock

LZ1-00R302-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red
Wavelength : 734nm (723nm ~ 745nm)
Current - Test : 1A
Voltage - Forward (Vf) (Typ) : 2.2V
Lumens/Watt @ Current - Test : -
Current - Max : 1.2A
Flux @ Current/Temperature - Test : 656mW (512mW ~ 800mW)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 1816 (4540 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.173" L x 0.173" W (4.40mm x 4.40mm)
Height - Seated (Max) : 0.102" (2.60mm)

1490 in stock

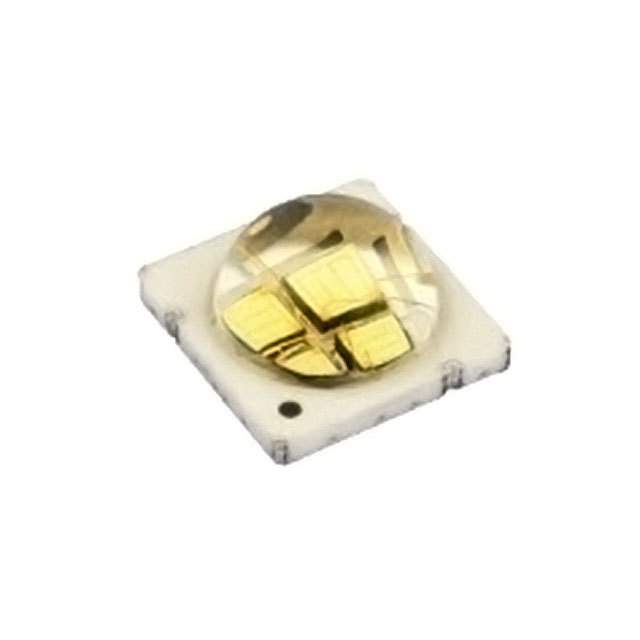

LZ4-00B208-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Blue
Wavelength : 455nm (450nm ~ 460nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 12.8V
Lumens/Watt @ Current - Test : 18 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 161 lm (93 lm ~ 228 lm)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

470 in stock

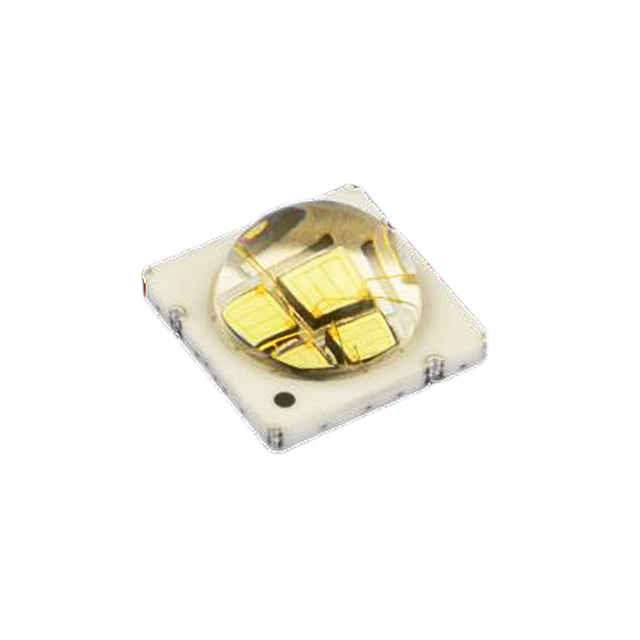

LZ4-00G108-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : Green
Wavelength : 528nm (520nm ~ 535nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 14.4V
Lumens/Watt @ Current - Test : 65 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 657 lm (445 lm ~ 868 lm)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock
