LED Lighting - Color Products, Stocks, Distributors, Manufactor, Shopping, Company,Electronic Components Online store


Part Number

Manufacturer

Description

Unit Price

In Stock

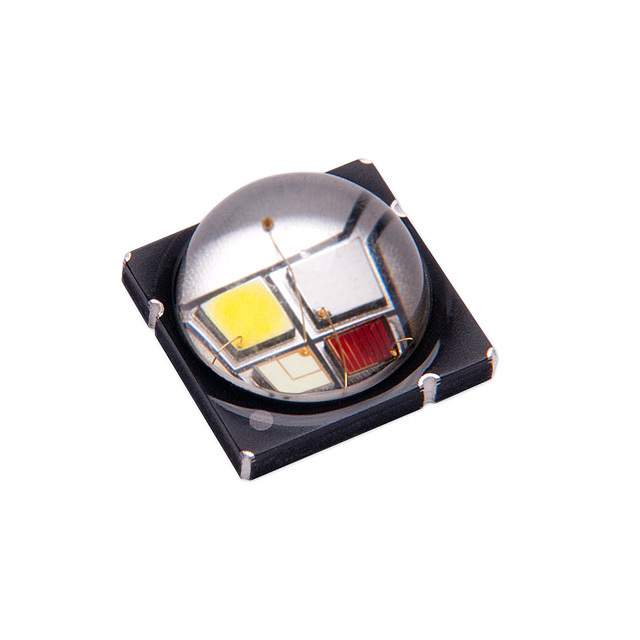

LZ4-00MD09-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6100K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 66 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
Flux @ Current/Temperature - Test : 115 lm Red, 160 lm Green, 30 lm Blue, 190 lm White
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

174 in stock

LZ4-00R108-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red
Wavelength : 624nm (618nm ~ 630nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 10V
Lumens/Watt @ Current - Test : 65 lm/W
Current - Max : 1A
Flux @ Current/Temperature - Test : 456 lm (356 lm ~ 556 lm)
Temperature - Test : 25°C
Viewing Angle : 100°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

176 in stock

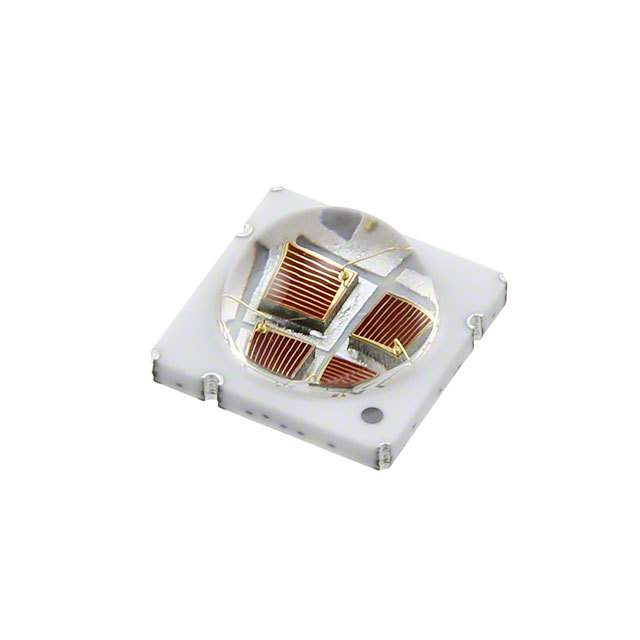

LZ4-00R208-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : Red
Wavelength : 663nm (655nm ~ 670nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 10.5V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : 2500mW (2000mW ~ 3000mW)
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock

LZ4-00R308-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : Red
Wavelength : 734nm (723nm ~ 745nm)
Current - Test : 700mA
Voltage - Forward (Vf) (Typ) : 9V
Lumens/Watt @ Current - Test : -
Current - Max : 1A
Flux @ Current/Temperature - Test : 2000mW (1600mW ~ 2400mW)
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.154" (3.90mm)

100 in stock

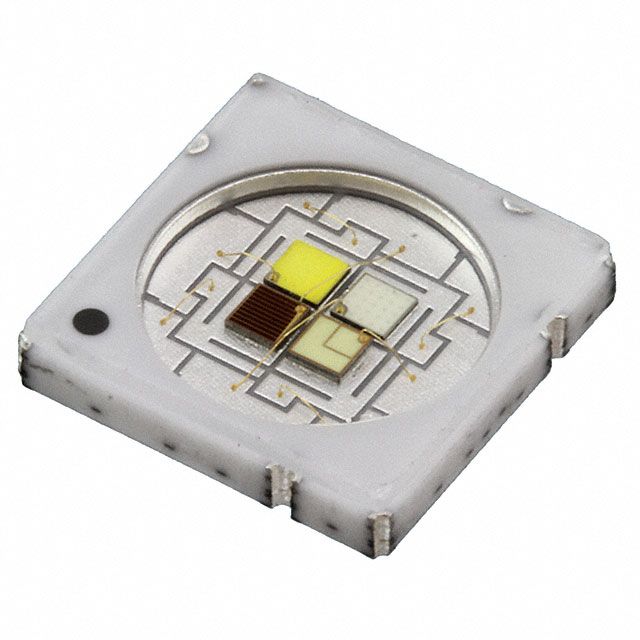

LZ4-04MDC9-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6500K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
Flux @ Current/Temperature - Test : 62 lm Red, 133 lm Green, 24 lm Blue, 183nm White
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.059" (1.50mm)

183 in stock

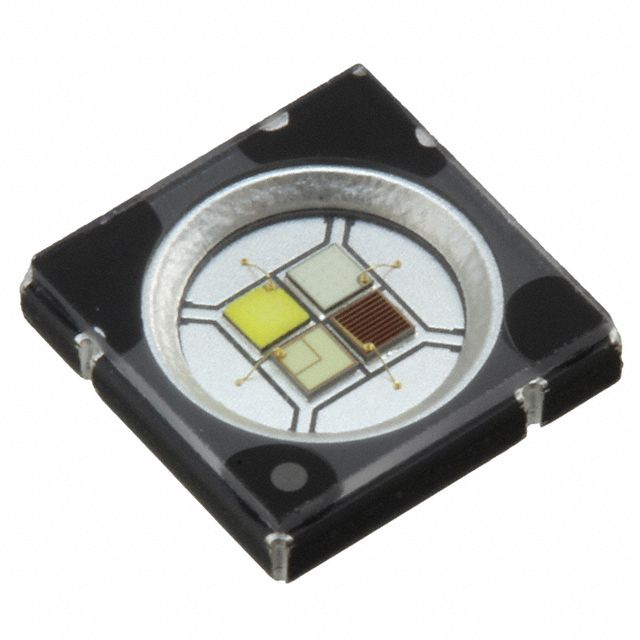

LZ4-04MDCA-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6500K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W
Current - Max : 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White
Flux @ Current/Temperature - Test : 62 lm Red, 133 lm Green, 24 lm Blue, 183nm White
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.065" (1.65mm)

228 in stock

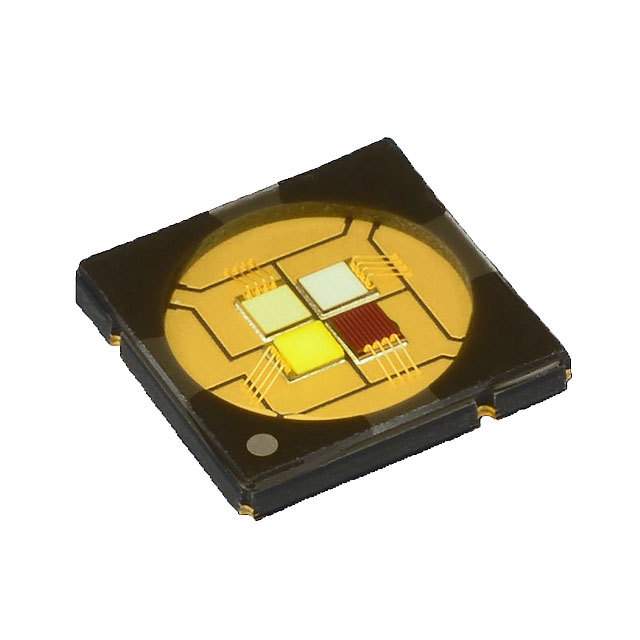

LZ4-04MDPB-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LuxiGen™
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 454nm Blue, 6500K White
Current - Test : 1A Red, 1A Green, 1A Blue, 1A White
Voltage - Forward (Vf) (Typ) : 2.3V Red, 3.55V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 50 lm/W Red, 62 lm/W Green, 93 lm/W White
Current - Max : 2.5A Red, 3A Green, 3A Blue, 3A White
Flux @ Current/Temperature - Test : 115 lm Red, 220 lm Green, 1250mW Blue, 298 lm White
Temperature - Test : 25°C
Viewing Angle : 110°
Mounting Type : Surface Mount
Package / Case : 2828 (7070 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) : 0.042" (1.06mm)

154 in stock

LZC-00H100-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Color : Red, Green, Blue, Amber (RGBA)
Wavelength : 665nm Red, 730nm Red, 525nm Green, 400nm Blue, 450nm Blue, 590nm Amber
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA Amber
Voltage - Forward (Vf) (Typ) : 2.25V Red, 2.65V Red, 4.2V Green, 3.3V Blue, 2.45V Amber
Lumens/Watt @ Current - Test : -
Current - Max : -
Flux @ Current/Temperature - Test : -
Temperature - Test : -
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 3535 (9090 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.213" (5.40mm)

94 in stock

LZC-03MC00-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Color : Red, Green, Blue (RGB)
Wavelength : 624nm Red, 525nm Green, 457nm Blue
Current - Test : 700mA Red, 700mA Green, 700mA Blue
Voltage - Forward (Vf) (Typ) : 9.4V Red, 16.8V Green, 14V Blue
Lumens/Watt @ Current - Test : 49 lm/W Red, 36 lm/W Green, 12 lm/W Blue
Current - Max : 1A Red, 1A Green, 1A Blue
Flux @ Current/Temperature - Test : 320 lm Red, 425 lm Green, 120 lm Blue
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 3535 (9090 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.220" (5.60mm)

100 in stock

LZC-03MD07-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 624nm Red, 525nm Green, 457nm Blue, 6658K White
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Voltage - Forward (Vf) (Typ) : 7V Red, 10.5V Green, 10.5V Blue, 10.5V White
Lumens/Watt @ Current - Test : 69 lm/W Red, 53 lm/W Green, 12 lm/W Blue, 71 lm/W White
Current - Max : 1A Red, 1A Green, 1A Blue, 1A White
Flux @ Current/Temperature - Test : 340 lm Red, 390 lm Green, 89 lm Blue, 525 lm White
Temperature - Test : 25°C
Viewing Angle : 95°
Mounting Type : Surface Mount
Package / Case : 3535 (9090 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.220" (5.60mm)

100 in stock

LZC-R0H100-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tray
Series : -
Part Status : Active
Color : Red, Green, Blue, Amber (RGBA)
Wavelength : 665nm Red, 730nm Red, 525nm Green, 400nm Blue, 450nm Blue, 590nm Amber
Current - Test : 700mA Red, 700mA Green, 700mA Blue, 700mA Amber
Voltage - Forward (Vf) (Typ) : 2.25V Red, 2.65V Red, 4.2V Green, 3.3V Blue, 2.45V Amber
Lumens/Watt @ Current - Test : -
Current - Max : -
Flux @ Current/Temperature - Test : -
Temperature - Test : -
Viewing Angle : -
Mounting Type : Surface Mount
Package / Case : 3535 (9090 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.354" L x 0.354" W (9.00mm x 9.00mm)
Height - Seated (Max) : 0.220" (5.60mm)

50 in stock

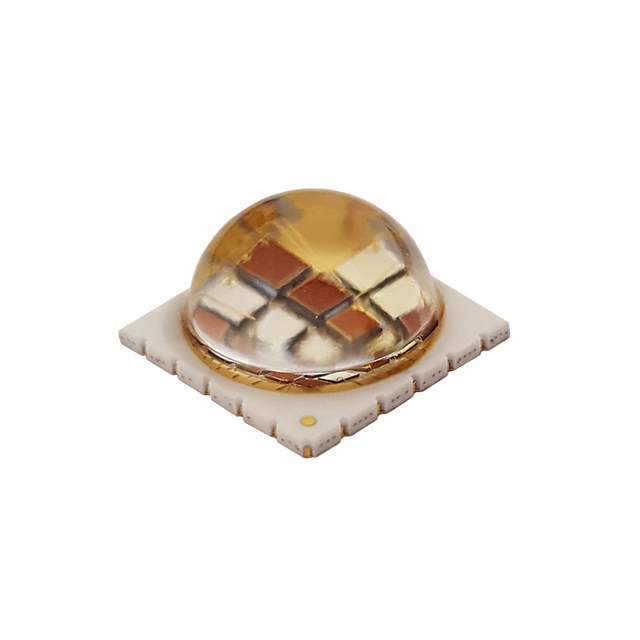

LZP-00H100-0000

LED Engin

Manufacturer : LED Engin Inc.
Packaging : Tray
Series : LuxiGen™
Part Status : Active
Color : Red, Green, Blue (RGB)
Wavelength : 660nm Red, 740nm Red, 520nm Green, 450nm Blue
Current - Test : 700mA Red, 700mA Green, 700mA Blue
Voltage - Forward (Vf) (Typ) : 18.8V Red, 8.2V Red, 14.4V Green, 25.6V Blue
Lumens/Watt @ Current - Test : -
Current - Max : 700mA Red, 700mA Green, 700mA Blue
Flux @ Current/Temperature - Test : -
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 0505 (1313 Metric)
Supplier Device Package : SMD
Size / Dimension : 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) : 0.249" (6.33mm)

47 in stock
