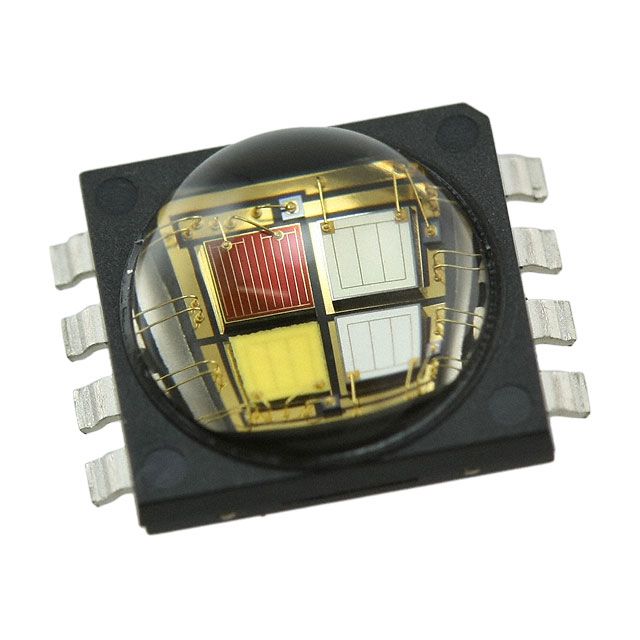

MCE4CT-A2-0000-00A4AAAB1

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® MC-E
Part Status : Active
Color : Red, Green, Blue, White - Neutral (RGBW)
Wavelength : 625nm Red, 528nm Green, 458nm Blue, 4000K White
Current - Test : 350mA Red, 350mA Green, 350mA Blue, 350mA White
Voltage - Forward (Vf) (Typ) : 2.1V Red, 3.4V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 71 lm/W White, Neutral
Current - Max : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Flux @ Current/Temperature - Test : 31 lm Red, 67 lm Green, 8 lm Blue, 80 lm White
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.295" W (7.00mm x 7.50mm)
Height - Seated (Max) : 0.184" (4.68mm)

357 in stock

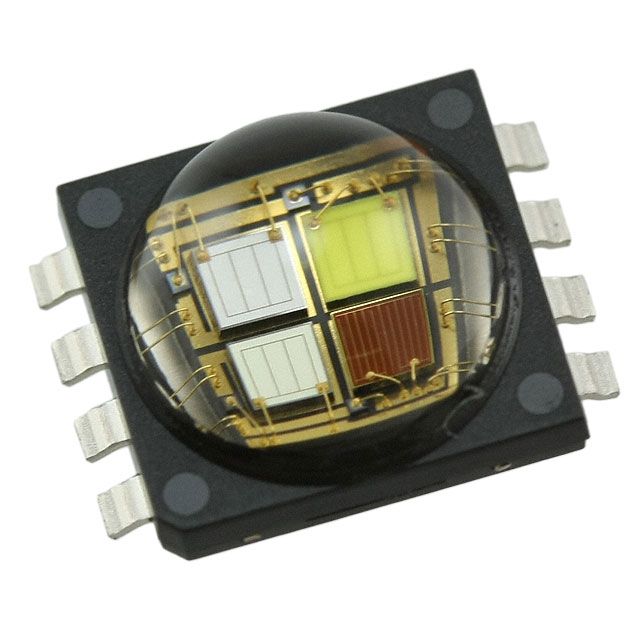

MCE4CT-A2-0000-00A5AAAA1

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® MC-E
Part Status : Active
Color : Red, Green, Blue, White - Cool (RGBW)
Wavelength : 625nm Red, 528nm Green, 458nm Blue, 6350K White
Current - Test : 350mA Red, 350mA Green, 350mA Blue, 350mA White
Voltage - Forward (Vf) (Typ) : 2.1V Red, 3.4V Green, 3.2V Blue, 3.2V White
Lumens/Watt @ Current - Test : 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 89 lm/W White, Cool
Current - Max : 700mA Red, 700mA Green, 700mA Blue, 700mA White
Flux @ Current/Temperature - Test : 31 lm Red, 67 lm Green, 8 lm Blue, 100 lm White
Temperature - Test : 25°C
Viewing Angle : 115°
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.276" L x 0.295" W (7.00mm x 7.50mm)
Height - Seated (Max) : 0.184" (4.68mm)

231 in stock

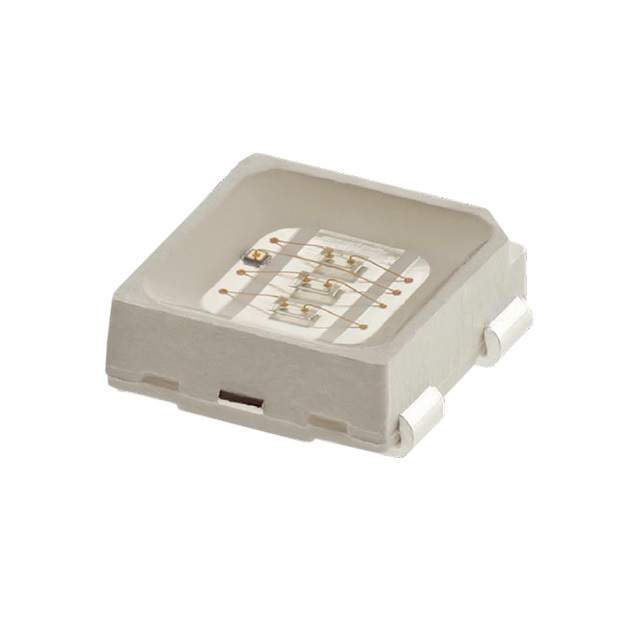

MLCROY-A1-0000-000201

Cree

Manufacturer : Cree Inc.
Packaging : Tape & Reel (TR)
Series : XLamp® ML-E
Part Status : Obsolete
Color : Blue
Wavelength : 458nm (450nm ~ 465nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : -
Current - Max : 250mA
Flux @ Current/Temperature - Test : 111mW (100mW ~ 122mW)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

100 in stock

MLCROY-A1-0000-000202

Cree

Manufacturer : Cree Inc.
Packaging : Tape & Reel (TR)
Series : XLamp® ML-E
Part Status : Obsolete
Color : Blue
Wavelength : 455nm (450nm ~ 460nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : -
Current - Max : 250mA
Flux @ Current/Temperature - Test : 111mW (100mW ~ 122mW)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

100 in stock

MLCROY-A1-0000-000203

Cree

Manufacturer : Cree Inc.
Packaging : Tape & Reel (TR)
Series : XLamp® ML-E
Part Status : Obsolete
Color : Blue
Wavelength : 460nm (455nm ~ 465nm)
Current - Test : 100mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : -
Current - Max : 250mA
Flux @ Current/Temperature - Test : 111mW (100mW ~ 122mW)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

100 in stock

MLEAMB-A1-0000-000W01

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® ML-E
Part Status : Active
Color : Amber
Wavelength : 590nm (585nm ~ 595nm)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 2.4V
Lumens/Watt @ Current - Test : 69 lm/W
Current - Max : 250mA
Flux @ Current/Temperature - Test : 25 lm (24 lm ~ 27 lm)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

732 in stock

MLEAMB-A1-0000-000X01

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® ML-E
Part Status : Active
Color : Amber
Wavelength : 590nm (585nm ~ 595nm)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 2.4V
Lumens/Watt @ Current - Test : 81 lm/W
Current - Max : 250mA
Flux @ Current/Temperature - Test : 29 lm (27 lm ~ 31 lm)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

7617 in stock

MLEBLU-A1-0000-000T01

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® ML-E
Part Status : Active
Color : Blue
Wavelength : 475nm (465nm ~ 485nm)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 27 lm/W
Current - Max : 350mA
Flux @ Current/Temperature - Test : 13 lm (11 lm ~ 14 lm)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

7800 in stock

MLEBLU-A1-0000-000U05

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® ML-E
Part Status : Active
Color : Blue
Wavelength : 475nm (470nm ~ 480nm)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.2V
Lumens/Watt @ Current - Test : 33 lm/W
Current - Max : 350mA
Flux @ Current/Temperature - Test : 16 lm (14 lm ~ 18 lm)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

1265 in stock

MLEGRN-A1-0000-000001

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® ML-E
Part Status : Active
Color : Green
Wavelength : 528nm (520nm ~ 535nm)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 67 lm/W
Current - Max : 350mA
Flux @ Current/Temperature - Test : 33 lm (31 lm ~ 35 lm)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

3959 in stock

MLEGRN-A1-0000-000X01

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® ML-E
Part Status : Active
Color : Green
Wavelength : 528nm (520nm ~ 535nm)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 3.3V
Lumens/Watt @ Current - Test : 59 lm/W
Current - Max : 350mA
Flux @ Current/Temperature - Test : 29 lm (27 lm ~ 31 lm)
Temperature - Test : 25°C
Viewing Angle : 125°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

1646 in stock

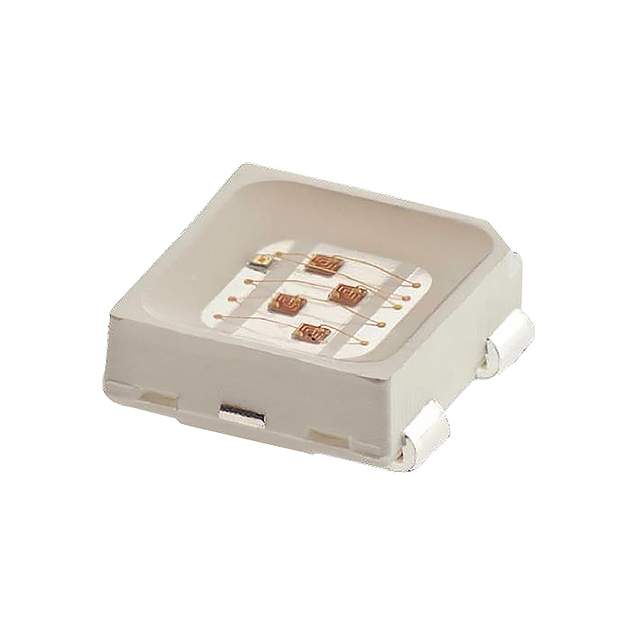

MLERED-A1-0000-000U01

Cree

Manufacturer : Cree Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : XLamp® ML-E
Part Status : Active
Color : Red
Wavelength : 625nm (620nm ~ 630nm)
Current - Test : 150mA
Voltage - Forward (Vf) (Typ) : 2.4V
Lumens/Watt @ Current - Test : 44 lm/W
Current - Max : 350mA
Flux @ Current/Temperature - Test : 16 lm (14 lm ~ 18 lm)
Temperature - Test : 25°C
Viewing Angle : 120°
Mounting Type : Surface Mount
Package / Case : 4-SMD, J-Lead Exposed Pad
Supplier Device Package : SMD
Size / Dimension : 0.138" L x 0.124" W (3.50mm x 3.15mm)
Height - Seated (Max) : 0.052" (1.33mm)

373 in stock
