Part Number
Manufacturer
Description
Unit Price
In Stock
161D34
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 17V, Series 34V
Current - Output (Max) : Parallel 50mA, Series 25mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 25.40mm L x 35.05mm W
Height - Seated (Max) : 21.08mm
Voltage - Isolation : 2000Vrms
Weight : 0.12 lb (54.43g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 17V, Series 34V
Current - Output (Max) : Parallel 50mA, Series 25mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 25.40mm L x 35.05mm W
Height - Seated (Max) : 21.08mm
Voltage - Isolation : 2000Vrms
Weight : 0.12 lb (54.43g)
0
6 in stock

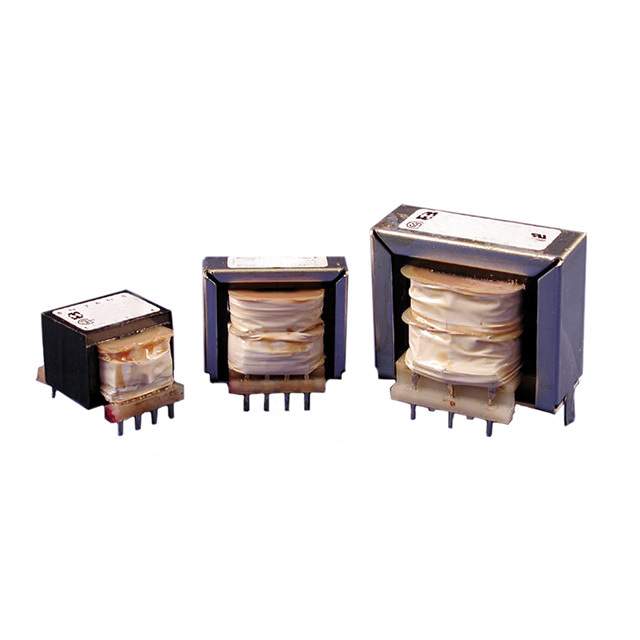

161D40
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 40mA, Series 20mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 25.40mm L x 35.05mm W
Height - Seated (Max) : 21.08mm
Voltage - Isolation : 2000Vrms
Weight : 0.13 lb (58.97g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 40mA, Series 20mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 25.40mm L x 35.05mm W
Height - Seated (Max) : 21.08mm
Voltage - Isolation : 2000Vrms
Weight : 0.13 lb (58.97g)
0
50 in stock
161D56
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 30mA, Series 15mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 25.40mm L x 35.05mm W
Height - Seated (Max) : 21.08mm
Voltage - Isolation : 2000Vrms
Weight : 0.13 lb (58.97g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 30mA, Series 15mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 25.40mm L x 35.05mm W
Height - Seated (Max) : 21.08mm
Voltage - Isolation : 2000Vrms
Weight : 0.13 lb (58.97g)
0
30 in stock
161E120
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 16mA, Series 8mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.25 lb (113.4g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 16mA, Series 8mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.25 lb (113.4g)
0
50 in stock
161E24
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 100mA, Series 50mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.19 lb (86.18g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 100mA, Series 50mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.19 lb (86.18g)
0
50 in stock
161E28
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 80mA, Series 40mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.2 lb (90.72g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 80mA, Series 40mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.2 lb (90.72g)
0
174 in stock
161E34
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 17V, Series 34V
Current - Output (Max) : Parallel 70mA, Series 35mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.21 lb (95.25g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 17V, Series 34V
Current - Output (Max) : Parallel 70mA, Series 35mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.21 lb (95.25g)
0
19 in stock
161E40
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 60mA, Series 30mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.18 lb (81.65g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 60mA, Series 30mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.18 lb (81.65g)
0
50 in stock
161E56
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 40mA, Series 20mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.25 lb (113.4g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 40mA, Series 20mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.25 lb (113.4g)
0
12 in stock

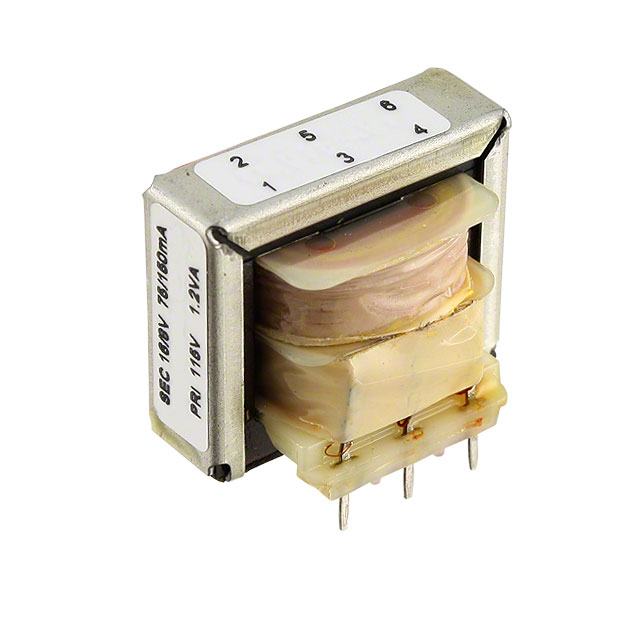

161EA16
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 150mA, Series 75mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.2 lb (90.72g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 150mA, Series 75mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.2 lb (90.72g)
0
50 in stock
161EA20
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 120mA, Series 60mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.19 lb (86.18g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 120mA, Series 60mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.19 lb (86.18g)
0
50 in stock
161F120
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 70mA, Series 35mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 70mA, Series 35mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
0
8 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
