- Transformers
- Power Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
161F24
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 360mA, Series 180mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 360mA, Series 180mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
0
50 in stock
161F28
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 320mA, Series 160mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 320mA, Series 160mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
0
365 in stock
161F34
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 17V, Series 34V
Current - Output (Max) : Parallel 250mA, Series 125mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 17V, Series 34V
Current - Output (Max) : Parallel 250mA, Series 125mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
0
5 in stock
161F40
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.35 lb (158.76g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 220mA, Series 110mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.35 lb (158.76g)
0
50 in stock

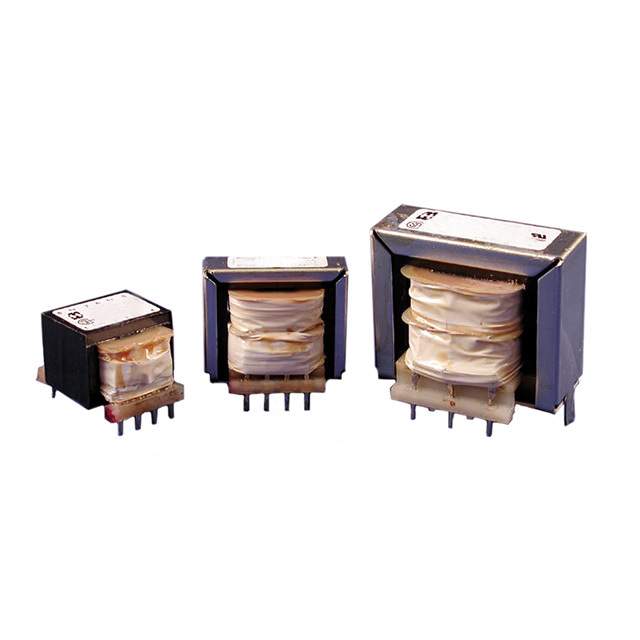

161F56
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 160mA, Series 80mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 160mA, Series 80mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
0
50 in stock
161FA10
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 880mA, Series 440mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.19 lb (86.18g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 880mA, Series 440mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.19 lb (86.18g)
0
6 in stock
161FA12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 200mA, Series 100mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.19 lb (86.18g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 200mA, Series 100mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 1.2 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 35.05mm L x 30.23mm W
Height - Seated (Max) : 30.99mm
Voltage - Isolation : 2000Vrms
Weight : 0.19 lb (86.18g)
0
50 in stock
161FA16
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 520mA, Series 260mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 520mA, Series 260mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
0
750 in stock
161FA20
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 440mA, Series 220mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.34 lb (154.22g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 440mA, Series 220mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.34 lb (154.22g)
0
50 in stock
161G120
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 170mA, Series 85mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.53 lb (240.4g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 170mA, Series 85mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.53 lb (240.4g)
0
40 in stock
161G16
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 1.28A, Series 640mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.57 lb (258.55g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 1.28A, Series 640mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.57 lb (258.55g)
0
40 in stock
161G20
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
0
40 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
