161G24
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 900mA, Series 450mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 900mA, Series 450mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.7 lb (317.51g)
0
40 in stock
161G28
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 720mA, Series 360mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.65 lb (294.84g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 14V, Series 28V
Current - Output (Max) : Parallel 720mA, Series 360mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.65 lb (294.84g)
0
10 in stock
161G34
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 17V, Series 34V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.58 lb (263.08g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 17V, Series 34V
Current - Output (Max) : Parallel 600mA, Series 300mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.58 lb (263.08g)
0
14 in stock
161G40
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.58 lb (263.08g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 20V, Series 40V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.58 lb (263.08g)
0
40 in stock
161G56
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 360mA, Series 180mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 28V, Series 56V
Current - Output (Max) : Parallel 360mA, Series 180mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 49.28mm L x 36.58mm W
Height - Seated (Max) : 42.93mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
0
40 in stock
161GA10
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 880mA, Series 440mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 880mA, Series 440mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.33 lb (149.69g)
0
18 in stock

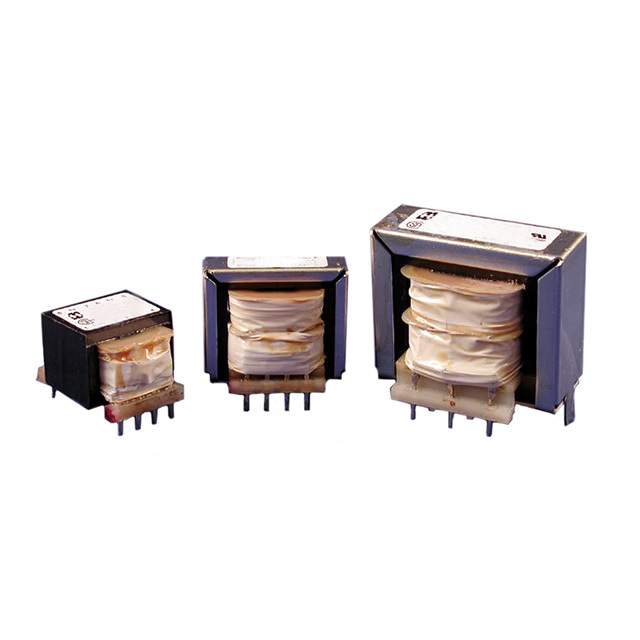

161GA12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 700mA, Series 350mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 4.4 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 42.93mm L x 31.75mm W
Height - Seated (Max) : 36.83mm
Voltage - Isolation : 2000Vrms
Weight : 0.4 lb (181.44g)
0
50 in stock
161H10
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 4.8A, Series 2.4A
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.82 lb (371.95g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 4.8A, Series 2.4A
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.82 lb (371.95g)
0
30 in stock
161H12
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.83 lb (376.48g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.83 lb (376.48g)
0
30 in stock
161H120
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.82 lb (371.95g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 60V, Series 120V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.82 lb (371.95g)
0
20 in stock
161H16
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 3A, Series 1.5A
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.81 lb (367.41g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 8V, Series 16V
Current - Output (Max) : Parallel 3A, Series 1.5A
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.81 lb (367.41g)
0
14 in stock
161H20
Hammond Manufacturing
Manufacturer : Hammond Manufacturing
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2.4A, Series 1.2A
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.8 lb (362.87g)
Series : 161
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 2.4A, Series 1.2A
Primary Winding(s) : Single
Secondary Winding(s) : Single, Multiple Taps
Center Tap : No
Power - Max : 24 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.40mm L x 57.15mm W
Height - Seated (Max) : 35.05mm
Voltage - Isolation : 2000Vrms
Weight : 0.8 lb (362.87g)
0
30 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
