Citizen Electronics Co., Ltd.
- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.
Part Number
Manufacturer
Description
Unit Price
In Stock

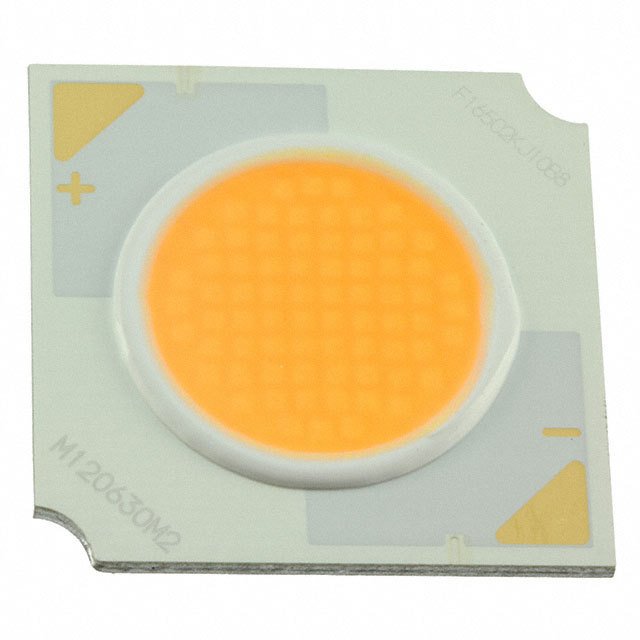

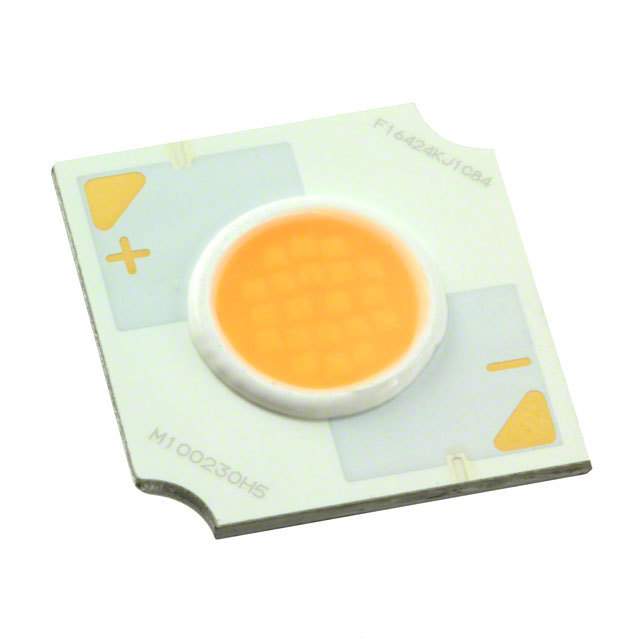

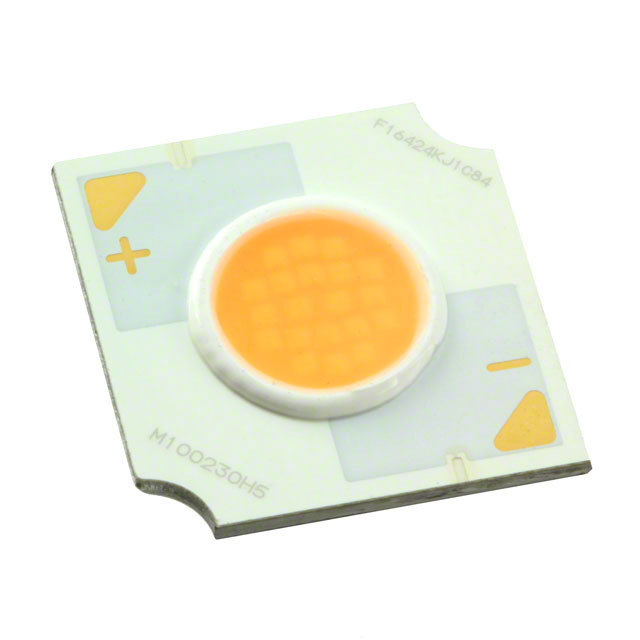

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 480 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
206 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 581 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 118 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
44 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 502 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
77 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 607 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
54 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 511 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
26 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 618 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
36 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 516 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 105 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
22 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 625 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
51 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 636 lm (Typ)
Current - Test : 525mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 129 lm/W
Current - Max : 690mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
50 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 640 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
40 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 775 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 118 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
71 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 668 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 102 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
33 in stock
