Welcome to Weijie Semiconductor

Citizen Electronics Co., Ltd.

- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.

Part Number
Manufacturer
Description
Unit Price
In Stock

CLU701-0304C4-303M2K1 CLU701-0304C4-303M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 809 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
54 in stock

CLU701-0304C4-353H5K2 CLU701-0304C4-353H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 680 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 103 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
39 in stock

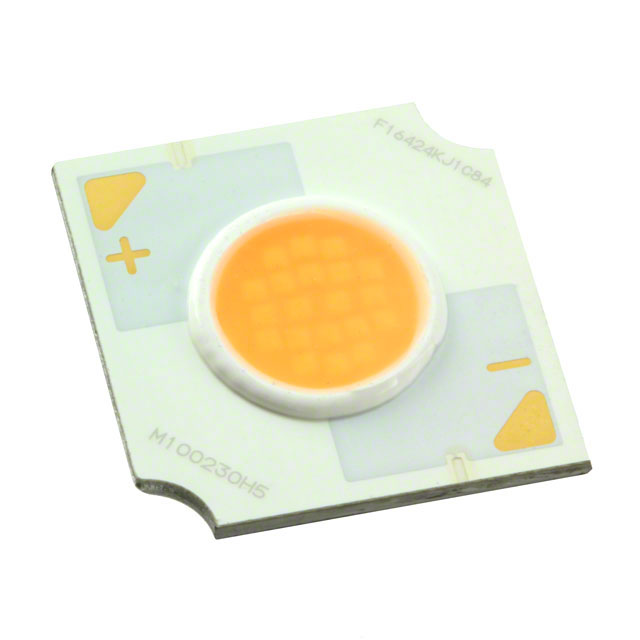

CLU701-0304C4-353M2K1 CLU701-0304C4-353M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 824 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
54 in stock

CLU701-0304C4-403H5K2 CLU701-0304C4-403H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 687 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 104 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
54 in stock

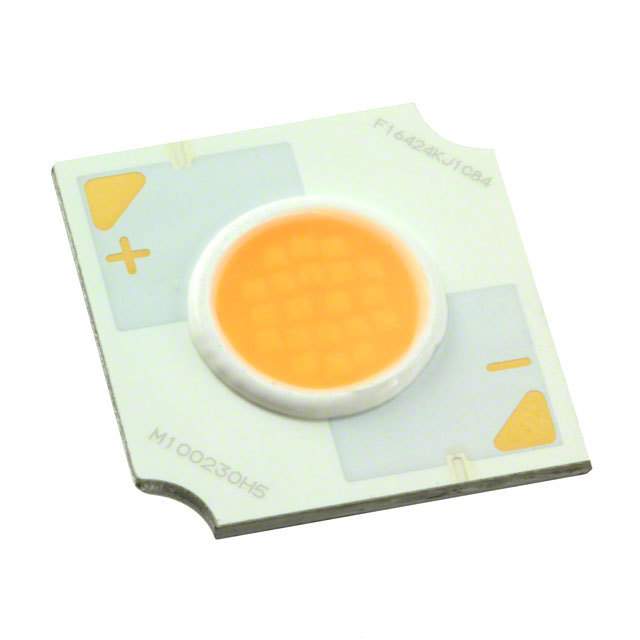

CLU701-0304C4-403M2K1 CLU701-0304C4-403M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 834 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 127 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
72 in stock

CLU701-0304C4-503M2K1 CLU701-0304C4-503M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 848 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 9.4V
Lumens/Watt @ Current - Test : 129 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
8 in stock

CLU701-1002C4-273H5K2 CLU701-1002C4-273H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 962 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 88 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
54 in stock

CLU701-1002C4-273M2K1 CLU701-1002C4-273M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1163 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 106 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
54 in stock

CLU701-1002C4-303H5K2 CLU701-1002C4-303H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1011 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
48 in stock

CLU701-1002C4-303M2K1 CLU701-1002C4-303M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1224 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 112 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
111 in stock

CLU701-1002C4-353H5K2 CLU701-1002C4-353H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1037 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 95 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
65 in stock

CLU701-1002C4-353M2K1 CLU701-1002C4-353M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1257 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 115 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
100 in stock
