Welcome to Weijie Semiconductor

Citizen Electronics Co., Ltd.

- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.

Part Number
Manufacturer
Description
Unit Price
In Stock

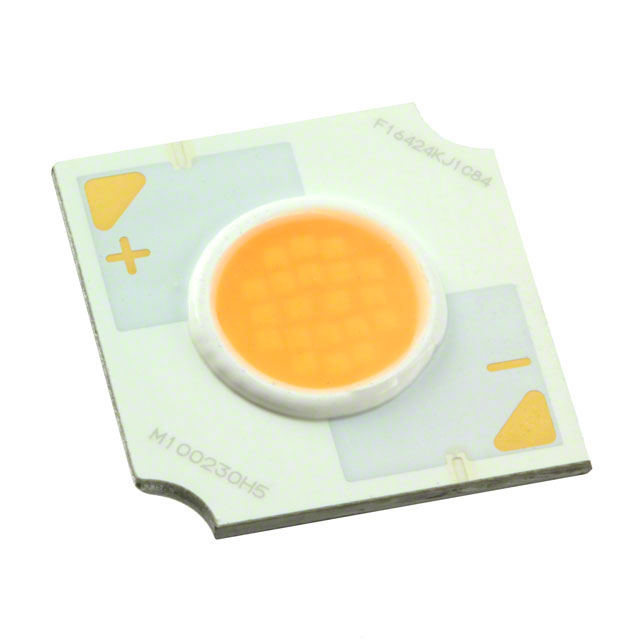

CLU701-1002C4-403H5K2 CLU701-1002C4-403H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1055 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
58 in stock

CLU701-1002C4-403M2K1 CLU701-1002C4-403M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1278 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
150 in stock

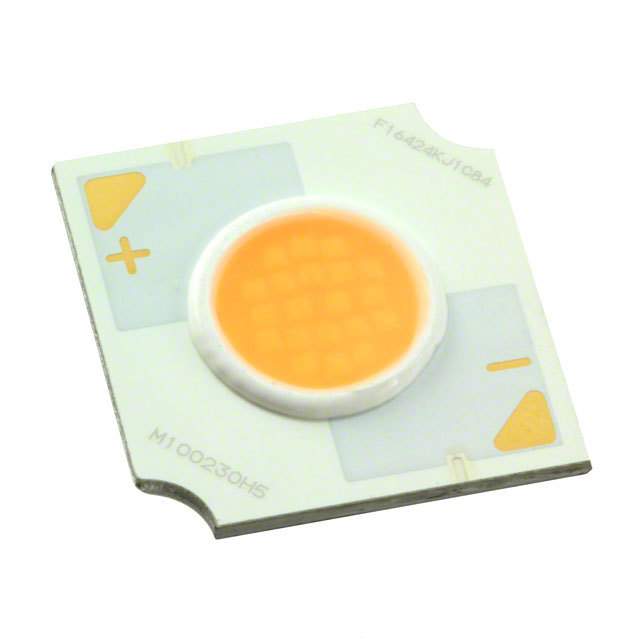

CLU701-1002C4-503M2K1 CLU701-1002C4-503M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1305 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 119 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
35 in stock

CLU701-1002C4-50AL7K3 CLU701-1002C4-50AL7K3

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU701
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 1372 lm (Typ)
Current - Test : 350mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 31.3V
Lumens/Watt @ Current - Test : 125 lm/W
Current - Max : 460mA
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 13.50mm L x 13.50mm W
Height : -
Light Emitting Surface (LES) : 6.00mm Diameter
Lens Type : Flat
0
39 in stock

CLU711-1204C4-273H5K2 CLU711-1204C4-273H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2378 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
45 in stock

CLU711-1204C4-273M2K1 CLU711-1204C4-273M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2877 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
41 in stock

CLU711-1204C4-303H5K2 CLU711-1204C4-303H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2514 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 96 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
28 in stock

CLU711-1204C4-303M2K1 CLU711-1204C4-303M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3042 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 116 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
64 in stock

CLU711-1204C4-353H5K2 CLU711-1204C4-353H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2565 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
7 in stock

CLU711-1204C4-353M2K1 CLU711-1204C4-353M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3107 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 118 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
26 in stock

CLU711-1204C4-403H5K2 CLU711-1204C4-403H5K2

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 2619 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 100 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
86 in stock

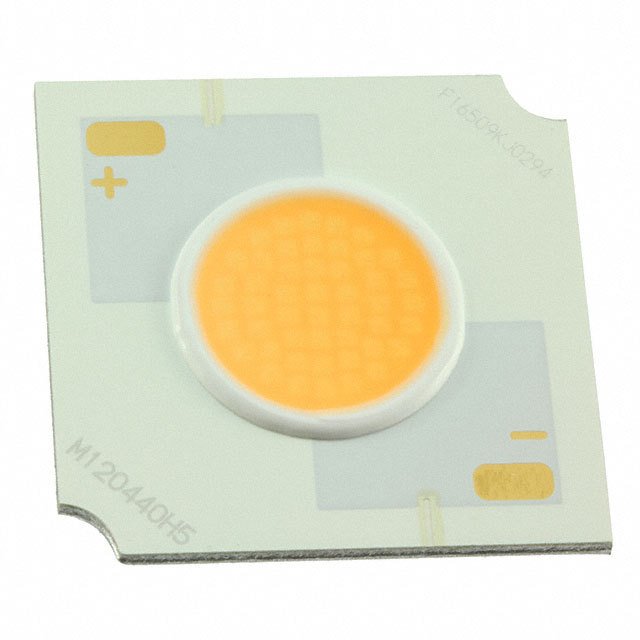

CLU711-1204C4-403M2K1 CLU711-1204C4-403M2K1

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3172 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 121 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
35 in stock
