Citizen Electronics Co., Ltd.
- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.
Part Number
Manufacturer
Description
Unit Price
In Stock

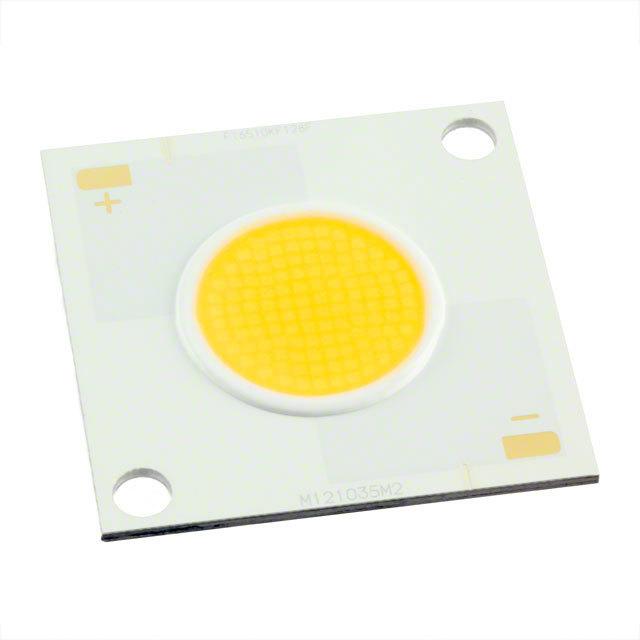

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6031 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 92 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
29 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7298 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 111 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
27 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6362 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
27 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7699 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 117 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
79 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6505 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 99 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
30 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 7879 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 120 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
24 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 6634 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 101 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
26 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8036 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
17 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8176 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 124 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
10 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU731
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 8595 lm (Typ)
Current - Test : 1.75A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 131 lm/W
Current - Max : 2.3A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 28.00mm L x 28.00mm W
Height : -
Light Emitting Surface (LES) : 13.00mm Diameter
Lens Type : Flat
0
44 in stock

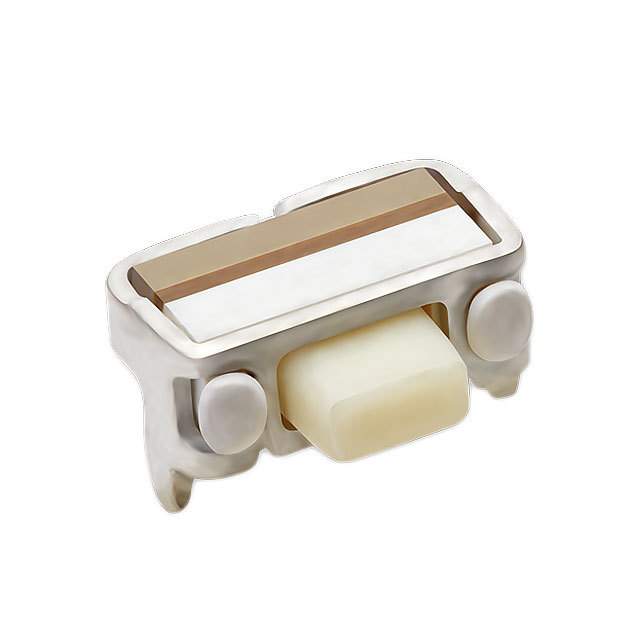

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LS10
Part Status : Discontinued at
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.02A @ 12VDC
Actuator Type : Rectangular Button
Mounting Type : Surface Mount, Right Angle
Actuator Height off PCB, Vertical : 2.05mm
Actuator Length, Right Angle : -
Actuator Orientation : Side Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.65mm x 3.50mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -
0
100 in stock

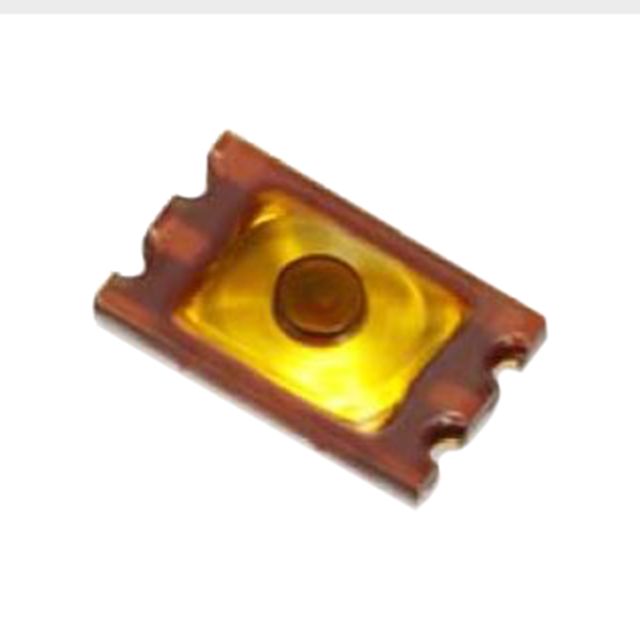

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LS127
Part Status : Discontinued at
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.02A @ 12VDC
Actuator Type : Standard
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 0.60mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 3.20mm x 2.00mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Operating Force : 240gf
Ingress Protection : -
Features : -
Operating Temperature : -
0
1311 in stock
