Citizen Electronics Co., Ltd.
- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.
Part Number
Manufacturer
Description
Unit Price
In Stock

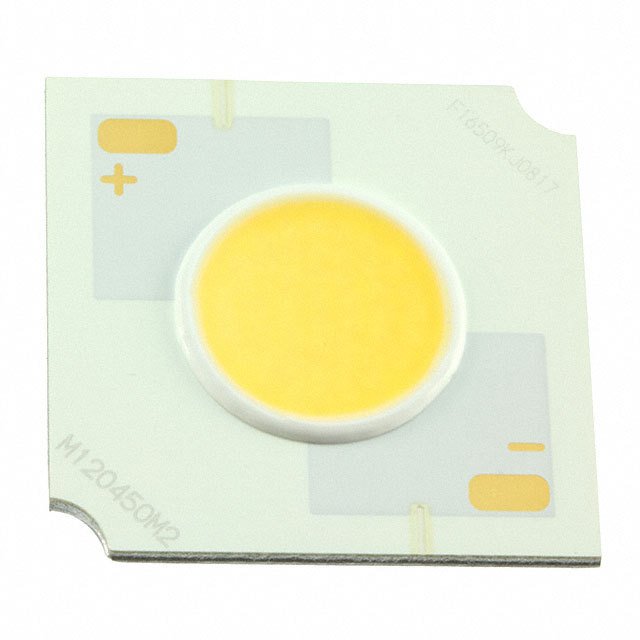

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3232 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 123 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
19 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU711
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3398 lm (Typ)
Current - Test : 700mA
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 129 lm/W
Current - Max : 920mA
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 8.50mm Diameter
Lens Type : Flat
0
43 in stock

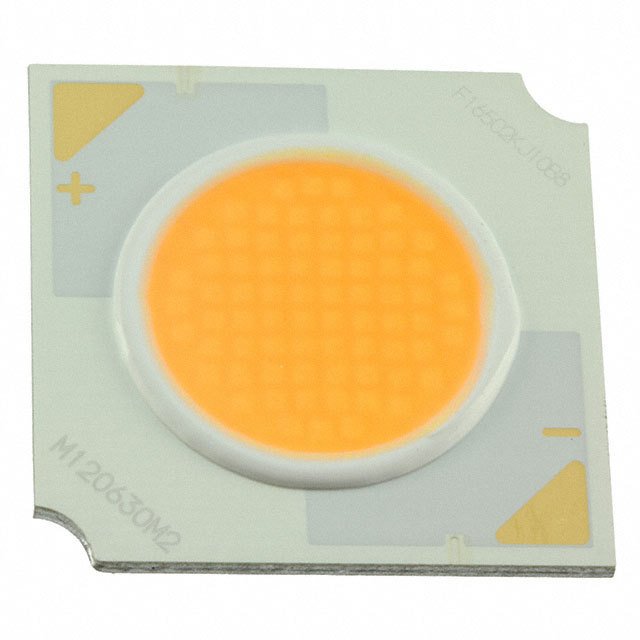

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3560 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 90 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
39 in stock

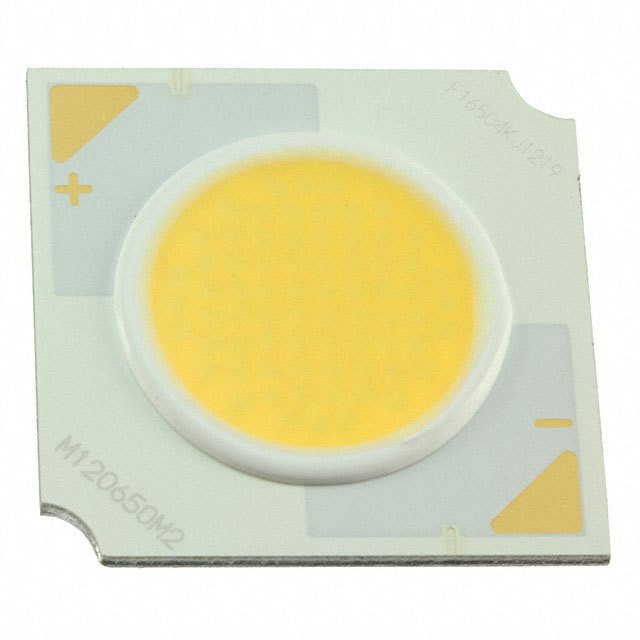

Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 2700K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4307 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 109 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
39 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3764 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 95 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
5 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4555 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 115 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
85 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3845 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 97 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
23 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Warm
CCT (K) : 3500K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4658 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 118 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
35 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 3922 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 99 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 90
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
42 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Neutral
CCT (K) : 4000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4750 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 120 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
19 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 4836 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 122 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 80
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
37 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : -
Series : CLU721
Part Status : Active
Type : Chip On Board (COB)
Color : White, Cool
CCT (K) : 5000K
Wavelength : -
Configuration : Square
Flux @ Current/Temperature - Test : 5084 lm (Typ)
Current - Test : 1.05A
Temperature - Test : 85°C
Voltage - Forward (Vf) (Typ) : 37.6V
Lumens/Watt @ Current - Test : 129 lm/W
Current - Max : 1.38A
CRI (Color Rendering Index) : 70
Viewing Angle : -
Features : -
Size / Dimension : 19.00mm L x 19.00mm W
Height : -
Light Emitting Surface (LES) : 11.00mm Diameter
Lens Type : Flat
0
93 in stock
