Citizen Electronics Co., Ltd.
- Born out of the Citizen Watch Company and its need to develop state-of-the-art micro-miniature electronic components, Citizen has grown beyond to become a technology leader in key components for today's most advanced products. Their packaging technology brings more flexibility in downsizing your design and application. They are helping leading-edge makers of PDAs, digital cameras, automotive products, measurement instruments, lighting apparatus and others to better interface between human and machine. Citizen's surface mountable LED products, switches and sensors are raising the bar for performance and design creativity.
Part Number
Manufacturer
Description
Unit Price
In Stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Cut Tape (CT)
Alternate Packaging

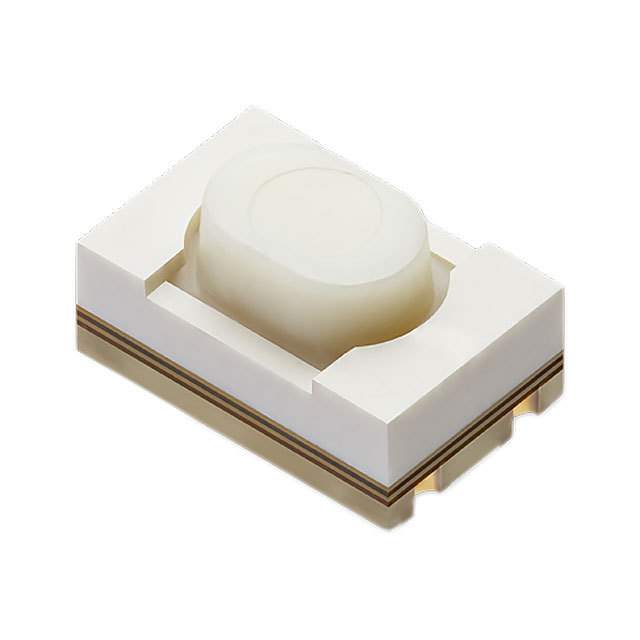

Series : LS8J
Part Status : Discontinued at
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.02A @ 12VDC
Actuator Type : Oval Button
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.50mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 3.20mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Operating Force : 350gf
Ingress Protection : -
Features : -
Operating Temperature : -
0
2253 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Cut Tape (CT)
Alternate Packaging
Series : LS8J
Part Status : Discontinued at
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.02A @ 12VDC
Actuator Type : Oval Button
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 2.50mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 4.90mm x 3.20mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Operating Force : 530gf
Ingress Protection : -
Features : -
Operating Temperature : -
0
622 in stock
Citizen Electronics Co., Ltd.
Manufacturer : Citizen
Packaging : Cut Tape (CT)
Alternate Packaging

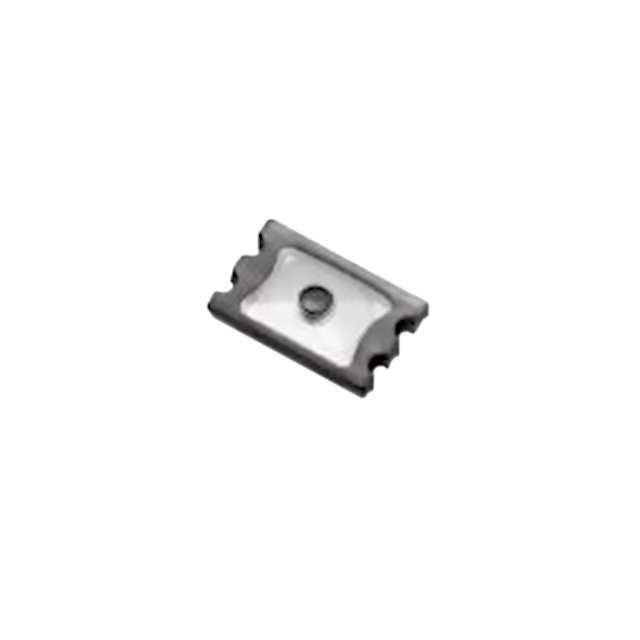

Series : LS95
Part Status : Discontinued at
Circuit : SPST-NO
Switch Function : Off-Mom
Contact Rating @ Voltage : 0.02A @ 12VDC
Actuator Type : Standard
Mounting Type : Surface Mount
Actuator Height off PCB, Vertical : 0.55mm
Actuator Length, Right Angle : -
Actuator Orientation : Top Actuated
Termination Style : SMD (SMT) Tab
Outline : 2.80mm x 1.75mm
Illumination : Non-Illuminated
Illumination Type, Color : -
Illumination Voltage (Nominal) : -
Operating Force : 160gf
Ingress Protection : -
Features : -
Operating Temperature : -
0
100 in stock
