Schaffner EMC, Inc.
- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.
With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.
With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.
Part Number
Manufacturer
Description
Unit Price
In Stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.9mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 168 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max) : 0.740" (18.80mm)
Package / Case : Horizontal, 4 PC Pin
0
70 in stock

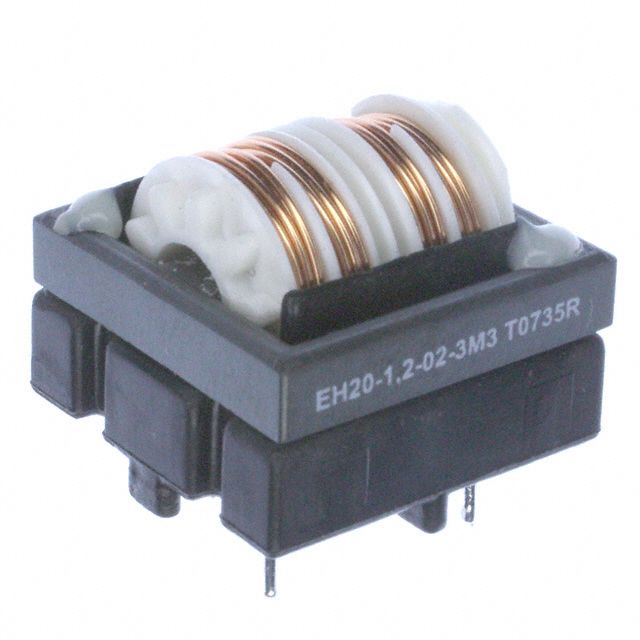

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 400Hz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 127 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max) : 0.740" (18.80mm)
Package / Case : Horizontal, 4 PC Pin
0
172 in stock

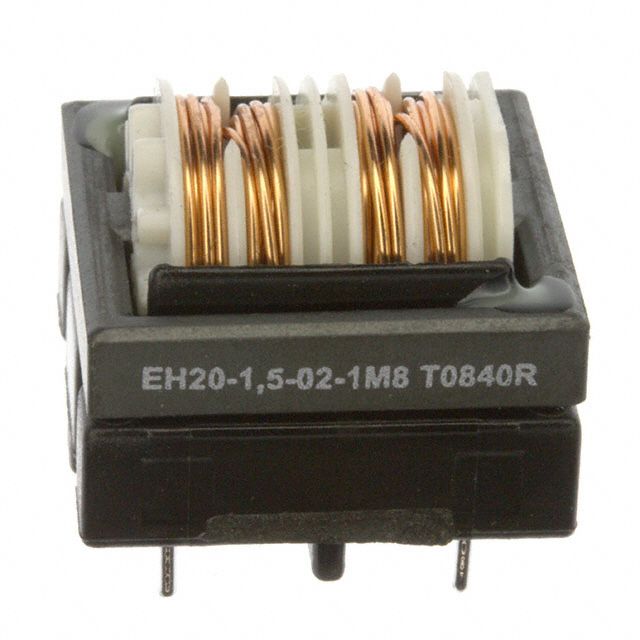

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.8mH @ 400Hz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 72 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max) : 0.740" (18.80mm)
Package / Case : Horizontal, 4 PC Pin
0
75 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 820µH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 38 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max) : 0.740" (18.80mm)
Package / Case : Horizontal, 4 PC Pin
0
220 in stock

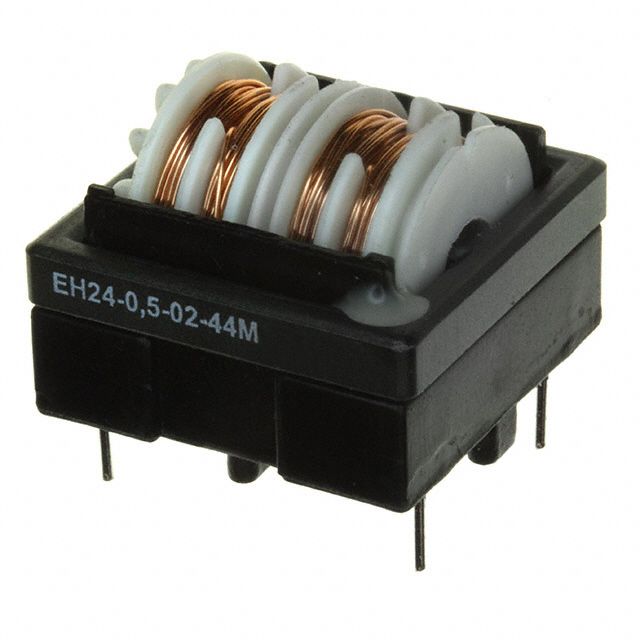

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 44mH @ 400Hz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.25 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max) : 0.827" (21.00mm)
Package / Case : Horizontal, 4 PC Pin
0
300 in stock

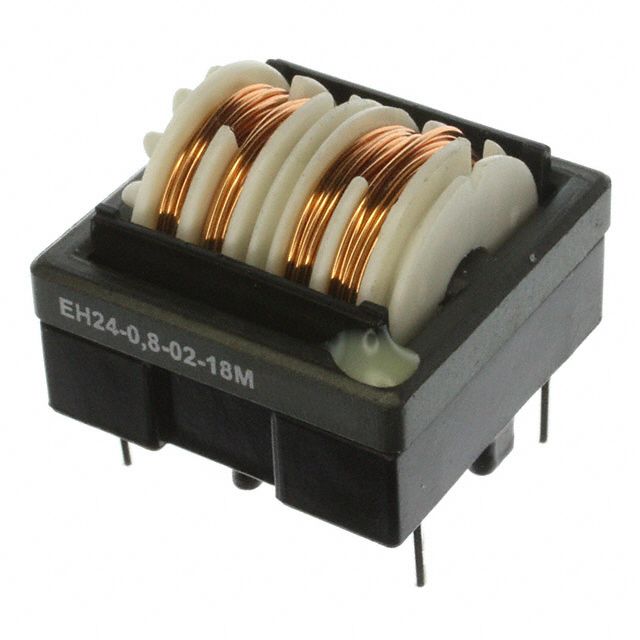

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 400Hz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 438 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max) : 0.827" (21.00mm)
Package / Case : Horizontal, 4 PC Pin
0
500 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 10kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 244 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max) : 0.827" (21.00mm)
Package / Case : Horizontal, 4 PC Pin
0
82 in stock

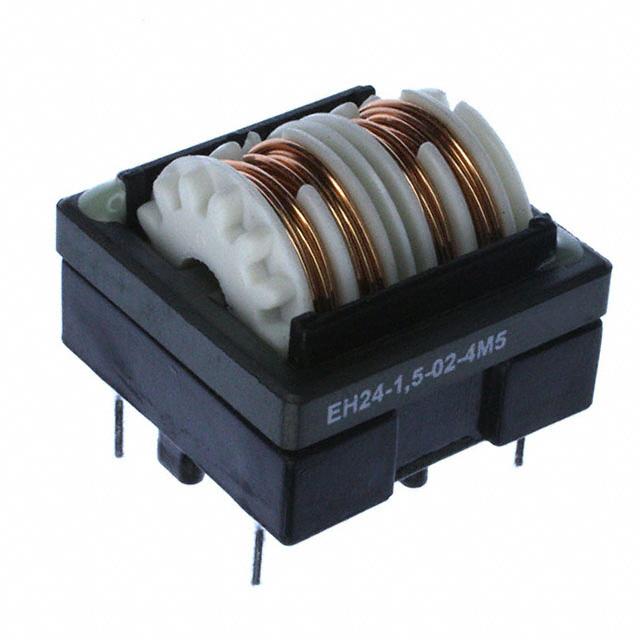

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.5mH @ 400Hz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 116 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max) : 0.827" (21.00mm)
Package / Case : Horizontal, 4 PC Pin
0
608 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 400Hz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 62 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max) : 0.827" (21.00mm)
Package / Case : Horizontal, 4 PC Pin
0
225 in stock

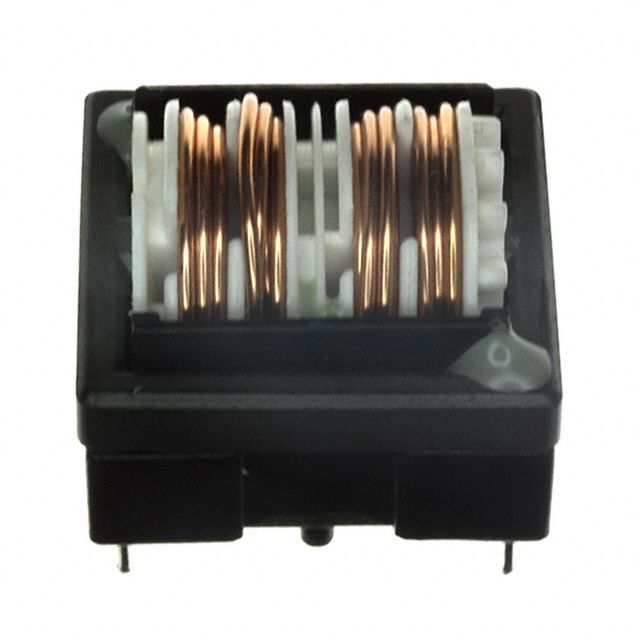

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.2mH @ 400Hz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 29 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max) : 0.827" (21.00mm)
Package / Case : Horizontal, 4 PC Pin
0
2083 in stock

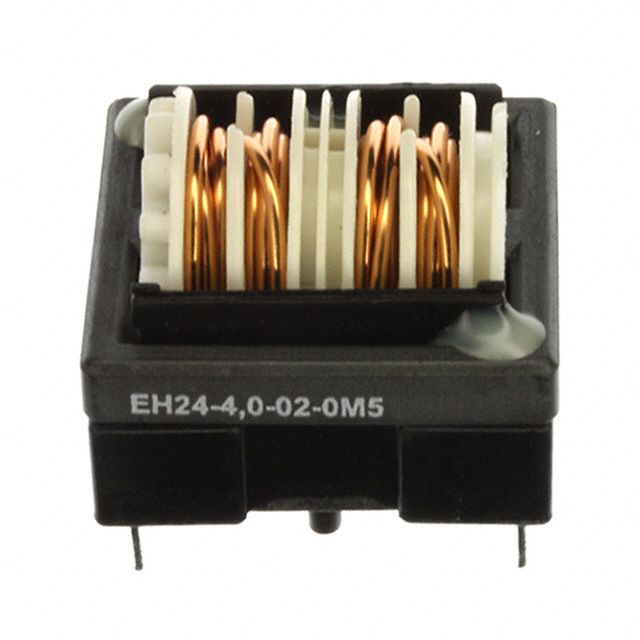

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 500µH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 16 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max) : 0.827" (21.00mm)
Package / Case : Horizontal, 4 PC Pin
0
500 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 36mH @ 400Hz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 591 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.102" L x 1.102" W (28.00mm x 28.00mm)
Height (Max) : 0.941" (23.90mm)
Package / Case : Horizontal, 4 PC Pin
0
18 in stock
