Schaffner EMC, Inc.
- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.
With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.
With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.
Part Number
Manufacturer
Description
Unit Price
In Stock

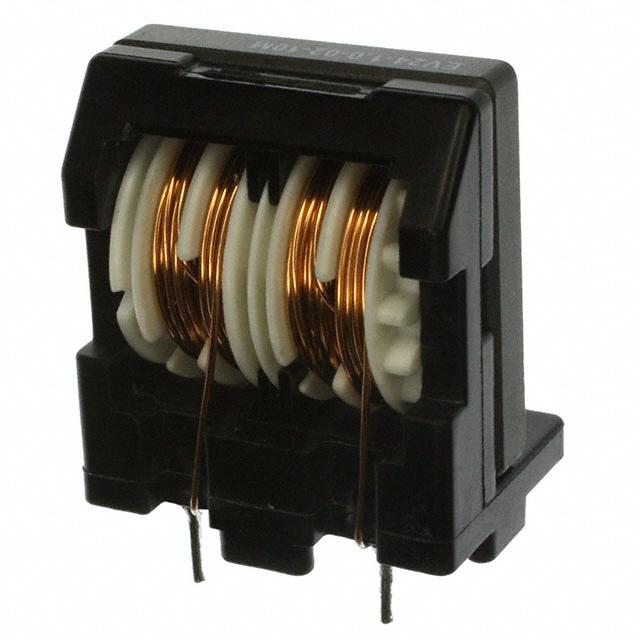

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 400Hz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 244 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max) : 1.185" (30.10mm)
Package / Case : Vertical, 4 PC Pin
0
4786 in stock

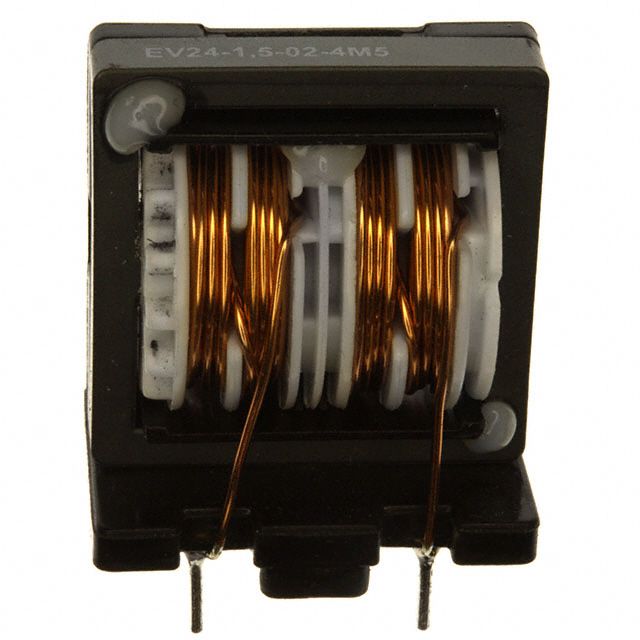

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 4.5mH @ 400Hz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 116 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max) : 1.185" (30.10mm)
Package / Case : Vertical, 4 PC Pin
0
500 in stock

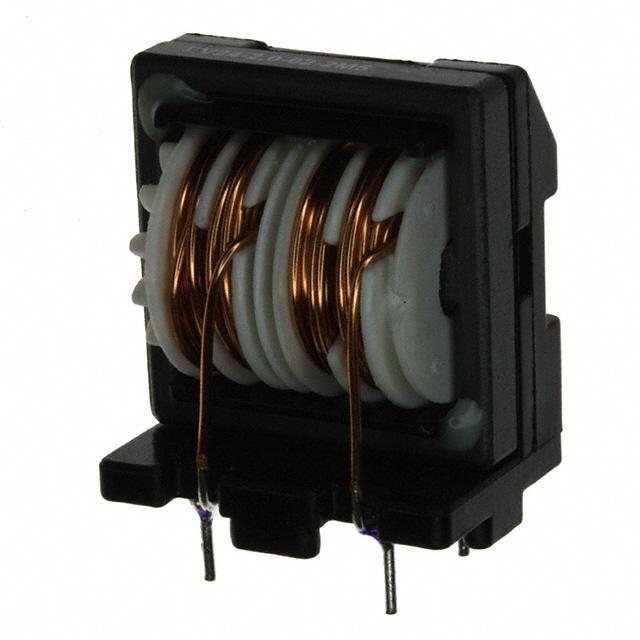

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.5mH @ 10kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 62 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max) : 1.185" (30.10mm)
Package / Case : Vertical, 4 PC Pin
0
659 in stock

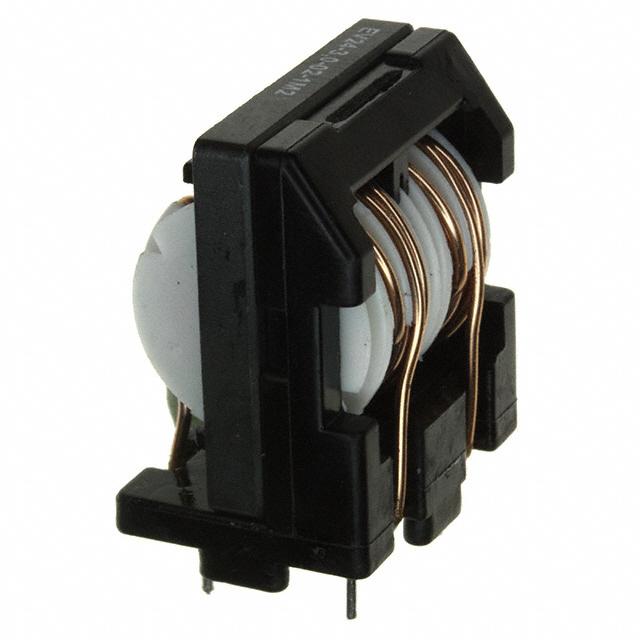

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.2mH @ 400Hz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 29 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max) : 1.185" (30.10mm)
Package / Case : Vertical, 4 PC Pin
0
817 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -

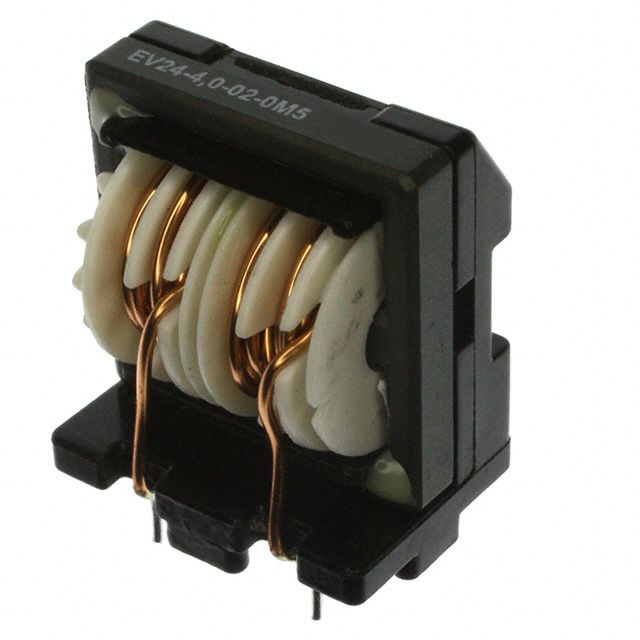

Inductance @ Frequency : 500µH @ 400Hz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 16 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max) : 1.185" (30.10mm)
Package / Case : Vertical, 4 PC Pin
0
399 in stock

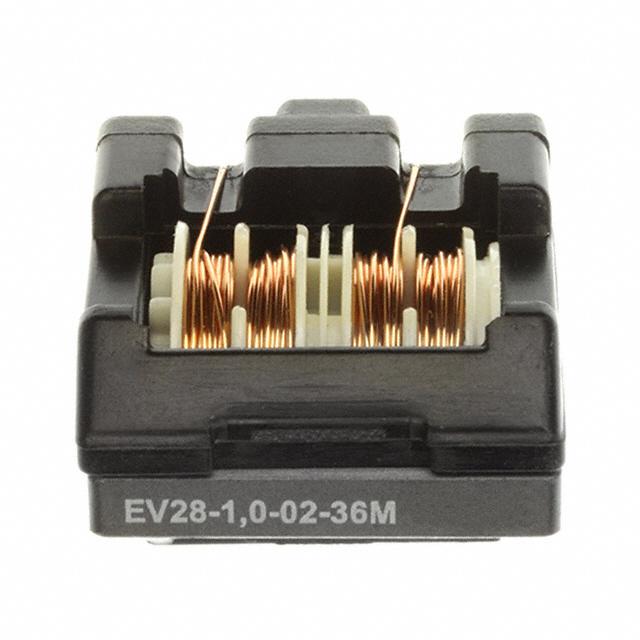

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 36mH @ 400Hz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 591 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) : 1.406" (35.70mm)
Package / Case : Vertical, 4 PC Pin
0
456 in stock

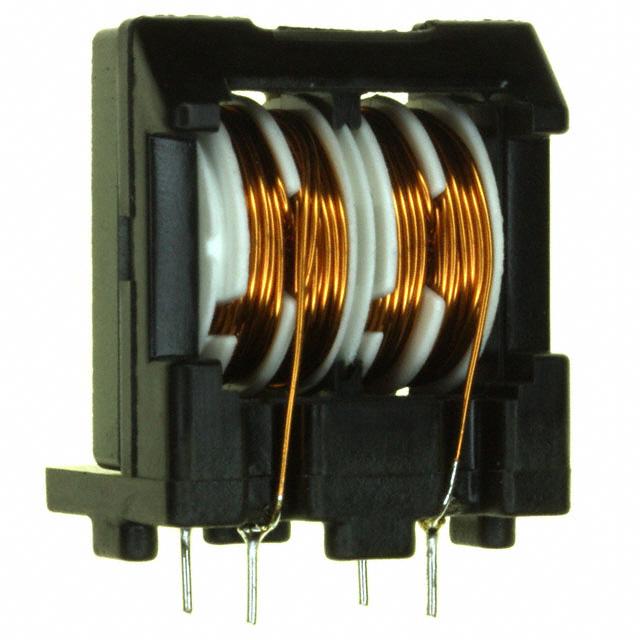

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 20mH @ 400Hz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 282 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) : 1.406" (35.70mm)
Package / Case : Vertical, 4 PC Pin
0
3817 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -

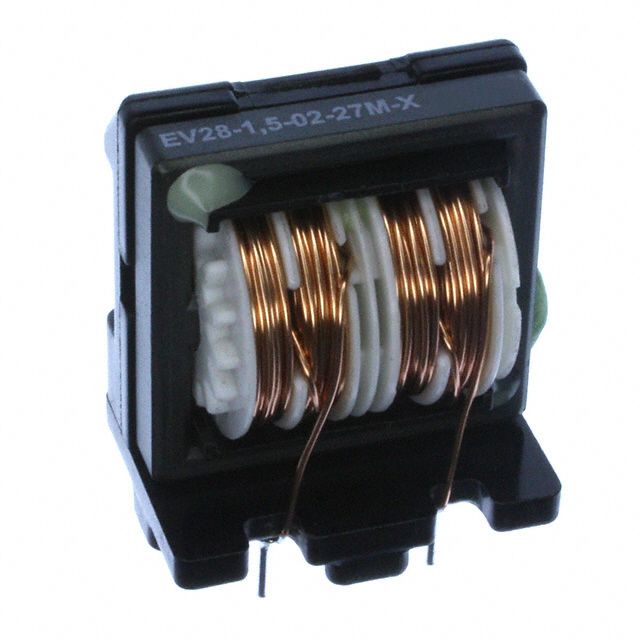

Inductance @ Frequency : 27mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 287 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) : 1.406" (35.70mm)
Package / Case : Vertical, 4 PC Pin
0
92 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -

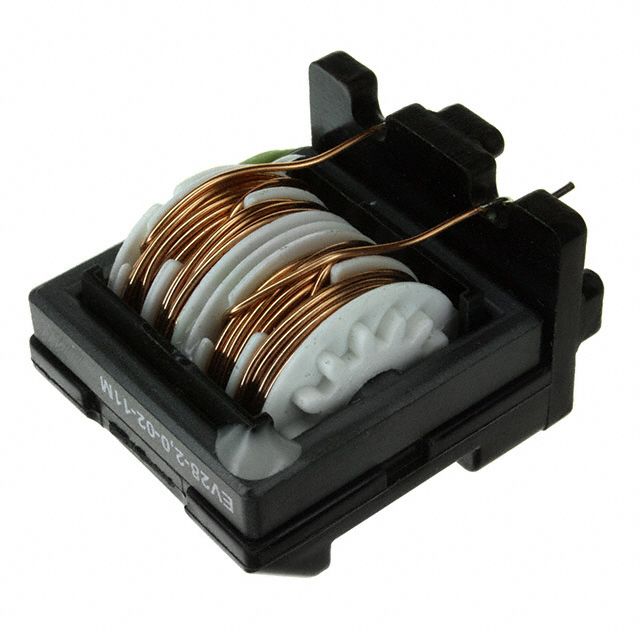

Inductance @ Frequency : 11mH @ 400Hz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 162 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) : 1.406" (35.70mm)
Package / Case : Vertical, 4 PC Pin
0
312 in stock

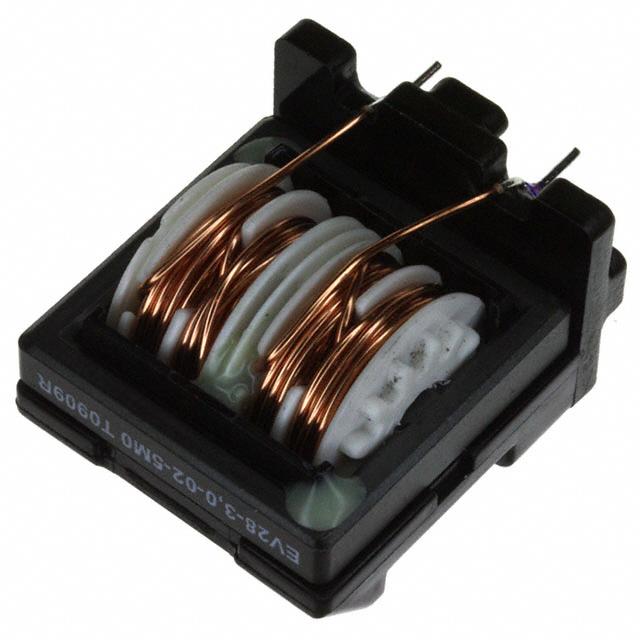

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 400Hz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 79 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) : 1.406" (35.70mm)
Package / Case : Vertical, 4 PC Pin
0
3421 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -

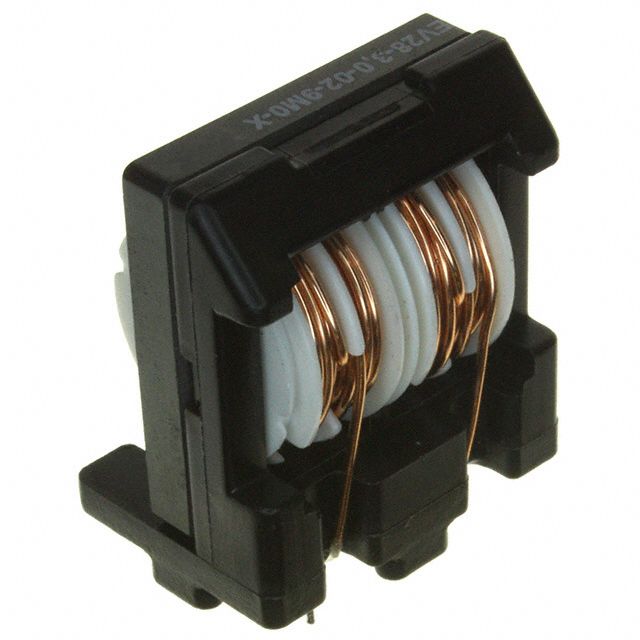

Inductance @ Frequency : 9mH @ 400Hz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 115 mOhm
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) : 1.406" (35.70mm)
Package / Case : Vertical, 4 PC Pin
0
694 in stock

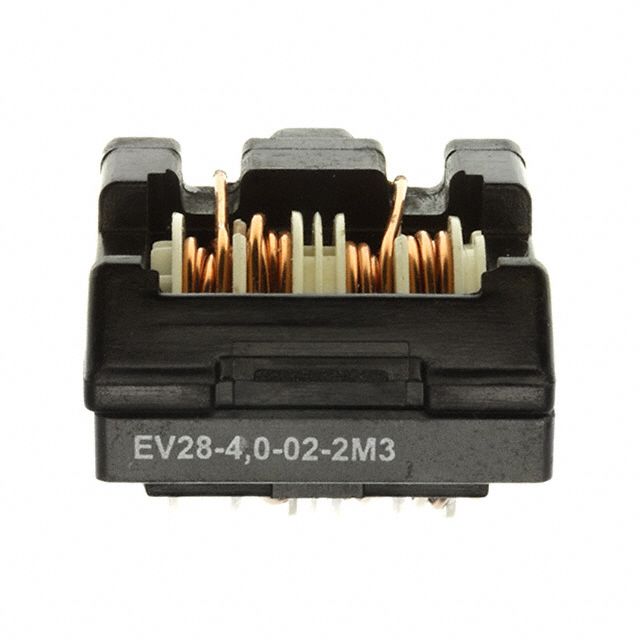

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 2.3mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 40 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) : 1.406" (35.70mm)
Package / Case : Vertical, 4 PC Pin
0
514 in stock
