Schaffner EMC, Inc.
- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.
With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.
With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.
Part Number
Manufacturer
Description
Unit Price
In Stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.1mH @ 400Hz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 27 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max) : 1.406" (35.70mm)
Package / Case : Vertical, 4 PC Pin
0
188 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 90mH @ 400Hz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 628 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.417" L x 0.965" W (36.00mm x 24.50mm)
Height (Max) : 1.681" (42.70mm)
Package / Case : Vertical, 4 PC Pin
0
66 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 20mH @ 400Hz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 150 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.417" L x 0.965" W (36.00mm x 24.50mm)
Height (Max) : 1.681" (42.70mm)
Package / Case : Vertical, 4 PC Pin
0
521 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tray
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 400Hz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 72 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.417" L x 0.965" W (36.00mm x 24.50mm)
Height (Max) : 1.681" (42.70mm)
Package / Case : Vertical, 4 PC Pin
0
547 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 10kHz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 53 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.417" L x 0.965" W (36.00mm x 24.50mm)
Height (Max) : 1.681" (42.70mm)
Package / Case : Vertical, 4 PC Pin
0
159 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.6mH @ 400Hz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 33 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.417" L x 0.965" W (36.00mm x 24.50mm)
Height (Max) : 1.681" (42.70mm)
Package / Case : Vertical, 4 PC Pin
0
921 in stock

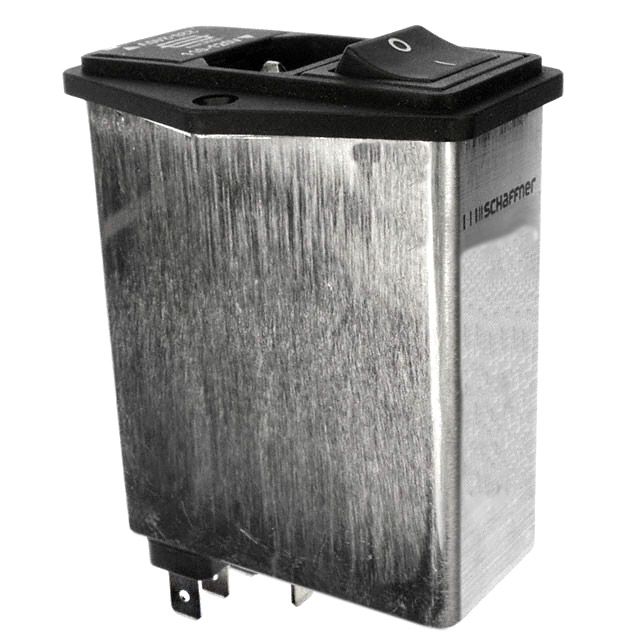

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : FN 390
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades - Module
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 250VAC
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : Yes
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : Switch On-Off
Features : Front or Rear Side Mount, Voltage Selector
Fuse Holder, Drawer : Fuse Holder
Panel Cutout Dimensions : Rectangular - 29.00mm x 60.00mm
Panel Thickness : -
Material Flammability Rating : UL94 V-2
Ingress Protection : IP40
Approvals : CSA, ENEC, UL
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : FN 390
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades - Module
Current - IEC : -
Voltage - IEC : -
Current - UL : 1A
Voltage - UL : 250VAC
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : Yes
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : Switch On-Off
Features : Front or Rear Side Mount, Voltage Selector
Fuse Holder, Drawer : Fuse Holder
Panel Cutout Dimensions : Rectangular - 29.00mm x 60.00mm
Panel Thickness : -
Material Flammability Rating : UL94 V-2
Ingress Protection : IP40
Approvals : CSA, ENEC, UL
0
20 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : FN 390
Part Status : Not For New Designs
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades - Module
Current - IEC : -
Voltage - IEC : -
Current - UL : 1A
Voltage - UL : 250VAC
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : Yes
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : Switch On-Off
Features : Front or Rear Side Mount, Voltage Selector
Fuse Holder, Drawer : Fuse Holder
Panel Cutout Dimensions : Rectangular - 29.00mm x 60.00mm
Panel Thickness : -
Material Flammability Rating : UL94 V-2
Ingress Protection : IP40
Approvals : CSA, ENEC, UL
0
100 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : FN 390
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades - Module
Current - IEC : -
Voltage - IEC : -
Current - UL : 2.5A
Voltage - UL : 250VAC
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : Yes
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : Switch On-Off
Features : Front or Rear Side Mount, Voltage Selector
Fuse Holder, Drawer : Fuse Holder
Panel Cutout Dimensions : Rectangular - 29.00mm x 60.00mm
Panel Thickness : -
Material Flammability Rating : UL94 V-2
Ingress Protection : IP40
Approvals : CSA, ENEC, UL
0
228 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : FN 390
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades - Module
Current - IEC : -
Voltage - IEC : -
Current - UL : 6A
Voltage - UL : 250VAC
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : Yes
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : Switch On-Off
Features : Front or Rear Side Mount, Voltage Selector
Fuse Holder, Drawer : Fuse Holder
Panel Cutout Dimensions : Rectangular - 29.00mm x 60.00mm
Panel Thickness : -
Material Flammability Rating : UL94 V-2
Ingress Protection : IP40
Approvals : CSA, ENEC, UL
0
50 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Bulk
Series : FN 390
Part Status : Active
Connector Style : IEC 320-C14
Connector Type : Receptacle, Male Blades - Module
Current - IEC : -
Voltage - IEC : -
Current - UL : 10A
Voltage - UL : 250VAC
Filter Type : Filtered (EMI, RFI) - Commercial
Fuse : Yes
Number of Positions : 3
Mounting Type : Panel Mount, Flange
Termination : Quick Connect - 0.250" (6.3mm)
Switch Features : Switch On-Off
Features : Front or Rear Side Mount, Voltage Selector
Fuse Holder, Drawer : Fuse Holder, Twin Fused
Panel Cutout Dimensions : Rectangular - 29.00mm x 60.00mm
Panel Thickness : -
Material Flammability Rating : UL94 V-2
Ingress Protection : IP40
Approvals : CSA, ENEC, UL
0
146 in stock
