Schaffner EMC, Inc.
- Schaffner is the international leader in the fields of electromagnetic compatibility and power quality, supplying components that support the efficient and reliable use of electric energy. Customers benefit from the technological know-how of the Schaffner Group in the development, manufacturing and marketing of high-performance products that offer optimized and fault-free operation and compliance with all major quality and performance standards.
With its products and services, the Schaffner Group plays a key role in promoting technologies that support renewable energies, ensures the reliable functioning of electronic equipment and systems and meets the requirements for greater energy efficiency.
With its EMC and power quality components and modules plus a wide range of services for equipment manufacturers and systems integrators, the Schaffner Group strives for market leadership in all product and service categories.
Part Number
Manufacturer
Description
Unit Price
In Stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 10mH @ 400Hz
Current Rating (Max) : 3A
DC Resistance (DCR) (Max) : 72 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.417" L x 1.417" W (36.00mm x 36.00mm)
Height (Max) : 1.130" (28.70mm)
Package / Case : Horizontal, 4 PC Pin
0
65 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5mH @ 400Hz
Current Rating (Max) : 4A
DC Resistance (DCR) (Max) : 53 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.417" L x 1.417" W (36.00mm x 36.00mm)
Height (Max) : 1.130" (28.70mm)
Package / Case : Horizontal, 4 PC Pin
0
153 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EH
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.6mH @ 400Hz
Current Rating (Max) : 5A
DC Resistance (DCR) (Max) : 33 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 1.417" L x 1.417" W (36.00mm x 36.00mm)
Height (Max) : 1.130" (28.70mm)
Package / Case : Horizontal, 4 PC Pin
0
412 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 33mH @ 10kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 1.78 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max) : 1.024" (26.00mm)
Package / Case : Vertical, 4 PC Pin
0
3538 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 400Hz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 725 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max) : 1.024" (26.00mm)
Package / Case : Vertical, 4 PC Pin
0
1630 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 5.6mH @ 400Hz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 245 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max) : 1.024" (26.00mm)
Package / Case : Vertical, 4 PC Pin
0
129 in stock

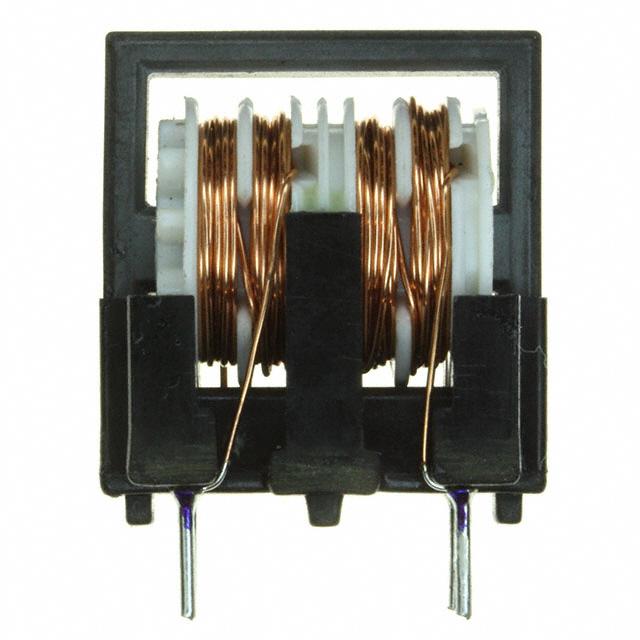

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.9mH @ 400Hz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 168 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max) : 1.024" (26.00mm)
Package / Case : Vertical, 4 PC Pin
0
100 in stock

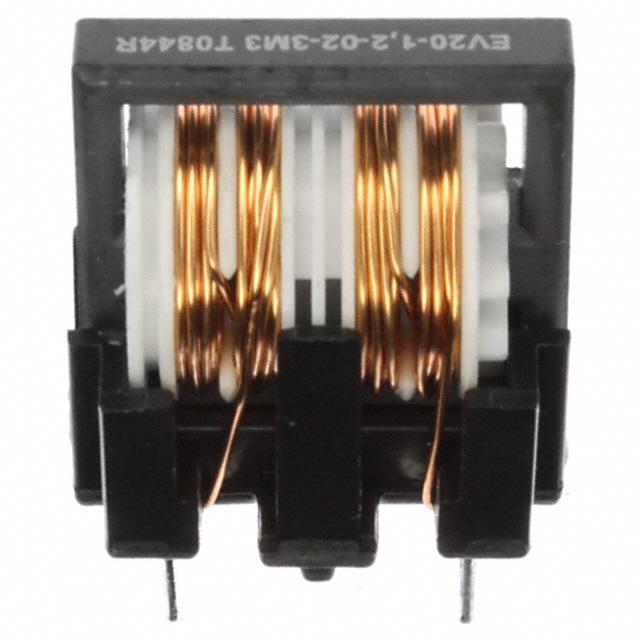

Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 3.3mH @ 400Hz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 127 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max) : 1.024" (26.00mm)
Package / Case : Vertical, 4 PC Pin
0
921 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 1.8mH @ 10kHz
Current Rating (Max) : 1.5A
DC Resistance (DCR) (Max) : 72 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max) : 1.024" (26.00mm)
Package / Case : Vertical, 4 PC Pin
0
58 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 820µH @ 400Hz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 38 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.827" L x 0.630" W (21.00mm x 16.00mm)
Height (Max) : 1.024" (26.00mm)
Package / Case : Vertical, 4 PC Pin
0
15785 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 44mH @ 400Hz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 1.25 Ohm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max) : 1.185" (30.10mm)
Package / Case : Vertical, 4 PC Pin
0
335 in stock
Schaffner EMC, Inc.
Manufacturer : Schaffner EMC Inc.
Packaging : Tube
Series : EV
Part Status : Active
Filter Type : Power Line
Number of Lines : 2
Impedance @ Frequency : -
Inductance @ Frequency : 18mH @ 10kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 438 mOhm (Typ)
Voltage Rating - DC : -
Voltage Rating - AC : 250V
Operating Temperature : -25°C ~ 100°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Through Hole
Size / Dimension : 0.969" L x 0.685" W (24.60mm x 17.40mm)
Height (Max) : 1.185" (30.10mm)
Package / Case : Vertical, 4 PC Pin
0
529 in stock
