Category
  • Solder Stencils, Templates
Part Number
Manufacturer
Description
Unit Price
In Stock

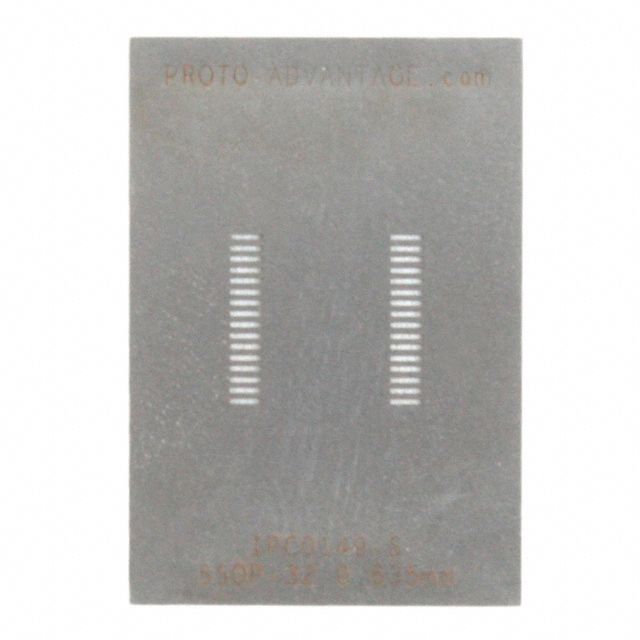

Picture of IPC0149-S

IPC0149-S IPC0149-S

Chip Quik, Inc.
Type : SSOP
Number of Positions : 32
Pitch : 0.025" (0.64mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.406" L x 0.295" W (10.30mm x 7.50mm)
Thermal Center Pad : -
0
100 in stock

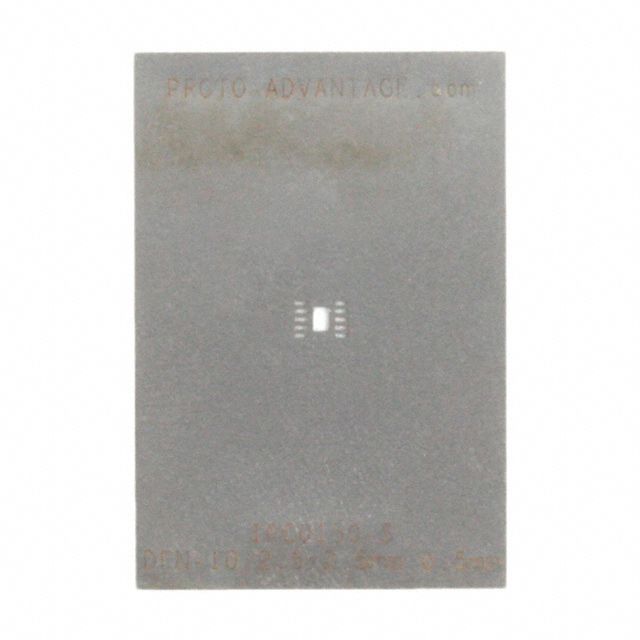

Picture of IPC0150-S

IPC0150-S IPC0150-S

Chip Quik, Inc.
Type : DFN
Number of Positions : 10
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.098" L x 0.098" W (2.50mm x 2.50mm)
Thermal Center Pad : 0.047" L x 0.079" W (1.20mm x 2.00mm)
0
100 in stock
Picture of IPC0151-S

IPC0151-S IPC0151-S

Chip Quik, Inc.
Type : MSOP
Number of Positions : 12
Pitch : 0.026" (0.65mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.157" L x 0.118" W (4.00mm x 3.00mm)
Thermal Center Pad : -
0
100 in stock

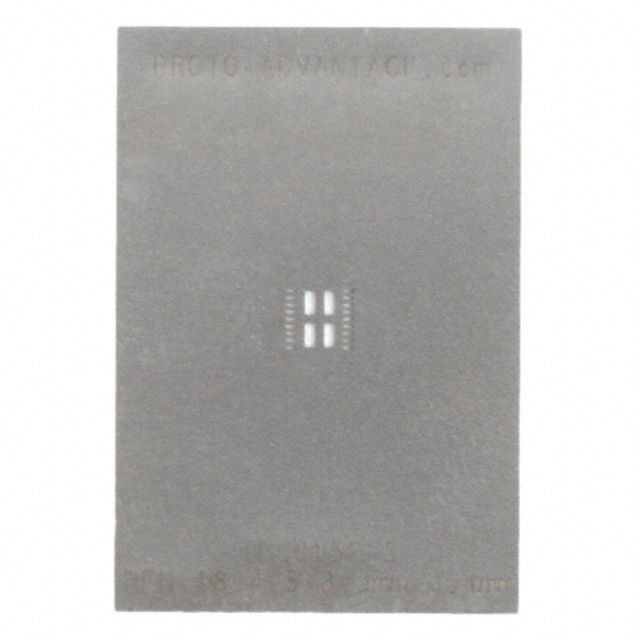

Picture of IPC0152-S

IPC0152-S IPC0152-S

Chip Quik, Inc.
Type : DFN
Number of Positions : 18
Pitch : 0.016" (0.40mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.177" L x 0.138" W (4.50mm x 3.50mm)
Thermal Center Pad : 0.083" L x 0.156" W (2.10mm x 3.95mm)
0
100 in stock

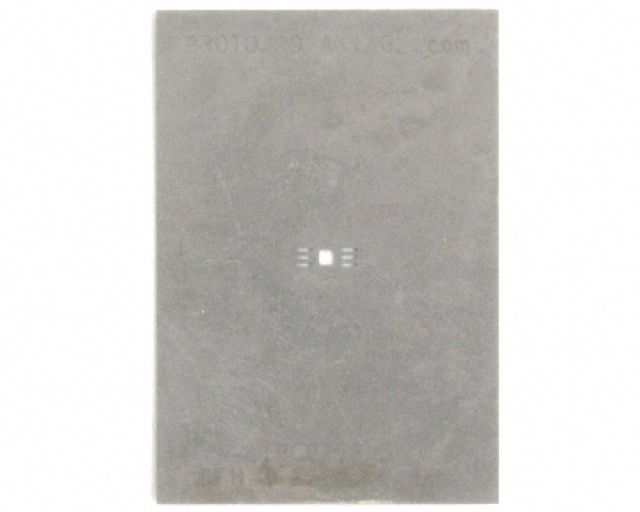

Picture of IPC0153-S

IPC0153-S IPC0153-S

Chip Quik, Inc.
Type : DFN
Number of Positions : 6
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.079" L x 0.118" W (2.00mm x 3.00mm)
Thermal Center Pad : 0.049" L x 0.051" W (1.25mm x 1.30mm)
0
100 in stock

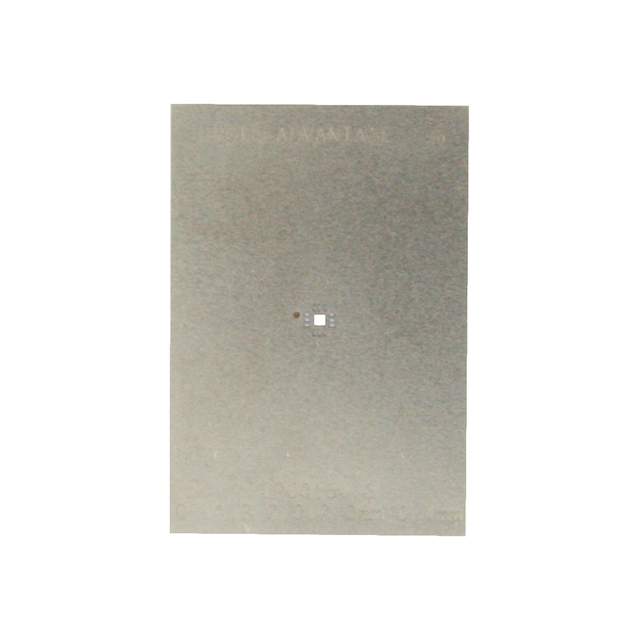

Picture of IPC0154-S

IPC0154-S IPC0154-S

Chip Quik, Inc.
Type : QFN/LFCSP
Number of Positions : 12
Pitch : 0.016" (0.40mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Thermal Center Pad : 0.036" L x 0.036" W (0.92mm x 0.92mm)
0
100 in stock

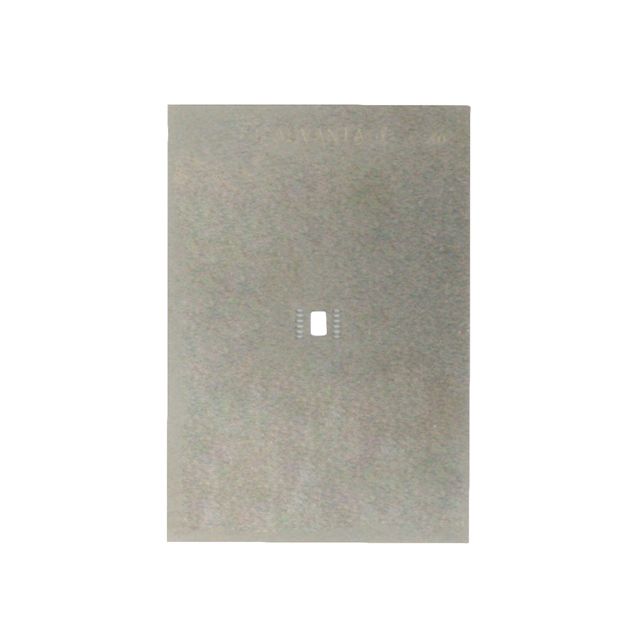

Picture of IPC0155-S

IPC0155-S IPC0155-S

Chip Quik, Inc.
Type : DFN
Number of Positions : 12
Pitch : 0.016" (0.40mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.118" L x 0.118" W (3.00mm x 3.00mm)
Thermal Center Pad : 0.066" L x 0.087" W (1.68mm x 2.20mm)
0
100 in stock

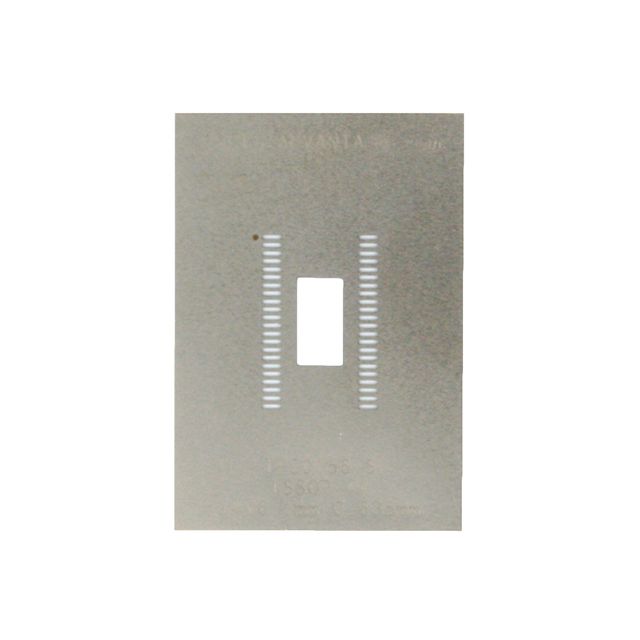

Picture of IPC0156-S

IPC0156-S IPC0156-S

Chip Quik, Inc.
Type : TSSOP
Number of Positions : 44
Pitch : 0.025" (0.64mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.551" L x 0.240" W (14.00mm x 6.10mm)
Thermal Center Pad : 0.157" L x 0.276" W (4.00mm x 7.00mm)
0
100 in stock

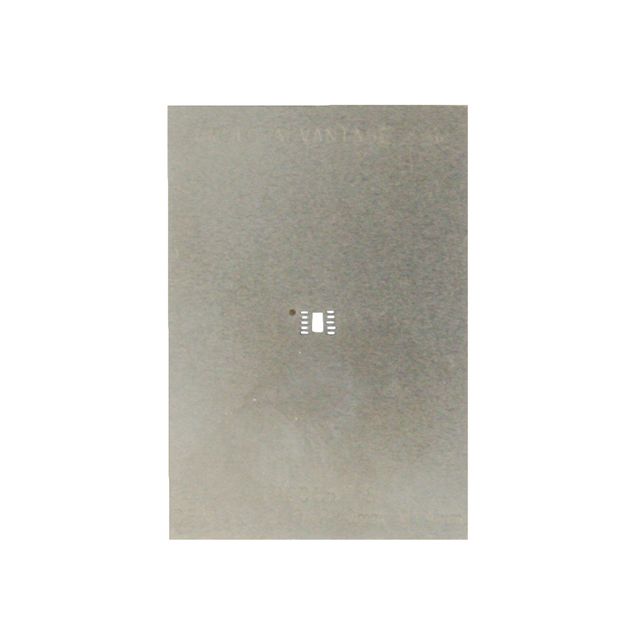

Picture of IPC0157-S

IPC0157-S IPC0157-S

Chip Quik, Inc.
Type : DFN
Number of Positions : 10
Pitch : 0.016" (0.40mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.079" L x 0.079" W (2.00mm x 2.00mm)
Thermal Center Pad : 0.035" L x 0.057" W (0.90mm x 1.45mm)
0
100 in stock

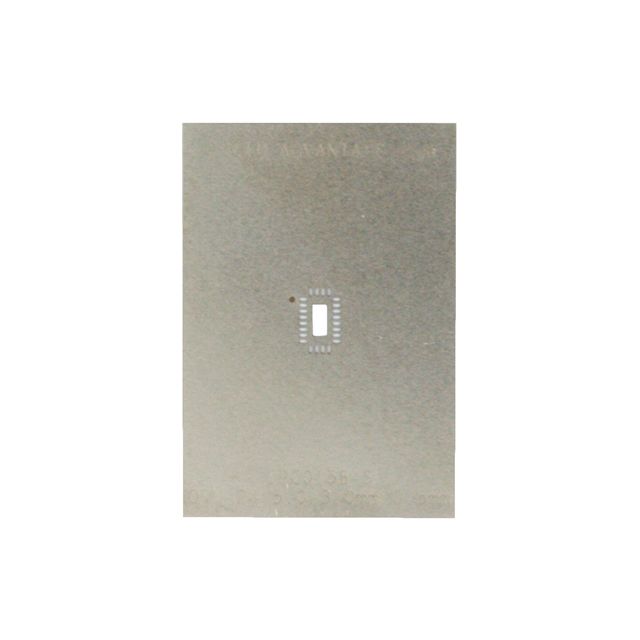

Picture of IPC0158-S

IPC0158-S IPC0158-S

Chip Quik, Inc.
Type : QFN/LFCSP
Number of Positions : 24
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.197" L x 0.118" W (5.00mm x 3.00mm)
Thermal Center Pad : 0.065" L x 0.144" W (1.65mm x 3.65mm)
0
100 in stock

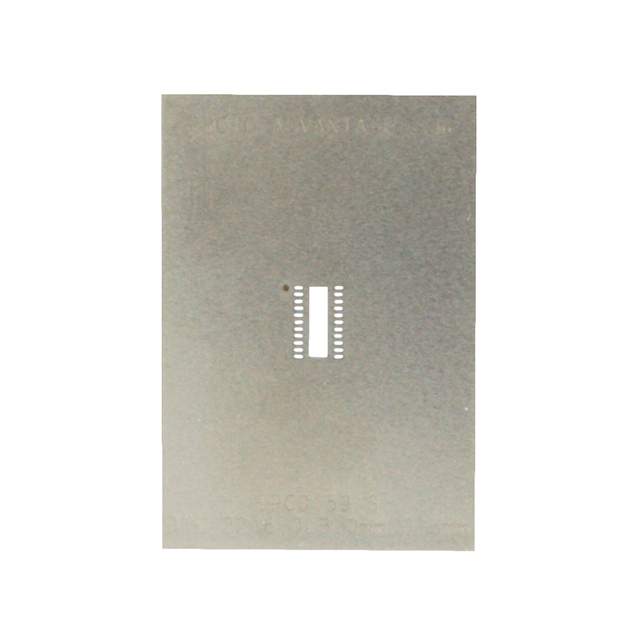

Picture of IPC0159-S

IPC0159-S IPC0159-S

Chip Quik, Inc.
Type : DFN
Number of Positions : 22
Pitch : 0.020" (0.50mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.236" L x 0.118" W (6.00mm x 3.00mm)
Thermal Center Pad : 0.065" L x 0.211" W (1.65mm x 5.35mm)
0
100 in stock

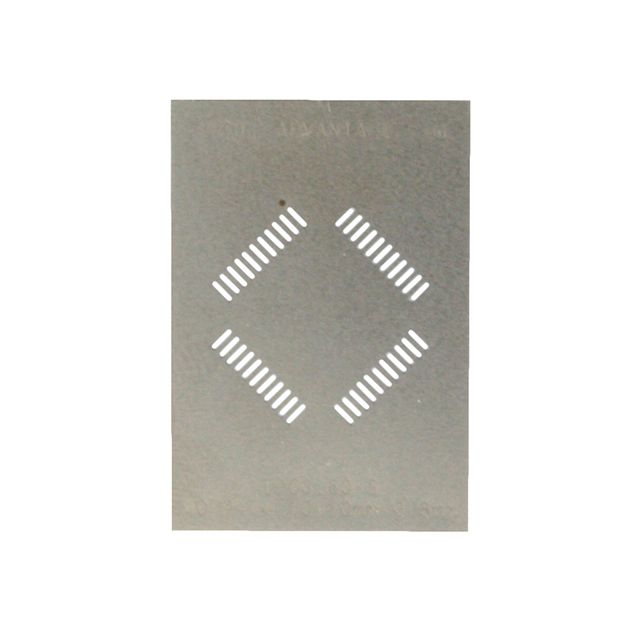

Picture of IPC0160-S

IPC0160-S IPC0160-S

Chip Quik, Inc.
Type : MQFP
Number of Positions : 44
Pitch : 0.031" (0.80mm)
Outer Dimension : 0.900" L x 1.300" W (22.86mm x 33.02mm)
Inner Dimension : 0.394" L x 0.394" W (10.00mm x 10.00mm)
Thermal Center Pad : -
0
100 in stock
